2006 MERCEDES-BENZ SLR tow

85 Safety and Security
Driving safety systems
The electrohydraulic brake system is auto-
matically activated when you

unlock the vehicle with the SmartKey


open the driver’s or passenger door


turn the SmartKey in the starter switch
to position1


depress the brake pedal


release the parking brakeA tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
u p t o 3 0 m i l e s ( 5 0 k m ) a n d a t a s p e e d n o t t o
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(page 360).
iIf the electrohydraulic brake system is
activated as the brake pedal is first de-
pressed, you may feel a reduced pedal
resistance and longer pedal travel than
normal. When releasing the pedal, you
may also feel the brake pedal pulsate
and you may hear a sound which is
caused by the activation of the electro-
hydraulic brake system pump. This is
normal and not an indication of a mal-
function. Pedal travel returns to normal
when you release the brake pedal and
the sound soon ceases.
If you experience the above while driv-
ing and the red brake warning lamp
(page 300) illuminates and/or warn-
ing messages appear in the multifunc-
tion display (
page 319), the brake
system is malfunctioning. Follow the in-
structions of the warning message(s)
and have the brake system checked
immediately.
Warning!
G
Have brake pad replacement and other work
on the electrohydraulic brake system car-
ried out by qualified technicians only. Con-
tact your Mercedes-Benz Center for further
information. The electrohydraulic brake sys-
tem must be deactivated prior to working on
the system. High pressure is intermittently
built up in the system as part of its automat-
ic self-test. In addition, the system is auto-
matically activated when the vehicle is
unlocked by remote control, when the driver
or passenger door is opened, when the
SmartKey in the starter switch is turned to
position1, when the brake pedal is de-
pressed or when the parking brake is re-
leased. Failure to deactivate the system
prior to maintenance will cause brake pis-
tons to extend and brake fluid to leak, which
may result in injuries (contusions and acid
burns). Extended brake pistons may also
cause injury.

92 Safety and SecurityAnti-theft systemsTow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm

Lock your vehicle with the SmartKey.
The tow-away alarm is automatically
armed after about 30 seconds.Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.
The button is located on the lower part of
the center console.
1Tow-away alarm off button
2Indicator lamp
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 215) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iWhen you unlock your vehicle, the
tow-away protection disarms
automatically. The tow-away alarm
remains disarmed until you lock the
vehicle again.

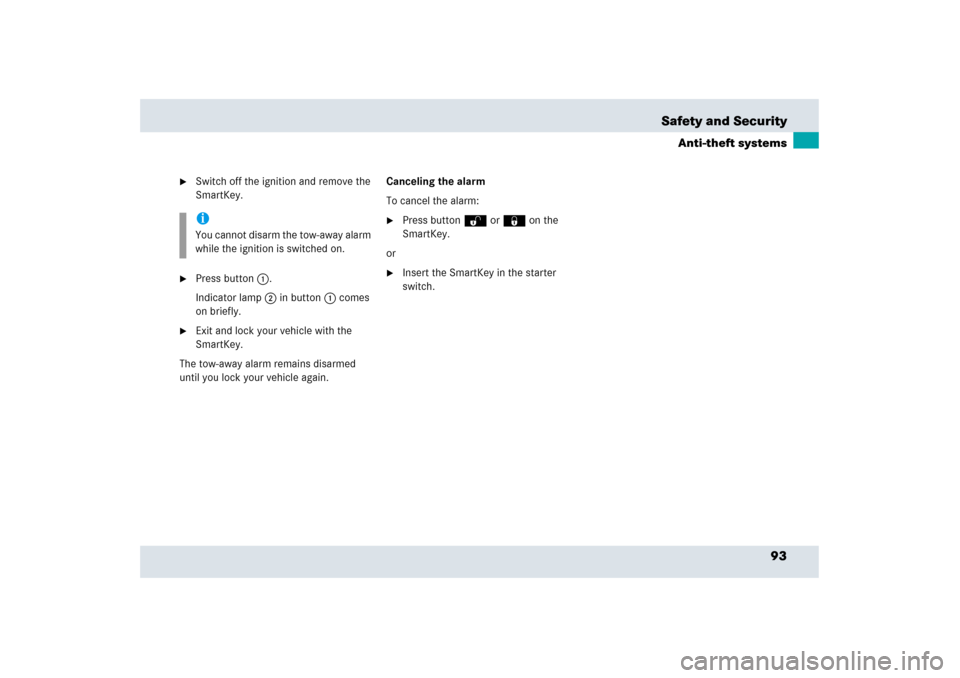

93 Safety and Security
Anti-theft systems

Switch off the ignition and remove the
SmartKey.

Press button 1.
Indicator lamp2 in button1 comes
on briefly.

Exit and lock your vehicle with the
SmartKey.
The tow-away alarm remains disarmed
until you lock your vehicle again.Canceling the alarm
To cancel the alarm:

Press buttonŒ or‹ on the
SmartKey.
or

Insert the SmartKey in the starter
switch.
iYou cannot disarm the tow-away alarm
while the ignition is switched on.

149 Controls in detail
Audio system
You can select from among the
following settings:

DRV
: The tone level is set to the
Driver position; sound is directed
toward the passengers.


SP: The tone level is set for Speech,
optimizing the sound for the spoken
word.


AMB
: The tone level is set for
Ambience, producing a
three-dimensional sound.


OFF
: The audio system sound
selection is turned off.
Telephone muting
The radio will switch to telephone mode
when a call is incoming. The current audio
source is muted.
Radio operation
Selecting radio mode
Pressb button.

You can now receive radio stations
over the analog FM, AM or WB station
frequencies.
Analog station frequencies
Selecting the band
You can select from among FM, AM or WB
frequency bands.
Weather band (
page 152).

Press FM, AM or WB key repeatedly un-
til desired band has been selected.The FM, AM and WB frequency bands
are called up one after the other.
The frequency band currently selected
appears in the upper left-hand corner
of the display.
Selecting a station
The following options are available for
selecting a station:


Direct frequency band input
(page 150)


Manual tuning (
page 150)


Automatic seek tuning (
page 150)


Scan tuning (
page 151)


Preset buttons (
page 151)


Automatic station memory (Autostore)
(page 151)
iFM frequency band:
FM 87.7......107.9 MHz
AM frequency band:
MW (medium wave) 530......1710 KHz

171 Controls in detail
Automatic transmission
Gear selector lever positions
Effect
ì
Park position
Gear selector lever position
when the vehicle is parked. Place
gear selector lever in positionP
only when vehicle is stopped.
The park position is not intended
to serve as a brake when the
vehicle is parked. Rather, the
driver should always set the
parking brake in addition to
placing the gear selector lever in
positionP to secure the vehicle.
EffectThe SmartKey can only be
removed from the starter switch
with the gear selector lever in
positionP. With the SmartKey
removed, the gear selector lever
is locked in positionP.
If the vehicle’s electrical system
is malfunctioning, the gear
selector lever could remain
locked in positionP.
í
Reverse gear
Place gear selector lever in
positionR only when vehicle is
stopped.
Effect
ë
Neutral
No power is transmitted from the
engine to the drive axle. When
the brakes are released, the
vehicle can be moved freely
(pushed or towed).
To avoid damage to the trans-
mission, never engageN while
driving.
If the ESP
® is deactivated or
malfunctioning:
Move gear selector lever toN
only if the vehicle is in danger of
skidding, e.g. on icy roads.
ê
Drive
The transmission shifts
automatically. All five forward
gears are available.

172 Controls in detailAutomatic transmission
!
Coasting the vehicle, or driving for any
other reason with gear selector lever
inN can result in transmission damage
that is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Getting out of your vehicle with the gear
selector lever not fully engaged in positionP
is dangerous. Also, positionP alone is not
intended to or capable of preventing your
vehicle from moving, possibly hitting people
or objects.
Always set the parking brake in addition to
shifting to positionP (
page 57).
When parked on an incline, turn the front
wheels towards the road curb.
Do not park this vehicle in areas where
combustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could move the gear selector lever from
positionP, which could result in an accident
and/or serious personal injury.

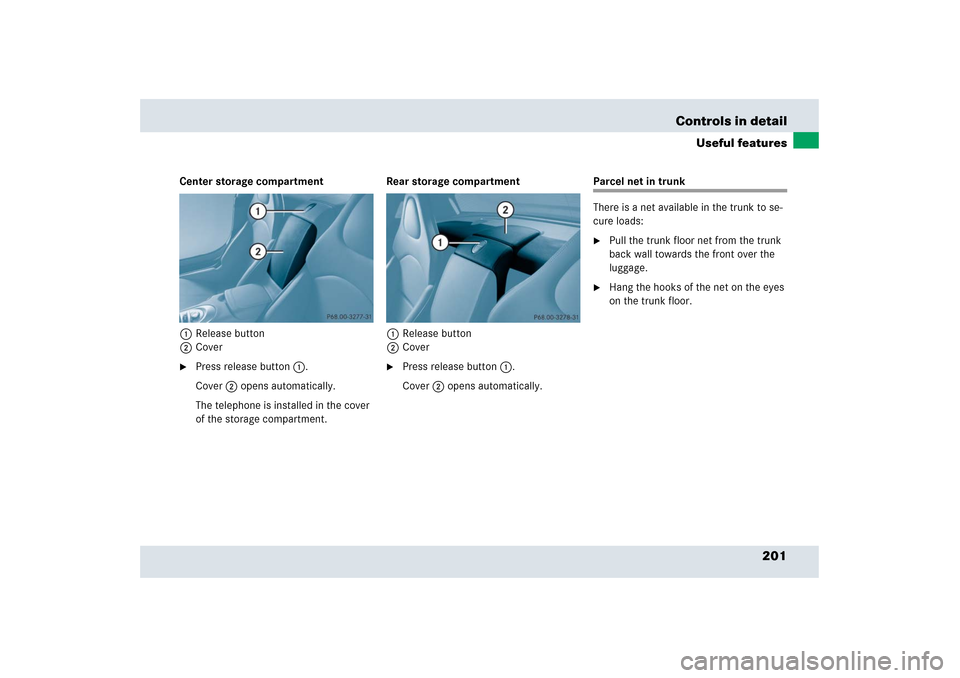

201 Controls in detail
Useful features
Center storage compartment
1Release button
2Cover
Press release button1.
Cover2 opens automatically.
The telephone is installed in the cover
of the storage compartment.Rear storage compartment
1Release button
2Cover

Press release button1.
Cover2 opens automatically.
Parcel net in trunk
There is a net available in the trunk to se-
cure loads:
Pull the trunk floor net from the trunk
back wall towards the front over the
luggage.

Hang the hooks of the net on the eyes
on the trunk floor.

212 Controls in detailUseful featuresWhen the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance
Manual for more information.These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire are ob-
tainable.iThe indicator lamp in the Roadside
Assistance button• remains illumi-
nated in red for approximately
10 seconds during the system
self-check after switching on the igni-
tion (together with the SOS button and
the Information button¡).
See system self-check (
page 209) if
the indicator lamp does not come on in
red or stays on longer than approxi-
mately 10 seconds.
If the indicator lamp in the Roadside
Assistance button• is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside
Assistance call (e.g. the relevant cellu-
lar phone network is not available). The
message
Call failed!
appears in the
multifunction display.
Roadside Assistance calls can be ter-
minated using the ìbutton on the
multifunction steering wheel.
