2006 MERCEDES-BENZ SLR ESP

44 Getting startedAdjustingAdjusting steering column in or out
Move stalk forward or back in the
direction of arrow1 until a comfort-
able steering wheel position is reached
with your arms slightly bent at the
elbow.
Adjusting steering column up or down

Press the lever up or down in the direc-
tion of arrow 2. Make sure that you
can move your legs freely and that you
can see all the displays in the instru-
ment cluster clearly.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror

Manually adjust the rear-view mirror.
For more information, see “Rear view mir-
rors” (
page 179).
Exterior rear view mirrors
Warning!
G
In case of an accident, liquid electrolyte may
escape the mirror housing if the mirror glass
breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
terior rear view mirror or glance over your
shoulder before changing lanes.

53 Getting started
Driving
High beam
The combination switch is located on the
left of the steering column.Combination switch1High beam
2High beam flasher
Push combination switch in direction of
arrow1.
The high beam indicatorA in the
instrument cluster comes on.
For more information on high beam, see
“Combination switch” (
page 109).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left

Press the combination switch up 1 or
down 2.
The corresponding turn signal indicator
lampL orK in the instrument
cluster flashes.
The combination switch automatically
returns to its original position once the
steering wheel has been turned far
enough.iTo signal minor directional changes,
such as a lane change, move combina-
tion switch to point of resistance only
and release. The turn signal flashes
three times.

59 Getting started
Parking and locking
Releasing seat belts
Press the seat belt release button
(page 47).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
Locking

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 38).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 96).
!Make sure the seat belt retracts fully so
that the seat belt and/or latch plate
cannot get caught or pinched in the
door or in the seat mechanism. This
can damage the seat belt and impair
the effectiveness of the seat belt,
and/or cause damage to the door
and/or door trim panel. Such damage
is not covered by the Mercedes-Benz
Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
iWith the SmartKey removed from the
starter switch and the driver’s door
open, a warning sounds and the mes-
sage
Turn off lamps
appears in the
multifunction display if the vehicle’s ex-
terior lamps are not switched off.

64 Safety and SecurityOccupant safety

Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the airbag cover on
the steering wheel must be at least ten
inches (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean with your head or chest
close to the steering wheel or dash-
board.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front airbag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never lean their heads in the area of the
door where the head-thorax airbag in-
flates. This could result in serious inju-
ries or death should the airbag be
triggered. Always sit nearly upright,
properly use the seat belts and appropri-
ate size infant or child restraint system.


Children 12 years old and under must
never ride in this vehicle, except in a
Mercedes-Benz authorized
BabySmart
TM compatible child seat,
which operates with the BabySmart
TM
system installed in the vehicle to deacti-
vate the passenger front airbag when it
is properly installed. Otherwise they will
be struck by the airbag when it inflates
in a crash. If this happens, serious or fa-
tal injury will result.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.

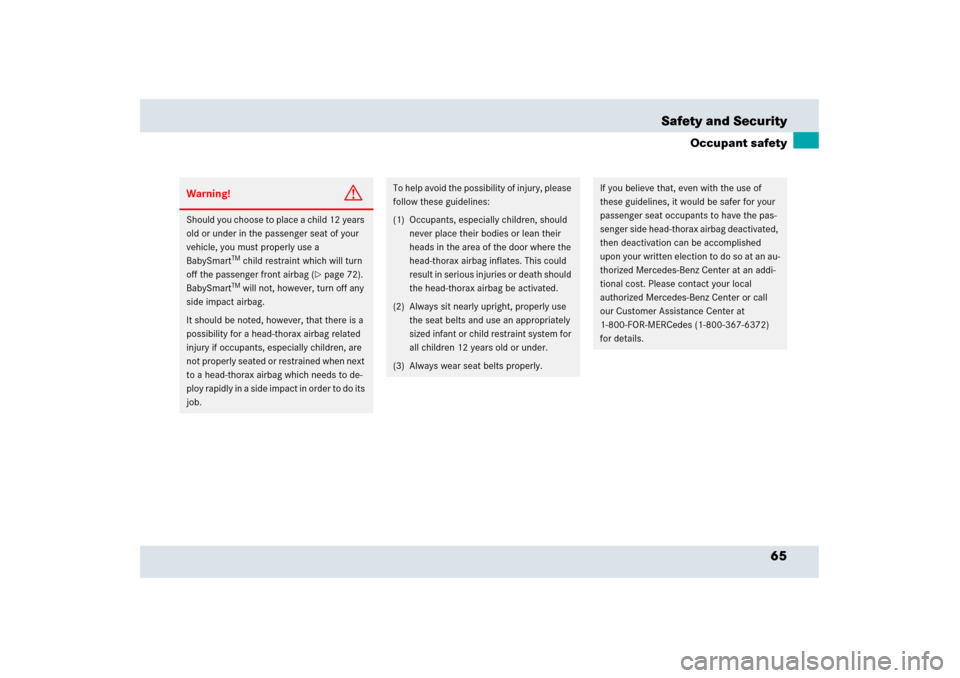

65 Safety and Security
Occupant safety
Warning!
G
Should you choose to place a child 12 years
old or under in the passenger seat of your
vehicle, you must properly use a
BabySmart
TM child restraint which will turn
off the passenger front airbag (
page 72).
BabySmart
TM will not, however, turn off any
side impact airbag.
It should be noted, however, that there is a
possibility for a head-thorax airbag related
injury if occupants, especially children, are
not properly seated or restrained when next
to a head-thorax airbag which needs to de-
ploy rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax airbag inflates. This could
result in serious injuries or death should
the head-thorax airbag be activated.
(2) Always sit nearly upright, properly use
the seat belts and use an appropriately
sized infant or child restraint system for
all children 12 years old or under.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
passenger seat occupants to have the pas-
senger side head-thorax airbag deactivated,
then deactivation can be accomplished
upon your written election to do so at an au-
thorized Mercedes-Benz Center at an addi-
tional cost. Please contact your local
authorized Mercedes-Benz Center or call
our Customer Assistance Center at
1-800-FOR-MERCedes (1-800-367-6372)
for details.

79 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP
® (E
lectronic S
tability P
rogram)


Electrohydraulic brake system
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
iIn winter operation, the maximum ef-
fectiveness of the ABS, the BAS, the
ESP
®, and the electrohydraulic brake
system is only achieved with winter
tires (page 287) or snow chains as
required.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP
®, and electrohydraulic
brake system cannot reduce this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

80 Safety and SecurityDriving safety systemsThe - indicator lamp in the instrument
cluster comes on (
page 29) when you
switch on the ignition. It goes out when the
engine is running.
Braking
If the ABS activates during braking, the
ABS/ESP
® warning lamp v in the in-
strument cluster dial flashes. Because of
the electrohydraulic brake system, you will
not feel any pulsation in the brake pedal.

Keep firm and steady pressure on the
brake pedal.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.The ABS/ESP
® warning lamp v flashes
whenever the ABS is activated which can
be an indication of hazardous road condi-
tions and functions as a reminder to take
extra care while driving.
Emergency brake maneuver

Keep continuous, full pressure on the
brake pedal.
For more information, see the
“Practical hints” section (
page 299).
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency be-
yond that afforded by the condition of the
vehicle brakes and tires or the traction. The
ABS cannot prevent accidents, including
those resulting from excessive speed in
turns, following another vehicle too closely,
or hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ABS equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.

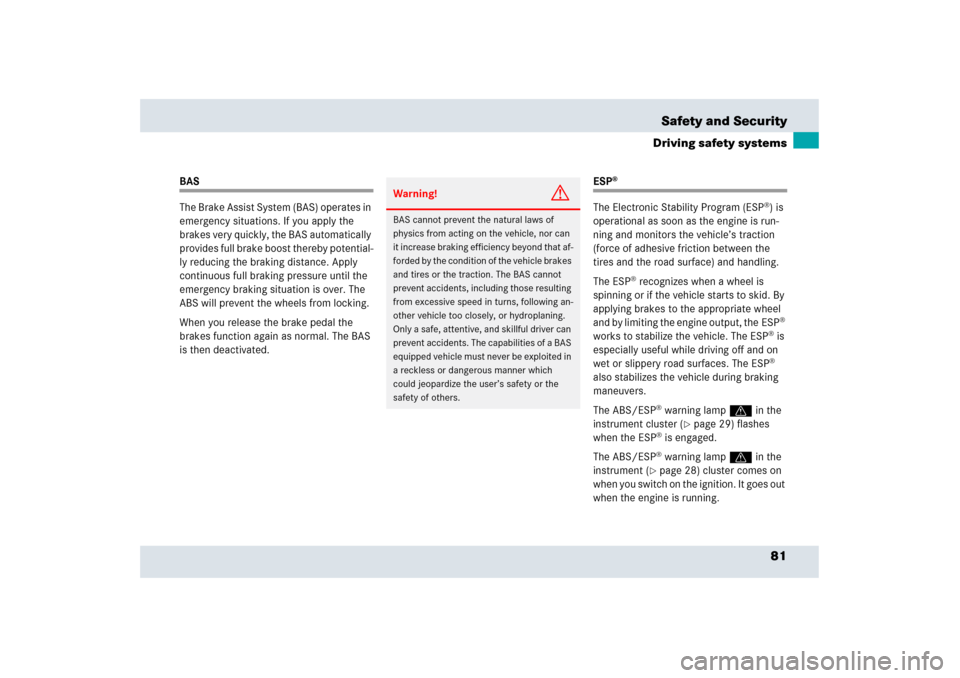

81 Safety and Security
Driving safety systems
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost thereby potential-
ly reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal the
brakes function again as normal. The BAS
is then deactivated.
ESP
®
The Electronic Stability Program (ESP
®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is
spinning or if the vehicle starts to skid. By
applying brakes to the appropriate wheel
and by limiting the engine output, the ESP
®
works to stabilize the vehicle. The ESP
® is
especially useful while driving off and on
wet or slippery road surfaces. The ESP®
also stabilizes the vehicle during braking
maneuvers.
The ABS/ESP
® warning lamp v in the
instrument cluster (
page 29) flashes
when the ESP
® is engaged.
The ABS/ESP® warning lamp v in the
instrument (
page 28) cluster comes on
when you switch on the ignition. It goes out
when the engine is running.
Warning!
G
BAS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking efficiency beyond that af-
forded by the condition of the vehicle brakes
and tires or the traction. The BAS cannot
prevent accidents, including those resulting
from excessive speed in turns, following an-
other vehicle too closely, or hydroplaning.
Only a safe, attentive, and skillful driver can
prevent accidents. The capabilities of a BAS
equipped vehicle must never be exploited in
a reckless or dangerous manner which
could jeopardize the user’s safety or the
safety of others.
