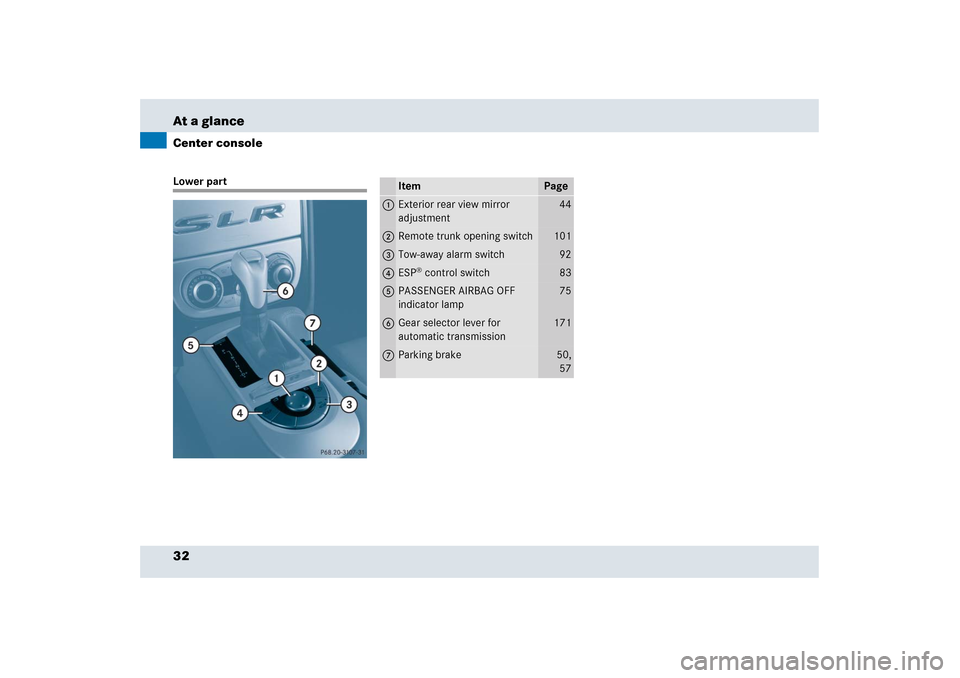

32 At a glanceCenter consoleLower part
Item
Page
1
Exterior rear view mirror
adjustment
44
2
Remote trunk opening switch
101
3
Tow-away alarm switch
92
4
ESP
® control switch
83
5
PASSENGER AIRBAG OFF
indicator lamp
75
6
Gear selector lever for
automatic transmission
171
7
Parking brake
50,
57

38 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
SmartKey with remote control1‹Lock button
2ŠUnlock button for trunk
3ŒUnlock button
4ÂPanic button (
page 78)5Door handle

Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The
anti-theft alarm system is disarmed.iThe electrohydraulic brake system is
activated.

85 Safety and Security
Driving safety systems
The electrohydraulic brake system is auto-
matically activated when you

unlock the vehicle with the SmartKey


open the driver’s or passenger door


turn the SmartKey in the starter switch
to position1


depress the brake pedal


release the parking brakeA tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
u p t o 3 0 m i l e s ( 5 0 k m ) a n d a t a s p e e d n o t t o
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(page 360).
iIf the electrohydraulic brake system is
activated as the brake pedal is first de-
pressed, you may feel a reduced pedal
resistance and longer pedal travel than
normal. When releasing the pedal, you
may also feel the brake pedal pulsate
and you may hear a sound which is
caused by the activation of the electro-
hydraulic brake system pump. This is
normal and not an indication of a mal-
function. Pedal travel returns to normal
when you release the brake pedal and
the sound soon ceases.
If you experience the above while driv-
ing and the red brake warning lamp
(page 300) illuminates and/or warn-
ing messages appear in the multifunc-
tion display (
page 319), the brake
system is malfunctioning. Follow the in-
structions of the warning message(s)
and have the brake system checked
immediately.
Warning!
G
Have brake pad replacement and other work
on the electrohydraulic brake system car-
ried out by qualified technicians only. Con-
tact your Mercedes-Benz Center for further
information. The electrohydraulic brake sys-
tem must be deactivated prior to working on
the system. High pressure is intermittently
built up in the system as part of its automat-
ic self-test. In addition, the system is auto-
matically activated when the vehicle is
unlocked by remote control, when the driver
or passenger door is opened, when the
SmartKey in the starter switch is turned to
position1, when the brake pedal is de-
pressed or when the parking brake is re-
leased. Failure to deactivate the system
prior to maintenance will cause brake pis-
tons to extend and brake fluid to leak, which
may result in injuries (contusions and acid
burns). Extended brake pistons may also
cause injury.

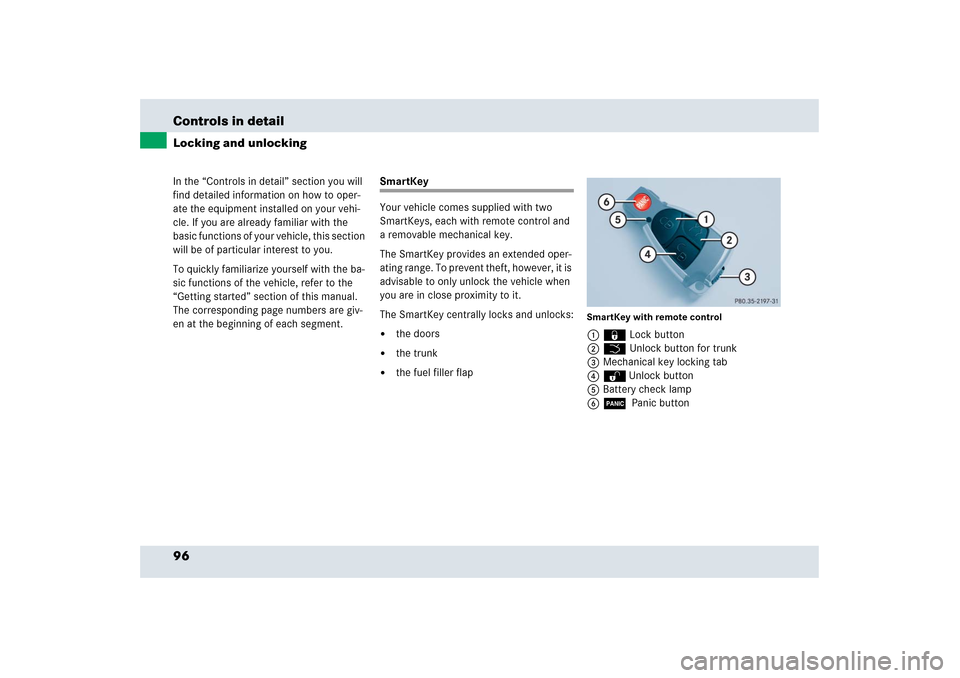

96 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Unlock button for trunk
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6Â Panic button

101 Controls in detail
Locking and unlocking
The vehicle must be unlocked.
Pull on handle2 and lift the trunk lid.
The trunk can also be opened using
buttonŠ on the SmartKey or from its
inside in an emergency, see “Trunk emer-
gency release” (
page 102).
Opening the trunk from the inside
You can open the trunk from the inside if
the vehicle is stationary.
A minimum height clearance of
5.5 ft (1.65 m) is required to open the
trunk lid.
The switch is located on the lower part of
the center console.1Remote trunk opening switch

Press remote trunk lid release
switch1 until the trunk lid unlocks
and opens slightly.

Lift the trunk lid.
The trunk can also be opened using
buttonŠ on the SmartKey or from its
inside in an emergency, see “Trunk emer-
gency release” (
page 102).
Closing the trunk lid
1Handle
!Always make sure that there is suffi-
cient overhead clearance.
!Always make sure that there is suffi-
cient overhead clearance.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
opening when closing the trunk lid. Be espe-
cially careful when small children are
around.
Only drive with the trunk closed as, among
other dangers such as blocked visibility, ex-
haust fumes may enter the vehicle interior.

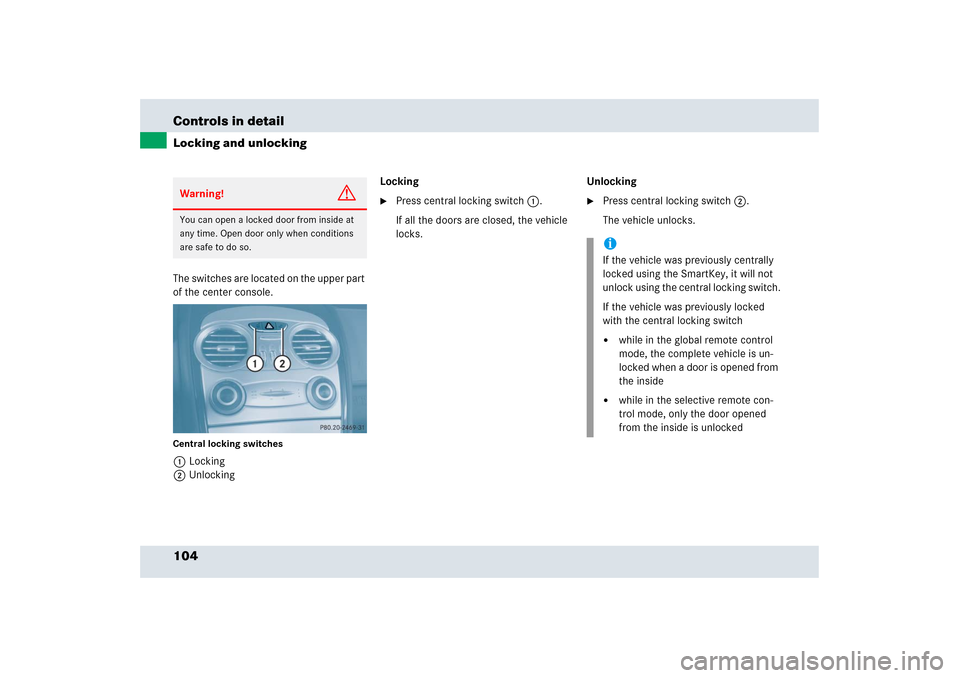

104 Controls in detailLocking and unlockingThe switches are located on the upper part
of the center console.Central locking switches1Locking
2UnlockingLocking

Press central locking switch1.
If all the doors are closed, the vehicle
locks.Unlocking

Press central locking switch2.
The vehicle unlocks.
Warning!
G
You can open a locked door from inside at
any time. Open door only when conditions
are safe to do so.
iIf the vehicle was previously centrally
locked using the SmartKey, it will not
unlock using the central locking switch.
If the vehicle was previously locked
with the central locking switch

while in the global remote control
mode, the complete vehicle is un-
locked when a door is opened from
the inside


while in the selective remote con-
trol mode, only the door opened
from the inside is unlocked

208 Controls in detailUseful featuresTele Aid
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock, and
more.The Tele Aid system
(Tele
matic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency


Roadside Assistance


information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the audio system or on the multifunc-
tion steering wheel. To raise, turn the rota-
ry volume control on the audio system
clockwise or press buttonæ on the
multifunction steering wheel. To lower,
turn the rotary volume control on the audio
system control counterclockwise or pressbuttonç on the multifunction steering
wheel.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
!The initial activation of the Tele Aid sys-
tem may only be performed by com-
pleting the subscriber agreement and
placing an acquaintance call using the
¡button. Failure to complete either
of these steps will result in a system
that is not activated.
If you have any questions regarding ac-
tivation, please call the Response
Center at 1-800-756-9018 (in the USA)
or 1-888-881-6611 (in Canada).
iThe SOS button is located above the in-
side rear view mirror.
The Roadside Assistance button•
and the Information button¡ are
located in the center storage compart-
ment (
page 201).
!The Tele Aid system utilizes the cellular
network for communication and the
GPS (G
lobal P
ositioning S
ystem) satel-
lites for vehicle location. If either of
these signals are unavailable, the Tele
Aid system may not function and if this
occurs, assistance must be summoned
by other means.

215 Controls in detail
Useful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-881-6611 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull the
trunk recessed handle for a minimum
of 20 seconds until the SOS button is
flashing.
The message
Connecting call
ap-
pears in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen Vehicle Recovery services
In the event your vehicle was stolen:

Report the incident to the police.
The police will issue a numbered inci-
dent report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s Tele
Aid system. Once the vehicle is locat-
ed, the Response Center will contact
the local law enforcement and you. The
vehicle’s location will only be provided
to law enforcement.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
Connecting call
will appear in
the multifunction display to indicate re-
ceipt of the door unlock command.
Once the vehicle is unlocked,
a Response Center specialist may at-
tempt to establish voice contact with
the vehicle occupants.
If the trunk recessed handle was pulled
for more than 20 seconds before door
unlock authorization was received by
the Response Center, you must wait
15 minutes before pulling the trunk re-
cessed handle again.
iWhen the anti-theft alarm or the
tow-away alarm stays on for more than
30 seconds, a call is initiated automat-
ically to the Response Center. See
anti-theft alarm system (
page 90)
and tow-away alarm (
page 92).
