2006 MERCEDES-BENZ SL65AMG Owner's Manual

88 Safety and SecurityDriving safety systemsElectro-hydraulic brake system
The electro-hydraulic brake system com-
bines a hydraulic brake circuit with elec-
tronically controlled brake servo
assistance. You have increased braking
safety and improved braking comfort.Warning!
G
Never ignore a brake malfunction indicated
in the speedometer display, for example by
the;(USA only) or3(Canada only)
indicator lamp. Refer to the “Practical hints”
section (
page 334). Also read and ob-
serve the messages in the instrument clus-
ter multifunction display (
page 361).
Warning!
G
The electro-hydraulic brake system requires
electrical power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 334)
comes on and warning messages
(
page 361) appear in the multifunction
display while driving. To brake, the driver
must then apply significantly greater brake
pedal pressure and depress the pedal much
further to obtain the expected braking ef-
fect. If necessary, apply full pressure to the
brake pedal. Brakes are only applied to the
front wheels. Stopping distance is in-
creased!
If there is a malfunction in the
electro-hydraulic brake system, we recom-
mend that the vehicle be transported with
all wheels off the ground using flatbed or ap-
propriate wheel lift/dolly equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, see “Towing the vehicle”
(page 421).

89 Safety and Security
Driving safety systems
The electro-hydraulic brake system is auto-
matically activated when you

unlock the vehicle with the SmartKey
or the SmartKey with KEYLESS-GO*


open the driver’s or passenger door


turn the SmartKey in the starter switch
to position1


in vehicles with KEYLESS-GO*, press
the start/stop button on the gear se-
lector lever once


depress the brake pedal


release the parking brake
iIf the electro-hydraulic brake system is
activated as the brake pedal is first de-
pressed, you may feel a reduced pedal
resistance and longer pedal travel than
normal. When releasing the pedal, you
may also feel the brake pedal pulsate
and you may hear a sound which is
caused by the activation of the elec-
tro-hydraulic brake system pump. This
is normal and not an indication of a
malfunction. Pedal travel returns to
normal when you release the brake
pedal and the sound soon ceases.
If you experience the above while driv-
ing and the red brake warning lamp
(page 334) illuminates and/or warn-
ing messages appear in the multifunc-
tion display (
page 361), the brake
system is malfunctioning. Follow the in-
structions of the warning message(s)
and have the brake system checked
immediately.
Warning!
G
Have brake pad replacement and other work
on the electro-hydraulic brake system car-
ried out by qualified technicians only. Con-
tact an authorized Mercedes-Benz Center
for further information. The electro-hydrau-
lic brake system must be deactivated prior
to working on the system. High pressure is
intermittently built up in the system as part
of its automatic self-test. In addition, the
system is automatically activated when the
vehicle is unlocked by remote control, when
the driver or passenger door is opened,
when the SmartKey in the starter switch is
turned to position1 or the KEYLESS-GO*
start/stop button is pressed once, when the
brake pedal is depressed or when the park-
ing brake is released. Failure to deactivate
the system prior to maintenance will cause
brake pistons to extend and brake fluid to
leak, which may result in injuries (contu-
sions and acid burns). Extended brake pis-
tons may also cause injury.

90 Safety and SecurityDriving safety systemsThe electro-hydraulic brake system switch-
es off automatically

approximately 2 minutes after you
turned the SmartKey in the starter
switch to position0 or removed the
SmartKey


approximately 2 minutes after you
pressed the KEYLESS-GO* start/stop
button to turn off the engine or power
supply and opened the driver’s door
(with driver’s door open, the starter
switch is set to position 0, same as
SmartKey removed from starter
switch)


approximately 20 seconds after you
locked the vehicle from outside Note on driving with the
electro-hydraulic brake system


Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.
After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be in-
stalled on your vehicle. Brake pads not
approved by Mercedes-Benz may im-
pair the safety of your vehicle.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.

91 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*

Press the start/stop button on the gear
selector lever once.
The engine is turned off.

Open the driver’s door.Deactivating
With the SmartKey

Turn the SmartKey in the starter switch
to position2 (
page 36).
With KEYLESS-GO*

Switch on the ignition (
page 38).
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood


a storage compartment in the rear


the glove box


the storage compartment under the
armrest
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
iStarting the engine will also deactivate
the immobilizer.
In case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).

92 Safety and SecurityAnti-theft systemsThe alarm system will also be triggered
when

someone attempts to raise the vehicle


unlocking and opening the driver’s
door with the mechanical key


someone opens a door from the inside


someone opens the trunk lid with the
emergency release buttonArming the alarm system
The alarm system is armed after locking
the vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
three times to indicate that the alarm sys-
tem is activated. The ‹indicator lamp
in the central locking switch (
page 29)
begins to flash after arming the alarm sys-
tem.Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
once to indicate that the alarm system is
disarmed.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 240) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps do not flash
three times, a door or the trunk lid may
not be properly closed.
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally again after approximately 40 sec-
onds if no door was opened.

93 Safety and Security
Anti-theft systems
Canceling the alarm
To cancel the alarm:
With the SmartKey
Insert the SmartKey in the starter
switch.
or

Press theŒor‹button on the
SmartKey.
With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop but-
ton (
page 37).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle. Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.
Disabling tow-away alarm
To prevent triggering the tow-away alarm,
disable the tow-away alarm feature before
towing the vehicle, or when parking on a
surface subject to movement, such as a
ferry or auto train.
The button is located on the center con-
sole between the driver’s seat and the pas-
senger seat.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 240) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.

94 Safety and SecurityAnti-theft systems1Tow-away alarm off button
2Indicator lamp
Switch off the ignition and remove the
SmartKey from the starter switch.

Press button1.
The indicator lamp2 in the switch
comes on briefly.

Exit and lock your vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) with the lock button on
each door handle or trunk lid.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.Canceling the alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press theŒor‹button on the
SmartKey.
With KEYLESS-GO*

Grasp an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft. (1 m) of the vehicle.
or

Press the KEYLESS-GO start/stop but-
ton (
page 37).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
iYou cannot disarm the tow-away alarm
if the ignition is switched on.

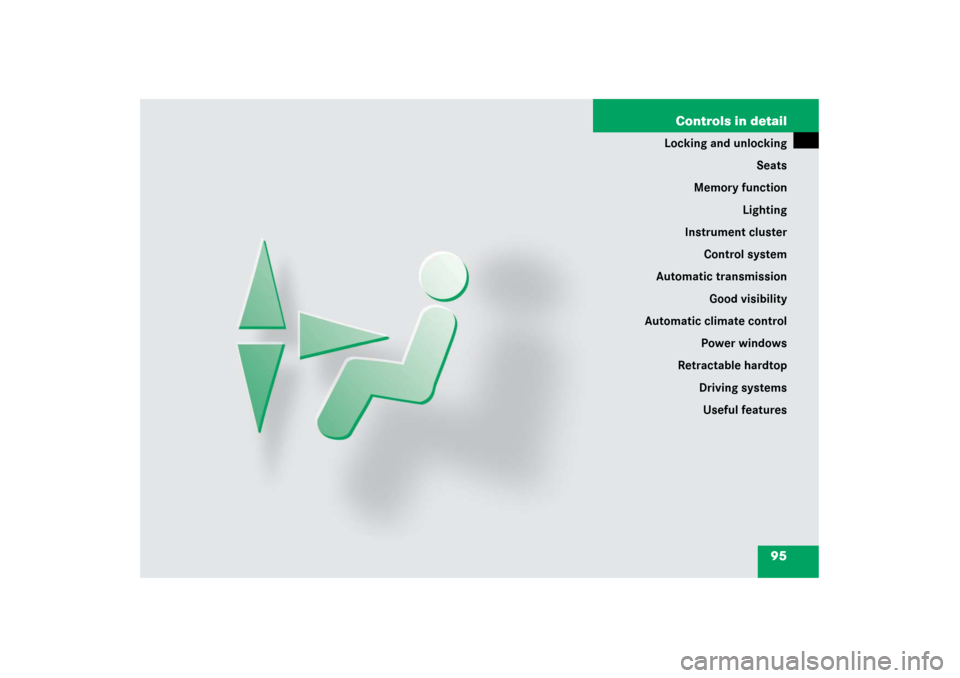

95 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Automatic climate control
Power windows
Retractable hardtop
Driving systems
Useful features
