2006 MERCEDES-BENZ R350 navigation system

165 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Standard display
AUDIO
NAV*
Airmatic/
Compass
Vehicle status message
memory
(page 168)
(page 170)
(page 172)
(page 172)
(page 173)
Commands/submenusTrip- and main odometer
Selecting radio station
Show route guidance
instructions, current
direction traveled
Airmatic*
Calling up vehicle malfunction,
warning and system status
messages stored in memory
Checking tire inflation pressure*
Selecting satellite ra-
dio station* (USA only)
Compass
Checking coolant temperature
Operating CD player
Calling up digital speedometer or
outside temperatureCalling up maintenance service
indicatorChecking engine oil leveliThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays. The first func-
tion displayed in each menu will auto-
matically show you which part of the
system you are in.

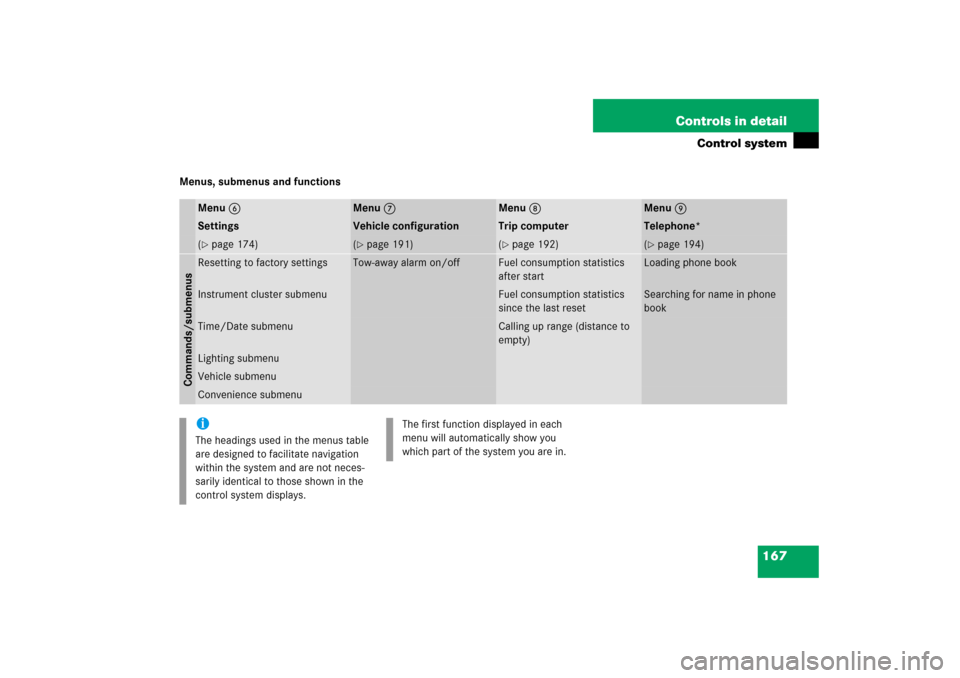

167 Controls in detail
Control system
Menus, submenus and functions
Menu6
Menu7
Menu8
Menu9
Settings
Vehicle configuration
Trip computer
Telephone*
(page 174)
(page 191)
(page 192)
(page 194)
Commands/submenusResetting to factory settings
Tow-away alarm on/off
Fuel consumption statistics
after start
Loading phone book
Instrument cluster submenu
Fuel consumption statistics
since the last reset
Searching for name in phone
book
Time/Date submenu
Calling up range (distance to
empty)
Lighting submenuVehicle submenuConvenience submenuiThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.

172 Controls in detailControl systemNAV* menu
The
NAV
menu contains the functions
needed to operate your navigation system.

Press buttonè orÿ repeatedly
until the message
NAV
appears in the
multifunction display.The message shown in the multifunction
display depends on the status of the navi-
gation system:


With the Modular COMAND System
switched off, the message
NAV OFF
ap-
pears in the multifunction display.


With the Modular COMAND System
switched on but route guidance not
activated, the direction of travel and, if
applicable, the name of the street cur-
rently traveled on appear in the multi-
function display.


With the Modular COMAND System
switched on and route guidance acti-
vated, the direction of travel and ma-
neuver instructions appear in the
multifunction display.
Please refer to the Modular COMAND
System manual for instructions on how to
activate the route guidance system.
AIRMATIC*/Compass menu
The
AIRMATIC/Compass
menu displays the
Airmatic messages and the direction into
which you are currently driving.

Press buttonè orÿ repeatedly
until the
AIRMATIC/Compass
menu
appears in the multifunction display.
For information on AIRMATIC*, see “AIR-
MATIC*” (
page 269).
For information on the compass, see
“Vehicle submenu” (
page 186) and
“Compass” (
page 327).
iTo select a CD from the magazine,
press a number on the Modular
COMAND System key pad located in
the center console.


180 Controls in detailControl systemTime/Date submenu
Access the
Time/Date
submenu via the
Settings
menu. Use the
Time/Date

submenu to change the time and date
settings.
The following functions are available:Setting the time (hours)
This function is not available if your vehicle
is equipped with the Modular COMAND
System and navigation module*.

Move the selection marker with
buttonæ orçto the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set clock hours

appears in the multifunction display.
The selection marker is on the hour
setting.

Press buttonæ orç to set the
hour.Setting the time (minutes)
This function is not available if your vehicle
is equipped with the Modular COMAND
System and navigation module*.

Move the selection marker with
buttonæ orçto the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set clock minutes

appears in the multifunction display.
The selection marker is on the minute
setting.

Press buttonæ orç to set the
minutes.
Function
Page
Setting the time (hours)
180
Setting the time (minutes)
180
Setting the date (month)
181
Setting the date (day)
181
Setting the date (year)
181
iIf your vehicle is equipped with the
Modular COMAND System and naviga-
tion module*, see separate COMAND
operating instructions for information
on how to set the date and time.

181 Controls in detail
Control system
Setting the date (month)
This function is not available if your vehicle
is equipped with the Modular COMAND
System and navigation module*.
Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set date month

appears in the multifunction display.
The selection marker is on the month
setting.

Press buttonæ orç to set the
month.Setting the date (day)
This function is not available if your vehicle
is equipped with the Modular COMAND
System and navigation module*.

Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set date day

appears in the multifunction display.
The selection marker is on the day
setting.

Press buttonæ orç to set the
day.Setting the date (year)
This function is not available if your vehicle
is equipped with the Modular COMAND
System and navigation module*.

Move the selection marker with
buttonæ orç to the
Time/Date

submenu.

Press buttonj ork repeatedly
until the message
Set date year

appears in the multifunction display.
The selection marker is on the year
setting.

Press buttonæ orç to set the
year.

186 Controls in detailControl systemVehicle submenu
Access the
Vehicle
submenu via the
Settings
menu. Use the
Vehicle
submenu
to make general vehicle settings.
The following functions are available:Compass adjustment
This function is not available if your vehicle
is equipped with the Modular COMAND
system with navigation module*.
Determine your location on the basis of the
following zone maps.
Zone map North AmericaZone map South America

Press buttonæ orç to move
the selection marker to the
Vehicle

submenu.
Function
Page
Compass adjustment
186
Compass calibration
187
Setting which display to appear
with ignition switched off
188
Setting automatic locking
188
Limiting opening height of
tailgate*
189

187 Controls in detail
Control system

Press buttonj ork repeatedly
until the message
Compass Adjustment

appears in the multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to set the
respective compass zone.
For information on how to select the prop-
er geographic zone, see “Compass”
(
page 327).Compass calibration
This function is not available if your vehicle
is equipped with the Modular COMAND
system with navigation module*.
In order to calibrate the compass properly,
mind the following:


Calibrate the compass in open terrain.
Nearby buildings, bridges, power lines
and large antenna masts, for example,
could impair compass calibration.


Switch off electrical consumers (e.g.
climate control, windshield wipers, or
rear window defroster).


Close all doors and the tailgate.

Start the engine (
page 53).

Press buttonæ orç to move
the selection marker to the
Vehicle

submenu.

Press buttonj ork repeatedly
until the message
Compass Calibra-
tion
appears in the multifunction
display.
The selection marker is on setting
off
.

Press buttonæ orç to set the
selection marker to
Start
.
The following message appears in the
multifunction display:
Compass Calibration Active
Please drive in a full circle


315 Controls in detail
Useful features
Roadside Assistance button•
The Roadside Assistance button• is
located below the center armrest cover.
1Roadside Assistance button•
Open the storage tray (
page 296).

Press and hold button1 (for longer
than 2 seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message Connecting call
will appear in the
multifunction display.When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.

Describe the nature of the need for as-
sistance.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.
iWhile the call is connected you can
change to the navigation menu by
pressing NAV button on the Modular
COMAND System unit.
