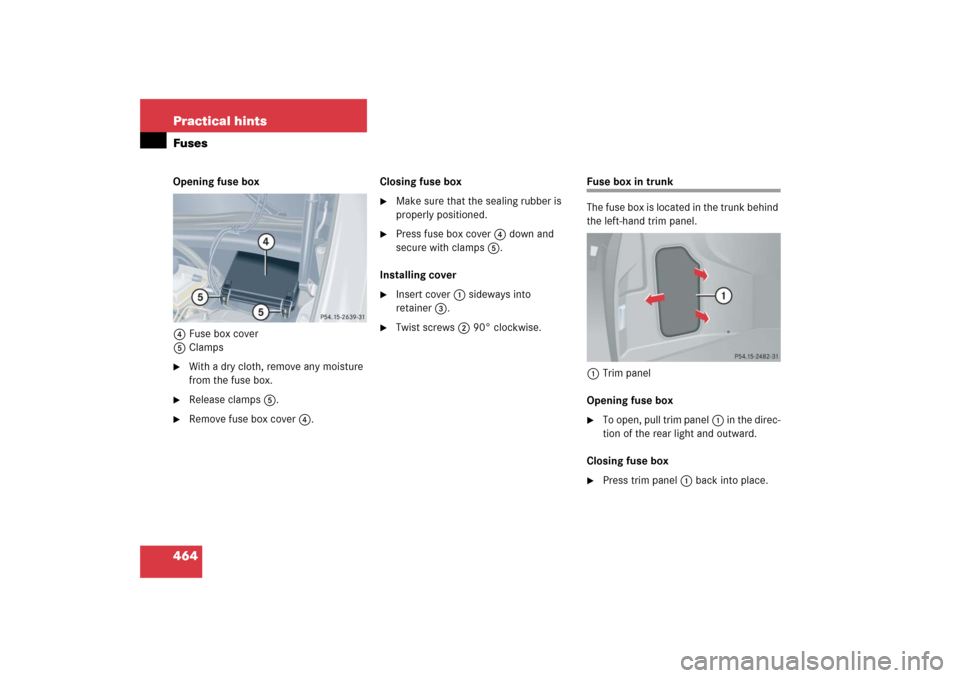

464 Practical hintsFusesOpening fuse box
4Fuse box cover
5Clamps
With a dry cloth, remove any moisture
from the fuse box.

Release clamps5.

Remove fuse box cover4.Closing fuse box

Make sure that the sealing rubber is
properly positioned.

Press fuse box cover4 down and
secure with clamps5.
Installing cover

Insert cover1 sideways into
retainer3.

Twist screws2 90° clockwise.
Fuse box in trunk
The fuse box is located in the trunk behind
the left-hand trim panel.
1Trim panel
Opening fuse box
To open, pull trim panel1 in the direc-
tion of the rear light and outward.
Closing fuse box

Press trim panel1 back into place.

465 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

466 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

467 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally in-
stalled in the vehicle in accordance with
the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.

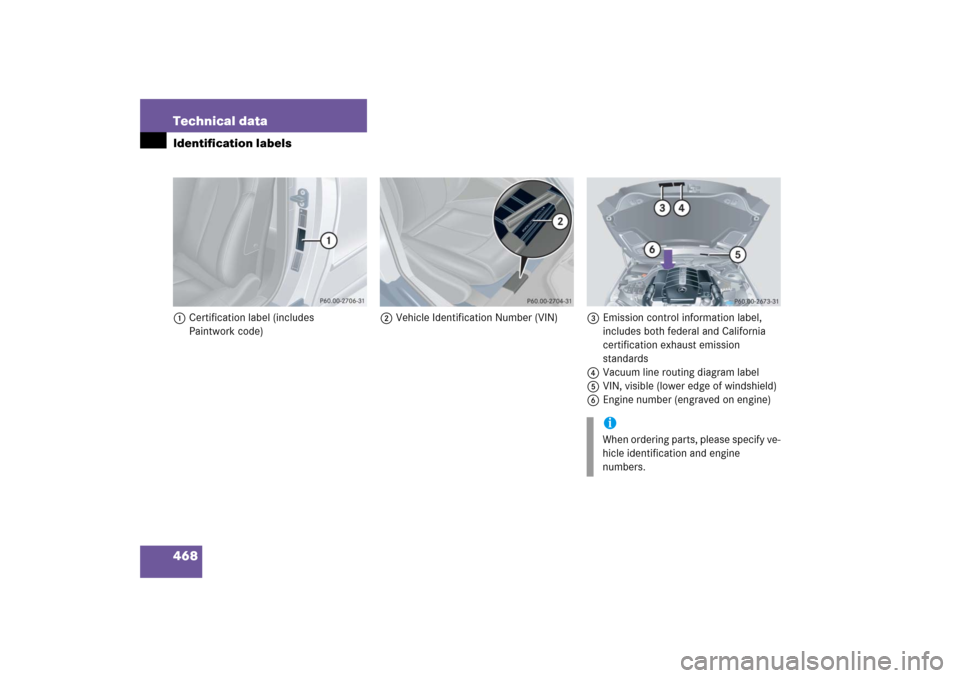

468 Technical dataIdentification labels1Certification label (includes
Paintwork code)2Vehicle Identification Number (VIN)3Emission control information label,
includes both federal and California
certification exhaust emission
standards
4Vacuum line routing diagram label
5VIN, visible (lower edge of windshield)
6Engine number (engraved on engine)
iWhen ordering parts, please specify ve-
hicle identification and engine
numbers.

469 Technical data

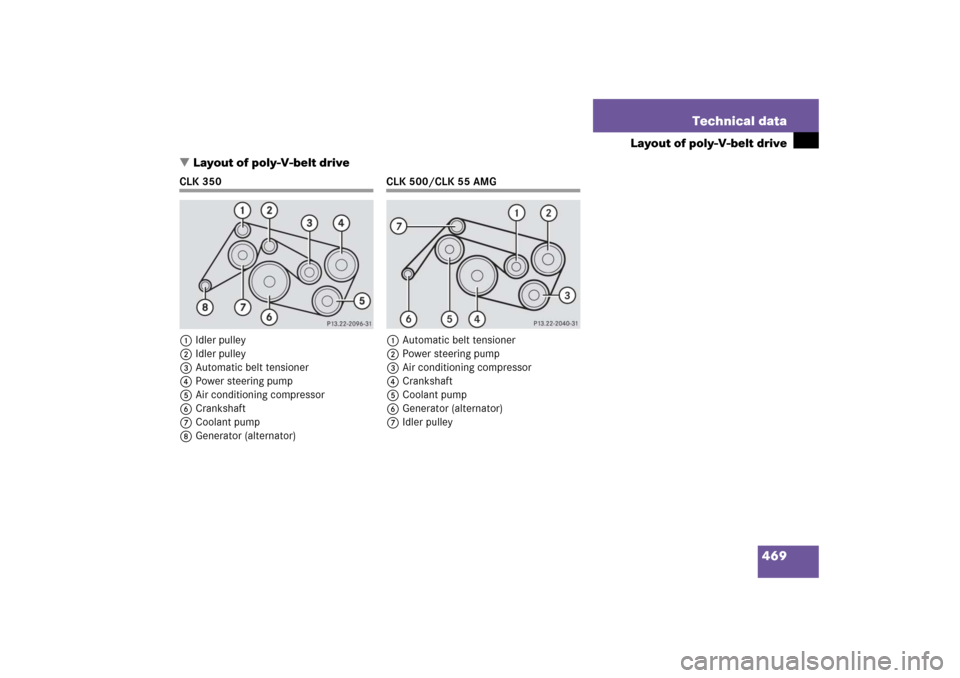

Layout of poly-V-belt drive
Layout of poly-V-belt drive
CLK 350
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
CLK 500/CLK 55 AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

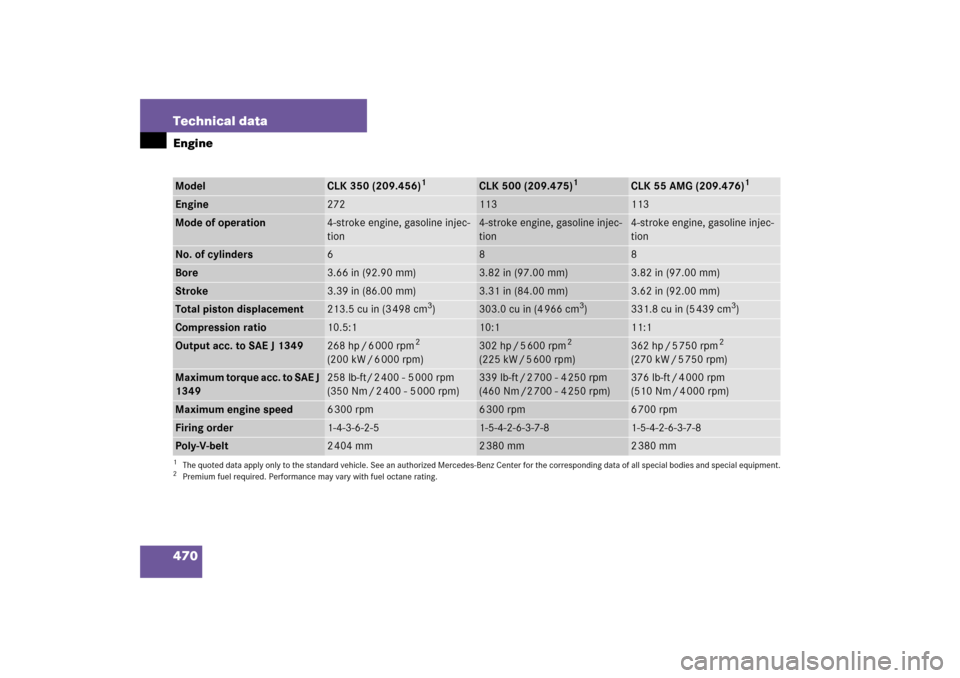

470 Technical dataEngineModel
CLK 350 (209.456)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLK 500 (209.475)
1
CLK 55 AMG (209.476)
1
Engine
272
113
113
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
6
8
8
Bore
3.66 in (92.90 mm)
3.82 in (97.00 mm)
3.82 in (97.00 mm)
Stroke
3.39 in (86.00 mm)
3.31 in (84.00 mm)
3.62 in (92.00 mm)
Total piston displacement
213.5cuin (3498cm
3)
303.0 cu in (4 966 cm
3)
331.8 cu in (5 439 cm
3)
Compression ratio
10.5:1
10:1
11:1
Output acc. to SAE J 1349
268 hp / 6 000 rpm
2
(200 kW / 6 000 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp / 5 600 rpm
2
(225 kW / 5 600 rpm)
362 hp / 5 750 rpm
2
(270 kW / 5 750 rpm)
Maximum torque acc. to SAE J
1349
258lb-ft/2400-5000rpm
(350 Nm / 2 400 - 5 000 rpm)
339 lb-ft / 2 700 - 4 250 rpm
(460 Nm /2 700 - 4 250 rpm)
376lb-ft/4000rpm
(510 Nm / 4 000 rpm)
Maximum engine speed
6 300 rpm
6 300 rpm
6 700 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2 404 mm
2 380 mm
2 380 mm

471 Technical data
Rims and tires
Rims and tires
!
Only use tires which have been tested
and approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are devel-
oped to provide best possible perfor-
mance in conjunction with the driving
safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed
for your vehicle and tested and ap-
proved by Mercedes-Benz can be iden-
tified by finding the following on the
tire’s sidewall:


MO = M
ercedes-Benz O
riginal
equipment tires
AMG vehicles:
Does not apply to all approved tires
on AMG vehicles. For information
on tested and approved tires for
AMG vehicles, contact an autho-
rized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal
E
xtended (tires with limited run-flat
characteristics) original equipment
tires
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.iFor information on driving with
MOExtended tires, see
“MOExtendedsystem*” (
page 345).
!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
