368 Practical hints
What to do if …
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbolDisplay messagePossible cause/consequencePossible solution
•Coolant
Stop, engine off!The coolant is too hot. Stop the vehicle in a safe location and
turn off the engine.
Only start the engine again after the
message disappears. You could
otherwise damage the engine.
Warning!G
Driving when your engine is badly over-
heated can cause some fluids which may
have leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!
The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.

369 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
•Coolant
Stop, engine off!The poly-V-belt could be broken.Stop the vehicle in a safe location and
immediately turn off the engine.
Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise the engine
will overheat due to an inoperative water pump
which may result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:
Do not continue to drive the vehicle with this
message displayed. Doing so could result in seri-
ous engine damage that is not covered by the
Mercedes-Benz Limited Warranty.
Observe the coolant temperature gauge in the in-
strument cluster (
page 24).
Drive immediately to the nearest authorized Mer-
cedes-Benz Center.
Coolant
Visit workshopThe cooling fan for the coolant is
malfunctioning.Observe the coolant temperature gauge in the in-
strument cluster (
page 24).
Have the fan replaced as soon as possible.

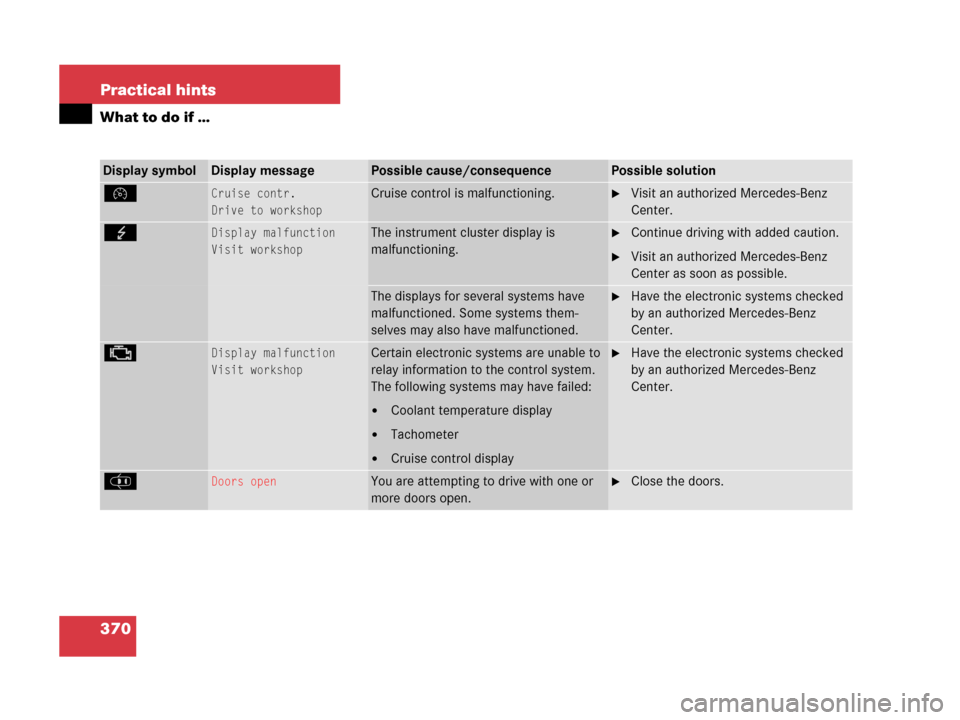

370 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
ÑCruise contr.
Drive to workshopCruise control is malfunctioning.Visit an authorized Mercedes-Benz
Center.
GDisplay malfunction
Visit workshopThe instrument cluster display is
malfunctioning.Continue driving with added caution.
Visit an authorized Mercedes-Benz
Center as soon as possible.
The displays for several systems have
malfunctioned. Some systems them-
selves may also have malfunctioned.Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
±Display malfunction
Visit workshopCertain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display

Tachometer

Cruise control display
Have the electronic systems checked
by an authorized Mercedes-Benz
Center.
JDoors openYou are attempting to drive with one or
more doors open.Close the doors.

423 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

427 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
C55AMG
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

436 Technical data
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respectivelubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz. Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
CapacityFuels, coolants, lubricants, etc.
Engine with oil filter9.0 US qt (8.5 l)Approved engine oils
Automatic transmission9.3 US qt (8.7 l)MB Automatic Transmission Fluid
Rear axle1.5 US qt (1.4 l)Hypoid gear oil SAE 85 W 90
Power steeringapprox. 1.1 US qt (1.0 l)MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubsapprox. 2.1 oz (60 g) eachHigh temperature roller bearing grease
Brake system0.5 US qt (0.5 l)MB Brake Fluid (DOT 4+)
Cooling systemapprox. 12.8 US qt (12.0 l)MB 325.0 Anticorrosion/antifreeze agent
Fuel tank
including
a reserve of16.4 US gal (62.0 l)
2.6USgal (10.0l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Air conditioning systemR-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer3.2 US qt (3.0 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 442).
Windshield washer and headlamp
cleaning system*6.4 US qt (6.0 l)

437 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory Ap-
proved Service Products pamphlet, or con-
tact an authorized Mercedes-Benz Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air
conditioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. An
authorized Mercedes-Benz Center will
provide you with additional information.
!
Using engine oils and oil filters of
specification other than those express-
ly required for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) recommendations for scheduled
oil changes. Failure to do so will result
in engine damage not covered by the
Mercedes-Benz Limited Warranty.
Warning!G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus re-
ducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.

438 Technical data
Fuels, coolants, lubricants, etc.
Premium unleaded gasolineGasoline additives
A major concern among engine
manufacturers is carbon build-up caused
by gasoline. Mercedes-Benz recommends
only the use of quality gasoline containing
additives that prevent the build-up of
carbon deposits.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:

Warm-up hesitation

Unstable idle

Knocking/pinging

Misfire

Power loss
Warning!G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Whenever you are around gasoline,
avoid inhaling fumes and skin contact, extin-
guish all smoking materials. Never allow
sparks, flame or smoking materials near
gasoline!
!
To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.

Avoid full throttle driving and abrupt
acceleration.

Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded
with a light load such as two
persons and no luggage.

Do not exceed2/3 of maximum
accelerator pedal position if the
vehicle is fully loaded or operating
in mountainous terrain.
