Page 49 of 473
48 Getting started
Driving
Automatic transmission
Depress the brake pedal.
Move gear selector lever to positionD
to drive forward, or to positionR to
drive rearward.
Release the brake pedal.
Carefully depress the accelerator
pedal.
Switching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch
1Off
2Low beam headlamps on
Turn exterior lamp switch to
positionB.
The low beam headlamp indicator
lampB in the instrument cluster
comes on (
page 24).
!
Wait for the gear selection process to
complete before setting the vehicle in
motion.
!
Place the gear selector lever in
positionP orR only when the vehicle is
stopped in order to avoid damaging the
transmission.
Warning!G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
Page 50 of 473
49 Getting started
Driving
High beam
The combination switch is located on the
left of the steering column.
Combination switch
1High beam
2High beam flasher
Push combination switch in direction of
arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).
For more information on headlamps, see
“Lighting” (
page 114).
Turn signals
The combination switch is located on the
left of the steering column.
Combination switch
1Turn signals, right
2Turn signals, left
Press combination switch in direction
of arrow1 or2.
The corresponding turn signal indicator
lampL orK in the instrument
cluster flashes (
page 24).
The combination switch resets auto-
matically after major directional
changes.
i
If the combination switch is pressed to
point of resistance the turn signals will
flash three times.
Page 52 of 473
51 Getting started
Driving
Vehicles with rain sensor*:
Intermittent wiping interval is dependent
on wetness of windshield.
Turn the combination switch to
positionI.
Vehicles with rain sensor*:
After the initial wipe, pauses between
wipes are automatically controlled by
the rain sensor.Single wipe
Press the combination switch briefly in
direction of arrow1 to the resistance
point.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Press the combination switch in direc-
tion of arrow1 past the resistance
point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 304).
i
Intermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened. This protects persons
getting into or out of the vehicle from
being sprayed.
Intermittent wiping will be continued
when
all doors are closed
and
the gear selector lever is in
positionD or R
or
the wiper setting is changed using
the combination switchi
To prevent smears on the windshield,
wipe with windshield washer fluid every
now and then even when it is raining.
Page 56 of 473
55 Getting started
Parking and locking
Switching off headlamps
Turn exterior lamp switch
toM(
page 48).
For more information, see “Lighting”
(
page 114).

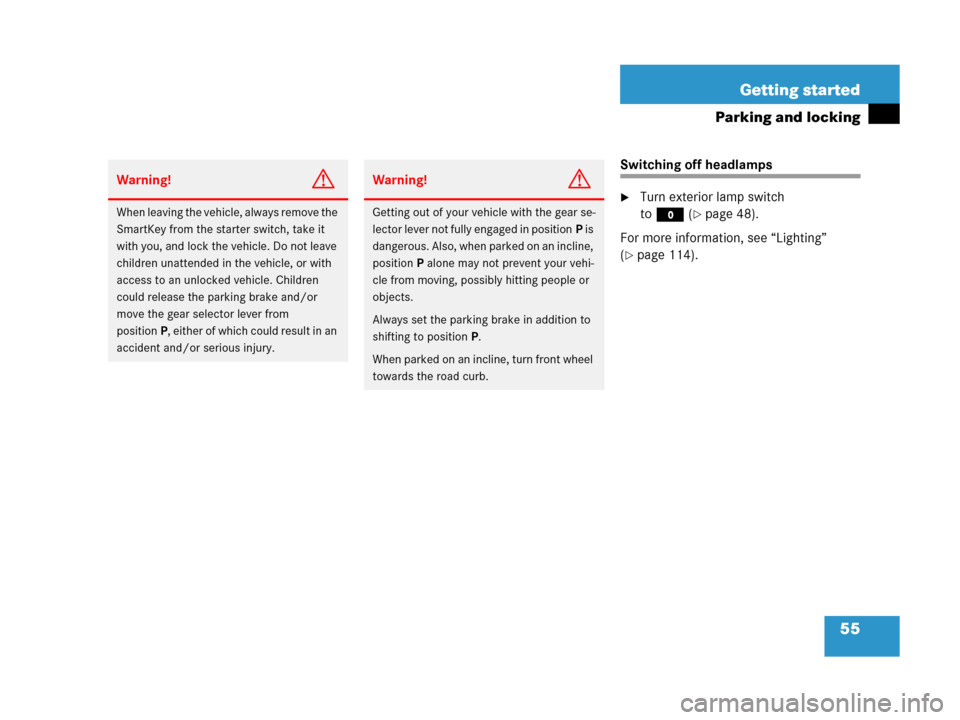

Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious injury.
Warning!G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheel
towards the road curb.
Page 115 of 473
114 Controls in detail
Lighting
For information on how to switch on the
headlamps and use the turn signals, see
“Switching on headlamps” (
page 48)
and “Turn signals” (
page 49).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.
Exterior lamp switch
MOff
Daytime running lamp mode
(
page 116)
UAutomatic headlamp mode
Daytime running lamp mode
(
page 116)
CParking lamps (also tail lamps,
license plate lamps, side marker
lamps, instrument panel lamps)
BLow beam headlamps (or high
beam headlamps when the
combination switch is pushed
forward) and parking lamps
ˆStanding lamps, right (turn left one
stop)
‚Standing lamps, left (turn left two
stops)
‡Indicator lamp for front fog lamps
†Indicator lamp for rear fog lampi
If you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at your authorized Mercedes-Benz
Center.
Page 116 of 473
115 Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and the parking
lamps can be switched on and off with the
exterior lamp switch.
Automatic headlamp mode
The following lamps switch on and off
automatically depending on the brightness
of the ambient light:
Low beam headlamps
Tail and parking lamps
License plate lamps
Side marker lamps
Turn the exterior lamp switch to
positionU.
With the SmartKey in starter switch
position1, only the parking lamps will
switch on and off automatically.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off automatically.
i
With the SmartKey removed from the
starter switch and the driver’s door
open, a warning sounds if the parking
lamps or low beam headlamps are
switched on.
The message
Switch off lights.
appears in the multifunction display
Warning!G
If the exterior lamp switch is set toU,
the headlamps may switch off unexpect-
edly when the system senses bright
ambient light, for example light from
oncoming traffic.
the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others,
activate headlamps by turning exterior lamp
switch toB when driving or when traffic
and / or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from positionU toB with the
vehicle at a standstill in a safe location.
Switching fromU toB will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.
Page 117 of 473
116 Controls in detail
Lighting
Daytime running lamp mode
Turn the exterior lamp switch to
positionM orU.
When the engine is running, the low beam
headlamps are switched on.
In low ambient light conditions, the
following lamps will switch on additionally:
Tail and parking lamps
License plate lamps
Side marker lamps
For nighttime driving you should turn the
exterior lamp switch to positionB to
permit activation of the high beam head-
lamps.Canada only:
The daytime running lamp mode is manda-
tory and therefore in a constant mode.
When the engine is running, and you shift
from a driving position to positionN orP,
the low beam headlamps will switch off
with a three-minute delay.
When the engine is running, and you
turn the exterior lamp switch to
positionC, the parking lamps
switch on additionally.
turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime
running lamp mode.
The corresponding exterior lamps
switch on (
page 114).USA only:
By default, the daytime running lamp mode
is deactivated. Activate the daytime
running lamp mode using the control
system, see “Set daytime running lamp
mode (USA only)” (
page 144).
When the engine is running, and you turn
the exterior lamp switch to positionC
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 114).
i
With the daytime running lamp mode
activated and the exterior lamp switch
in positionM, the high beam head-
lamps cannot be switched on.
The high beam flasher is available at all
times.
Page 118 of 473
117 Controls in detail
Lighting
Locator lighting and night security
illumination
The locator lighting and the night security
illumination are described in the “Control
system” section, see “Set locator lighting”
(
page 145) and “Setting night security
illumination” (
page 146).Fog lamps
Front fog lamps
Switch on the low beam headlamps
(
page 114).
Pull out the exterior lamp switch to first
stop.
The front fog lamps switch on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(
page 114).
Push in the exterior lamp switch.
The front fog lamps switch off.
The green indicator lamp‡ in the
exterior lamp switch goes out.
Warning!G
In low ambient lighting or foggy conditions,
only switch from positionU toB with
the vehicle at a standstill in a safe location.
Switching fromU toB will briefly
switch off the headlamps. Doing so while
driving in low ambient lighting conditions
may result in an accident.
i
Fog lamps will operate with the parking
lamps and/or the low beam headlamps
on. Fog lamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding permis-
sible lamp operation.
i
Fog lamps cannot be switched on with
the exterior lamp switch in
positionU. For switching on the fog
lamps, turn the exterior lamp switch to
positionB first.
