2006 MAZDA MODEL TRIBUTE engine

•2.3L DOHC I4 Engine
•3.0L DOHC V6 Engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your dealer.
•For routine cleaning, use cool or lukewarm water with a neutral pH
shampoo.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
225

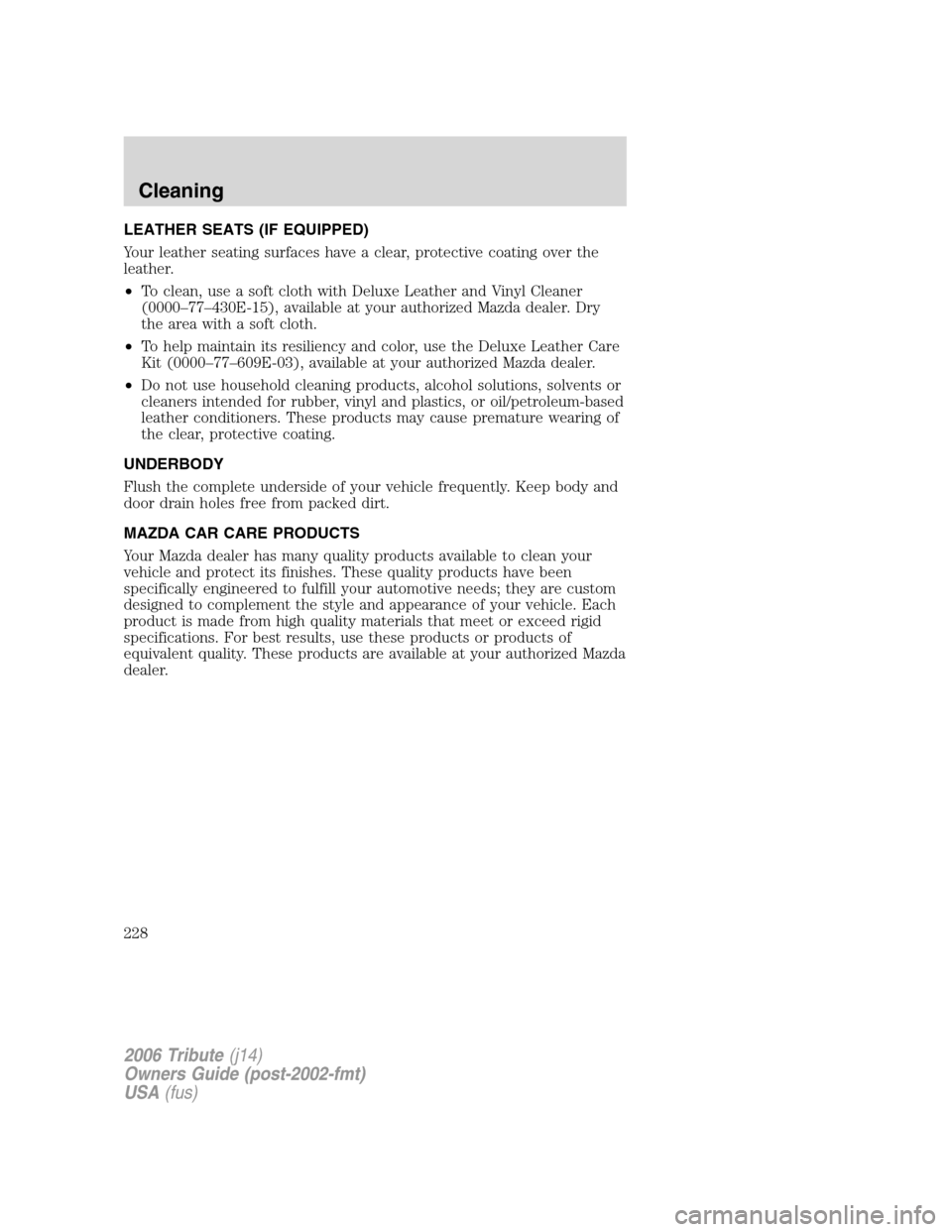

LEATHER SEATS (IF EQUIPPED)
Your leather seating surfaces have a clear, protective coating over the
leather.
•To clean, use a soft cloth with Deluxe Leather and Vinyl Cleaner
(0000–77–430E-15), available at your authorized Mazda dealer. Dry
the area with a soft cloth.
•To help maintain its resiliency and color, use the Deluxe Leather Care
Kit (0000–77–609E-03), available at your authorized Mazda dealer.
•Do not use household cleaning products, alcohol solutions, solvents or
cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based
leather conditioners. These products may cause premature wearing of
the clear, protective coating.
UNDERBODY
Flush the complete underside of your vehicle frequently. Keep body and
door drain holes free from packed dirt.
MAZDA CAR CARE PRODUCTS
Your Mazda dealer has many quality products available to clean your
vehicle and protect its finishes. These quality products have been
specifically engineered to fulfill your automotive needs; they are custom
designed to complement the style and appearance of your vehicle. Each
product is made from high quality materials that meet or exceed rigid
specifications. For best results, use these products or products of
equivalent quality. These products are available at your authorized Mazda
dealer.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
228

SCHEDULE 1
I: Inspect and repair, clean, adjust, or replace if necessary
(Oil-permeated air filter cannot be cleaned using the air-blow method)
R: Replace
L: Lubricate
Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 6 1218243036424854606672
x 1000 Km 12 24 36 48 60 72 84 96 108 120 132 144
(x 1000 Miles) (7.5) (15) (22.5) (30) (37.5) (45) (52.5) (60) (67.5) (75) (82.5) (90)
ENGINE
Engine valve clearance (for 2.3L
engine)Audible inspect every 120,000 km (75,000 miles), if
noisy, adjust
Engine oil R R R R R R R R R R R R
Oil filter R R R R R R R R R R R R
Drive belts (tension) 2.3L engine I I
3.0L engine I I I
PCV valve (for 3.0L
engine)*1 Replace every 160,000 km (100,000 miles)
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles)
FUEL SYSTEM
Air cleaner filter R R
Fuel filter *1 R R R
Fuel lines and hoses *1 I I I
Hoses and tubes for
emission*1 I
COOLING SYSTEM
Cooling system and hoses I I I
Engine coolant (yellow) Replace at first 160,000 km (100,000 miles) or 60
months; after that, every 80,000 km (50,000 miles)
or 36 months
Engine coolant level I I I I I I I I I I I I
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230

SCHEDULE 2
I: Inspect and repair, clean, adjust, or replace if necessary
(Oil-permeated air filter cannot be cleaned using the air-blow method)
R: Replace
L: Lubricate
Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
x 1000 Km 8 16 24 32 40 48 56 64 72 80 88 96
(x 1000 Miles) (5) (10) (15) (20) (25) (30) (35) (40) (45) (50) (55) (60)
ENGINE
Engine valve clearance (for 2.3L
engine)Audible inspect every 120,000 km (75,000 miles), if
noisy, adjust
Engine oil R R RRRRRRRRRR
Engine oil (for Puerto Rico) Replace every 5,000 km (3,000 miles) (or 3
months)
Oil filter R R RRRRRRRRRR
Drive belts (tension) 2.3L engine I
3.0L engine I I
PCV valve (for 3.0L
engine)*1 Replace every 160,000 km (100,000 miles)
IGNITION SYSTEM
Spark plugs USA Replace every 96,000 km (60,000 miles)
Others *2 Replace every 120,000 km (75,000 miles)
FUEL SYSTEM
Air cleaner filter Puerto Rico R R
Others R
Fuel filter *1 R R
Fuel lines & hoses *1 I I
Hoses and tubes for
emission*1
I
COOLING SYSTEM
Cooling system and hoses I I
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
232

Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
x 1000 Km 8 16 24 32 40 48 56 64 72 80 88 96
(x 1000 Miles) (5) (10) (15) (20) (25) (30) (35) (40) (45) (50) (55) (60)
Engine coolant (yellow) Replace at first 160,000 km (100,000 miles) or 60
months; after that, every 80,000 km (50,000 miles)
or 36 months
Engine coolant level I I IIIIIIIIII
ELECTRICAL SYSTEM
Function of all lights I I IIIIIIIIII
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake fluid level I I IIIIIIIIII
Disc brakes I I I I
Drum brakes I I
Tire (rotation), check wheel lug nut
torque *4Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wear I I IIIIIIIIII
Steering operation and linkages I I
Power steering fluid level I I IIIIIIIIII
Manual transaxle oil Replace every 48,000 km (30,000 miles)
Automatic transaxle fluid Replace every 48,000 km (30,000 miles)
Rear differential fluid
(4WD only)*3 Replace every 160,000 km (100,000 miles)
Transfer case fluid
(4WD only)*3 Replace every 48,000 km (30,000 miles)
Front and rear suspension ball joints I I
Driveshaft dust boots I I
Bolts and nuts on chassis and body I I I I
Exhaust system heat shields I I
All locks and hinges L L LLLLLLLLLL
Washer fluid level I I IIIIIIIIII
*1 According to state and federal regulations, failure to perform
maintenance on these items will not void your emissions warranties.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
233

However, Mazda recommends that all maintenance services be performed
at the recommended time or miles (kilometers) period to ensure
long-term reliability. Refer toFuel filterin theMaintenance and
Specificationschapter for fuel filter replacement requirements.
*2 If the vehicle is operated under any of the following conditions,
change the spark plugs every 60,000 miles (96,000 km) or shorter.
a) Repeated short-distance driving.
b) Extended periods of idling or low-speed operation.
c) Driving for long periods in cold temperatures or extremely humid
climates.
*3 If this component has been submerged in water, the oil should be
changed.
*4 The wheel lug nuts must be retightened to the proper specifications
at 500 miles (800 km) of new vehicle operation, at any wheel change, or
at any other time the wheel lug nuts have been loosened. Refer toWheel
Lug Nut Torque Specificationin theTires, Wheels and Loading
chapter for the proper lug nut torque specification.
OWNER MAINTENANCE SCHEDULE
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and dependable
operation.
Bring any problem to the attention of an authorized Mazda Dealer or
qualified service technician as soon as possible.
When Refueling
•Brake and clutch fluid level
•Engine coolant level
•Engine oil level
•Washer fluid level
At Least Monthly
•Tire inflation pressures
At Least Twice a Year (For Example, Every Spring and Fall)
•Automatic transaxle fluid level
•Power steering fluid level
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
234

Retightening lug nuts
•Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
•Refer toWheel Lug Nut Torque Specificationin theTires, Wheels
and Loadingchapter for the proper lug nut torque specification.
SERVICE RECOMMENDATIONS
To help you service your vehicle:
•We highlight do-it-yourself items in the engine compartment for easy
location.
•We provideservice maintenance sectionwhich makes tracking
routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide necessary parts and service. Check your “Warranty Information”
to find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Genuine Mazda parts are designed and built
to provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
WARNING: A hot engine is dangerous. If the engine has been
running, parts of the engine compartment can become very hot.
You could be burned. Don’t inspect the coolant system or add
coolant when the engine is hot.
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
235

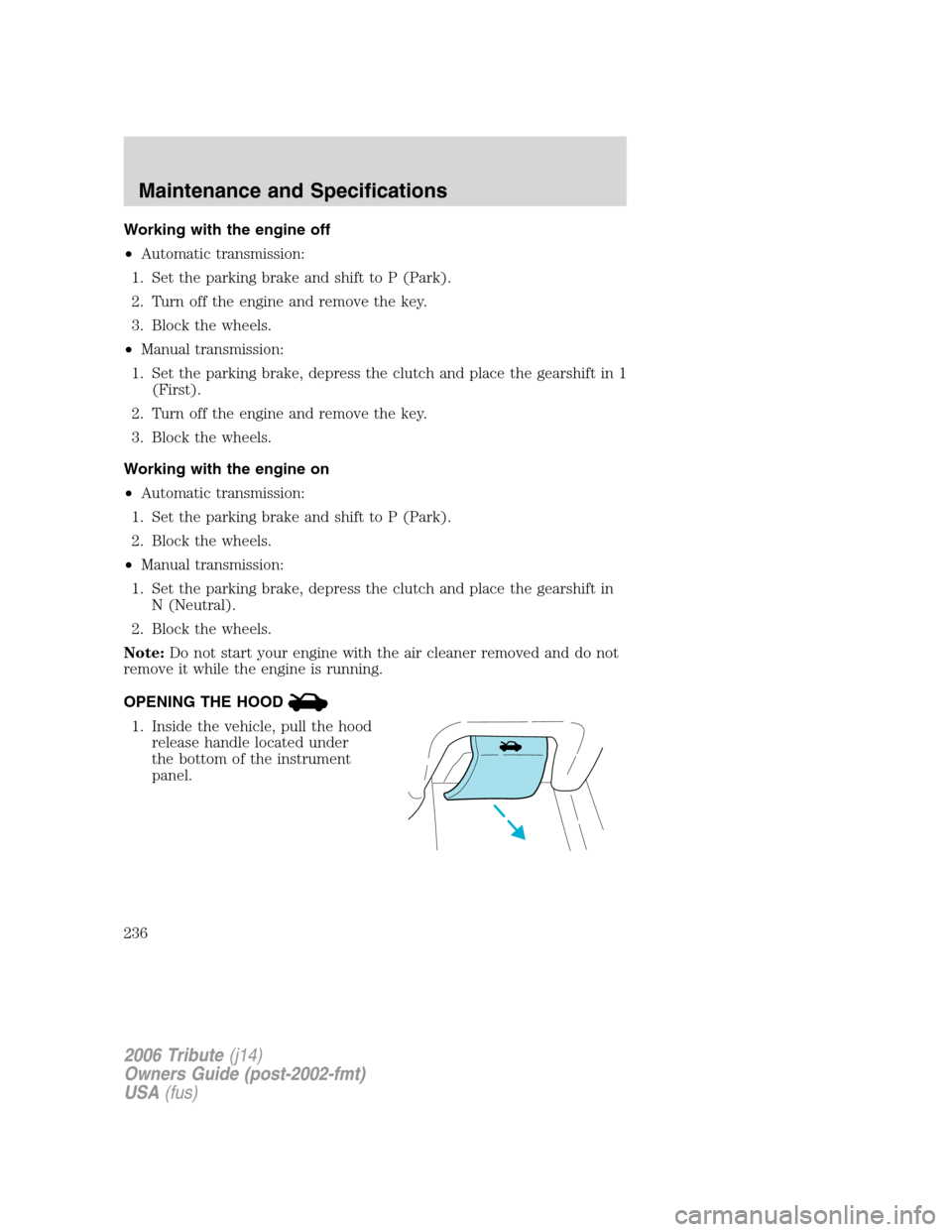

Working with the engine off
•Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key.
3. Block the wheels.
•Manual transmission:
1. Set the parking brake, depress the clutch and place the gearshift in 1
(First).
2. Turn off the engine and remove the key.
3. Block the wheels.
Working with the engine on
•Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
•Manual transmission:
1. Set the parking brake, depress the clutch and place the gearshift in
N (Neutral).
2. Block the wheels.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under
the bottom of the instrument
panel.
2006 Tribute(j14)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
236
