NOTE
If the“FL22”mark is shown on or near
the cooling system cap, use FL22 type
engine coolant. If engine coolant other
than FL22 type is used, the engine
coolant must be replaced earlier than
the specified replacement interval
indicated in the scheduled maintenance
(page 8-3).
Except FL22 type
For mixture percentage:
ProtectionVolume
Antifreeze
solutionDemineralized
water
Above_
16°C
(3°F)35% 65%
Above_
26°C
(_
15°F)45% 55%
Above_
40°C
(_
40°F)55% 45%
FL22 type
FL22 type engine coolant concentration is
factory adjusted. Use the product as it is
without diluting it.
To change coolant
WARNING
Removing the Cooling System Cap:
Removing the cooling system cap
while the engine is running or hot is
dangerous. This might lead to cooling
system and engine damage and could
result in serious injury from escaping
hot coolant or steam. Turn off the
engine and wait until it's cool. Even
then, be very careful when removing
the cap. Wrap a thick cloth around the
cap and slowly turn it
counterclockwise to the first stop.
Step back while the pressure escapes.
When you're sure all the pressure is
gone, press down on the cap―still
using a cloth―turn the cap, and
remove it.
1. Remove the cooling system cap.
2. Only when the engine is cool, loosen
the radiator drain plug and drain the
coolant into a suitable container.
Properly dispose of the used coolant.
3. With the drain plug loose but not fully
removed, flush out the system with
running water.
Tighten Loosen Loosen
Tighten
Maintenance and Care
Owner Maintenance
8-17
RX-8_8U58-EA-05J_Edition1 Page291
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (292,1)

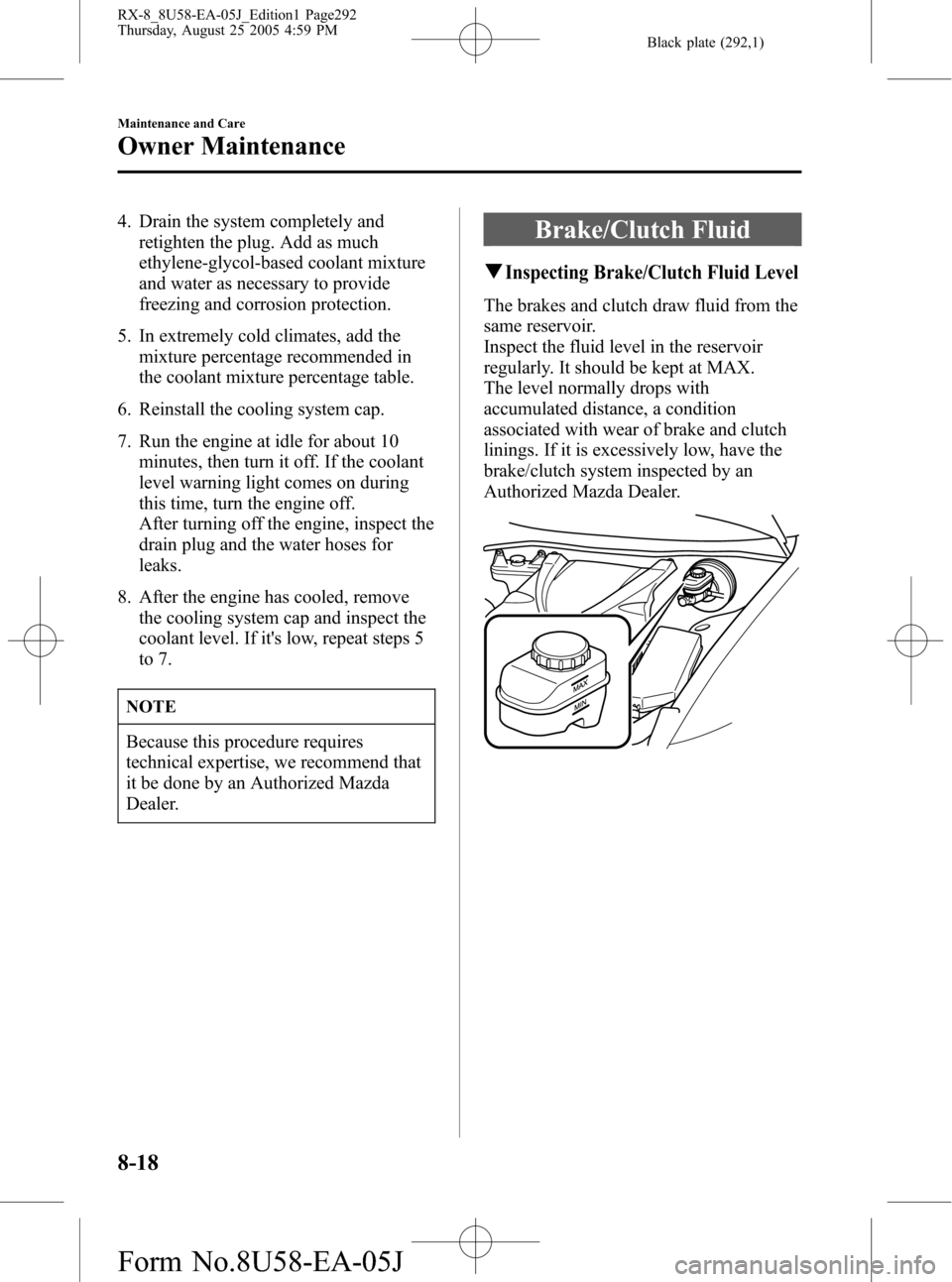

4. Drain the system completely and
retighten the plug. Add as much
ethylene-glycol-based coolant mixture
and water as necessary to provide
freezing and corrosion protection.
5. In extremely cold climates, add the
mixture percentage recommended in
the coolant mixture percentage table.
6. Reinstall the cooling system cap.
7. Run the engine at idle for about 10
minutes, then turn it off. If the coolant
level warning light comes on during
this time, turn the engine off.
After turning off the engine, inspect the
drain plug and the water hoses for
leaks.
8. After the engine has cooled, remove
the cooling system cap and inspect the
coolant level. If it's low, repeat steps 5
to 7.
NOTE
Because this procedure requires
technical expertise, we recommend that
it be done by an Authorized Mazda
Dealer.
Brake/Clutch Fluid
qInspecting Brake/Clutch Fluid Level
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.
8-18
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page292
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (293,1)

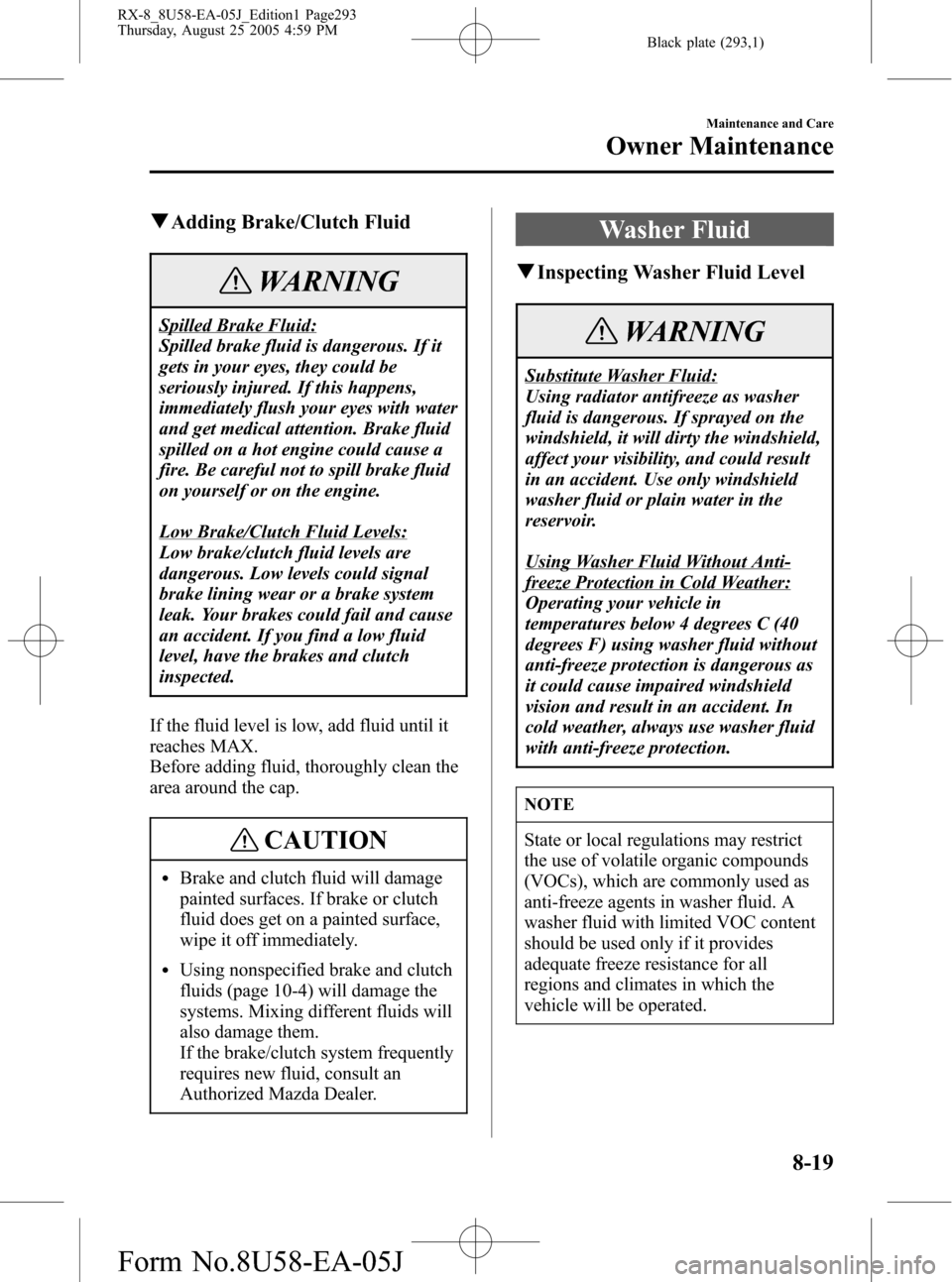

qAdding Brake/Clutch Fluid
WARNING
Spilled Brake Fluid:
Spilled brake fluid is dangerous. If it
gets in your eyes, they could be
seriously injured. If this happens,
immediately flush your eyes with water
and get medical attention. Brake fluid
spilled on a hot engine could cause a
fire. Be careful not to spill brake fluid
on yourself or on the engine.
Low Brake/Clutch Fluid Levels:
Low brake/clutch fluid levels are
dangerous. Low levels could signal
brake lining wear or a brake system
leak. Your brakes could fail and cause
an accident. If you find a low fluid
level, have the brakes and clutch
inspected.
If the fluid level is low, add fluid until it
reaches MAX.
Before adding fluid, thoroughly clean the
area around the cap.
CAUTION
lBrake and clutch fluid will damage
painted surfaces. If brake or clutch
fluid does get on a painted surface,
wipe it off immediately.
lUsing nonspecified brake and clutch
fluids (page 10-4) will damage the
systems. Mixing different fluids will
also damage them.
If the brake/clutch system frequently
requires new fluid, consult an
Authorized Mazda Dealer.
Washer Fluid
qInspecting Washer Fluid Level
WARNING
Substitute Washer Fluid:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident. Use only windshield
washer fluid or plain water in the
reservoir.
Using Washer Fluid Without Anti-
freeze Protection in Cold Weather:
Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous as
it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer fluid
with anti-freeze protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Maintenance and Care
Owner Maintenance
8-19
RX-8_8U58-EA-05J_Edition1 Page293
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (294,1)
Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
Full
LowOK
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
8-20
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page294
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (295,1)
Air Filter
CAUTION
Don't drive without an air filter. This
could result in excessive engine wear.
This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.
qReplacing the Air Filter
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
1. Make sure the ignition switch is turned
off.
2. Disconnect the electrical connector.
3. Unfasten the clamps.
4. Lift off the air filter cover and remove
the filter.
Air filter cover
Air filter
5. Wipe inside the air cleaner housing
with a damp cloth.
6. Clean or replace the filter.
7. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).
NOTE
After installing the air filter cover, make
sure the electrical connector is securely
connected.
Maintenance and Care
Owner Maintenance
8-21
RX-8_8U58-EA-05J_Edition1 Page295
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (300,1)
NOTE
lRemove the engine and battery
covers before performing battery
maintenance.
Engine cover
Battery cover
lIf the cover has been removed,
install it in the reverse order of
removal.
qBattery Maintenance
To get the best service from a battery:
lKeep it securely mounted.
lKeep the top clean and dry.
lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
8-26
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page300
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (307,1)
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing a Headlight Bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the high and low
beam bulbs in the rear of the headlight
unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
Refer to Light Bulbs on page 8-32.
3. If you are changing the right headlight
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
headlight bulb, turn the steering wheel
to the left.
4. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
Maintenance and Care
Owner Maintenance
8-33
RX-8_8U58-EA-05J_Edition1 Page307
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (309,1)
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
qReplacing a Fog Light Bulbí
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
qReplacing a Bulb (Front)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
2. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
Front turn signal lights, Parking lights,
Front side-marker lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
2. Disconnect the bulb from the socket.
Front turn signal
lights
Parking lights
Front side-marker lights
3. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-35íSome models. RX-8_8U58-EA-05J_Edition1 Page309
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J
