2006 MAZDA MODEL MPV clock

Black plate (210,1)
qOperating the Mini Disc (MD) Playerí
MD play button
Random button Repeat buttonFast-forward button
MD slot
MD eject button
MD display
Main display
Display
feed dial Display
buttonScan
button
Reverse
button
MD display
button Track down
buttonTrack up
button
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
The track number and the elapsed play
back time for the current track will be
displayed on the display.
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial to
the right. Turn the dial to the left to
return to the previous display.
Playing
Press the MD play button (
)to
start playing when a MD is in the unit.
Ejecting the MD
Press the MD eject button (
) to eject the
MD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
6-32
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page210
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (214,1)
qOperating the Compact Disc (CD) Playerí
Display CD slotCD play button CD eject button
Random button
Repeat buttonFast-forward buttonDisc-in indicator
Track up
button
Track down
buttonScan
button
Reverse
button
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate, and
the track number and the elapsed play
back time for the current track will be
displayed.
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial to
the right. Turn the dial to the left to
return to the previous display.
Playing
Press the CD play button (
) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
6-36
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page214
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (216,1)
qOperating the In-Dash CD Changerí
CD eject button
Load button
Random button Repeat button
Disc up buttonReverse button
Power/Volume dial
DisplayCD slot
CD play button
Channel preset buttonsDisc-in indicator
Track up
button
Track down
button
Disc down
buttonScan
button
Fast-forward
button
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number, the track number and
the elapsed play back time for the current
track will be displayed.NOTE
lWhen the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed
play back time, turn the audio
control dial to the right. Turn the dial
to the left to return to the previous
display.
lA CD cannot be inserted while the
display reads“WAIT”. A beeping
sound can be heard during this
waiting time. Simultaneously
pressing the power/volume dial and
the load button (
) for about 2
seconds will turn this beeping sound
ON or OFF.
6-38
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page216
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (232,1)
3. Open the cap by pushing it from inside
the box.
Cap
4. Store the garage door opener by
adjusting the thickness with the
urethane spacers.
qEyeglass Holderí
Push the lid to open.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Unlock
Lock
qFront Console
Pull the latch to open.
6-54
Interior Comfort
íSome models.
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page232
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (240,1)
qJack
To remove the jack
1. Remove the cover.
2. Remove the tool bag.
3. Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
WARNING
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
7-4
In Case of an Emergency
Flat Tire
Mazda MPV_8U61-EA-05G_Edition1 Page240
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (241,1)
CAUTION
lWhen using the temporary spare tire,
driving stability may decrease
compared to when using only the
conventional tire. Drive carefully.
lTo avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
lDon't exceed 80 km/h (50 mph).lAvoid driving over obstacles.
Also, don't drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the ground
clearance is reduced about 25 mm
(1 in).
lDon't use a tire chain on this tire
because it won't fit properly.
lDon't use your temporary spare
on any other vehicle; it has been
designed only for your Mazda.
lDo not tow a trailer while using
this tire.
lUse only one temporary spare tire
on your vehicle at the same time.
To remove the spare tire
1. Have everyone get out of the vehicle
and away from the vehicle and traffic.2. For side-spoiler equipped vehicles,
remove the fasteners on both sides of
the spoiler cap by turning them
counterclockwise.
Pull the spoiler cap out.
NOTE
After installing the side spoiler cap,
make sure it is securely attached.
In Case of an Emergency
Flat Tire
7-5
Mazda MPV_8U61-EA-05G_Edition1 Page241
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (242,1)
3. Locate the spare tire carrier socket cap
on the right, in front of the second-row
seat. Unscrew it by turning it
counterclockwise.
4. Remove the spare tire lever and lug
wrench from the tool bag.
5. Raise the reclining lever and push the
front seatback forward and out of the
way.
Make sure the seatback is locked.
6. Insert the spare tire lever into the spare
tire carrier socket. Fit the lug wrench to
the opposite end of the spare tire lever.
Lug wrench
Spare tire
lever
7. Slowly turn the lug wrench
counterclockwise until the spare tire
reaches the ground and the cable
becomes loose.
CAUTION
lDo not loosen the cable too much as
this may cause damage to the spare
tire carrier.
lTurning the lug wrench with the seat
reclined could damage the seatback
material.
lApplying excessive lateral force
while the spare tire lever is attached
may result in damage to the socket.
NOTE
The spare tire lever remains locked in
the socket while the spare tire is being
lowered.
Unless the cable is rolled up
completely, the spare tire lever cannot
be removed from the socket.
7-6
In Case of an Emergency
Flat Tire
Mazda MPV_8U61-EA-05G_Edition1 Page242
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (246,1)

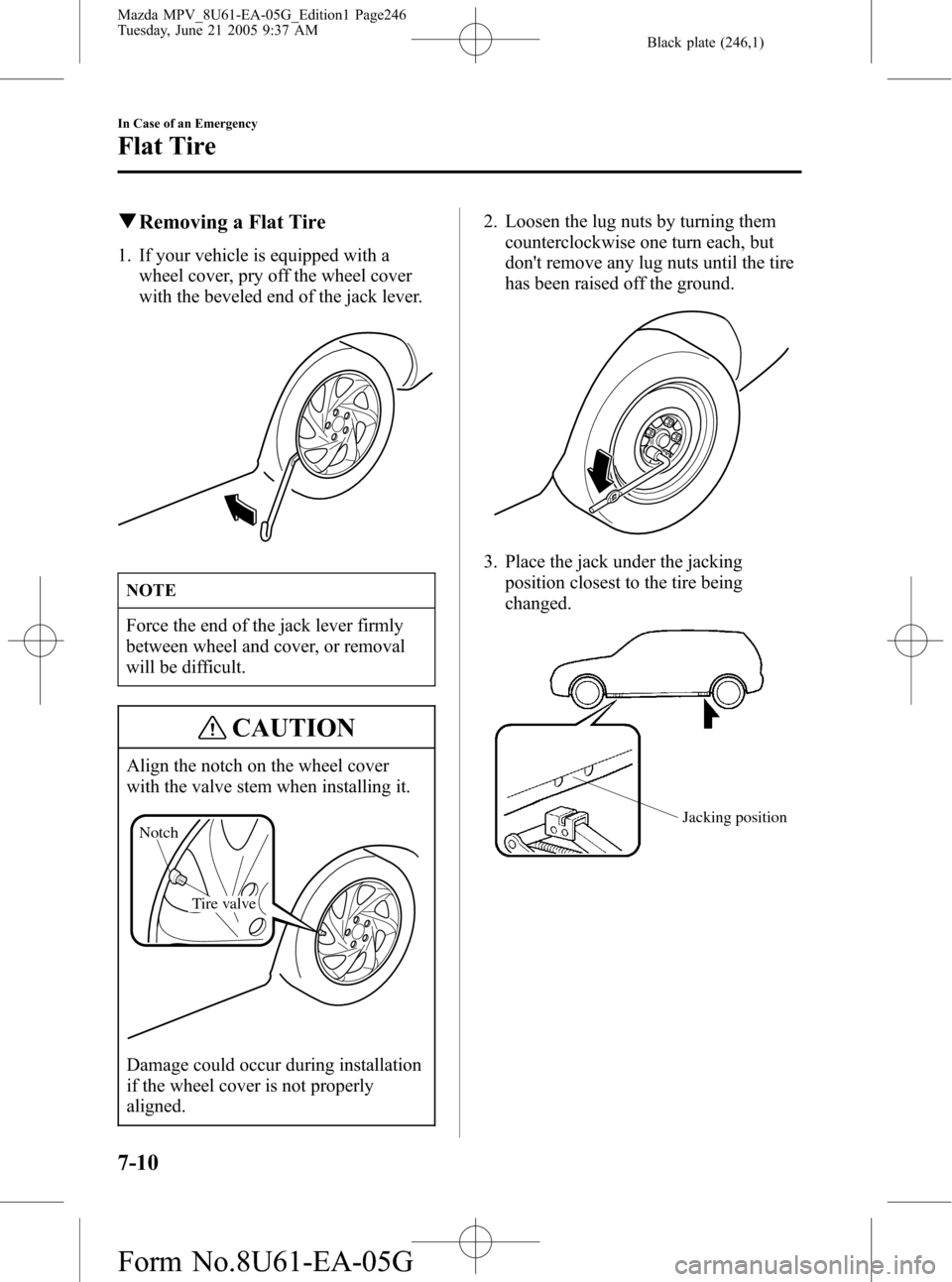

qRemoving a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the jack lever.
NOTE
Force the end of the jack lever firmly
between wheel and cover, or removal
will be difficult.
CAUTION
Align the notch on the wheel cover
with the valve stem when installing it.
Tire valve
Notch
Damage could occur during installation
if the wheel cover is not properly
aligned.2. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any lug nuts until the tire
has been raised off the ground.
3. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
7-10
In Case of an Emergency
Flat Tire
Mazda MPV_8U61-EA-05G_Edition1 Page246
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G
