2006 MAZDA MODEL 6 SPORT WAGON hood release

Black plate (9,1)
Headlight leveling switch .................................................................................. page 5-42
Dashboard illumination ..................................................................................... page 5-28
TCS-OFF switch ................................................................................................ page 5-22
Lighting control/Turn signals ............................................................................ page 5-41
Audio control switch ......................................................................................... page 6-43
Instrument cluster .............................................................................................. page 5-25
Air bags ............................................................................................................. page 2-45
Wiper and washer lever ..................................................................................... page 5-43
Cruise control switches ...................................................................................... page 5-18
Information display ............................................................................................ page 6-50
Hazard warning flasher switch .......................................................................... page 5-47
Audio system ..................................................................................................... page 6-16
Glove box .......................................................................................................... page 6-55
Center console ................................................................................................... page 6-55
Accessory socket ............................................................................................... page 6-57
Cup holder ......................................................................................................... page 6-52
Parking brake ....................................................................................................... page 5-5
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-41
Remote fuel-filler lid release ............................................................................. page 3-31
Trunk release button .......................................................................................... page 3-20
Hood release handle .......................................................................................... page 3-32
Storage pocket ................................................................................................... page 6-54
Outside mirror switch ........................................................................................ page 3-41
Interior light ....................................................................................................... page 6-47
Sunvisor ............................................................................................................. page 6-47
Map light ........................................................................................................... page 6-48
Rearview mirror ................................................................................................. page 3-42
Vanity mirror ...................................................................................................... page 6-47
Front seats ............................................................................................................ page 2-2
Seat belt ............................................................................................................. page 2-16
Rear seat .............................................................................................................. page 2-9
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda6_8V40-EA-05L_Edition1 Page9
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (79,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2Keys .......................................................................................... 3-2
Keyless Entry System ............................................................... 3-3
Door Locks ............................................................................... 3-9
Hatch (5-Door) ........................................................................ 3-12
Liftgate (Sport Wagon) ........................................................... 3-14
Trunk Lid (Sedan) ................................................................... 3-20
Inside Trunk Release Lever (Sedan) ....................................... 3-22
Power Windows ...................................................................... 3-23
Opening/Closing the Power Windows from Outside .............. 3-28
Fuel-Filler Lid and Cap ........................................................... 3-31
Hood ....................................................................................... 3-32
Moonroof
í............................................................................. 3-33
Security System ........................................................................... 3-36 Immobilizer System ................................................................ 3-36
Theft-Deterrent System
í........................................................ 3-39
Steering Wheel and Mirrors ...................................................... 3-41 Steering Wheel ........................................................................ 3-41
Mirrors .................................................................................... 3-41
3-1íSome models.
Mazda6_8V40-EA-05L_Edition1 Page79
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (110,1)
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Hood
WARNING
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
3-32
Knowing Your Mazda
Doors and Locks
Mazda6_8V40-EA-05L_Edition1 Page110
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (117,1)

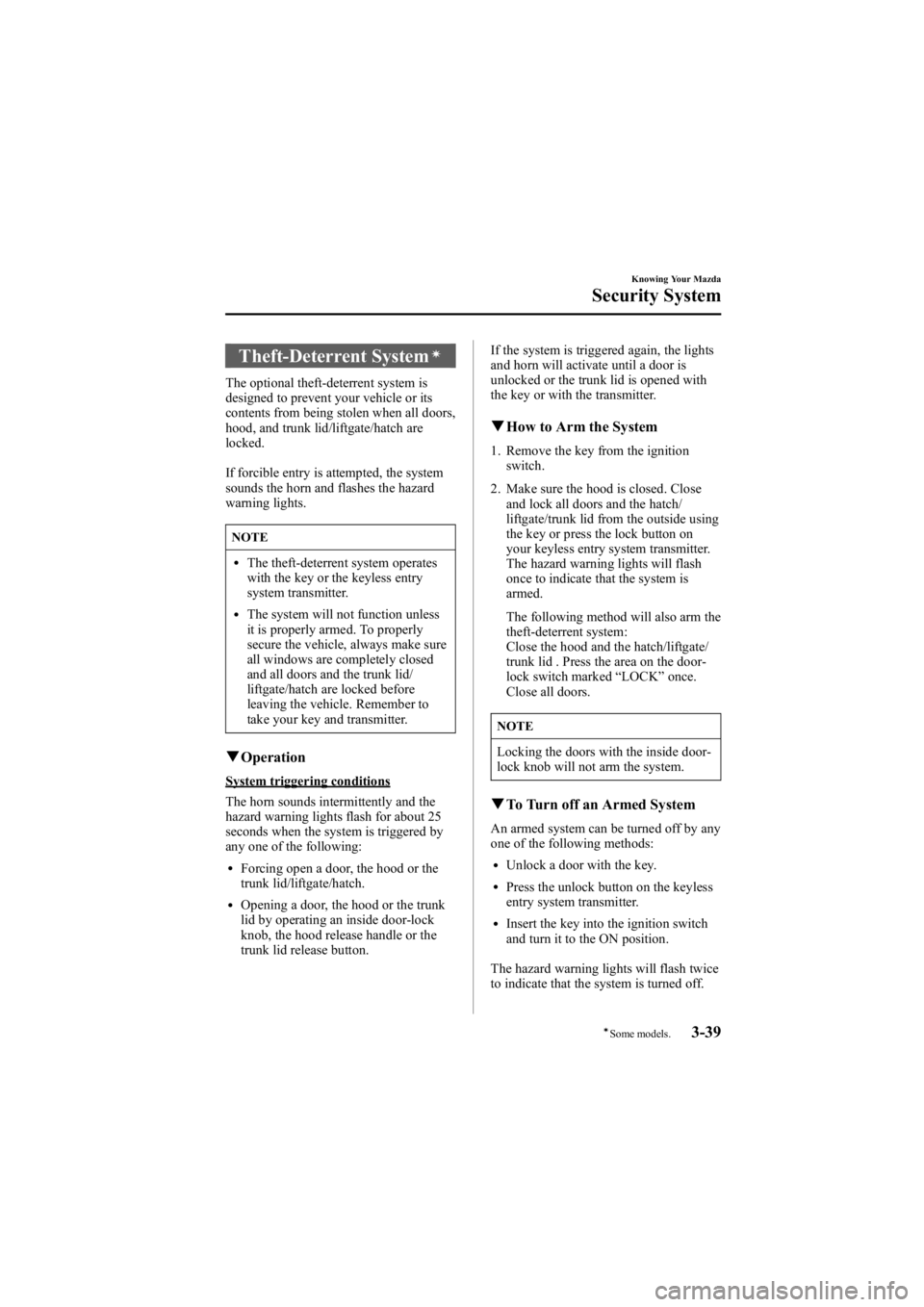

Theft-Deterrent Systemí
The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all doors,
hood, and trunk lid/liftgate/hatch are
locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all windows are completely closed
and all doors and the trunk lid/
liftgate/hatch are locked before
leaving the vehicle. Remember to
take your key and transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 25
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
trunk lid/liftgate/hatch.
lOpening a door, the hood or the trunk
lid by operating an inside door-lock
knob, the hood release handle or the
trunk lid release button. If the system is triggered again, the lights
and horn will activate until a door is
unlocked or the trunk lid is opened with
the key or with the transmitter.
q
How to Arm the System
1. Remove the key from the ignition
switch.
2. Make sure the hood is closed. Close and lock all doors and the hatch/
liftgate/trunk lid from the outside using
the key or press the lock button on
your keyless entry system transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
Close the hood and the hatch/liftgate/
trunk lid . Press the area on the door-
lock switch marked “LOCK ”once.
Close all doors.
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
q To Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
Knowing Your Mazda
Security System
3-39íSome models.
Mazda6_8V40-EA-05L_Edition1 Page117
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (296,1)

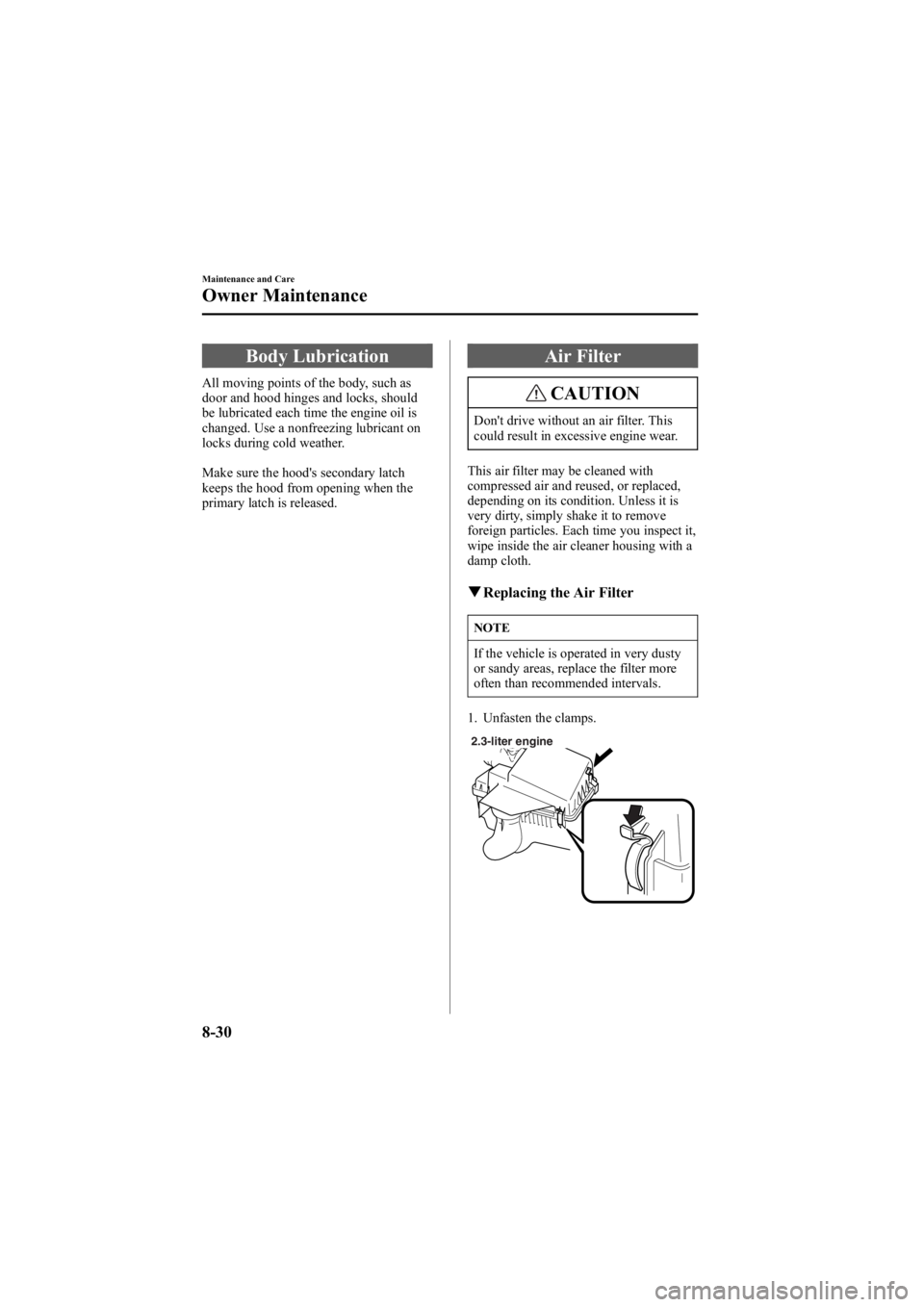

Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Air Filter
CAUTION
Don't drive without an air filter. This
could result in excessive engine wear.
This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.
q Replacing the Air Filter
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
1. Unfasten the clamps.
2.3-liter engine
8-30
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page296
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (385,1)
D
Daytime Running Lights ................... 5-42
DefrosterRear window .............................. 5-45
Dimensions ....................................... 10-5
Door Locks ......................................... 3-9
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-17
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
E
Emergency Starting ........................... 7-17Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-3
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-32
Oil .............................................. 8-18
Overheating ................................ 7-15
Starting ......................................... 5-3
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-15
Engine Coolant Temperature
Gauge ................................................ 5-27
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher Hazard warning .......................... 5-47
Headlights .................................. 5-41
Flat Tire ............................................... 7-3 Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-43
Foot Brake .......................................... 5-4
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-31
Gauge ......................................... 5-28
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-53 Panel description ........................ 8-55
Replacement ............................... 8-53
G
Glove Box ......................................... 6-55
H
Hatch ................................................. 3-12Luggage compartment cover ...... 3-13
Luggage strap ............................. 3-13
Hazard Warning Flasher .................... 5-47
Hazardous Driving .............................. 4-8
Index
11-3
Mazda6_8V40-EA-05L_Edition1 Page385
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (386,1)
H
HeadlightsControl ....................................... 5-41
Flashing ...................................... 5-41
High-low beam .......................... 5-41
Leveling ..................................... 5-42
On reminder ............................... 5-41
HomeLink Wireless Control
System .............................................. 5-47
Hood Release .................................... 3-32
Horn .................................................. 5-46
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-47
Immobilizer System .......................... 3-36
Indicator Lights ................................. 5-30
Cruise Main ................................ 5-39
Cruise set .................................... 5-39
Headlight high-beam .................. 5-38
Security ...................................... 5-37
Shift position .............................. 5-38
TCS ............................................ 5-38
TCS OFF .................................... 5-39
Turn-signal/hazard warning ....... 5-39
Information Display .......................... 6-50 Ambient temperature display ..... 6-51
Audio display ............................. 6-52
Climate control display .............. 6-52
Clock .......................................... 6-51
Information display functions .... 6-50
Inside Trunk Release Lever ............... 3-22
Instrument Cluster ............................. 5-25
Interior Care ...................................... 8-63
Interior Lights ................................... 6-47
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-42
Liftgate .............................................. 3-14 Luggage compartment cover ...... 3-15
Luggage compartment net .......... 3-16
Light Bulbs
Replacement ............................... 8-43
Specifications ............................. 10-6
Lighting Control ............................... 5-41
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-49
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-48
Mirrors
Outside mirrors .......................... 3-41
Rearview mirror ......................... 3-42
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-33
11-4
Index
Mazda6_8V40-EA-05L_Edition1 Page386
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L
