2006 MAZDA MODEL 6 SPORT WAGON coolant reservoir

Black plate (260,1)
If you find a leak or other damage, or ifcoolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
2.3-liter engineCooling system cap
Coolant reservoir
Cooling
system cap
Coolant reservoir 3.0-liter engine
If you find no problems, the engine iscool, and no leaks are obvious:
Carefully add coolant as required (page
8-21).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
7-16
In Case of an Emergency
Overheating
Mazda6_8V40-EA-05L_Edition1 Page260
Monday, November 28 2005 6:10 PM
Form No.8V40-EA-05L

Black plate (283,1)
Engine Compartment Overview
Power steering
fluid reservoirWindshield washer
fluid reservoir
Fuse block
Air filter
Brake/Clutch fluid reservoir
Engine coolant
reservoir
Engine coolant
reservoir Automatic transaxle fluid-level dipstick
(only for automatic transaxle) Automatic transaxle fluid-level dipstick
(only for automatic transaxle)
2.3-liter engine
3.0-liter engine Battery
Engine oil dipstick
Windshield washer
fluid reservoir Power steering
fluid reservoir
Cooling system cap Engine oil-filler cap
Brake/Clutch fluid reservoir
Air filter Fuse blockBattery
Engine oil-filler cap
Engine oil dipstick Cooling system cap
Maintenance and Care
Owner Maintenance
8-17
Mazda6_8V40-EA-05L_Edition1 Page283
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (287,1)

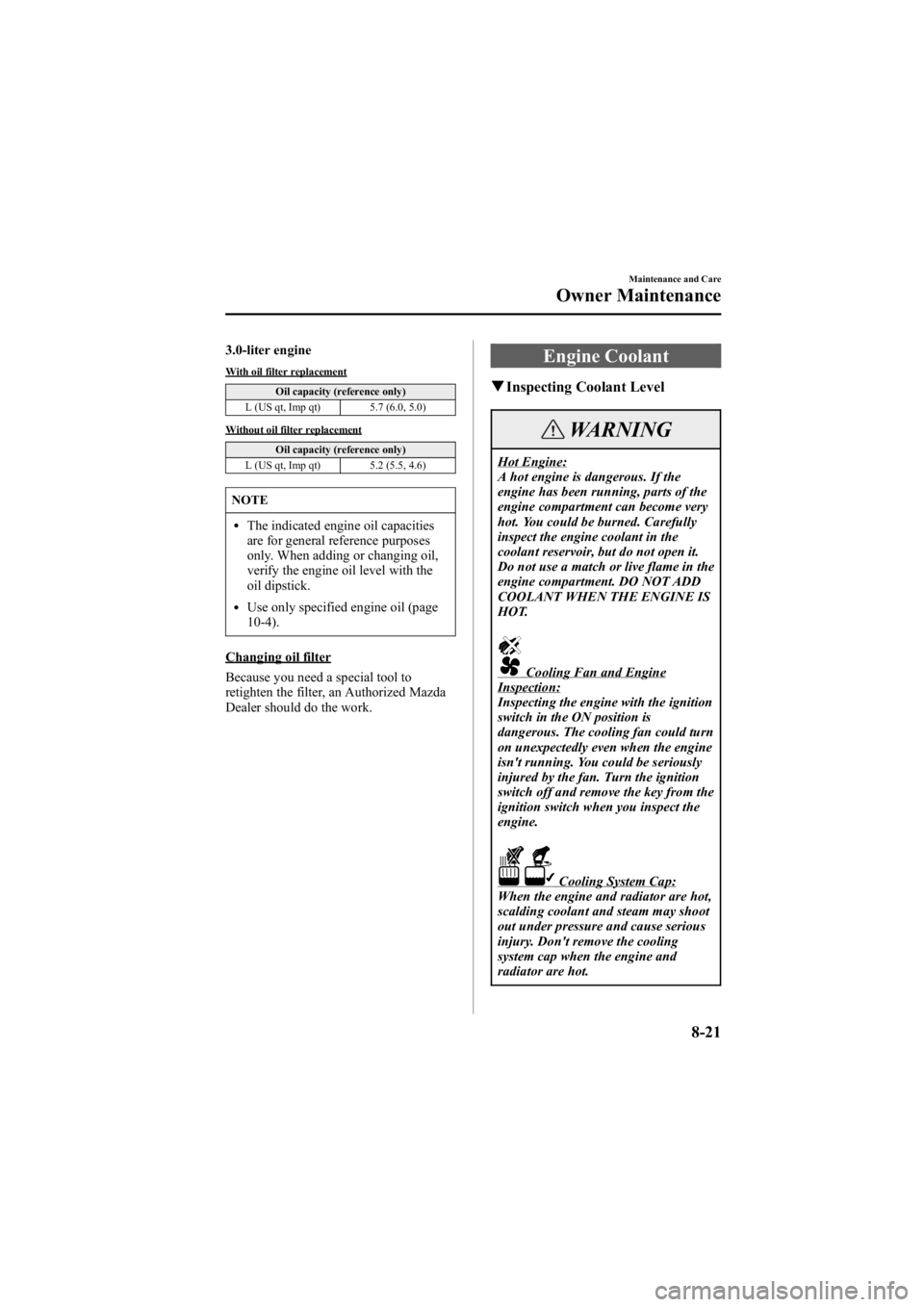

3.0-liter engine
With oil filter replacementOil capacity (reference only)
L (US qt, Imp qt) 5.7 (6.0, 5.0)
Without oil filter replacement
Oil capacity (reference only)
L (US qt, Imp qt) 5.2 (5.5, 4.6)
NOTE
lThe indicated engine oil capacities
are for general reference purposes
only. When adding or changing oil,
verify the engine oil level with the
oil dipstick.
lUse only specified engine oil (page
10-4).
Changing oil filter
Because you need a special tool to
retighten the filter, an Authorized Mazda
Dealer should do the work.
Engine Coolant
q Inspecting Coolant Level
WARNING
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS
HOT.
Cooling Fan and EngineInspection:
Inspecting the engine with the ignition
switch in the ON position is
dangerous. The cooling fan could turn
on unexpectedly even when the engine
isn't running. You could be seriously
injured by the fan. Turn the ignition
switch off and remove the key from the
ignition switch when you inspect the
engine.
Cooling System Cap:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot.
Maintenance and Care
Owner Maintenance
8-21
Mazda6_8V40-EA-05L_Edition1 Page287
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (288,1)
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season ―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the FULL or F and
LOW or L marks on the coolant reservoir
when the engine is cool.
2.3-liter engine
3.0-liter engine
If it's at or near LOW or L, add enough
coolant to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to FULL or F.
CAUTION
Radiator coolant will damage paint.
Rinse it off quickly if spilled.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
q Changing Coolant
Change coolant according to Scheduled
Maintenance (page 8-3).
CAUTION
lUse only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.
lDon't add only water. Always add a
proper coolant mixture.
lThe engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
lDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
lDO NOT MIX alcohol or methanol
with the coolant. This could damage
the cooling system.
lDon't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.
8-22
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page288
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (290,1)

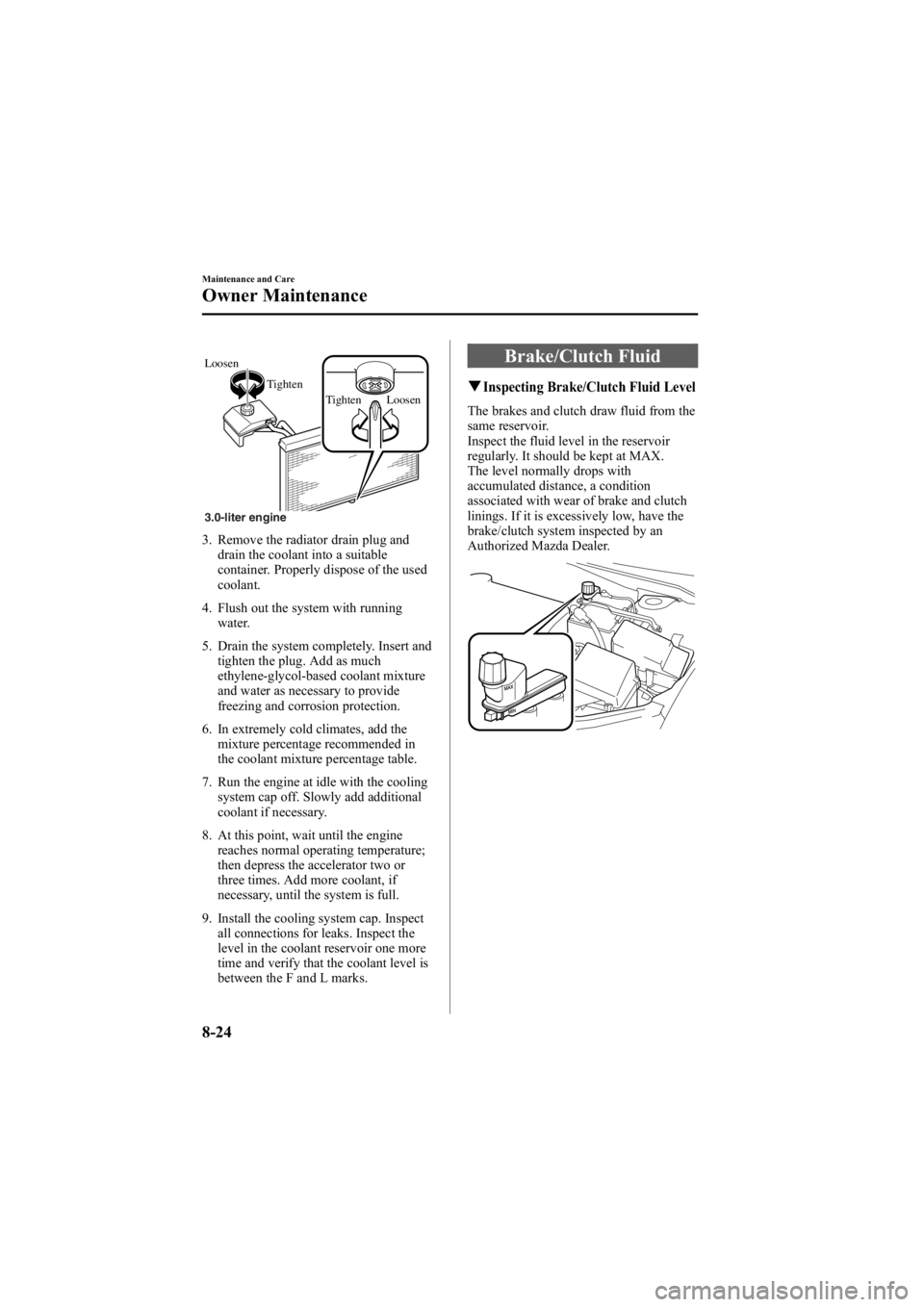

3.0-liter engine LoosenTightenTighten Loosen
3. Remove the radiator drain plug and
drain the coolant into a suitable
container. Properly dispose of the used
coolant.
4. Flush out the system with running water.
5. Drain the system completely. Insert and tighten the plug. Add as much
ethylene-glycol-based coolant mixture
and water as necessary to provide
freezing and corrosion protection.
6. In extremely cold climates, add the mixture percentage recommended in
the coolant mixture percentage table.
7. Run the engine at idle with the cooling system cap off. Slowly add additional
coolant if necessary.
8. At this point, wait until the engine reaches normal operating temperature;
then depress the accelerator two or
three times. Add more coolant, if
necessary, until the system is full.
9. Install the cooling system cap. Inspect all connections for leaks. Inspect the
level in the coolant reservoir one more
time and verify that the coolant level is
between the F and L marks.
Brake/Clutch Fluid
qInspecting Brake/Clutch Fluid Level
The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.
8-24
Maintenance and Care
Owner Maintenance
Mazda6_8V40-EA-05L_Edition1 Page290
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (379,1)
qCapacities
(Approximate Quantities)
Item Unit
L US qt Imp qt
Engine oil 2.3-liter engine
With oil filter
replacement
4.3 4.5 3.8
Without oil filter
replacement 3.9 4.1 3.4
3.0-liter engine With oil filter
replacement
5.7 6.0 5.0
Without oil filter
replacement 5.2 5.5 4.6
Coolant 2.3-liter engine 7.0 7.4 6.2
3.0-liter engine 8.5 9.0 7.5
Manual transaxle oil 2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid 2.3-liter engine 8.04 8.5 7.3
3.0-liter engine 7.0 7.4 6.1
Fuel tank 68 18.0 (US gal) 15.0
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Specification
Overall length Sedan
4,745 mm (186.8 in)
5-Door 4,745 mm
*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall height Sedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Track, front 1,540 mm
*1(60.6 in), 1,530 mm*2(60.2 in)
Track, rear 1,540 mm*1(60.6 in), 1,530 mm*2(60.2 in)
Wheelbase 2,675 mm (105.3 in)
*1 16 inch wheel vehicle
*2 17 inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
Specifications
10-5
