2006 MAZDA MODEL 3 4-DOOR Owners Manual

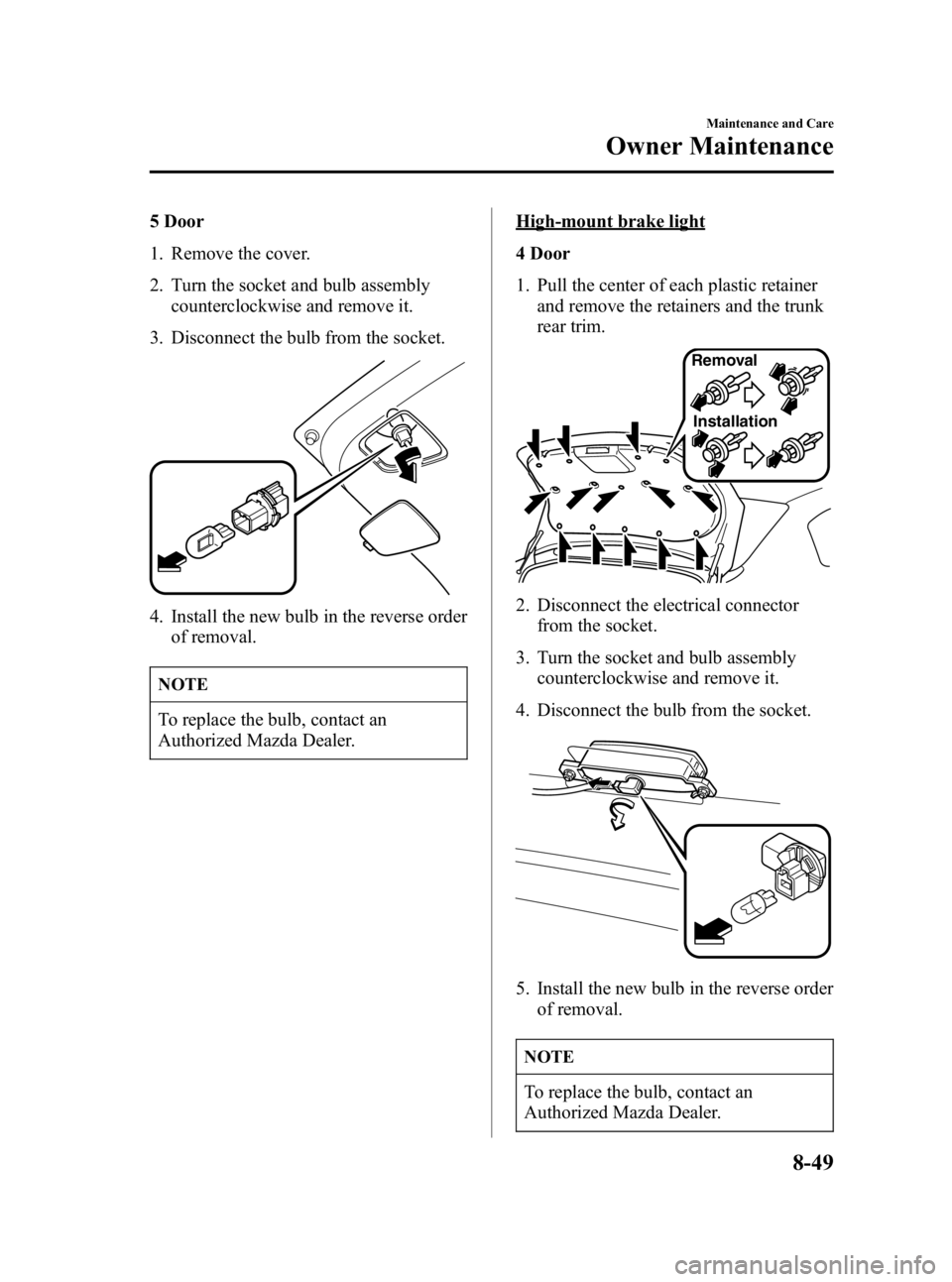

Black plate (297,1)
5 Door
1. Remove the cover.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
High-mount brake light
4 Door
1. Pull the center of each plastic retainer
and remove the retainers and the trunk
rear trim.
Removal
Installation
2. Disconnect the electrical connector from the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-49
Mazda3_8U55-EA-05G_Edition3 Page297
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (298,1)
5 Door
1. Remove the liftgate upper trim.
2. Disconnect the electrical connectorfrom the socket.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)í
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
8-50
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page298
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (299,1)
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
Overhead light (Rear)
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of removal.
Trunk light(4 Door)
1. Press both sides of the lens cap toremove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Luggage compartment light (5 Door)
1. Insert your finger as shown in thefigure and remove the unit.
2. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8U55-EA-05G_Edition3 Page299
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (300,1)
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse orderof removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the front
passenger's side below the glove box
If the electrical system doesn't work, first
inspect fuses on the front passenger's side
below the glove box.
1. Turn off the ignition switch and other
switches.
2. Remove the cover.
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page300
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (301,1)
3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect it and replace if it's blown.
Normal Blown
7. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-53
Mazda3_8U55-EA-05G_Edition3 Page301
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (302,1)
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a newone of the same amperage rating .
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer.
8-54
Maintenance and Care
Owner Maintenance
Mazda3_8U55-EA-05G_Edition3 Page302
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (303,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3
4 5 6
789
10
11
12
13 1415 16 17 18
19 20 21
22
23
24
25
26
27
28
29
30 31
32
33
34
35
36
DESCRIPTION
FUSE
RATING PROTECTED COMPONENT
1 FAN 40 A Cooling fan
2 P/ST 80 A EHPAS
3 BTN 40 A For protection of various circuits
4 HEAD 40 A Headlights
5 PTC 80 A ―
6 GLOW 60 A ―
7 ABS 1 30 A ABS
í
8 ABS 2 20 A ABSí
9 ENGINE 30 A For protection of various circuits
10 ―― ―
11 IG KEY 1 30 A Ignition switch
12 STARTER 20 A Starter clutch
13 IG KEY 2 30 A Ignition switch
14 ―― ―
15 HEATER 40 A Blower motor
16 ―― ―
17 DEFOG 40 A Rear window defroster
Maintenance and Care
Owner Maintenance
8-55íSome models.
Mazda3_8U55-EA-05G_Edition3 Page303
Tuesday, September 13 2005 10:45 AM
Form No.8U55-EA-05G

Black plate (304,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 AUDIO 30 A Audio system (BOSE Sound System-equipped model)
19 ABS IG 10A ABS
í
20FOG 15 A Fog lightsí
21HORN 15 A Horn
22 ―― ―
23 H/CLEAN 20 A ―
24 F/PUMP 15 A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
27 ALT/TCM 10A/15A Alternator/Transmission control module
28 ―― ―
29 ―― ―
30 ENG +B 10A PCM
31 ROOM 15 A Interior lights
32 ENG BAR 4 10A O
2heater
33 ENG BAR 3 10A O
2heater
34 EGI INJ 10A Injector
35 ENG BAR 1 10A Air flow sensor
36 ENG BAR 2 10A EGR control valve
