2006 LEXUS RX330 engine

ENGINE
561
Lexus recommends “Toyota Super Long Life Coolant”, which
has been tested to ensure that it will not cause corrosion nor
result in malfunction of your engine coolant system with proper
usage. “Toyota Super Long Life Coolant” is formulated with
long
−life hybrid organic acid technology and has been
specifically designed to avoid engine cooling system
malfunction on Lexus vehicles.
Please contact your Lexus dealer for further details.
CHECKING THE RADIATOR AND CONDENSER
If any of the above parts are extremely dirty or you are not sure
of their condition, take your vehicle to a Lexus dealer.
CAUTION
To prevent burning yourself, be careful not to touch the
radiator or condenser when the engine is hot.
NOTICE
To prevent damage to the radiator and condenser, do
not perform the work by yourself.

ENGINE
562
SPARK PLUGS
Your engine is fitted with iridiumtipped spark plugs.
NOTICE
Use only iridiumtipped spark plugs. Do not adjust
gaps for engine performance or smooth driveability.

CHASSIS
565
— TRANSFER
Oil capacity
0.9 L (1.0 qt., 0.8 Imp. qt.)
Oil typeHypoid gear oil API GL −5
Recommended oil viscosityAbove − 18C (0F) SAE 90
Below − 18C (0F) SAE 80W or 80W −90
— BRAKES
Pedal clearance
80 mm (3.1 in.) Min. *1
Pedal free play2 — 3 mm (0.079 — 0.118 in.)
Brake pad wear limit1.0 mm (0.04 in.)
Parking brake lining wear limit1.0 mm (0.04 in.)
Parking brake adjustment5 — 7 clicks *2
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
*1: Minimum pedal clearance when depressed with the pressure of 490 N (50\
kgf, 110 lbf) with the engine running
*2: Parking brake adjustment when depressed with the pressure of 300 N (3\
1 kgf, 67 lbf)
— STEERING
Wheel free play
Less than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRONII or III

CHASSIS
569
CHECKING POWER STEERINGFLUID
The power steering fluid reservoir is located under the
engine compartment cover. Before checking the power
steering fluid, remove the cover. (For details, see
“Removing the e ngine compartment cover” on page 540.)
Check the fluid level through the reservoir. If necessary,
add automatic transmission fluid DEXRONII or III .
If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60 C — 80C or 140F — 175F). You may also check the
level when the fluid is cold (about room temperature, 10 C —
30 C or 50F — 85F) if the engine has not been run for about
five hours.
1If cold O.K.2If cold add3If hot O.K.
4If hot add
Clean all dirt off the reservoir and look at the fluid level. If the
fluid is cold, the level should be in the “COLD” range. Similarly,
if it is hot, the fluid level should be in the “HOT” range. If th\
e
level is at the low side of the appropriate range, add automatic
transmission fluid DEXRON
II or III to bring the level within
the range.
To remove the reservoir cap, turn it counterclockwise and lift
up. To reinstall it, turn it clockwise. After replacing the reservoir
cap, visually check the steering box case, vane pump and hose
connections for leaks or damage.

CHASSIS
579
Glossary of tire terminology
Tire related termMeaning
Accessory weightthe combined weight (in excess of those standard items which may be rep\
laced)
of automatic transmission, power steering, power brakes, power windows, \
power
seats, radio, and heater, to the extent that these items are available as
factory−installed equipment (whether installed or not)
Cold tire inflation
pressuretire inflation pressure when the vehicle has been parked for at least 3 \
hours or
more, or it has not been driven more than 1.5 km or 1 mile under that co\
ndition
Curb weightthe weight of a motor vehicle with standard equipment including the maxi\
mum
capacity of fuel, oil, and coolant, and, if so equipped, air conditionin\
g and
additional weight optional engine
Intended outboard
sidewall(a) the sidewall that contains a whitewall, bears white lettering or bearsmanufacturer, brand, and/or model name molding that is higher or deeper
than the same molding on the other sidewall of the tire, or
(b) the outward facing sidewall of an asymmetrical tire that has a particula\
r side that must always face outward when mounted on a vehicle
Maximum inflation
pressurethe maximum cold inflation pressure to which a tire may be inflated and \
it is
shown on the sidewall of the tire
Maximum loaded
vehicle weightthe sum of —
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight

CHASSIS
589
Regulations regarding the use of tire chains vary
according to location or type of road. Always check local
regulations before installing chains.
NOTICE
If the wrong combination of tire and chain is used, the
chains could damage the vehicle body.
Chain installation
Install the chains on the front tires as tightly as possible.
Do not use tire chains on the rear tires. Retighten chains
after driving 0.5 — 1.0 km (1/4 — 1/2 mile).
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.
CAUTION

Do not exceed 50 km/h (30 mph) or the chain
manufacturer’s recommended speed limit,
whichever is lower.
 Drive carefully avoiding bumps, holes, and sharp
turns, which may cause the vehicle to bounce.
 Avoid sharp turns or lockedwheel braking, as use of
chains may adversely affect vehicle handling.
 When driving with chains installed, be sure to drive
carefully. Slow down before entering curves to avoid
losing control of the vehicle. Otherwise an accident
may occur.
 Vehicles with electronically modulated air
suspension: When installing the tire chains, be sure
to turn off the height control and stop the engine.
Otherwise, the vehicle height may change in the
automatic leveling function, resulting in an
unexpected accident. For details, see page 446.
If the chains are installed, the tire pressure warning
system may not operate properly. See “Tire pressure
warning system” on page 462.

ELECTRICAL COMPONENTS
594
SPECIFICATIONS
— FUSE LOCATIONS
1Engine compartment
2 3 Driver’s side instrument panel— FUSES

Engine compartment
(with electronically modulated air suspension)

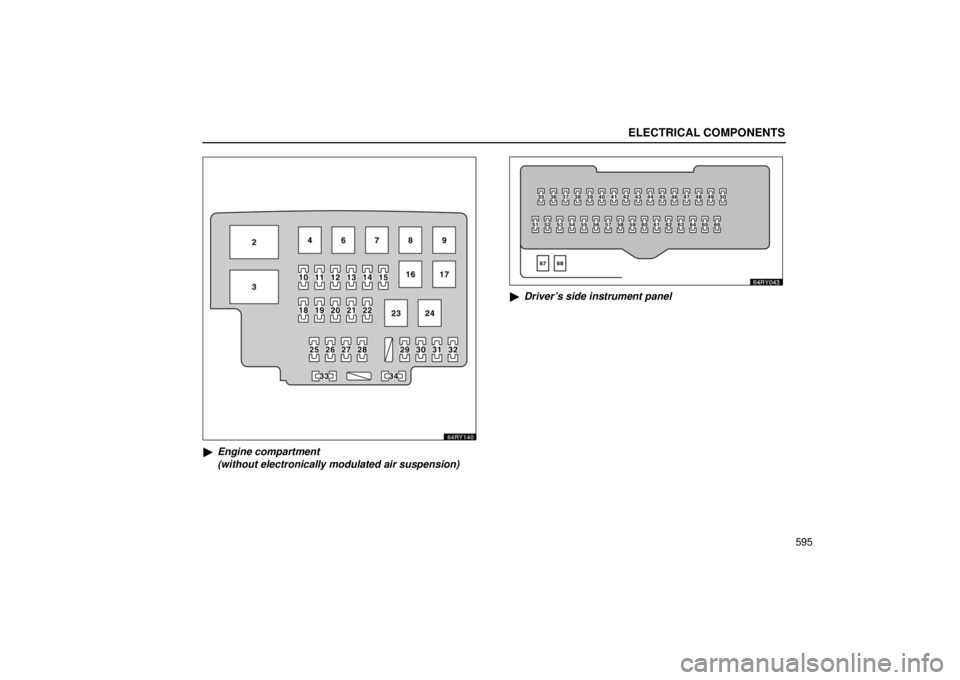

ELECTRICAL COMPONENTS
595
Engine compartment
(without electronically modulated air suspension)
64RY043
Driver’s side instrument panel
