MAINTENANCE
532
Tire inflation pressure
Check the pressure with a gauge every two weeks,
or at least once a month and adjust as shown on the
tire and loading information label. See page 570 for
additional information.
Tire surface
Check the tires carefully for cuts, damage or
excessive wear. See page 585 for additional
information.
Tire rotation
Rotate the tires according to the maintenance
schedule. (For scheduled maintenance information,
please refer to the “Owner’s Manual Supplement /
Scheduled Maintenance”.) See “Rotating tires” on
page 584.DOES YOUR VEHICLE NEEDREPAIRING?
Be on the alert for changes in performance and sounds, and
visual tip −offs that indicate service is needed. Some important
clues are:
 Engine missing, stumbling, or pinging
 Appreciable loss of power
 Strange engine noises
 A fluid leak under the vehicle (However, water dripping from
the air conditioning after use is normal.)
 Change in exhaust sound (This may indicate a dangerous
carbon monoxide leak. Drive with the windows open and
have the exhaust system checked immediately.)
 Flat−looking tires, excessive tire squeal when cornering,
uneven tire wear
 Vehicle pulls to one side when driving straight on a level
road
 Strange noises related to suspension movement
 Loss of brake effectiveness, spongy feeling brake pedal,
pedal almost touches floors, vehicle pulls to one side when
braking
 Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to your Lexus
dealer as soon as possible. It probably needs adjustment or
repair.

SECTION 6 – 1
535
SERVICE PROCEDURES AND
SPECIFICATIONS
Introduction
Vehicle identification536
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Theft prevention labels 537
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine compartment overview 539
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Do−it−yourself service precautions 541
. . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 543
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Positioning the jack 544
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

INTRODUCTION
537

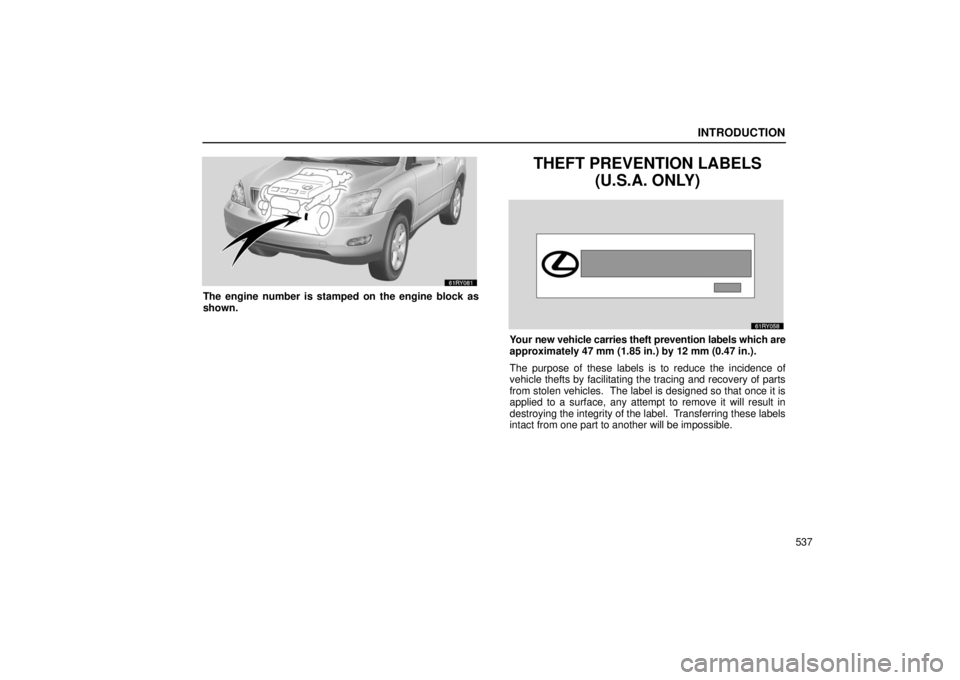

The engine number is stamped on the engine block as
shown.
THEFT PREVENTION LABELS(U.S.A. ONLY)
Your new vehicle carries theft prevention labels which are
approximately 47 mm (1.85 in.) by 12 mm (0.47 in.).
The purpose of these labels is to reduce the incidence of
vehicle thefts by facilitating the tracing and recovery of parts
from stolen vehicles. The label is designed so that once it is
applied to a surface, any attempt to remove it will result in
destroying the integrity of the label. Transferring these labels
intact from one part to another will be impossible.

INTRODUCTION
539
ENGINE COMPARTMENT OVERVIEW
1Power steering fluid
reservoir
2Engine oil level
dipstick
3Engine oil filler cap
4Brake fluid reservoir
5Fuse box
6Battery
7Radiator
8Condenser
9Electric cooling fans
10Engine coolant
reservoir
11Washer fluid tank

INTRODUCTION
540
Removing the engine compartment cover
Before jump starting or checking the power steering fluid,
etc. in the engine compartment, remove the engine
compartment cover as follows:
1. Push the core of the clips and remove the clips.
2. Remove the cover.
Be careful not to lose the removed plastic clips.
After checking the items, install the engine compartment
covers and insert the plastic clips in their original
positions.
When inserting the clips, do as shown above.
NOTICE
After installing the engine compartment cover, make
sure the cover is securely in its original position.

INTRODUCTION
541
DOITYOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do −it−yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do−it−yourself
maintenance, see “Parts and tools” on page 543.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:
CAUTION
 When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)
 Right after driving, the engine compartment — the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. — will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.
 If the engine is hot, do not remove the radiator cap or
loosen the drain plugs to prevent burning yourself.
 Do not leave anything that may burn easily, such as
paper or rags, in the engine compartment.
 Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.
 Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.
 Be sure that the ignition is off if you work near the
electric cooling fans or radiator grille. With the
ignition on, the electric cooling fans will
automatically start to run if the engine coolant
temperature is high and/or the air conditioning is on.

INTRODUCTION
542
Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.
 Take care when filling the brake fluid reservoir
because brake fluid can harm your eyes and damage
painted surfaces. If fluid gets in your eyes, flush your
eyes with clean water immediately. If you still feel
uncomfortable with your eyes, go to the doctor.
 Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.NOTICE
Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally
causing a short circuit.
 Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.
 Do not drive with the air cleaner removed, or
excessive engine wear could result. Also backfiring
could cause a fire in the engine compartment.
 If you spill the fluid, be sure to wash it off with water
to prevent it from damaging the parts or paint.
 Do not overfill automatic transmission fluid and
power steering fluid, or the transmission and power
steering could be damaged.
 Be careful not to scratch the glass surface with the
wiper frame.

INTRODUCTION
543
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do−it−yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
Checking the engine oil level
Parts (if level is low):
“Toyota Genuine Motor Oil” or equivalent
See page 558 for details about engine oil selection.
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
“Toyota Super Long Life Coolant” or similar high quality
ethylene glycol based non −silicate, non− amine, non−nitrite,
and non −borate coolant with long −life hybrid organic acid
technology.
“Toyota Super Long Life Coolant” is a mixture of 50%
coolant and 50% deionized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for Canada). Tools:

Funnel (only for adding coolant)
Checking brake fluid
Parts (if level is low):
FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEXRON
II or III
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
