2006 LEXUS LS430 engine coolant

269
4-3. Do-it-yourself maintenance
4
Maintenance and care
Radiator and condenser
Check the radiator and condenser and clear any foreign objects. If the parts are
extremely dirty or you are not sure of their condition, have your vehicle checked
by your Lexus dealer.
CAUTION
■When the engine is hot
Do not remove the radiator cap. The cooling system may be under pressure and
ma

y spray hot coolant if the cap is removed, causing burns or other injuries.
Do not touch the radiator or condenser, as they may be not and may cause burns.
NOTICE
■When adding engine coolant
Do not use plain water alone.
■If you spill coolant:
Be sure to wash it off with water to prevent damage to parts or point.

324
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
Look for any of the following symptoms.
• Fluid leaks under the vehicle
Water dripping from the air conditioning after use is normal
• Flat-looking tires or uneven tire wear
• Engine coolant temperature gauge needle continually points higher
than normal
■ A
udible symptoms
Listen for any of the following symptoms.
• Change in exhaust sound
• Excessive tire squeal when cornering
• Strange noises related to suspension system
• Pinging or other noises related to engine
■ P
roblems with operation
Check for any of the following symptoms.
• Engine missing, stumbling or running rough
• Appreciable loss of power
• Vehicle pulls to heavily one side when braking
• Vehicle pulls to heavily one sid e when driving on a le
vel road
• Loss of brake effectiveness, sp ongy feeling, pedal almost touches
floor

5
When trouble arises
359
5-2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats
Stop the vehicle in a safe place and turn off the automatic climate
control.
Check to see if steam is coming out from under the hood.
If you see steam: 
Stop the engine.
If you do not see steam: 
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: 
Wait until the temperature of the engine (shown in the instrument clus -
ter) begins to fall and then stop the engine.
If the fan is not operating: 
Stop the engine and call your local Lexus dealer.
After the engine has cooled down
sufficiently, check the level of
engine coolant and inspect the
radiator core (radiator) for any
leaks.

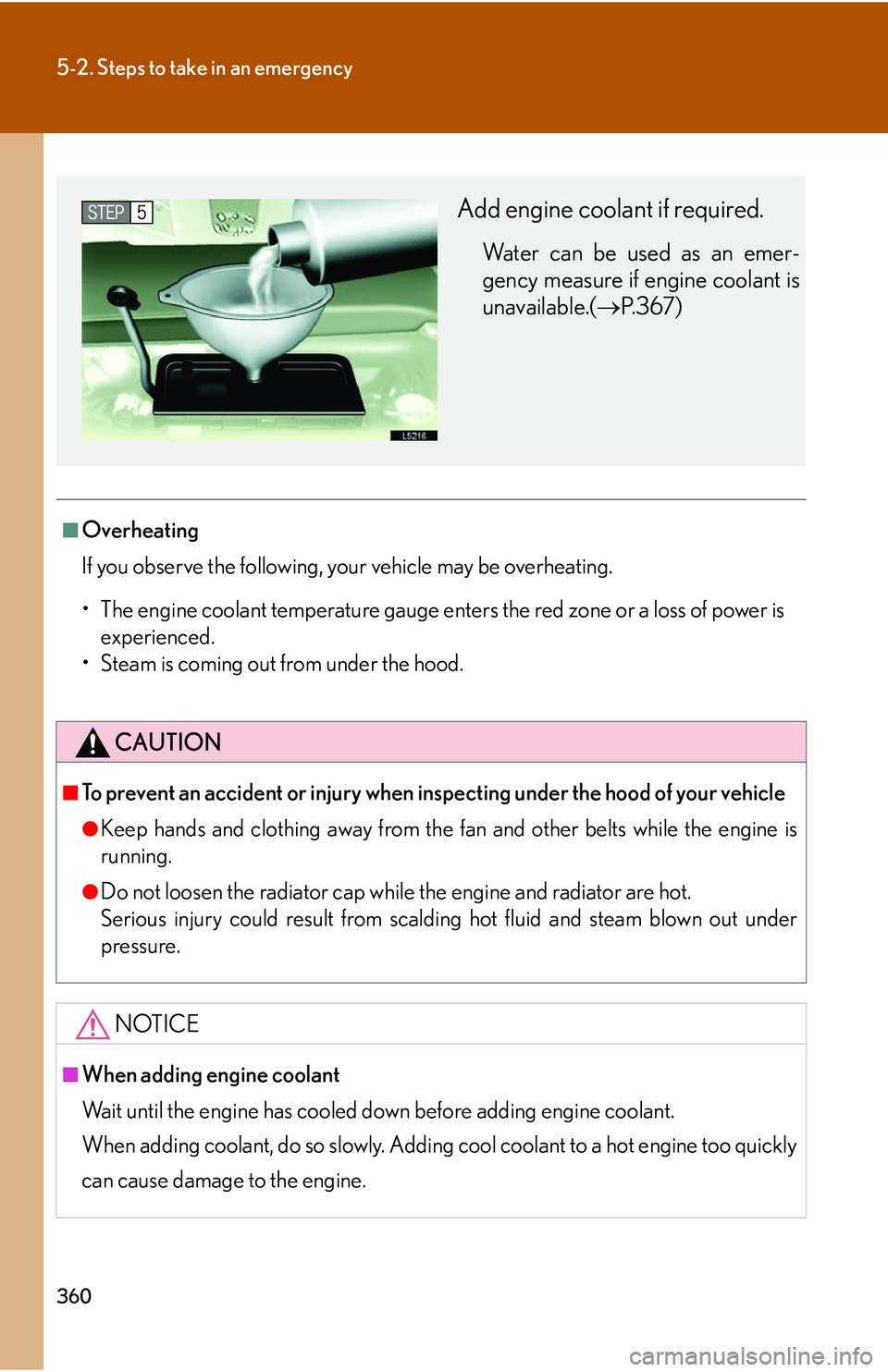

360
5-2. Steps to take in an emergency
■Overheating
If you observe the following, your vehicle may be overheating.
• The engine coolant temperatur
e gauge enters the red zone or a loss of power is
experienced.
• Steam is coming out from under the hood.
CAUTION
■To prevent an accident or injury when in specting under the hood of your vehicle
●Keep hands and clothing away from the fan and other belts while the engine is
running.
●Do not loosen the radiator cap while the engine and radiator are hot. 
Serious injury could result from scalding hot fluid and steam blown out under
pr
essure.
NOTICE
■When adding engine coolant
Wait until the engine has cooled do wn befor
e adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
ca
n cause damage to the engine.
Add engine coolant if required.
Water can be used as an emer -
gency measure if engine coolant is
una
vailable.( P.367 )

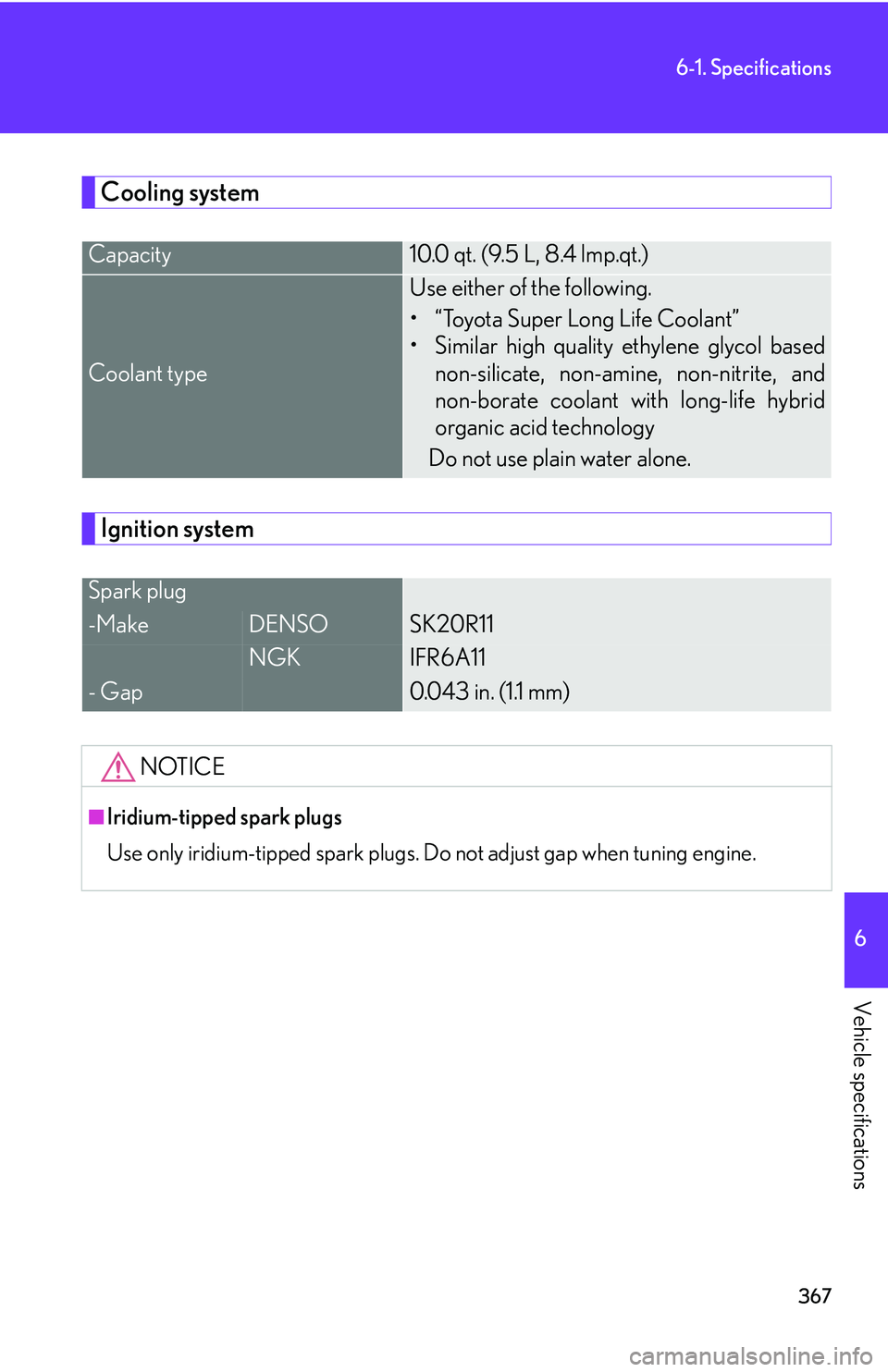

367
6-1. Specifications
6
Vehicle specifications
Cooling system
Ignition system
Capacity10.0 qt. (9.5 L, 8.4 lmp.qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high quality ethylene glycol based non-silicat
e, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
-MakeDENSOSK20R11
NGKIFR6A11
- Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not
adjust gap when tuning engine.

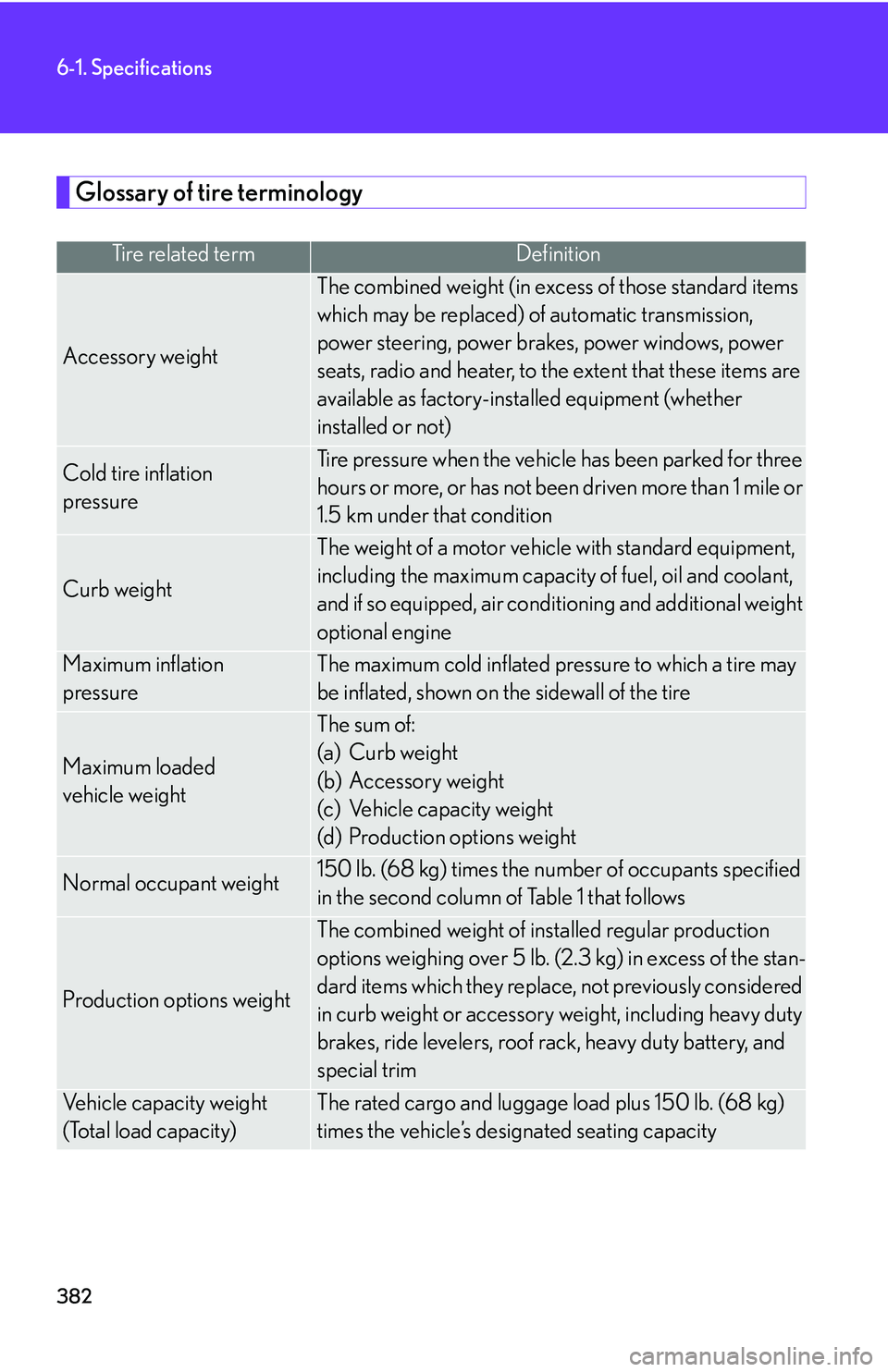

382
6-1. Specifications
Glossary of tire terminology
Tire related termDefinition
Accessory weight
The combined weight (in excess of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Cold tire inflation 
pressure
Tire pressure when the vehicle has been parked for three
hours or more, or has not been driven more than 1 mile or
1.5 km under that condition
Curb weight
The weight of a motor vehicl e with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air conditioning and additional weight
optional engine
Maximum inflation 
pressure
The maximum cold inflated pressure to which a tire may
be inflated, shown on the sidewall of the tire
Maximum loaded 
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1 that follows
Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the stan -
dard items which they replace, not previously considered
in curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and
special trim
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68 kg)
times the vehicle’s designated seating capacity

394
Alphabetical index
Driving position memory ......................25
Dynamic radar/laser 
cruise control ....................................... 129
ECT Pattern select switch ......................... 99
Electronically modulated 
air suspension ...................................... 138
Engine Compartment ..................................... 262
Hood........................................................ 260
How to start the engine..................... 94
If your vehicle will not start............ 353
Ignition switch......................................... 94
Malfunction indicator lamp........... 330
Engine coolant Capacity ................................................. 367
Checking ............................................... 268
Preparing and checking 
before winter ......................................149
Engine coolant temperature 
gauge....................................................... 103
Engine immobilizer system.................. 54
Engine oil Capacity ................................................. 366
Checking ............................................... 263
Preparing and checking 
before winter ......................................149
Event data recorder ............................ 326
First-aid kit net........................................ 227
Fog lights Switch .......................................................... 113
Wattage.................................................. 372
Floor lights ................................................ 198Floor mats ................................................
224
Fluid Brake ........................................................ 270
Power steering .................................... 272
Washer.................................................... 277
Front passenger's seat
belt 
reminder light ..................................... 332
Front seats Adjustment ............................................... 22
Fuel Capacity ................................................ 366
Fuel gauge .............................................. 103
Information ............................................ 373
Low fuel level warning light ........... 331
Refueling ..................................................... 51
Fuel filler door ............................................. 51
Fuel pump shut off system................. 325
Fuses Blade ...................................................... 298
Cartridge............................................... 309
Gas station information ..................... 402
Garage door opener .......................... 232
Gauge and meter.................................. 103
Glove box ................................................ 202
Glove compartment light Wattage .................................................. 372
Graphic information ............................ 109
Head restraints Adjusting..................................................... 31
Headlight aim ............................................ 311
Headlight cleaner.................................... 117
Headlights Operation ................................................. 110
E
F
G
H

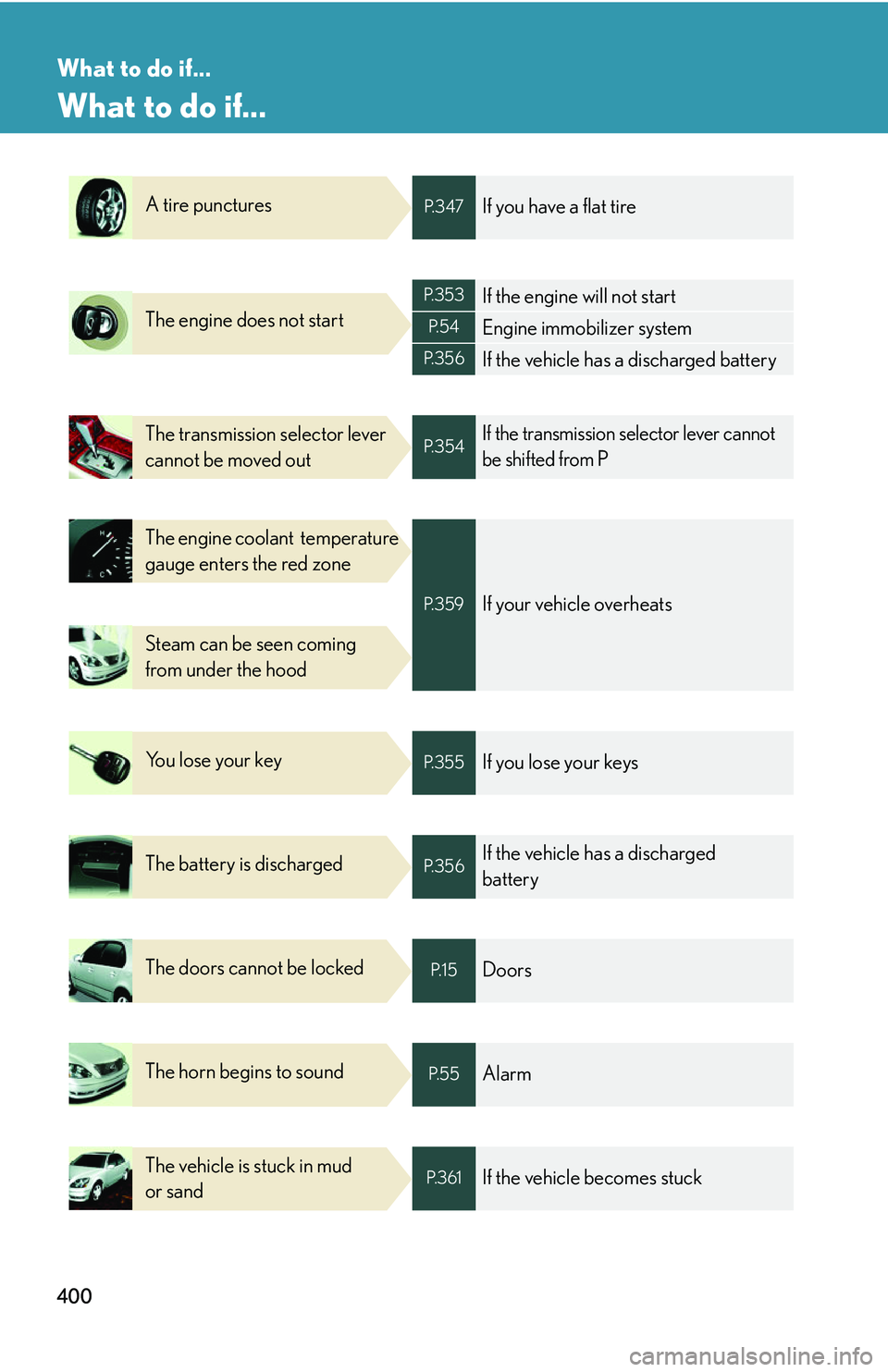

400
What to do if...
What to do if...
A tire puncturesP. 3 4 7If you have a flat tire
The engine does not start
P. 3 5 3If the engine will not start
P. 5 4Engine immobilizer system
P. 3 5 6If the vehicle has a discharged battery
The transmission selector lever 
cannot be moved outP. 3 5 4If the transmission selector lever cannot
be shifted from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 3 5 9If your vehicle overheats
You lose your keyP. 3 5 5If you lose your keys
The battery is dischargedP. 3 5 6If the vehicle has a discharged 
battery
The doors cannot be lockedP. 1 5Doors
The horn begins to soundP. 5 5Alarm
The vehicle is stuck in mud 
or sandP. 3 6 1If the vehicle becomes stuck
