2006 Lexus IS250 Using the audio system / LEXUS 2006 IS350/250 FROM MAY 2006 PROD. OWNER'S MANUAL (OM53619U)

263
4-3. Do-it-yourself maintenance
4
Maintenance and care
Positioning the jack
When raising your vehicle with the jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■ Front
2WD
AW D
■ Rear

264
4-3. Do-it-yourself maintenance
CAUTION
■When raising your vehicle:
Make sure to observe the following to reduce the possibility of death or serious
injury.
●Do not put any part of your body or get underneath the vehicle supported only by
the jack.
Always use automotive jack stands or a solid, level, surface.
●Do not start the engine while the vehicle is supported by the jack.
●Stop the vehicle on level firm ground, firmly set the parking brake and put the shift
lever in P (automatic) or R (manual).
●Make sure to set the jack properly at the jack point.
Raising the vehicle with an improperly positioned jack will damage the vehicle
and may cause the vehicle to fall off the jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
jack.

265
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
IS350
Battery (P. 275)
Engine oil level dipstick (P. 2 6 8 )
Engine oil filler cap (P. 2 6 8 )
Brake fluid reservoir (P. 2 74 )
Fuse boxes ( P. 2 9 9 )Washer fluid tank
( P. 2 7 8 )
Electric cooling fans
Condenser ( P. 2 74 )
Radiator ( P. 2 74 )
Engine coolant reservoir (P. 272)

266
4-3. Do-it-yourself maintenance
IS250
Battery (P. 275)
Engine oil level dipstick (P. 2 6 8 )
Engine oil filler cap (P. 2 6 8 )
Brake fluid reservoir
( P. 2 74)
Fuse boxes ( P. 2 9 9 )
Washer fluid tank
(P. 2 7 8 )
Electric cooling fans
Condenser ( P. 2 74 )
Radiator ( P. 2 74 )
Engine coolant reservoir (P. 272)

267
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment cover■ Removing the engine compartment cover
Front
Outside

268
4-3. Do-it-yourself maintenance
■Installing the clips
Open
Insert
Press
Engine oil
With the engine at operating temperat ure and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground . After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

269
4-3. Do-it-yourself maintenance
4
Maintenance and care
Wipe the dipstick and reinsert it fully.Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check th e oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
It takes about 1.6 qt. (1.5 L, 1.3 lmp. qt.) to raise the oil level from low to full on the
dipstick.
STEP6
Oil gradeILSAC multi-grade engine oil
ItemsClean funnel
STEP1
STEP2
STEP3

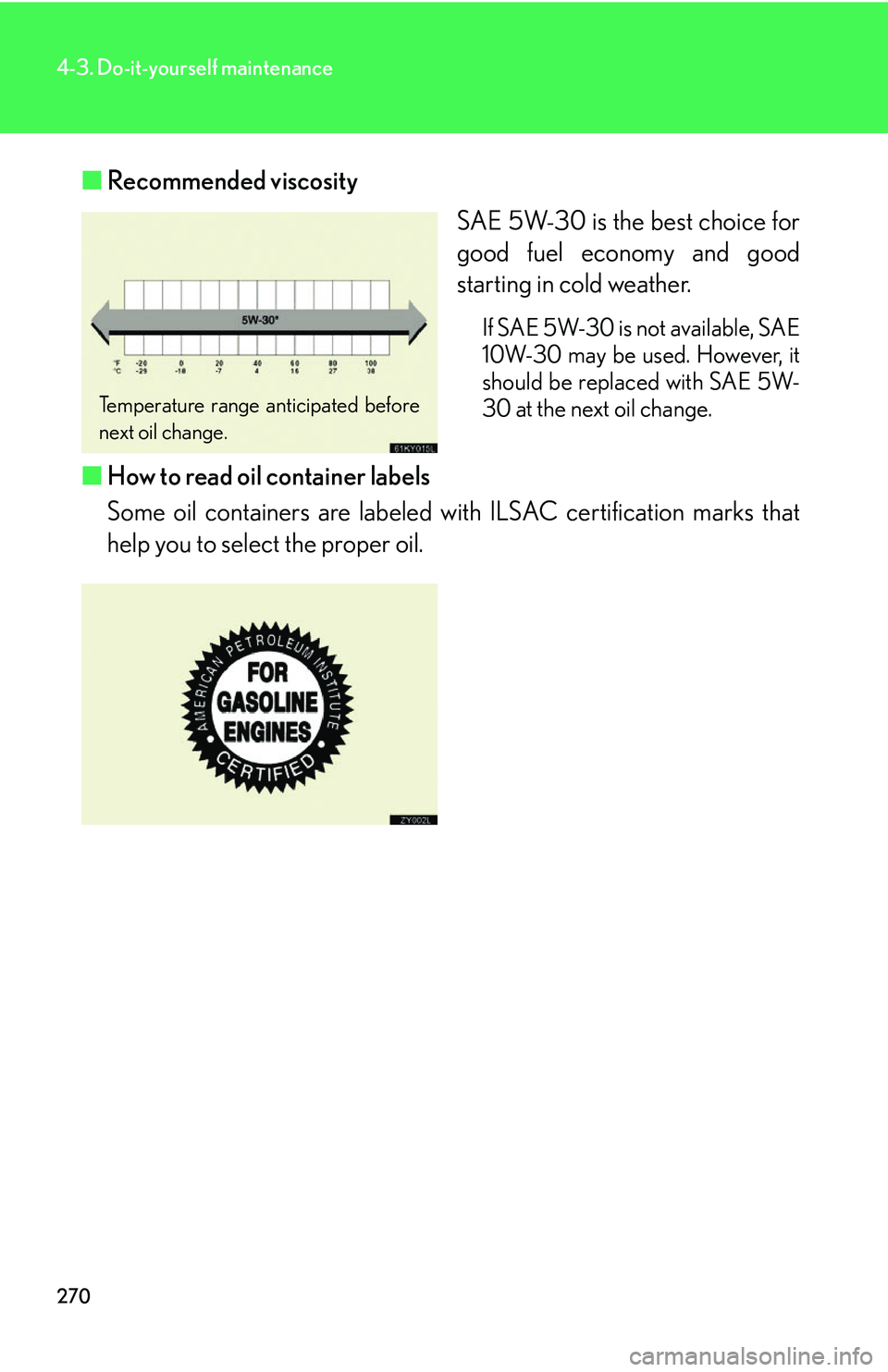

270
4-3. Do-it-yourself maintenance
■Recommended viscosity
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 may be used. However, it
should be replaced with SAE 5W-
30 at the next oil change.
■How to read oil container labels
Some oil containers are labeled wi th ILSAC certification marks that
help you to select the proper oil.
Temperature range anticipated before
next oil change.
