Event data recorder
Your vehicle has computers that monitor and control certain
aspects of your vehicle. These computers assist in driving and
maintaining optimal vehicle performance. Besides storing
data useful for troubleshooting, there is a system to record data
in a crash or a near car crash event. This is called an Event
Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a
crash or a near car crash event, this device may record some
or all of the following information:
 Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat belts
or not
 Driver’s seat position
 Front passenger’s occupant classification
 SRS airbag deployment data
 SRS airbag system diagnostic data If your vehicle is equipped with a vehicle stability control (VSC)
system,
its Electronic Control Unit (ECU) may contain another
EDR. There are a variety of driving situations which include
activating the VSC under wh ich the VSC EDR will record
certain information. The VSC EDR may record some or all of
the following information:
 Behavior of the vehicle
 Steering wheel angle
 Vehicle speed
 To what extent the accelerator pedal was depressed
 To what extent the brake pedal was applied
 To what extent the ECU controlled the condition of the 4
wheels
 Vehicle stability control system diagnostic data
The information above is intended to be used for the purpose
of improving vehicle safety performance. Unlike general data
recorders, the EDR does not record sound data such as
conversation between passengers.

SWITCHES
47
G12002
The automatic light control sensor is on top center of the
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically turn off
about 30 seconds after any of the doors is opened and closed
with the engine switch off.* To turn them on again, select the
engine switch in “IG− ON” mode, or turn the headlight switch off
and then twist the knob until the first or second clickstop.
If you are going to park for over one week, make sure the
headlight switch is off.
When the headlight switch is on with all the doors locked and
the trunk closed, pushing the ”LOCK” button on the electronic
key turns off the headlights.
NOTE:
*The time before turning off the lights can be changed.
Ask your Lexus dealer for details. Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the ”OFF” position. They will not
go off until the engine
switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (”AUTO”), the
headlights will automatic ally adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
74
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.
G13106
The light sensitive optitron meter sensor is located under the
high mounted stoplight.
NOTICE
Do not apply window tint or a sticker on the rear
window. Otherwise the light sensitive optitron meter
may not operate properly.
 If snow, mud, frost or the like is attached to the rear
window just behind the sensor, remove it soon, or the
light sensitive optitron meter may not operate
properly.
SERVICE REMINDER INDICATORS AND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON ...DO THIS.
(a)or
(Red indicator and buzzer)If parking brake is off,
stop immediately and
contact Lexus dealer.
(b)
(Yellow indicator)
Take vehicle to Lexus
dealer. If brake
system warning light
(red) is also on, stop
immediately and
contact Lexus dealer.
(c)
(Indicator and buzzer)
Fasten driver’s seat
belt.
(d)WG5Fasten front
passenger’s seat belt.

STARTING AND DRIVING
375
CAUTION
To avoid an accident or injury, observe the following
instructions, and then drive slowly using the brakes
while confirming a safe distance around your vehicle
with your eyes.
The sensor detection range is limited around the
bumper. Be sure to confirm safety outside sensor
detection with your eyes. For the sensor detection
range, see page 383.
 It might take time for the sensors to detect the
obstacle.
 Depending on the shape of the obstacle, indicators or
beeps may not warn you properly, and the detection
range may also be shortened.
 It might be difficult to hear beeps due to the volume
of audio or air flow noise of air conditioning.

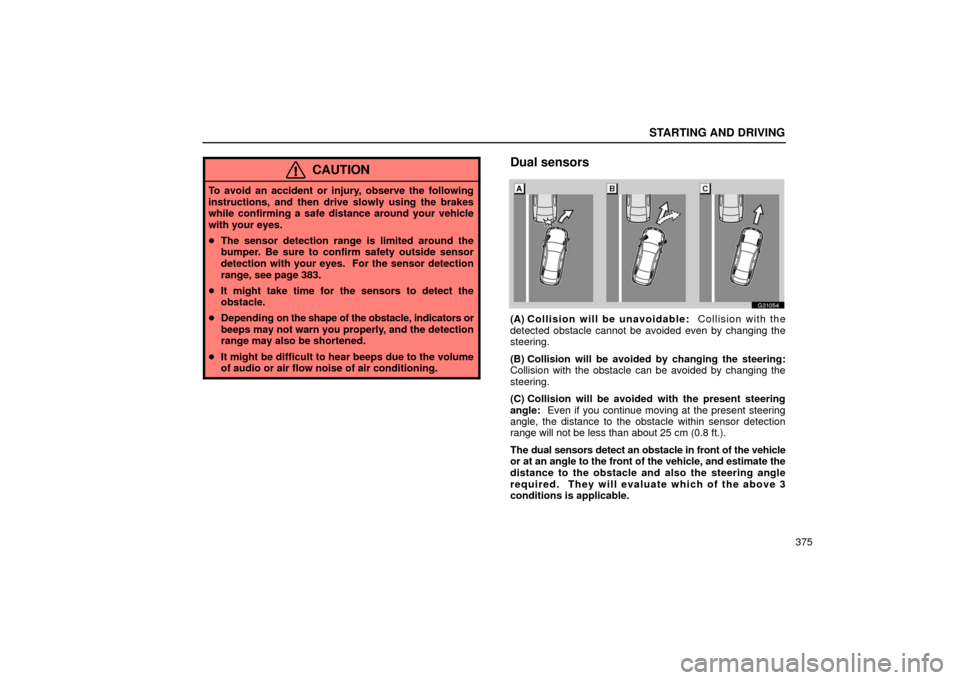

Dual sensors
G31054
(A) Collision will be unavoidable: Collision with the
detected obstacle cannot be avoided even by changing the
steering.
(B) Collision will be avoided by changing the steering:
Collision with the obstacle can be avoided by changing the
steering.
(C) Collision will be avoide d with the present steering
angle: Even if you continue moving at the present steering
angle, the distance to the obstacle within sensor detection
range will not be less than about 25 cm (0.8 ft.).
The dual sensors detect an obstacle in front of the vehicle
or at an angle to the front of the vehicle, and estimate the
distance to the obstacle and also the steering angle
required. They will evaluate which of the above 3
conditions is applicable.

STARTING AND DRIVING
382
Numerous obstacles are detected on the front
and rear of the vehicle simultaneously
G31060
When obstacles are detected on the front and rear of the
vehicle at the same time; the multiinformation display
and screen illuminate their relevant indicator bars. And
beeps are as follows:
1Obstacles detected on the front and rear of the
vehicle are not in areas where continuous beeping
should sound: The warning for the obstacle closer to the vehicle will be
issued.
The above illustration indicates the obstacle detected
by the back sensors is closer to the vehicle. So, the warning for
the obstacle detected by the back sensors will be given.
2 The obstacle detected on the front or rear of the
vehicle is in an area where continuous beeping
should sound:
If the possibility of collision with the obstacle is high as shown,
the system warns the driver by continuous beeping (repeating
6 intermittent beeps and one longer beep as one cycle).
3 Both obstacles detected on the front and rear of the
vehicle are in areas where continuous beeping
should sound:
If the possibility of collision with the obstacles is very high as
shown, the system warns the driver by continuous beeping
(repeating 2 quick beeps and one longer beep as one cycle).
CAUTION
It might be difficult to hear beeps due to the volume of
audio or air flow noise of air conditioning. To avoid an
accident or injury, drive slowly using the brakes while
confirming a safe distance around your vehicle with
your eyes.

STARTING AND DRIVING
409
After bringing the vehicle to
the desired speed, press the
control lever downward in the “– SET” direction and release it.
This sets the vehicle at that speed. At this time, the
multi−information display indicates settings such as the preset
vehicle speed, whether a vehicle is present ahead and
selected vehicle −to−vehicle distance. If there is no vehicle
detected ahead, the dynamic radar cruise control screen does
not display the vehicle ahead. At this time, you may take your
foot off the accelerator pedal. If you need to accelerate − for
example, when passing − depress the accelerator pedal
enough for the vehicle to exceed the preset speed. When you
release the accelerator pedal, the vehicle will return to the
control prior to acceleration.
You cannot set a desired speed if the master warning light
comes on, the warning tone sounds and the multi− information
display indicates a warning message such as “CRUISE NOT
AVAILABLE”, “CLEAN RADAR SENSOR” or “CHECK
CRUISE SYSTEM”. If any of the above messages appears on
the display, see “Vehicle −to−vehicle distance control mode
failure warning” on page 417.
If you turn off the “ON−OFF” button while the warning message
is displayed, the warning message turns off and the
multi−information display switches to another screen. If no
warning message appears on the display, when you turn the
“ON−OFF” button on again, the setting can be made.
You can change the dynamic radar cruise control screen to
another screen even while the warning message is displayed.
2 Cancelling the preset speed
You can cancel the preset speed by doing any of the following:
a. Pulling the control lever, in the ”CANCEL” direction.
b. Depressing the brake pedal.
c. Pushing the “ON− OFF” button.
If cancelled by a. or b., the multi−information display shows
“RADAR READY” and the dynamic radar cruise control enters
the ready mode.
If cancelled by c., the “CRUISE” indicator light goes off in the
instrument cluster and the multi −information display shows
“CRUISE OFF”. In this case, the preset speed data is cleared,
and you must set the speed from the beginning.
In the following case, the preset speed automatically
cancels out. At this time, the multiinformation display
shows “RADAR READY” and the dynamic radar cruise
control enters the ready mode.
The vehicle speed falls below about 40 km/h (25 mph). (40
km/h (25 mph) is designated as a cancel speed.)
CAUTION
In this case, the warning tone reminds you that the
dynamic radar cruise control is cancelled and you must
apply the brakes to slow the vehicle.

STARTING AND DRIVING
410In the following cases, the warning messages appear and
the preset speed automatically cancels out. When
dynamic radar cruise control is restored, the warning
messages turn off and dynamic radar cruise control
enters “RADAR READY” mode.
a. The slip indicator light blinks and a warning tone sounds.
(This occurs when the vehicle is about to skid.)
b. The driving pattern selector switch is set to snow mode.
c. The anti
−lock brake system is activated by automatic
braking. (The warning tone sounds.)
d. The sensor does not operate properly because a foreign
matter sticks to the sensor.
e. The wipers are operated at high speed (including high
speed operation with the wiper lever in the “AUTO” position.)
NOTICE
If the preset speed automatically cancels out for other
than the above reasons, do not operate the dynamic
radar cruise control. Although it is no problem to
continue driving, have your vehicle checked by your
Lexus dealer at the earliest opportunity.
3 Resetting to a faster speed
Press the control lever upward in the ”+ RES” direction and
hold it. The displayed speed will increase in increments of 5
mph (for the U.S.A.) or 5 km/h (for Canada). Release the lever
when the desired speed is attained. The vehicle will gradually
increase to the displayed speed.
Depressing the accelerator pedal and pressing the control
lever downward in the “– SET” direction will not reset to a faster
speed. At this time the set speed falls by 5 mph (for the U.S.A.)
or 5 km/h (for Canada).
CAUTION
When the vehicletovehicle distance control is on (on
followup cruising), your cruising speed is regulated in
proportion to the speed of the vehicle ahead, so
increasing the preset vehicle speed using the control
lever does not accelerate the vehicle. However, if the
vehicle ahead leaves the lane, your cruising speed will
increase up to the preset speed because the preset
speed has been set higher using the control lever.
Confirm the setting on the multiinformation display.

STARTING AND DRIVING
436
Install all 4 tires of specified size at appropriate
pressure: The antilock brake system detects vehicle
speeds using the speed sensors for respective wheels’
turning speeds. The use of tires other than specified
may fail to detect the accurate turning speed resulting
in a longer stopping distance.“ABS” warning light
G31080
 1 U.S.A. 2Canada
GS430—The light comes on when the engine switch is
selected in “IG −ON” mode. If the anti −lock brake system and
the brake assist system work properly, the light turns off in a
few seconds after the engine is started.
GS300—The light comes on for a few seconds when the
engine switch is selected in “IG −ON” mode. It indicates the
anti− lock brake system and the brake assist system work
properly.
If either system malfunctions, the light comes on again.
When the “ABS” warning light is on, the anti− lock brake system
and the brake assist system do not operate, but the brake
system still operates conventionally.
