CAUTION
If the “PASSENGER AIR BAG
OFF” indicator illuminates or
blinks continuously when a per-
son of adult size sits in the front
passenger’s seat, it could be
because that person isn’t sitting
properly in the seat.
If this happens, turn the vehicle
off, place the seat back in the
full upright position, sit upright
in the seat, centered on the seat
cushion, with legs comfortably
extended. Restart the vehicle
and have the person remain in
this position for about 1 minute.
This will allow the system to
detect the person and enable
the passenger’s airbag.
Condition and operation in the front passenger occupant
classification systemCondition detected by
the occupant classifi- cation system
1. Adult *
1
2. Child *
2
3. Unoccupied
4. There is a malfunc- tion in the system Off
On
On
On Off
Off
Off
On Activated
Deactivated
Deactivated
Deactivated
"PASSENGER AIR
BAG OFF" indicator light
Airbag warning light Front passenger
airbag
Indicator/Warning light Devices
*1The system judges a person of adult size as an adult. When a smaller adult
sits in the front passenger seat, the system may recognize him/her as a
child depending on his/her physique and posture.
*2When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult
depending on his/her physique or posture.
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 62

363
1
2
3
4
5
6
7
8
9
Knowing your vehicle
CAUTION
If the occupant classification
system is not working properly,
the airbag warning light ( ) on
the instrument panel will illumi-
nate because the passenger’s
airbag is connected with the
occupant classification system.
If there is a malfunction of the
occupant classification system,
the "PASSENGER AIR BAG
OFF" indicator will illuminate
and the front passenger's
airbag will not deploy in frontal
crashes even if there is adult
occupant in the front passen-
ger's seat.(Continued)
AIR
BAG
(Continued)
Have an authorized Kia dealer
inspect the occupant classifica-
tion system with the SRS airbag
system as soon as possible if
any of following occur;
 The SRS airbag warning light
does not illuminate when the
ignition key is turned to "ON"
position.
 The SRS airbag warning light remains illuminated after illu-
minating for approximately 6
seconds.
 The SRS airbag warning light illuminates while the vehicle is
being driven.
WARNING
 The occupant classificationsystem can function only
when the ignition key is in the
"ON" position.
 For very small person, the occupant classification sys-
tem may or may not turn off
the right front passenger's
frontal airbag, depending
upon the person's seating
posture and body build.
Everyone in your vehicle
should wear a safety belt
properly -- whether or not
there is an air bag for that per-
son.
(Continued)
WARNING
If the front passenger seat
should be modified for persons
with disabilities that may affect
the operation of the occupant
classification system, contact
an authorized Kia dealer.
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 63

Knowing your vehicle64
3
1
2
3
4
5
6
7
8
9
(Continued)
 If the front seat passenger
changes their seating position
(for example, by not sitting
upright, by sitting on the edge
of the seat, or by otherwise
being out of position), the
"PASSENGER AIR BAG OFF"
indicator may be turned on,
and the passenger's airbag
may not deploy in a collision.
Always be sure to sit properly
in the front passenger’s seat
and wear the safety belt prop-
erly and do not do any of the
following.
(Continued)
(Continued)
- Put a heavy load in the frontpassenger seat.
- Excessively recline the front passenger seatback.
(Continued)
1KMN36611KMN3662
(Continued)
- Sit with hips shifted towardsthe front of the seat.
- Lean on the center console.
- Sit on one side of the front passenger seat. (Continued)
1KMN36631KMN3664
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 64

365
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICE• If luggage or other objects are
placed on the front passenger's
seat or if the temperature of the
seat changes, the "PASSENGER
AIR BAG OFF" indicator may
blink. These conditions do not
indicate a problem.
 Do not put heavy objects on the front passenger’s seat. This may
cause the front passenger's airbag
to deploy in a frontal collision.
(Continued)
 Do not modify or replace the
front passenger’s seat. Don't
place or attach anything on
the front passenger’s seat.
This can adversely affect the
occupant classification sys-
tem.
 Do not sit on sharp objects such as tools when occupying
the front passenger’s seat.
These can adversely affect the
occupant classification sys-
tem.
 Do not install accessory seat covers on the front seats.
(Continued)
- Place feet on the dashboard.
(Continued)
1KMN36651KMN3666
Normal position
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 65

Knowing your vehicle66
3
1
2
3
4
5
6
7
8
9
(Continued)
 If the driver brakes the vehicle
heavily in an urgent situa-
tions, occupants will be
thrown forward. If front pas-
sengers are not wearing the
safety belts, they will be
directly in front of the storage
compartment when inflation
occurs. In that situation, seri-
ous injury or death is possi-
ble.
 Never allow front passenger to put their hands or feet on
the instrument panel or put
their face close to the instru-
ment panel. The airbag will
impact the front passenger
when it inflates.
(Continued)
(Continued)
 Never allow children/old and feeble persons/pregnant
women to sit on the front pas-
senger’s seat. Do not put child
restraint systems on the front
passenger’s seat either. They
may be seriously injured by
the airbag inflation when
airbag deploys.
 Do not put objects or stickers on the instrument panel. Do
not apply any accessory on
the front windshield glass or
do not install aftermarket mir-
rors or accessories on the fac-
tory installed rearview mirror.
These may interfere with the
deployment of airbag inflation
or could hit your body at high
speed and cause severe bodi-
ly injury and even death.
WARNING
 The front seat passenger’sairbag is much larger than the
steering wheel airbag and
inflates with considerably
more force. It can seriously
hurt or kill a passenger who is
not in the proper position and
wearing the safety belt proper-
ly. The front passengers
should always move their seat
as far back as practical and sit
back in their seat.
 It is essential that the front passengers always wear their
safety belts, even when the
vehicle is moving in a parking
lot or up a driveway into
garage. (Continued)
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 66

367
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Side airbagSide airbags are stored in the left
side of the driver’s seat, right side of
the front passenger’s seat.
If airbag inflation conditions are met
(side collision), they will inflate.
Curtain airbagCurtain airbags are located along
both sides of the roof rails above the
front and rear doors.
They are designed to help protect
the heads of the front seat occupants
and the rear outboard seat occu-
pants in certain side impact colli-
sions.
WARNING
- Seat covers,
damage and modifications
 Do not use any accessory seat covers for a vehicle
equipped with side airbags.
Use of seat covers could inter-
fere with side airbag deploy-
ment.
If seat is damaged, have the
vehicle inspected by an
authorized Kia dealer. Inform
them that your vehicle is
equipped with side airbags.
 Do not make modifications or additions to the seats since
injury may result in due to the
malfunction of the airbag sys-
tem.
1KMA20631KMA2057
1KMA20591KMA2064
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 67

Knowing your vehicle68
3
1
2
3
4
5
6
7
8
9

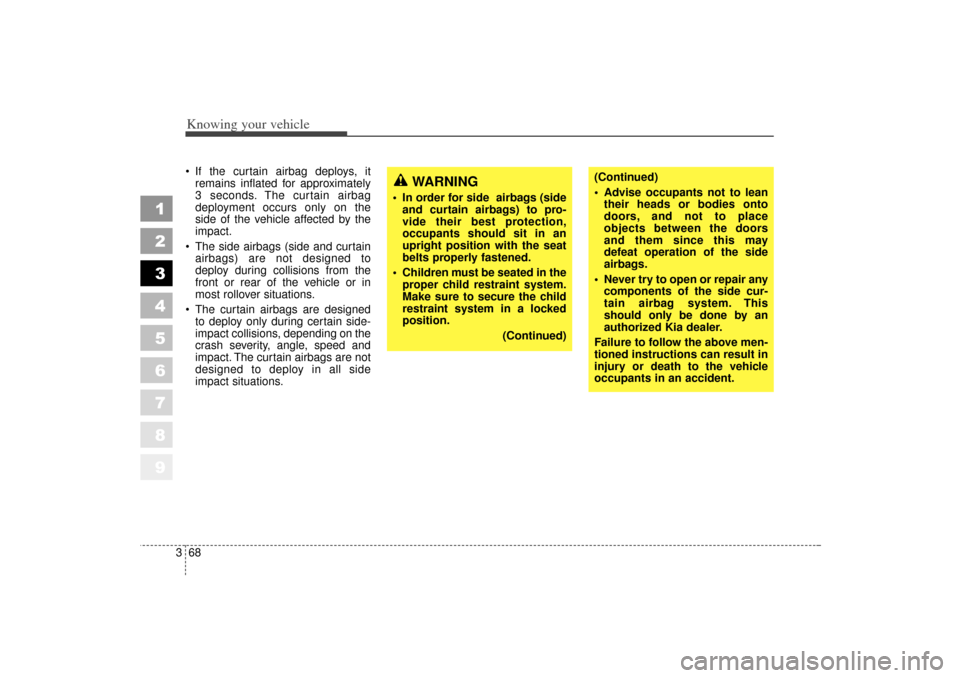

 If the curtain airbag deploys, it
