Knowing your vehicle83
1
2
3
4
5
6
7
8
9
Limp home (override) proce-
dureWhen you turn the ignition key to the
ON position, if the IMMO indicator
remains on continuously after blink-
ing 6 times, your transponder
equipped in the ignition key is out of
order. You cannot start the engine
without the lime home procedure. To
start the engine, you have to input
your password by using the ignition
switch.
The following procedure is how to
input your password of “2345” as an
example.
1. Turn the ignition key to the ON posi-tion. The IMMO indicator ( ) will
blink 6 times and remain on indicat-
ing the beginning of the limp home
procedure.
2. Turn the ignition key to the ACC position. 3. To enter the first digit (in this
example “2”), turn the ignition key
to the ON and ACC position twice.
Perform the same procedure for
the next digits between 3 seconds
and 10 seconds (for example, for
“3”, turn the ignition ON and ACC
3 times).
4. If all of the digits have been input successfully, you have to start the
engine within 10 seconds. If you
attempt to start the engine after 10
seconds, the engine will not start
and you will have to input your
password again.
After performing the limp home pro-
cedure, you have to see an author-
ized Kia dealer immediately to
inspect and repair your ignition key
or immobilizer system.
CAUTION
The transponder in your ignition
key is an important part of the
immobilizer system. It is
designed to give years of trou-
ble free service, however you
should avoid exposure to mois-
ture, static electricity and rough
handling. Immobilizer system
malfunction could occur.
CAUTION
If you cannot start your engine
in spite of limp home procedure,
have your vehicle towed by an
authorized Kia dealer for
inspection and necessary
repairs.
CAUTION
Do not change, alter or adjust
the immobilizer system because
it could cause the immobilizer
system to malfunction and
should only be serviced by an
authorized Kia dealer.
Malfunctions caused by improp-
er alterations, adjustments or
modifications to the immobilizer
system are not covered by your
vehicle manufacturer warranty.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 8

39
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Operating door locks from
outside the vehicle  Turn the key toward rear of vehicleto unlock and toward front of vehi-
cle to lock.
 Turn the key to the right once to unlock the driver’s door and to the
right twice within 3 seconds to
unlock all doors. (if equipped)
 Turn the key to the left once to unlock the passenger’s door and to
the left twice within 3 seconds to
unlock all doors. (if equipped)  Doors can also be locked and
unlocked with the transmitter key.
 Once the doors are unlocked, it may be opened by pulling the door
handle.
 When closing the door, push the door by the hand. Make sure that
doors are closed securely.
To lock a door without the key, push
the inside door lock button (
➀) or
door lock switch (
➁, if equipped) to
the “LOCK” position and close the
door (
➂).
✽ ✽ NOTICEAlways remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
1LDA2004
Lock
Unlock
1LDA2005
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 9

Knowing your vehicle10
3
1
2
3
4
5
6
7
8
9
✽ ✽

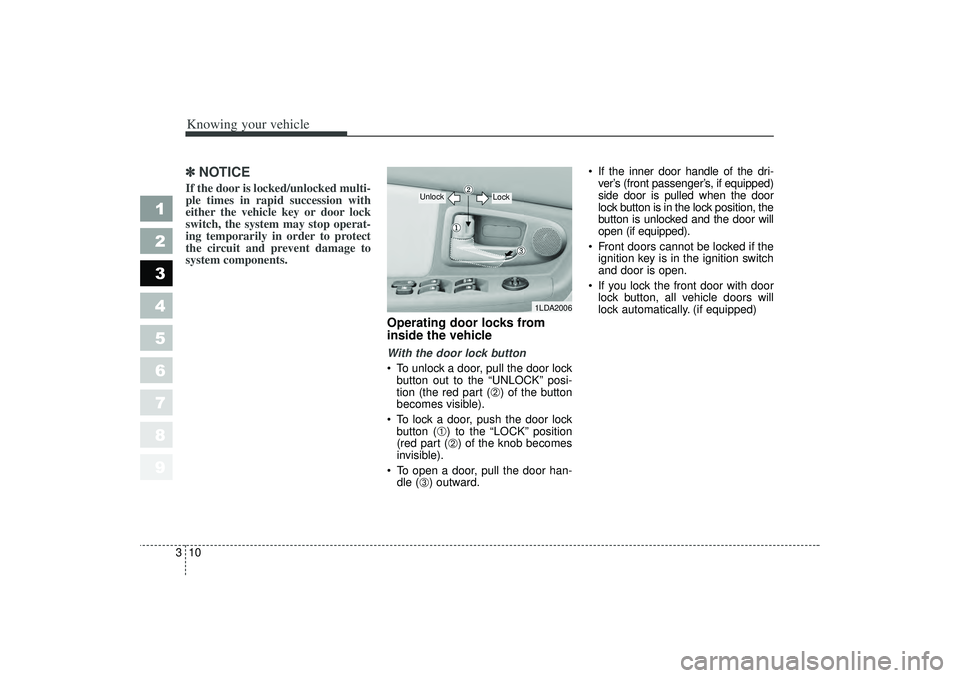

NOTICEIf the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
Operating door locks from
inside the vehicleWith the door lock button
 To unlock a door, pull the door lock
button out to the “UNLOCK” posi-
tion (the red part (
➁) of the button
becomes visible).
 To lock a door, push the door lock button (
➀) to the “LOCK” position
(red part (➁) of the knob becomes
invisible).
 To open a door, pull the door han- dle (
➂) outward.  If the inner door handle of the dri-
ver’s (front passenger’s, if equipped)
side door is pulled when the door
lock button is in the lock position, the
button is unlocked and the door will
open (if equipped).
 Front doors cannot be locked if the ignition key is in the ignition switch
and door is open.
 If you lock the front door with door lock button, all vehicle doors will
lock automatically. (if equipped)
1LDA2006
Lock
Unlock
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 10

311
1
2
3
4
5
6
7
8
9
Knowing your vehicle
With central door lock switch
(if equipped)
It is operated by depressing the door
lock switch. If any door is open when
the switch is depressed, the door will
remain locked when closed. When pushing down on the front
portion (
➀) of the central door lock
switch, all vehicle doors will lock.
 When pushing down on the rear portion (
➁) of the switch, all vehicle
doors will unlock.
 However, if the key is in the ignition switch and any front door is open,
the doors will not lock when the
front portion of central door lock
switch is pressed.
CAUTION
 The doors should always befully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
 Be careful when opening doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.
Opening a door when some-
thing is approaching can
cause damage or injury.
1LDA20071LDN2007
Driver’s doorPassenger’s door (if equipped)
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 11

Knowing your vehicle12
3
1
2
3
4
5
6
7
8
9
Rear door child safety lockThe child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1LDA2008
WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 12

313
1
2
3
4
5
6
7
8
9
Knowing your vehicle
1. Open the rear door.
2. Push the child safety lock locatedon the rear edge of the door to the
“lock” position. When the child
safety lock is in the “lock ( )”
position, rear door will not open
when the inner door handle is
pulled inside the vehicle.
3. Close the rear door.
4. To open the rear door, pull the out- side door handle.
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle (
➀),
until rear door child safety lock is
unlocked ( ).
Rear hatch (if equipped)Opening the rear hatch
 Rear hatch is locked or unlocked with a key.
 To open the rear hatch, insert the key into the lock (
➀), turn it to the
unlock position (
➁), and pull up the
rear hatch by pressing the handle
(
➂).
 You can also lock/unlock the latch (but not release it) with the central
door lock system (if equipped).
 If unlocked, the rear hatch can be opened by pressing the handle (
➂)
and pulling the hatch up.
WARNING
- Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and
be severely injured or killed. To
prevent children from opening
the rear doors from the inside,
the rear door safety locks
should be used whenever chil-
dren are in the vehicle.
1LDN3205
Lock
Unlock
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 13

Knowing your vehicle14
3
1
2
3
4
5
6
7
8
9
Power windows (if equipped)➀ Driver’s door power window switch
➁ Front passenger’s door power win-
dow switch
➂ Rear door (left) power window
switch
➃ Rear door (right) power window
switch
➄ Window opening and closing
(see page 3-15)
\b Automatic power window down
(Driver’s window, if equipped)
➆ Power window lock switch
(see page 3-15)
 Power window timer (if equipped)
The power windows can be operat-
ed for approximately 30 seconds
after the ignition key is removed or
turn to the ACC or LOCK position.
However, if the front doors are
opened, the power windows can-
not be operated even within the 30
seconds after the ignition key
removal.
WINDOWS
1LDA2010
LD CAN (ENG) new 3-1~.qxd 7/29/05 10:28 AM Page 14

315
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle. To open or
close a window, press down (
➄) or
pull up (
➄) the front portion of the
corresponding switch. Automatic power window down
(driver’s window, if equipped)
Depressing the power window switch
momentarily to the second detent
position (
\b) completely lowers the
driver’s window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
If the battery has been discharged
or disconnected, the automatic
power window system must be reset
as follows:
1. Turn the ignition key to ON posi- tion.
2. Close each window and continue pulling up on each power window
switch for at least 0.5 second after
the window is completely closed. Power window lock switch
 The driver can disable the power
window switches on a passenger
door by depressing the power win-
dow lock switch located on the dri-
ver’s door to LOCK (pressed).
 When the power window lock switch is ON, the driver’s master
control cannot operate the passen-
ger door power windows either.
1LDA20121LDA2011
1LDA2013
