Knowing your vehicle
42
3
1 23456789

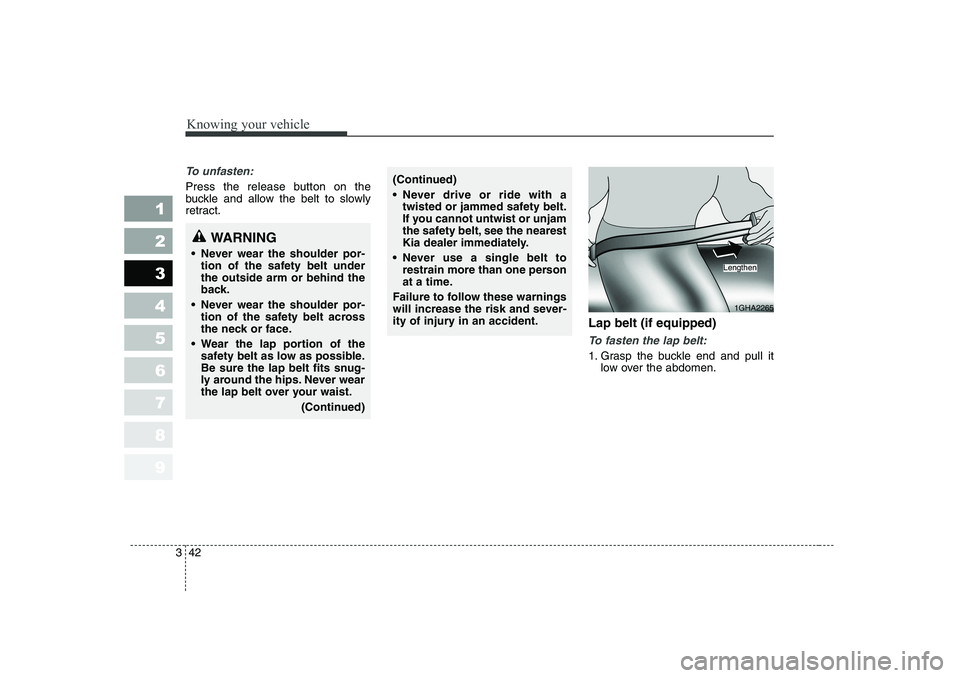

To unfasten:
Press the release button on the
buckle and allow the belt to slowly
retract.
Lap belt (if equipped)
To fasten the lap belt:
1. Grasp the buckle end and pull itlow over the abdomen.
(Continued)
 Never drive or ride with atwisted or jammed safety belt.
If you cannot untwist or unjam
the safety belt, see the nearest
Kia dealer immediately.
 Never use a single belt to restrain more than one person
at a time.
Failure to follow these warnings
will increase the risk and sever-
ity of injury in an accident.
WARNING
 Never wear the shoulder por- tion of the safety belt under the outside arm or behind the
back.
 Never wear the shoulder por- tion of the safety belt across
the neck or face.
 Wear the lap portion of the safety belt as low as possible.
Be sure the lap belt fits snug-
ly around the hips. Never wear
the lap belt over your waist.
(Continued)
1GHA2265
Lengthen

343
1 23456789
Knowing your vehicle

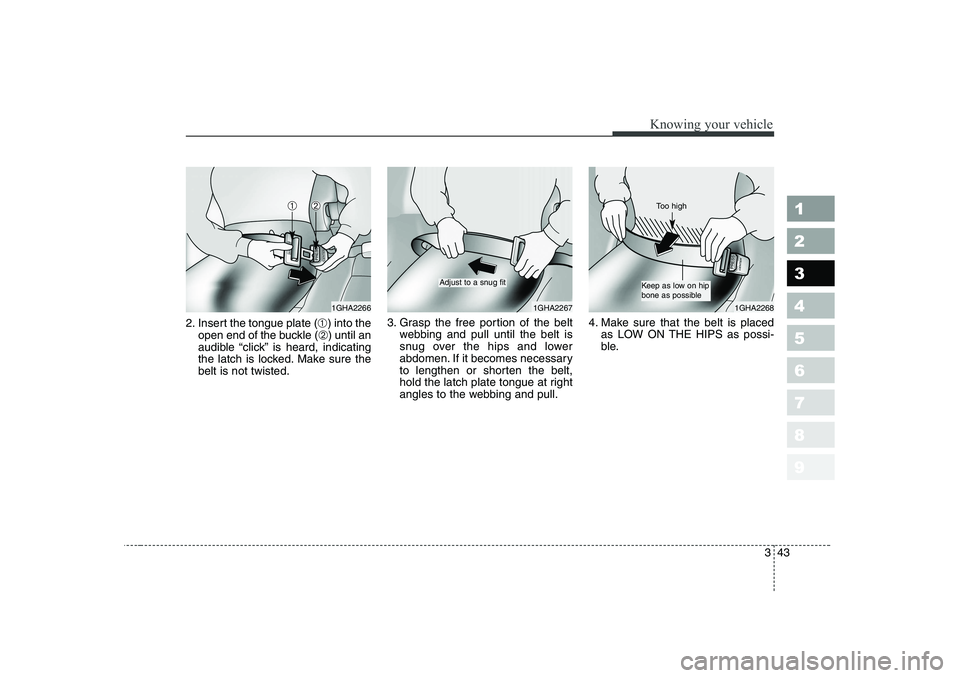

2. Insert the tongue plate (➀) into the
open end of the buckle ( ➁) until an
audible “click” is heard, indicating
the latch is locked. Make sure thebelt is not twisted. 3. Grasp the free portion of the belt
webbing and pull until the belt is
snug over the hips and lower
abdomen. If it becomes necessary
to lengthen or shorten the belt,
hold the latch plate tongue at right
angles to the webbing and pull. 4. Make sure that the belt is placed
as LOW ON THE HIPS as possi-
ble.
1GHA22661GHA22671GHA2268
➀➁
Adjust to a snug fitKeep as low on hip
bone as possible Too high

Driving tips
6
5
SUGGESTIONS FOR ECONOMICAL OPERATION
Your vehicle's fuel economy depends
mainly on your style of driving, where
you drive and when you drive.
Each of these factors affects how
many kilometers (miles) you can get
from a liter (gallon) of fuel. To operate
your vehicle as economically as pos-
sible, use the following driving sug-
gestions to help save money in bothfuel and repairs:
 Avoid lengthy warm-up idling. Once the engine is running
smoothly, begin driving.
Remember, engine warm-up may
take a little longer on cold days.
 Save fuel by accelerating slowly after stopping.
 Keep the engine in tune and follow the recommended periodic mainte-
nance schedule. This will increase
the life of all parts and lower your
operating costs.  Do not use the air conditioner
unnecessarily.
 Slow down when driving on rough roads.
 For longer tire life and better fuel economy, always keep the tiresinflated to the recommended pres-
sures.
 Maintain a safe distance from other vehicles to avoid sudden stops.
This will reduce wear on brake lin-
ings and pads. Driving in such a
way will also save fuel because
extra fuel is required to accelerate
back to driving speed.
 Do not carry unnecessary weight in the vehicle.
 Do not rest your foot on the brake pedal while driving. This can cause
needless wear, possible damage
to the brakes, and poor fuel econo-
my.
 Improper wheel alignment results in faster tire wear and lower fuel
economy.  Open windows at high speeds can
reduce fuel economy.
 Fuel economy is less in crosswinds and headwinds. To help offset
some of this loss, slow down when
driving in these conditions.
Keeping a vehicle in good operating
condition is important both for econ-
omy and safety. Therefore, have an
authorized Kia dealer performscheduled inspections and mainte-
nance.
1 23456789
WARNING - Engine off
during motion
Never turn the engine off to
coast down hills or anytime the
vehicle is in motion. The power
steering and power brakes willnot function without the engine
running. Instead, keep the
engine on and downshift to an
appropriate gear for engine
braking effect.

Dimensions Tires
Inflation pressure
Tire Wheel bar (psi,kPa) Front Rear
155/70 R13 4.5J x 13 165/60 R14 5J x 14175/50 R15 5.5J x 15
Specifications
2
8
1 23456789
Item mm (in)
Overall length 3,495 (137.60)
Overall width 1,595 (62.80)
Overall height 1,480 (58.27)
Front tread 1,400 (55.12)
Rear tread 1,385 (54.53)
Wheelbase 2,370 (93.31)
SPECIFICATIONS
The specifications given here are for general information only. Please check with an authorized Kia dealer for more
precise and more up-to-date information.
Wheel lug nut torquekg•m (lbft, Nm)
9~11
(65~79, 88~107)
Engine
Gasoline Diesel 175/60 R14 5J x 14 2. 2
(32, 220) 2. 2
(32, 220)
2. 2
(32, 220) 2. 2
(32, 220) 9~11
(65~79, 88~107)
