2006 KIA CERATO buttons

Knowing your vehicle
96
3
1 23456789

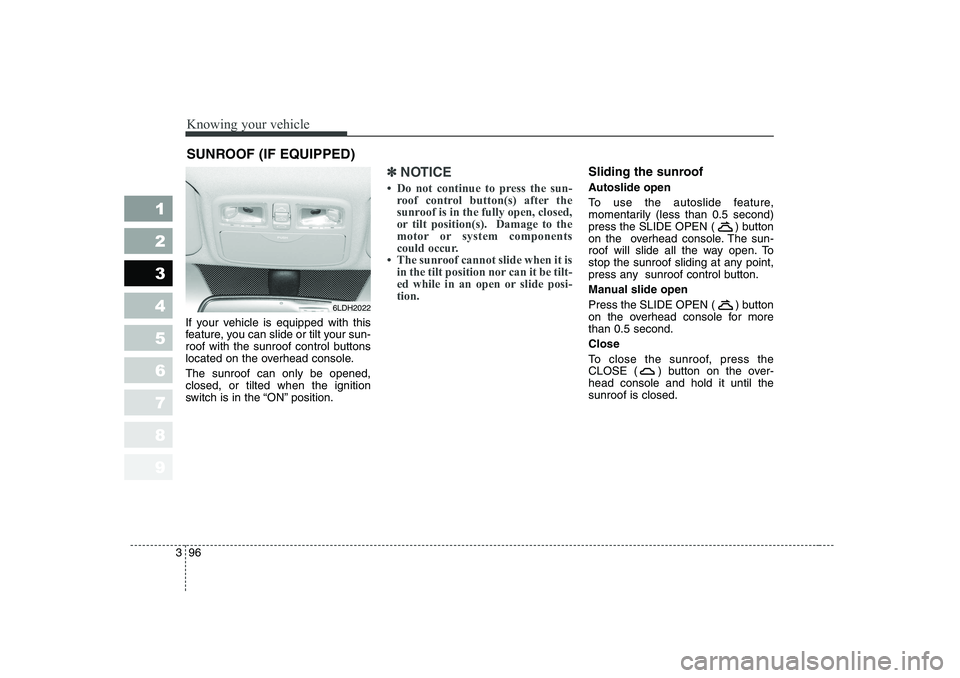

If your vehicle is equipped with this
feature, you can slide or tilt your sun-
roof with the sunroof control buttons
located on the overhead console. The sunroof can only be opened, closed, or tilted when the ignition
switch is in the “ON” position.
✽✽
NOTICE

Driving your vehicle
68
4
1 23456789
Manual operation The heating and cooling system can
be controlled manually as well by
pushing buttons other than the AUTO
button. In this case, the system
works sequentially according to the
order of buttons selected.
When pressing any button except
AUTO button while automatic opera-
tion, the functions of the buttons notselected will be controlled automati-
cally.
Press the AUTO button in order to
convert to full automatic control ofthe system. Temperature control knob
The temperature will increase to the
maximum 32
°C/90 °F by turning the
knob to the right extremely.
The temperature will decrease to the
minimum 17 °C/62 °F by turning the
knob to the left extremely.
When turning the knob, the tempera-
ture will increase or decrease by0.5 °C/1 °F. When set to the lowest tem-
perature setting, the air conditioning
will operate continuously.Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
will reset as Centigrade degree.
This is normal condition and you can
switch the temperature mode
between Centigrade to Fahrenheit as
follows;
While depressing the OFF button,
depress the AUTO button for 3 sec-
onds or more. The display will
change from Centigrade to
Fahrenheit, or from Fahrenheit to
Centigrade.
1LDA2137

Driving your vehicle
74
4
1 23456789

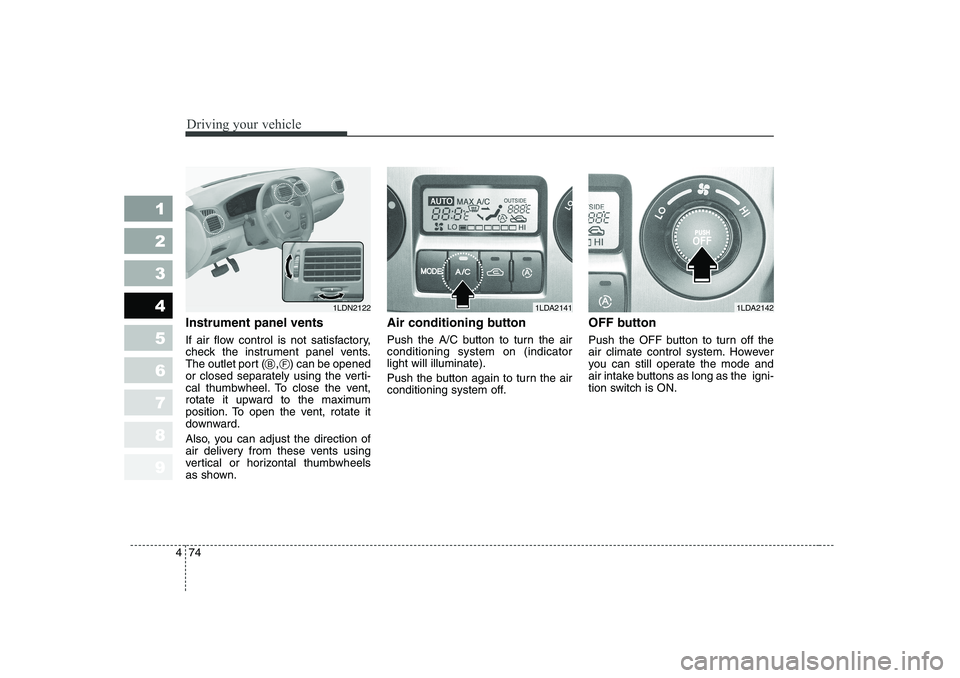

Instrument panel vents
If air flow control is not satisfactory,
check the instrument panel vents.
The outlet port ( , ) can be opened
or closed separately using the verti-
cal thumbwheel. To close the vent,
rotate it upward to the maximum
position. To open the vent, rotate it
downward.
Also, you can adjust the direction of
air delivery from these vents using
vertical or horizontal thumbwheels
as shown. Air conditioning button
Push the A/C button to turn the air conditioning system on (indicatorlight will illuminate).
Push the button again to turn the air
conditioning system off.
OFF button
Push the OFF button to turn off the
air climate control system. However
you can still operate the mode and
air intake buttons as long as the igni-
tion switch is ON.
1LDN21221LDA21411LDA2142
BF
