Your vehicle at a glance

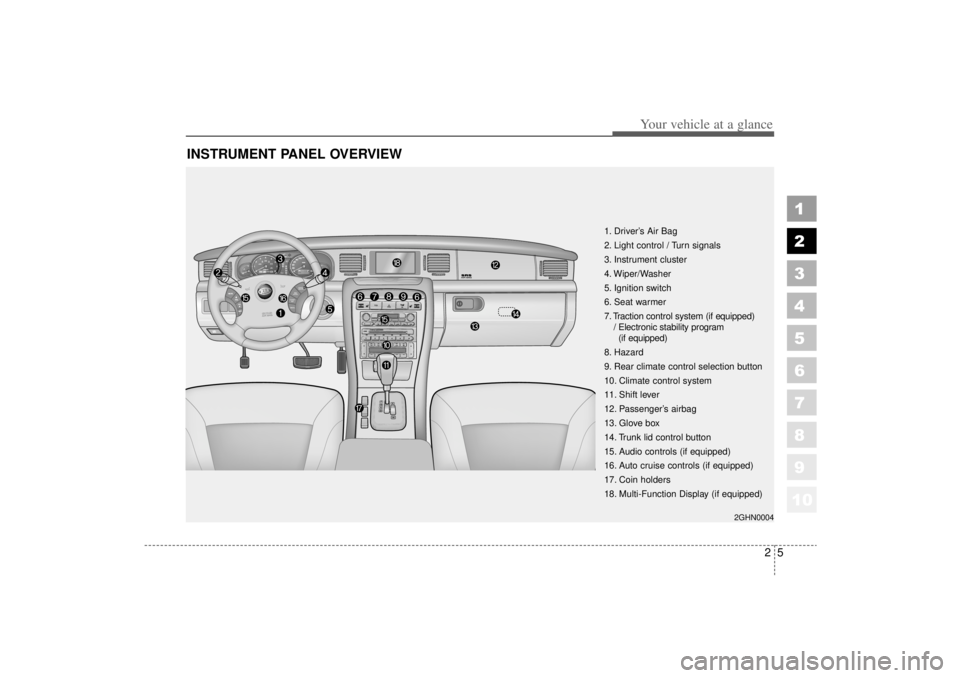

INSTRUMENT PANEL OVERVIEW
1. Driver’s Air Bag
2. Light control / Turn signals
3. Instrument cluster
4. Wiper/Washer
5. Ignition switch
6. Seat warmer
7. Traction control system (if equipped)/ Electronic stability program (if equipped)
8. Hazard
9. Rear climate control selection button
10. Climate control system
11. Shift lever
12. Passenger’s airbag
13. Glove box
14. Trunk lid control button
15. Audio controls (if equipped)
16. Auto cruise controls (if equipped)
17. Coin holders
18. Multi-Function Display (if equipped)
2GHN0004
RES
ACCELCOAST
SETCRUISE
ON/OFFCANCEL
TCS

331
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Warming the rear passengerseats (if equipped)Rear seats can be electrically heated
when the ignition switch is ON.
1. Pull the armrest down using the strap provided on the armrest.
2. When the switch is ON, a number ranging from 1 to 5 is displayed on
the switch (5 = warmest setting).
To turn off the seat warmer, set the
switch to 0.
The seat warmer turns off automati-
cally when the seat temperature
reaches the selected range and will
turn on again if the temperature
drops below the selected range.
✽ ✽ NOTICE• When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and
gasoline. Doing so may damage
the surface of the heater or seats.
• To prevent overheating the seat warmer, do not place blankets,
cushions or seat covers on the
seats while the seat warmer is in
operation.
• Do not place heavy or sharp objects on seats equipped with
seat warmers. Damage to the seat
warming components could occur.
WARNING
Passengers should use extreme
caution when using seat warm-
ers due to the possibility of
excess heating or burns. In par-
ticular, the following types of
passengers should exercise
extreme care:
1. Infants, children, elderly or
handicapped persons, or hos-
pital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills,
cold tablets, etc.)
2GHN3320
left rear seat
right rear seat

3 107
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Digital (if equipped)Whenever the battery terminals, A/V
CLOCK fuse, or Power Connect are
disconnected, you must reset the
time.
Press the Clock Control PUSH but-
ton in front of the monitor to access
the mode set buttons. Use these
buttons to adjust the time/date dis-
played on the monitor.1. Press the MODE button (
➀).
2. Select the mode to be reset; hour (
➁), minute (
➂), month (
➃) and
date (
➄).
3. Reset the data using button  (
\b)
or button  (
➆) while the selected
mode blinks.
If the  (
\b) or  (
➆) button(s) are
pressed for more than 3 seconds,
the display will begin to change
rapidly. When the  (\b) or  (
➆)
button(s) are pressed then
released, the display will change
in single increments.
4. Press the SET (
➇) button when
the data is correctly set.
1GHA2110
➀
➆
➇
\b
➁
➂
➃
➄

Driving your vehicle54
4
1
2
3
4
5
6
7
8
910

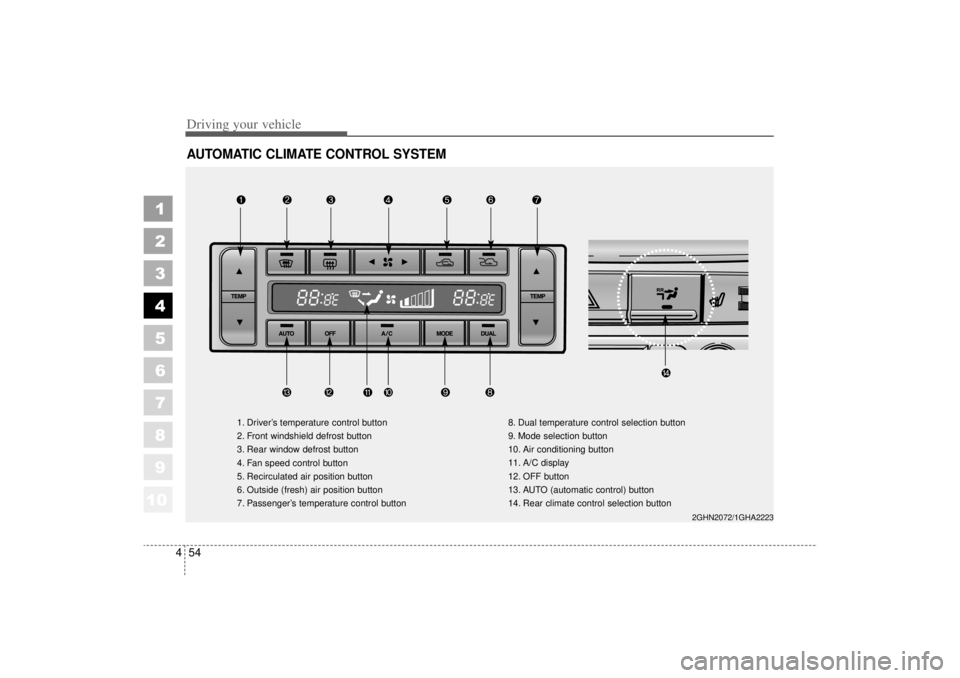

AUTOMATIC CLIMATE CONTROL SYSTEM
2GHN2072/1GHA2223
1. Driver’s temperature control button
2. Front windshield defrost button
3. Rear window defrost button
4. Fan speed control button
5. Recirculated air position button
6. Outside (fresh) air position button
7. Passenger’s temperature control button 8. Dual temperature control selection button
9. Mode selection button
10. Air conditioning button
11. A/C display
12. OFF button
13. AUTO (automatic control) button
14. Rear climate control selection button

457
1
2
3
4
5
6
7
8
910
Driving your vehicle
2. Press the left temperature controlto adjust the driver side tempera-
ture. Press the right temperature
control to adjust the passenger
side temperature. Adjusting the driver and passenger
side temperature equally
1. Press the DUAL button again to
deactivate DUAL mode (the indi-
cator light in the button is off). The
passenger side temperature will
be set to the same as the driver
side temperature.
2. Press the left temperature control button. The driver and passenger
side temperature will be adjusted
equally.
Temperature conversionIf the battery has been discharged or
disconnected, the temperature mode
will reset as Centigrade degrees.
This is normal condition and you can
switch the temperature mode
between Centigrade to Fahrenheit as
follows;
While depressing the MODE button,
depress the DUAL button for 3 sec-
onds or more. The display will
change from Centigrade to
Fahrenheit, or from Fahrenheit to
Centigrade.
