2006 INFINITI M35 check

CAN SYSTEM (TYPE 8)
LAN-413
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect AV control unit connector.
2. Check continuity between AV control unit harness connector ter-
minals.
OK or NG
OK >> GO TO 11.
NG >> Repair harness between AV control unit and harness
connector M216.
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between AV control unit harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness between AV control unit and harness
connector M216.
12. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–RAS control unit connector
–Pre-crash seat belt control unit connector
–Harness connector B15
–Harness connector B3
2. Check continuity between harness connector terminals.
OK or NG
OK >> GO TO 13.
NG >> Replace harness.
AV control unit
connectorTerminal Continuity
M210 71 72 No
PKIC0288E
AV control unit
connectorTerminal
GroundContinuity
M21071 No
72 No
PKIC0291E
Harness connector Terminal Continuity
B15 3 19 No
PKIC0292E

LAN-414
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
13. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector terminals and ground.
OK or NG
OK >> GO TO 14.
NG >> Replace harness.
14. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect driver seat control unit connector.
2. Check continuity between driver seat control unit harness con-
nector terminals.
OK or NG
OK >> GO TO 15.
NG >> Repair harness between driver seat control unit and har-
ness connector B202.
15. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between driver seat control unit harness connector
terminals and ground.
OK or NG
OK >> GO TO 16.
NG >> Repair harness between driver seat control unit and har-
ness connector B202.
Harness connector Terminal
GroundContinuity
B153No
19 No
PKIC0293E
Driver seat control
unit connectorTerminal Continuity
B204 3 19 No
PKIA6842E
Driver seat control
unit connectorTerminal
GroundContinuity
B2043No
19 No
SKIA5025E

CAN SYSTEM (TYPE 8)
LAN-415
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
16. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector termi-
nals.
OK or NG
OK >> GO TO 17.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between IPDM E/R and harness connector
E105
Harness between IPDM E/R and ABS actuator and electric unit (control unit)
17. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector terminals
and ground.
OK or NG
OK >> GO TO 18.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between IPDM E/R and harness connector E105
Harness between IPDM E/R and ABS actuator and electric unit (control unit)
18. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals.
3. Check resistance between IPDM E/R terminals.
OK or NG
OK >> GO TO 19.
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R
connectorTerminal Continuity
E9 49 50 No
PKIC0290E
IPDM E/R
connectorTerminal
GroundContinuity
E949 No
50 No
PKIC0294E
TerminalResistance
(Approx.)
94 86 108 – 132
TerminalResistance
(Approx.)
49 50 108 – 132
LKIA0037E

LAN-416
[CAN]
CAN SYSTEM (TYPE 8)
Revision: 2006 January2006 M35/M45
19. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 20.
NG >> Refer to LAN-18, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
20. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it
with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–AFS control unit
–BCM
–Low tire pressure warning control unit
–Steering angle sensor
–Intelligent Key unit
–Unified meter and A/C amp.
–AV control unit
–RAS control unit
–Pre-crash seat belt control unit
–Driver seat control unit
–ABS actuator and electric unit (control unit)
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
IPDM E/R Ignition Relay Circuit InspectionNKS00437
Check the following. If no malfunction is found, replace the IPDM E/R.
IPDM E/R power supply circuit. Refer to PG-30, "Check IPDM E/R Power Supply and Ground Circuit" .
Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY — IGNITION SW. IN “ON”
AND/OR “START”" .

CAN SYSTEM (TYPE 9)
LAN-423
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

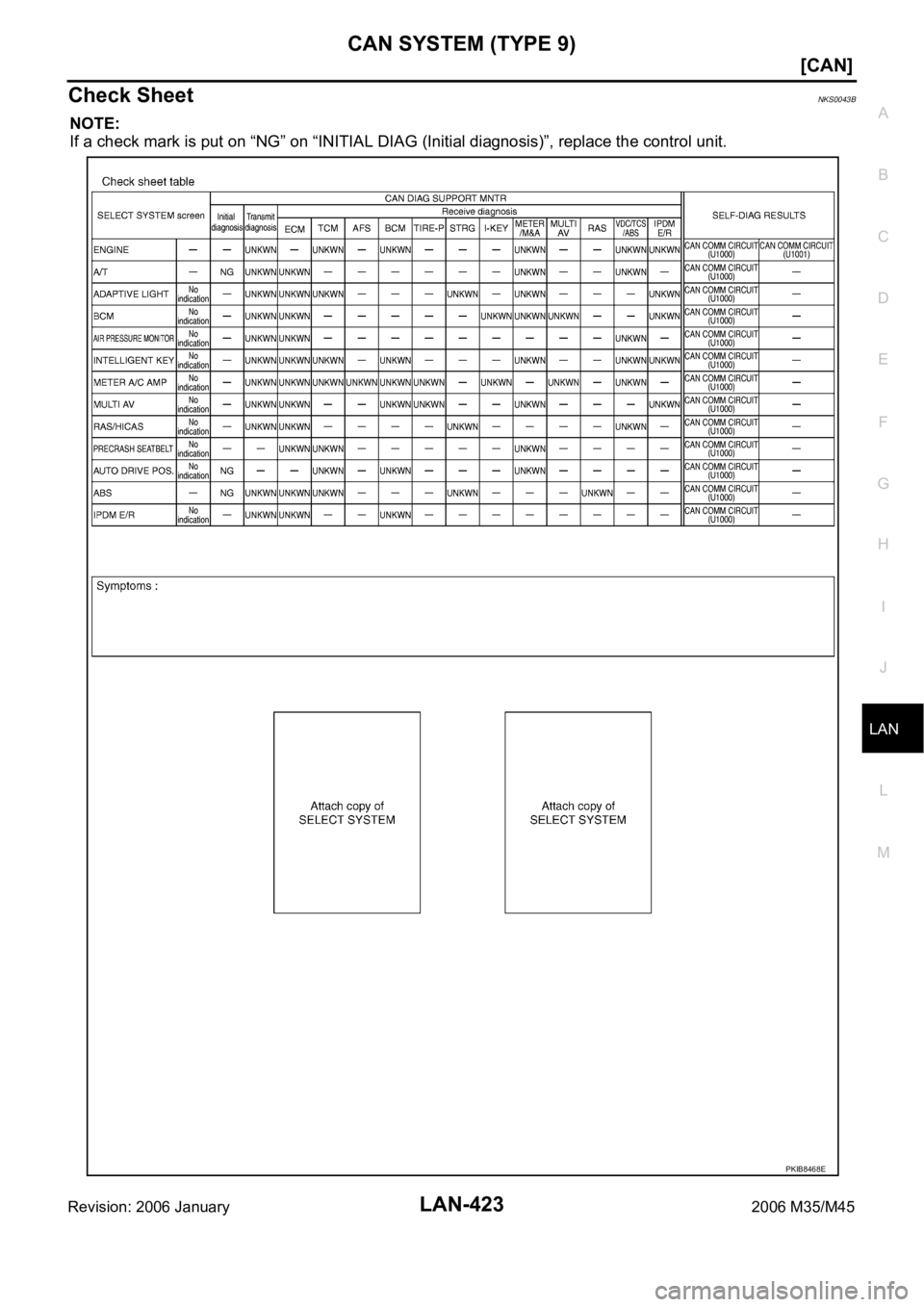

Check SheetNKS0043B
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIB8468E

LAN-426
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2006 January2006 M35/M45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-447, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIB8469E
SKIB4323E

CAN SYSTEM (TYPE 9)
LAN-427
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 2
Check harness between data link connector and RAS control unit. Refer to LAN-448, "Inspection Between
Data Link Connector and RAS Control Unit Circuit" .
PKIB8470E
SKIB4324E

LAN-428
[CAN]
CAN SYSTEM (TYPE 9)
Revision: 2006 January2006 M35/M45
Case 3
Check harness between RAS control unit and pre-crash seat belt control unit. Refer to LAN-449, "Inspection
Between RAS Control Unit and Pre-Crash Seat Belt Control Unit Circuit" .
PKIB8471E
SKIB4325E
