VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2006 January2006 M35/M45
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)PFP:14956
DescriptionNBS005PK
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the
effective suction port length is equivalent to the total length of the intake manifold collector's suction port
including the intake valve. This long suction port provides increased air intake which results in improved suc-
tion efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is running at high speed, the ECM sends the
signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power
valve actuator and therefore opens the power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the length of the suction port provided indepen-
dently for each cylinder. This shortened port length results in enhanced engine output with reduced suction
resistance under high speeds.
The power valve is always open regardless of the engine speed when gear position is in N or P.
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
VIAS control VIAS control solenoid valve Mass air flow sensor Amount of intake air
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
Engine coolant temperature sensor Engine coolant temperature
PBIB1876E

FUEL PUMP
EC-1427
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
FUEL PUMPPFP:17042
DescriptionNBS005Q1
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
startability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
Fuel level sensor unit and fuel pump (1)
Fuel pressure regulator (2)
Fuel tank temperature sensor (3)
CONSULT-II Reference Value in Data Monitor ModeNBS005Q2
Specification data are reference values.
Sensor Input signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Fuel pump control Fuel pump relay
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
PBIB2707E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY
For 1 seconds after turning ignition switch: ON
Engine running or crankingON
Except above OFF

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-1461
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureNBS005QT
Idle Speed and Ignition TimingNBS005QU
*: Under the following conditions:
Air conditioner switch: OFF
Electric load: OFF (Lights, heater fan & rear window defogger)
Steering wheel: Kept in straight-ahead position
Calculated Load ValueNBS005QV
Mass Air Flow SensorNBS005QW
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorNBS005QX
Engine Coolant Temperature SensorNBS005QY
Fuel Tank Temperature SensorNBS005QZ
Crankshaft Position Sensor (POS)NBS005R0
Refer to EC-1105, "Component Inspection" .
Camshaft Position Sensor (PHASE)NBS005R1
Refer to EC-1112, "Component Inspection" .
A/F Sensor 1 HeaterNBS005R2
Fuel pressure at idling kPa (kg/cm2 , psi)Approximately 350 (3.57, 51)
Target idle speed No load* (in P or N position) 65050 rpm
Air conditioner: ON In P or N position 650 rpm or more
Ignition timing In P or N position 12
5 BTDC
Condition Calculated load value% (Using CONSULT-II or GST)
At idle14 - 33
At 2,500 rpm12 - 25
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle0.9 - 1.2V*
Mass air flow (Using CONSULT-II or GST)2.0 - 6.0 gꞏm/sec at idle*
7.0 - 20.0 gꞏm/sec at 2,500 rpm*
Temperature C (F) Resistance k
25 (77)1.800 - 2.200
Temperature C (F) Resistance k
20 (68)2.1 - 2.9
50 (122)0.68 - 1.00
90 (194)0.236 - 0.260
Temperature C (F) Resistance k
20 (68)2.3 - 2.7
50 (122)0.79 - 0.90
Resistance [at 25C (77F)] 2.3 - 4.3

OIL PAN AND OIL STRAINER
EM-29
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

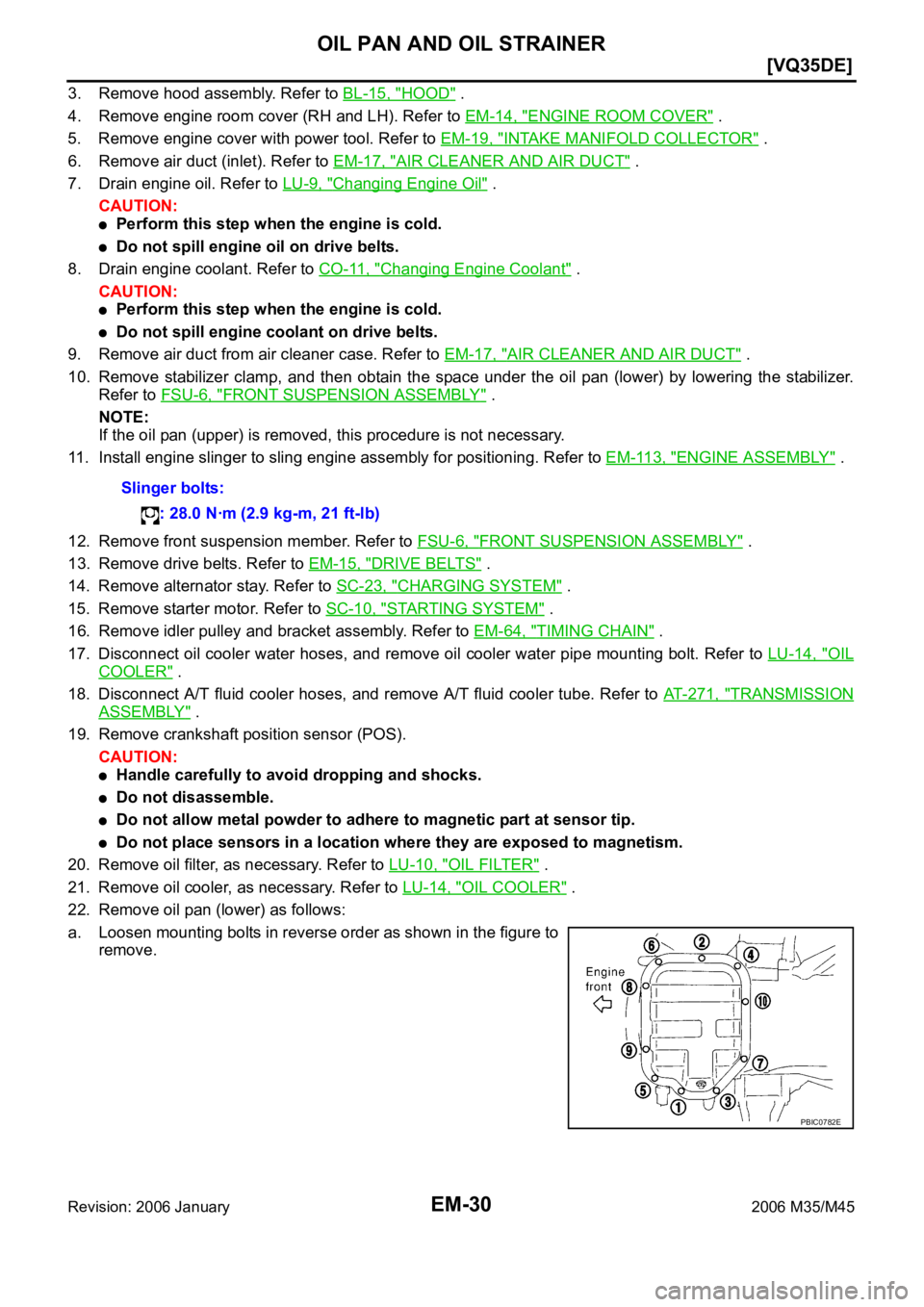

OIL PAN AND OIL STRAINERP F P : 1111 0

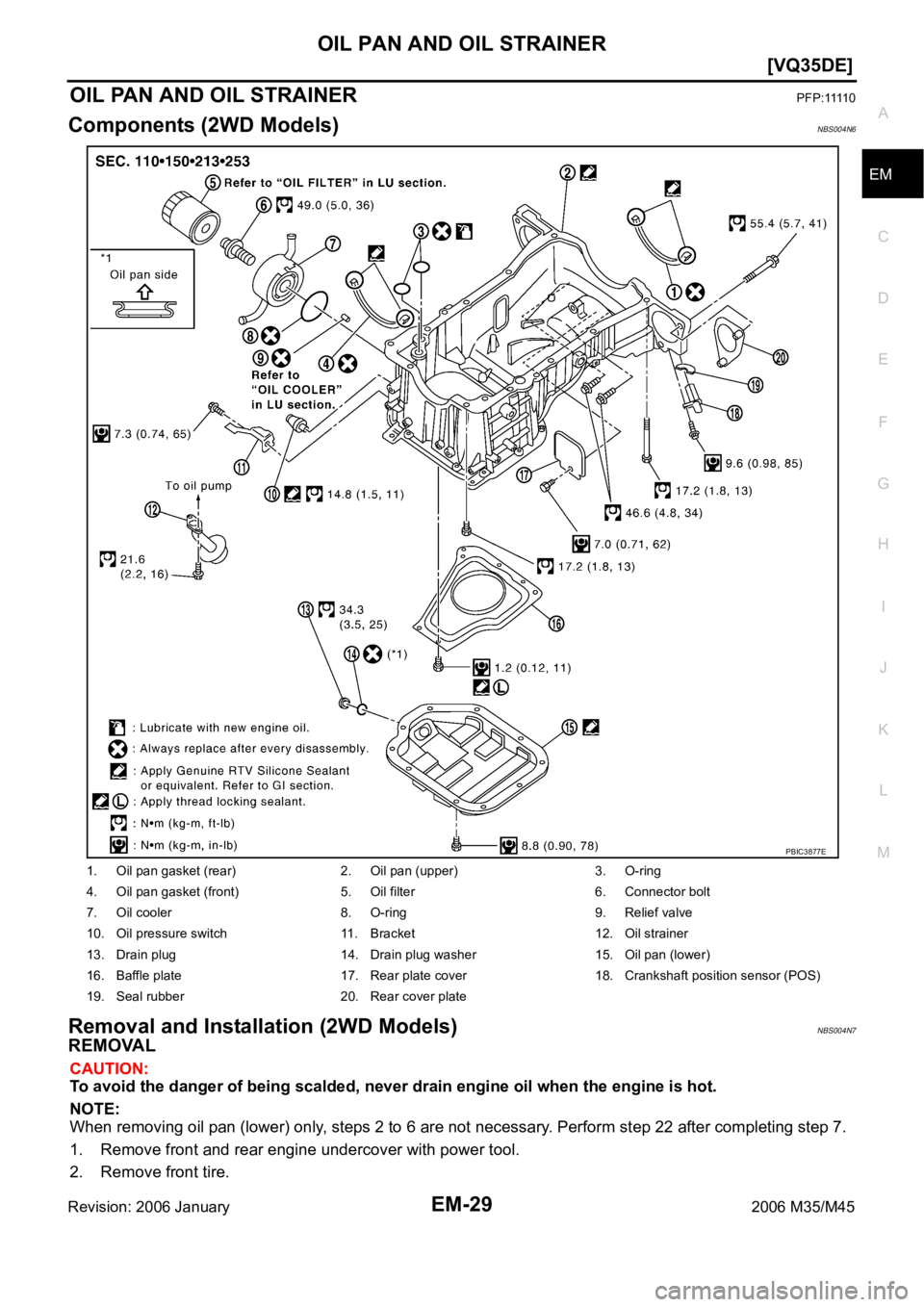

Components (2WD Models)NBS004N6

Removal and Installation (2WD Models)NBS004N7
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
When removing oil pan (lower) only, steps 2 to 6 are not necessary. Perform step 22 after completing step 7.
1. Remove front and rear engine undercover with power tool.
2. Remove front tire.
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil pressure switch 11. Bracket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Baffle plate 17. Rear plate cover 18. Crankshaft position sensor (POS)
19. Seal rubber 20. Rear cover plate
PBIC3877E

EM-30
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
3. Remove hood assembly. Refer to BL-15, "HOOD" .
4. Remove engine room cover (RH and LH). Refer to EM-14, "
ENGINE ROOM COVER" .
5. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
6. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
7. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
8. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove air duct from air cleaner case. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
10. Remove stabilizer clamp, and then obtain the space under the oil pan (lower) by lowering the stabilizer.
Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
NOTE:
If the oil pan (upper) is removed, this procedure is not necessary.
11. Install engine slinger to sling engine assembly for positioning. Refer to EM-113, "
ENGINE ASSEMBLY" .
12. Remove front suspension member. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
13. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
14. Remove alternator stay. Refer to SC-23, "
CHARGING SYSTEM" .
15. Remove starter motor. Refer to SC-10, "
STARTING SYSTEM" .
16. Remove idler pulley and bracket assembly. Refer to EM-64, "
TIMING CHAIN" .
17. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
18. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 7 1 , "
TRANSMISSION
ASSEMBLY" .
19. Remove crankshaft position sensor (POS).
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
20. Remove oil filter, as necessary. Refer to LU-10, "
OIL FILTER" .
21. Remove oil cooler, as necessary. Refer to LU-14, "
OIL COOLER" .
22. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to
remove.Slinger bolts:
: 28.0 Nꞏm (2.9 kg-m, 21 ft-lb)
PBIC0782E

OIL PAN AND OIL STRAINER
EM-35
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Components (AWD Models)NBS004N8
Refer to GI-11, "Components" for symbol marks in the figure.
1. Oil pressure switch 2. Oil filter bracket 3. Relief valve
4. O-ring 5. Oil cooler 6. Connector bolt
7. Oil filter 8. O-ring 9. Gasket
10. Oil pan gasket (front) 11. Oil strainer 12. Drain plug
13. Drain plug washer 14. Oil pan (lower) 15. Rear plate cover
16. O-ring (small) 17. Axle pipe 18 O-ring (large)
19. Crankshaft position sensor (POS) 20. Seal rubber 21. Oil pan (upper)
22. Oil pan gasket (rear)
A. Refer to LU-10
B. To oil pump C. Oil pan side
KBIA3553J

EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
Removal and Installation (AWD Models)NBS004N9
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
When removing oil pan (lower) only, steps 2 to 6 are not necessary. Perform step 25 after completing step 7.
1. Remove front and rear engine undercover with power tool.
2. Remove front tire.
3. Remove hood assembly. Refer to BL-15, "
HOOD" .
4. Remove engine room cover (RH and LH). Refer to EM-14, "
ENGINE ROOM COVER" .
5. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
6. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
7. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
8. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove air duct from air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
10. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
11. Remove front drive shaft (RH and LH). Refer to FA X - 8 , "
FRONT DRIVE SHAFT" .
12. Remove side shaft. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
13. Install engine slinger to sling engine assembly for positioning. Refer to EM-113, "
ENGINE ASSEMBLY" .
14. Remove front suspension member. Refer to Refer to FSU-23, "
FRONT SUSPENSION ASSEMBLY" .
15. Remove engine mounting bracket, engine mounting bracket (lower) and insulator. Refer to EM-113,
"ENGINE ASSEMBLY" .
16. Remove front propeller shaft. Refer to PR-4, "
FRONT PROPELLER SHAFT" .
17. Remove oil filter and oil filter bracket. Refer to LU-12, "
OIL FILTER BRACKET (AWD)" .
18. Remove alternator stay. Refer to SC-23, "
CHARGING SYSTEM" .
19. Remove idler pulley and bracket. Refer to EM-15, "
DRIVE BELTS" .
20. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
21. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 7 1 , "
TRANSMISSION
ASSEMBLY" .
22. Remove front final drive assembly. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
23. Remove starter motor. Refer to SC-10, "
STARTING SYSTEM" .
24. Remove crankshaft position sensor (POS).
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
25. Remove oil pan (lower) as follows:Slinger bolts:
: 28.0 Nꞏm (2.9 kg-m, 21 ft-lb)

EM-126
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 January2006 M35/M45
5. Drain engine coolant by removing water drain plugs from cylin-
der block both sides at “B” and “C” and cylinder block front side
at “A” as shown in the figure.
6. Remove the following parts:
Oil pans (lower and upper); Refer to EM-29, "OIL PAN AND OIL STRAINER" .
Front and rear timing chain case; Refer to EM-64, "TIMING CHAIN" .
Cylinder head; Refer to EM-101, "CYLINDER HEAD" .
7. Remove knock sensor.
CAUTION:
Carefully handle sensor avoiding shocks.
8. Remove pilot converter using the pilot bushing puller (SST) as
necessary.
9. Remove rear oil seal retainer.
Remove by inserting a screwdriver between main bearing cap and rear oil seal retainer.
CAUTION:
If rear oil seal retainer is removed, replace it with new one.
NOTE:
Regard both rear oil seal and retainer as an assembly.
10. Remove baffle plate from main bearing beam (2WD models).
11. Remove piston and connecting rod assembly with the following procedure:
Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer
to EM-140, "
CONNECTING ROD SIDE CLEARANCE" .
CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
PBIC2610E
SEM005G
