2006 INFINITI G35 sunroof

SEDAN MODEL 1. Engine hood (P.3-24)
2. Headlight and turn signal switch
(P.2-21)
3. Windshield wiper and washer switch
(P.2-19)
4. Windshield (P.8-21)
5. Sunroof* (P.2-42)
6. Power windows (P.2-39)
7. Recovery hook (P.6-15)
8. Fog light switch (P.2-25)
9. Front side marker light (P.8-33)
10. Tire pressure (P.8-37)
11. Flat tire (P.6-2)
12. Tire chains (P.8-44)
13. Tire pressure monitoring system
(TPMS) (P.2-12, 5-3)
14. Mirrors (P.3-32)
15. Door locks, keyfob, keys (P.3-3)
16. Trunk lid (P.3-25)
17. Interior trunk lid release (P.3-27)
18. Rear window defogger switch (P.2-20)
19. Satellite antenna (P.4-14)
20. Fuel-filler door (P.3-28) SSI0155EXTERIOR
Illustrated table of contents
0-3
w 06.1.4/V35-D/V5.0
X

COUPE MODEL 1. Engine hood (P.3-24)
2. Headlight and turn signal switch
(P.2-21)
3. Windshield wiper and washer switch
(P.2-19)
4. Windshield (P.8-21)
5. Sunroof* (P.2-42)
6. Power windows (P.2-39)
7. Recovery hook (P.6-15)
8. Fog light switch (P.2-25)
9. Front side marker light (P.8-33)
10. Tire pressure (P.8-37)
11. Flat tire (P.6-2)
12. Tire chains (P.8-44)
13. Tire pressure monitoring system
(TPMS) (P.2-12, 5-3)
14. Mirrors (P.3-32)
15. Door locks, keyfob, keys (P.3-3)
16. Trunk lid (P.3-25)
17. Interior trunk lid release (P.3-27)
18. Rear window defogger switch
(P.2-20)
19. Fuel-filler door (P.3-28) SSI0156
Illustrated table of contents
0-5
w 06.1.4/V35-D/V5.0
X

SEDAN MODEL 1. Automatic anti-glare mirror,
HomeLink (P.3-32, 2-46)
2. Sunglasses holder (P.2-32)
3. Interior lights (P.2-44)
4. Sunroof* (P.2-42)
5. Sun visor (P.3-32)
6. Power window switch/Power door
lock switch (P.2-39, 3-4)
7. Front seat (P.1-2)
8. Rear personal light (P.2-45)
9. Rear cup holder (P.2-34)
10. Armrest (P.1-9)
11. Selector lever
Ð Automatic transmission (P.5-12)
Ð Manual transmission (P.5-16)
12. Front cup holder (P.2-32)
13. Automatic drive positioner
switches* (P.3-34)
14. Console box (P.2-36)
15. Rear seat (P.1-5)
*: if so equipped SSI0157PASSENGER COMPARTMENT
Illustrated table of contents
0-7
w 06.1.4/V35-D/V5.0
X

COUPE MODEL 1. Automatic anti-glare mirror, HomeLink
(P.3-32, 2-46)
2. Sunglasses holder (P.2-32)
3. Interior lights (P.2-44)
4. Sunroof* (P.2-42)
5. Sun visor (P.3-32)
6. Power window switch/Power door lock
switch (P.2-39, 3-4)
7. Front seat (P.1-2)
8. Coat hook (P.2-38)
9. Selector lever or Shift lever
Ð Automatic transmission (P.5-12)
Ð Manual transmission (P.5-16)
10. Parking brake (P.5-19)
11. Automatic drive positioner switches*
(P.3-34)
12. Front cup holder (P.2-32)
13. Console box (P.2-36)
14. Walk-in mechanism* (P.1-4)
15. Shoulder belt guide (P.1-17)
16. Rear cup holder (P.2-34)
17. Rear seat (P.1-5)
*: if so equipped SSI0158
0-8 Illustrated table of contents
w 06.1.4/V35-D/V5.0
X

Stowing golf bags (Coupe) ........................ 2-39
Windows......................................................... 2-39
Power windows ......................................... 2-39
Automatic adjusting function (Coupe) ........ 2-41
Sunroof (if so equipped) ................................. 2-42
Automatic sunroof ..................................... 2-42
Interior lights ................................................. 2-44
Room light ................................................ 2-44
Map lights................................................. 2-44
Personal lights ......................................... 2-45
Vanity mirror light (if so equipped)................. 2-46
Trunk light...................................................... 2-46 HomeLink
Universal Transceiver (if so
equipped) ....................................................... 2-46
Programming HomeLink
........................... 2-47
Programming HomeLink
for Canadian
customers ................................................. 2-48
Operating the HomeLink
Universal
Transceiver ................................................ 2-49
Programming trouble-diagnosis ................. 2-49
Clearing the programmed information ....... 2-49
Reprogramming a single HomeLink
button ....................................................... 2-49
If your vehicle is stolen ............................. 2-50
w 06.1.5/V35-D/V5.0
X

AUTOMATIC SUNROOF The sunroof will only operate when the ig-
nition switch is in the ON position.
The automatic sunroof is operational for
about 45 seconds, even if the ignition
switch is turned to the OFF position. If the
driver's door or the front passenger's
door is opened during this period of
about 45 seconds, power to the sunroof is
canceled.
Sliding the sunroof To fully open or close the sunroof, push
the switch to the CLOSE
q 1
or OPEN
q 2side for less than 1 second and release it;
it need not be held. The roof will auto-
matically open or close all the way. To
stop the roof, push the switch once more
while it is opening or closing.
To open or close the sunroof and stop on
the way, push the switch to the CLOSE
q 1
or OPEN
q 2
side for more than 1 second.
The roof will stop when releasing the
switch.
Auto reverse function (When
closing the sunroof) If the control unit detects something
caught in the sunroof when it is closing,
the sunroof will immediately move back-
ward.
The auto reverse function can be acti-
vated when the sunroof is closed by auto-
matic operation when the ignition switch
is in the ON position or for about 45 sec-
onds after the ignition switch is turned to
the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the sunroof oc-
curs. WARNING There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle be-
fore closing the sunroof.
Tilting the sunroof (Sedan) To tilt up, first close the sunroof, then
push and hold the UP
q 1
side of the
switch. To tilt down the sunroof, push and
hold the DOWN
q 2
side.
Tilting the sunroof (Coupe) To tilt up, first close the sunroof, then
push the UP
q 1
side of the switch and re-
lease it; it need not be held. To tilt down
the sunroof, push the DOWN
q 2
side.
Sun shade Open or close the sun shade by sliding it
backward or forward.
The shade will open automatically when
the sunroof is opened. However, it must
be closed manually.SIC1854B
SUNROOF (if so equipped)
2-42 Instruments and controls
w 06.1.4/V35-D/V5.0
X

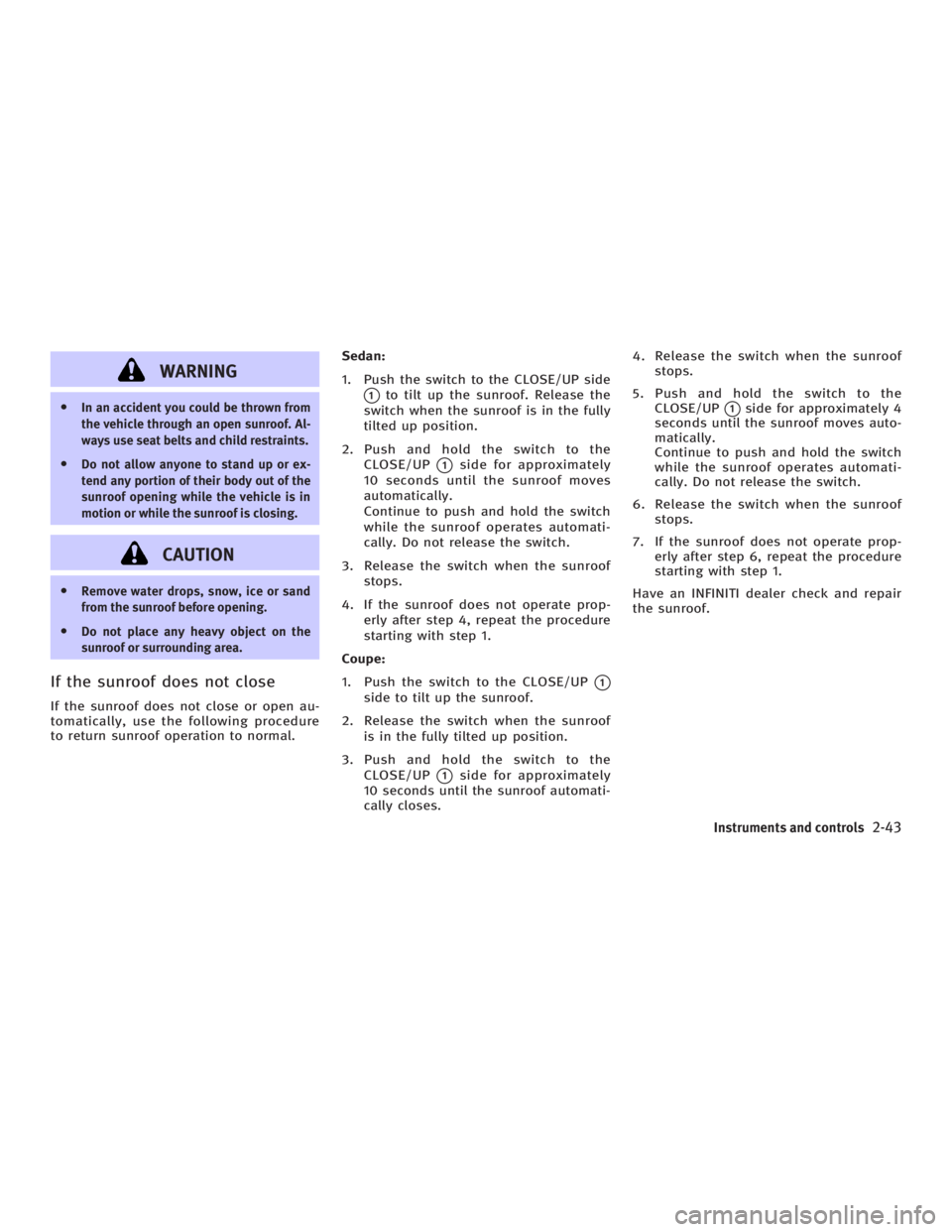

WARNINGO In an accident you could be thrown from
the vehicle through an open sunroof. Al-
ways use seat belts and child restraints.
O Do not allow anyone to stand up or ex-
tend any portion of their body out of the
sunroof opening while the vehicle is in
motion or while the sunroof is closing.
CAUTIONO Remove water drops, snow, ice or sand
from the sunroof before opening.
O Do not place any heavy object on the
sunroof or surrounding area.
If the sunroof does not close If the sunroof does not close or open au-
tomatically, use the following procedure
to return sunroof operation to normal. Sedan:
1. Push the switch to the CLOSE/UP side
q 1
to tilt up the sunroof. Release the
switch when the sunroof is in the fully
tilted up position.
2. Push and hold the switch to the
CLOSE/UP
q 1
side for approximately
10 seconds until the sunroof moves
automatically.
Continue to push and hold the switch
while the sunroof operates automati-
cally. Do not release the switch.
3. Release the switch when the sunroof
stops.
4. If the sunroof does not operate prop-
erly after step 4, repeat the procedure
starting with step 1.
Coupe:
1. Push the switch to the CLOSE/UP
q 1
side to tilt up the sunroof.
2. Release the switch when the sunroof
is in the fully tilted up position.
3. Push and hold the switch to the
CLOSE/UP
q 1
side for approximately
10 seconds until the sunroof automati-
cally closes. 4. Release the switch when the sunroof
stops.
5. Push and hold the switch to the
CLOSE/UP
q 1
side for approximately 4
seconds until the sunroof moves auto-
matically.
Continue to push and hold the switch
while the sunroof operates automati-
cally. Do not release the switch.
6. Release the switch when the sunroof
stops.
7. If the sunroof does not operate prop-
erly after step 6, repeat the procedure
starting with step 1.
Have an INFINITI dealer check and repair
the sunroof.
Instruments and controls
2-43
w 06.1.4/V35-D/V5.0
X

10 Index A
ABS (Anti-lock brake system) ........................... 5-26
Advanced air bag system ................................. 1-42
Air bag system
Front (See INFINITI advanced air bag
system) ..................................................... 1-42
Side and curtain (See supplemental side
air bag and curtain side-impact air bag
systems) ................................................... 1-48
Front passenger air bag and status light ... 1-44
Air bag warning labels ...................................... 1-51
Air bag warning light ................................ 1-51, 2-14
Air cleaner housing filter ................................. 8-20
Air conditioner
Air conditioner operation........................... 4-10
Air conditioner service ...................... 4-10, 4-14
Air conditioner specification label ............. 9-13
Air conditioning system refrigerant
and lubricant recommendations ......... 4-14, 9-7
Ambient temperature ................................. 4-13
Heater and air conditioner (automatic) ...... 4-10
In-cabin microfilter .................................... 4-13
Alcohol, drugs and driving ................................. 5-5
All-wheel drive (AWD)....................................... 5-23
All-wheel drive (AWD) warning light ................... 2-9
Anchor point locations
Top tether strap......................................... 1-27
Antenna ........................................................... 4-29 Anti-lock Brake System (ABS) .......................... 5-26
Anti-lock brake warning light ........................... 2-10
Appearance care
Exterior appearance care............................. 7-2
Interior appearance care ............................. 7-4
Armrest
Rear armrest pocket .................................. 2-37
Ashtray (See cigarette lighter and ashtray) ...... 2-30
Audible reminders ............................................ 2-16
Audio operation precautions ............................ 4-16
Audio system ................................................... 4-14
Steering wheel switch for audio control .... 4-28
Autochanger
Compact Disc (CD) .................................... 4-25
Autolight system.............................................. 2-22
Automatic
Anti-glare inside mirror ............................. 3-32
Automatic adjusting function ..................... 2-41
Automatic sunroof..................................... 2-42
Automatic transmission fluid (ATF)............. 8-13
Drive positioner ........................................ 3-34
Driving with automatic transmission ... 5-6, 5-12
Avoiding collision and rollover ........................... 5-5
B
Battery ............................................................. 8-16
Battery saver system................................. 2-23
Before starting the engine................................ 5-10 Belts (See drive belts) ...................................... 8-19
Bluetooth Hands-Free Phone System ............. 4-30
Booster seats ................................................... 1-31
Brake
Anti-lock brake system (ABS) .................... 5-26
Brake and clutch fluid ............................... 8-14
Brake booster ........................................... 8-24
Brake fluid ................................................ 8-14
Brake pedal .............................................. 8-23
Brake pedal check .................................... 8-23
Brake system ............................................ 5-26
Parking brake check ......................... 5-19, 8-23
Parking brake operation ............................ 5-19
Warning light ............................................ 2-10
Break-in schedule ............................................ 5-22
Brightness control, Instrument panel ............... 2-24
Bulb check/instrument panel............................. 2-9
Bulb replacement ............................................. 8-31
C
Capacities and recommended fuel/lubricants .... 9-2
Car phone or CB radio ..................................... 4-29
Card holder ..................................................... 2-38
CD care and cleaning ....................................... 4-27
Child restraints ................................................. 1-18
Booster seats ............................................. 1-31
Installation on front passenger seat .......... 1-28
w 06.1.5/V35-D/V5.0
X
