2006 INFINITI G35 REV light

WARNINGO Do not use the HomeLink Universal
Transceiver with any garage door opener
that lacks safety stop and reverse features
as required by federal safety standards.
(These standards became effective for
opener models manufactured after April 1,
1982.) A garage door opener which cannot
detect an object in the path of a closing
garage door and then automatically stop
and reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.
O During the programming procedure, your
garage door or security gate will open or
close (if the transmitter is within range).
Make sure that people or objects are clear
of the garage door, gate, etc. that you are
programming.
O Your vehicle's engine should be turned
off while programming the HomeLink
Universal Transceiver. PROGRAMMING HomeLink To program your HomeLink Transceiver
to operate a garage door, gate, or entry
door opener, home or office lighting, you
need to be at the same location as the
device. Note: Garage door openers (manu-
factured after 1996) have ªrolling code
protectionº. To program a garage door
opener equipped with ªrolling code pro-
tectionº; you will need to use a ladder to
get up to the garage door opener motor to
be able to access the ªtrainingº program
button.
1. To begin, push and hold the 2 outer
HomeLink buttons (to clear the
memory) until the indicator light
q A
blinks (after 20 seconds). Release both
buttons.
2. Position the end of the hand-held trans-
mitte r1-3 inches (26 - 76 mm) away
from the HomeLink
surface. SIC3012
Instruments and controls
2-47
w 06.1.4/V35-D/V5.0
X

3. Using both hands, simultaneously
push and hold both the HomeLink
button you want to program and the
hand-held transmitter button.
DO NOT release the buttons until step
4 has been completed.
4. Hold down both buttons until the indi-
cator light on the HomeLink flashes,
changing from a ªslow blinkº to a
ªrapid blinkº. When the indicator light
flashes rapidly, both buttons may be
released. The rapidly flashing light in-
dicates successful programming. To
activate the garage door or other pro-
grammed device, push and hold the programmed HomeLink button - re-
leasing when the device begins to ac-
tivate.
5. If the indicator light on the HomeLink
blinks rapidly for two seconds and then
turns solid, HomeLink has picked up a
ªrolling codeº garage door opener sig-
nal. You will need to proceed with the
next steps to train the HomeLink to
complete the programming which may
require a ladder and another person for
convenience.
6. Push and release the training button
located on the garage door opener's
motor to activate the ªtraining modeº.
This button is usually located near the
antenna wire that hangs down from
the motor. If the wire originates from
under a light lens, you will need to re-
move the lens to access the training
button.
NOTE:
Once you have pushed and released the
training button on the garage door open-
er's motor and the ªtraining lightº is lit,
you have 30 seconds in which to perform
step 7. Use the help of a second person for
convenience to assist when performing
this step. 7. Quickly within 30 seconds of pushing
and releasing the garage door opener
program button, firmly push and re-
lease the HomeLink button you've
just programmed. Push and release
the HomeLink button up to three
times to complete the training.
8. Your HomeLink button should now be
programmed.
To program the remaining HomeLink
buttons for additional door or gate
openers, follow steps 2-8 only.
NOTE:
Do not repeat step one unless you want to
ªclearº all previously programmed
HomeLink buttons.
If you have any questions or are having
difficulty programming your HomeLink
buttons, refer to the HomeLink web site
at: www.homelink.com or call 1-800-355-
3515.
PROGRAMMING HomeLink FOR
CANADIAN CUSTOMERS Prior to 1992, D.O.C. regulations required
hand-held transmitters to stop transmit-
ting after 2 seconds. To program your
hand-held transmitter to HomeLink , con-SIC3011
2-48 Instruments and controls
w 06.1.4/V35-D/V5.0
X

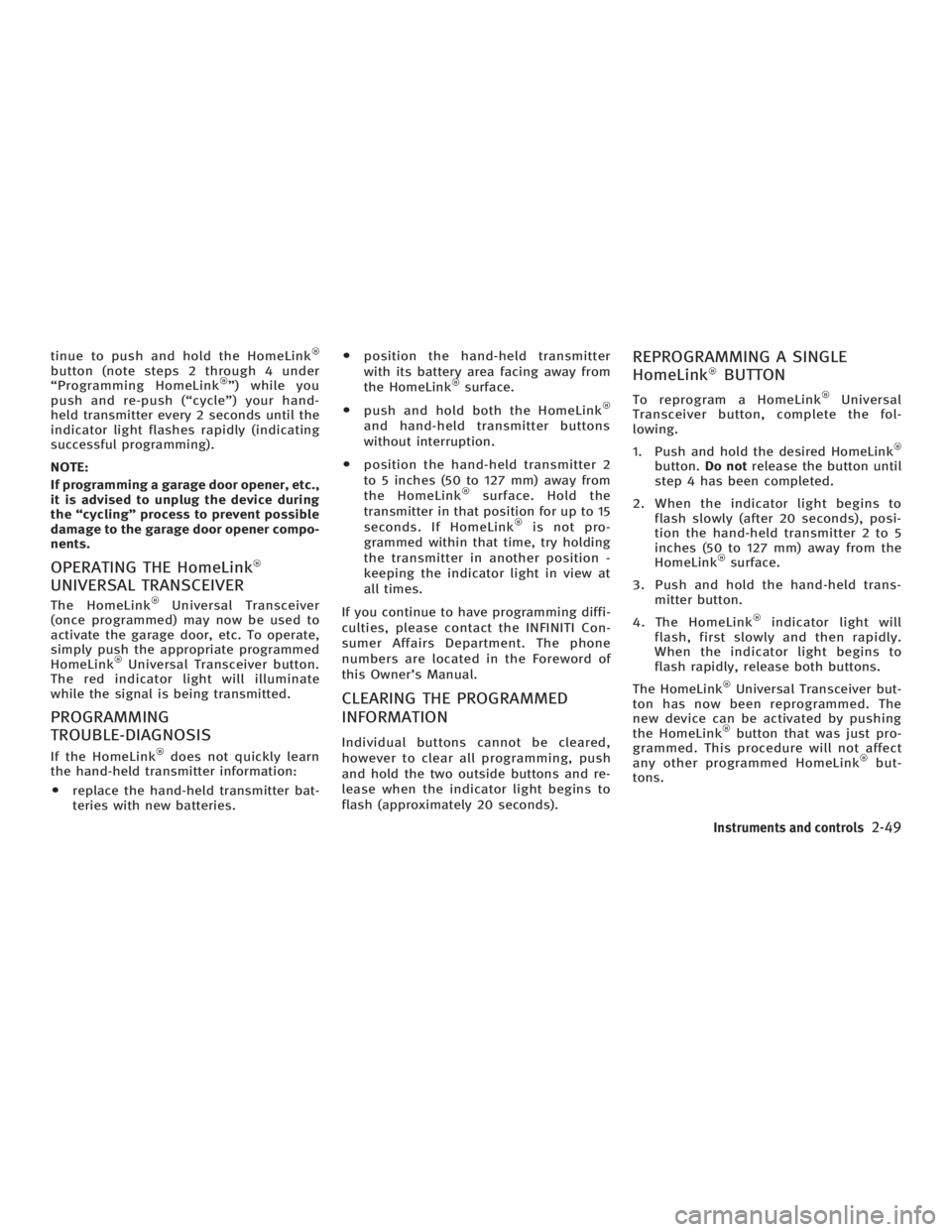

tinue to push and hold the HomeLink
button (note steps 2 through 4 under
ªProgramming HomeLink º) while you
push and re-push (ªcycleº) your hand-
held transmitter every 2 seconds until the
indicator light flashes rapidly (indicating
successful programming).
NOTE:
If programming a garage door opener, etc.,
it is advised to unplug the device during
the ªcyclingº process to prevent possible
damage to the garage door opener compo-
nents.
OPERATING THE HomeLink
UNIVERSAL TRANSCEIVER The HomeLink Universal Transceiver
(once programmed) may now be used to
activate the garage door, etc. To operate,
simply push the appropriate programmed
HomeLink Universal Transceiver button.
The red indicator light will illuminate
while the signal is being transmitted.
PROGRAMMING
TROUBLE-DIAGNOSIS If the HomeLink does not quickly learn
the hand-held transmitter information:
O replace the hand-held transmitter bat-
teries with new batteries. O position the hand-held transmitter
with its battery area facing away from
the HomeLink surface.
O push and hold both the HomeLink
and hand-held transmitter buttons
without interruption.
O position the hand-held transmitter 2
to 5 inches (50 to 127 mm) away from
the HomeLink surface. Hold the
transmitter in that position for up to 15
seconds. If HomeLink is not pro-
grammed within that time, try holding
the transmitter in another position -
keeping the indicator light in view at
all times.
If you continue to have programming diffi-
culties, please contact the INFINITI Con-
sumer Affairs Department. The phone
numbers are located in the Foreword of
this Owner's Manual.
CLEARING THE PROGRAMMED
INFORMATION Individual buttons cannot be cleared,
however to clear all programming, push
and hold the two outside buttons and re-
lease when the indicator light begins to
flash (approximately 20 seconds). REPROGRAMMING A SINGLE
HomeLink
BUTTON To reprogram a HomeLink Universal
Transceiver button, complete the fol-
lowing.
1. Push and hold the desired HomeLink
button. Do not release the button until
step 4 has been completed.
2. When the indicator light begins to
flash slowly (after 20 seconds), posi-
tion the hand-held transmitter 2 to 5
inches (50 to 127 mm) away from the
HomeLink surface.
3. Push and hold the hand-held trans-
mitter button.
4. The HomeLink indicator light will
flash, first slowly and then rapidly.
When the indicator light begins to
flash rapidly, release both buttons.
The HomeLink Universal Transceiver but-
ton has now been reprogrammed. The
new device can be activated by pushing
the HomeLink button that was just pro-
grammed. This procedure will not affect
any other programmed HomeLink but-
tons.
Instruments and controls
2-49
w 06.1.4/V35-D/V5.0
X

O All doors and the fuel-filler door un-
lock.
O The hazard indicator flashes once and
outside buzzer sounds once if all
doors are completely closed.
All doors will be locked automatically
after pushing the door handle request
switch unless one of the following opera-
tions is performed within 1 minute.
O any door is opened
O the ignition switch is pushed
O the mechanical key or the valet key is
inserted into the ignition switch
The interior light, ceiling light (if so
equipped) and step light can be turned off
without waiting for 30 seconds by turning
the ignition switch to the ON position or
by locking the doors.
Opening trunk lid 1. Push the trunk open request switch
q A
.
2. The trunk will be unlatched and buzzer
sounds four times.
3. Raise the trunk lid to open the trunk.
Lockout protection:
To prevent the Intelligent Key from being
accidentally locked in the trunk, lockout
protection is equipped with the Intelligent
Key system. SPA1889
SPA1890
Sedan SPA2182
Coupe
Pre-driving checks and adjustments
3-13
w 06.1.4/V35-D/V5.0
X

The operating range of the door or trunk
lock/unlock function by pushing the door
handle request switch or trunk open re-
quest switch is shown in the illustration.
q 1
31.5 in (80 cm) from the door handle
request switch
q 2
31.5 in (80 cm) from the trunk open re-
quest switch
O If you are too close to the outside
door handles or rear bumper, the In-
telligent Key may not operate.
O If the Intelligent Key is in the oper-
ating range, it is possible for anyone
who does not carry the Intelligent Key
to lock/unlock the doors by pushing
the door handle request switch.
Operating range for engine start
function The operating range for starting the en-
gine is inside the vehicle.
O If the Intelligent Key is on the instru-
ment panel, rear parcel shelf, inside
the glove box or door pocket, or the
corner of interior compartment, it may
not be possible to start the engine.
O If the Intelligent Key is near the door
or door glass outside the vehicle, it
may be possible to start the engine. WARNING SIGNALS To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key or to help prevent the
vehicle from being stolen, chime or beep
sounds inside and outside the vehicle
and a warning light comes on in the in-
strument panel.
When a chime or beep sounds or the
warning light comes on, be sure to check
the vehicle and Intelligent Key.
Alarm and warning when locking
the doors When the front door warning chime or
outside buzzer sounds, check for the fol-
lowing:
O The ignition switch is turned to the
LOCK position.
O The Intelligent Key is not left inside
the vehicle.
O Doors are closed securely.
O The selector lever is in the P position. SPA1901
Pre-driving checks and adjustments
3-17
w 06.1.4/V35-D/V5.0
X

Alarm and warning when the
engine stops When the P position selecting warning
light
q B
in the instrument panel blinks in
red:
O Make sure the selector lever is in the
P position.
When the chime sounds intermittently:
O Make sure the selector lever is in the
P position and the ignition switch is
turned to the LOCK position. If the chime sounds continuously when
the driver's door is opened, check the fol-
lowing:
O The selector lever is in the P position
and the ignition switch is turned to
the LOCK position.
O The mechanical key or the valet key is
not inserted into the ignition switch.
O The inside warning chime may stop
when one of the following is per-
formed.
Ð Returning the ignition switch to the
LOCK position.
Ð Removing the mechanical key or
the valet key.
Ð Closing the doors.
Alarm and warning when the
engine starts When the Intelligent Key warning light
q A
is blinking in red and the outside buzzer
sounds, make sure the Intelligent Key is
inside the vehicle. Warning for low battery power O This warning is to let you know that
the battery of the Intelligent Key will
run down soon. Replace it with a new
one.
Ð The green blinking Intelligent Key
warning light
q A
goes out about 30
seconds after the ignition switch is
turned to ON.
O We recommend replacing the battery
at an INFINITI dealer.
Preventing the Intelligent Key
from being left in the vehicle If you lock all doors using the power door
lock switch with the Intelligent Key in the
vehicle, all of the doors unlock immedi-
ately and the beep sounds to warn you
when the door is closed.SPA1892
3-18 Pre-driving checks and adjustments
w 06.1.4/V35-D/V5.0
X

3. Push the LOCK button on the In-
telligent Key.
4. All doors and fuel-filler door will lock.
All of the doors will lock when the LOCK
button on the Intelligent Key is
pushed even though the ignition switch is
in the ON position.
5. The hazard indicator flashes twice and
the horn chirps once.
O When the LOCK button is pushed
with all doors locked, the hazard indi-
cator flashes twice and the horn
chirps once as a reminder that the
doors are already locked.
*1: Doors lock with the Intelligent Key
while the mechanical key or the valet
key is in the ignition switch or the ig-
nition switch is pushed in.
*2: Doors do not lock with the Intelligent
Key while any door is open.
Unlocking doors and fuel-filler door:
1. Push the UNLOCK button on the
Intelligent Key once.
O The driver's door and fuel-filler door
unlock O The hazard indicator flashes once if all
doors are completely closed with the
ignition switch in any position except
the ON position.
O The interior light turns on and the
light timer activates for 30 seconds
when the switch is in the DOOR posi-
tion with the ignition switch in any po-
sition except the ON position.
2. Push the UNLOCK button on the
Intelligent Key again within 5 seconds.
O All doors unlock.
O The hazard indicator flashes once if all
doors are completely closed.
All doors will be locked automatically un-
less one of the following operations is
performed within 1 minute of pushing the
UNLOCK button.
O opening any door
O the ignition switch is pushed
O the mechanical key or the valet key is
inserted into the ignition switch
The interior light can be turned off without
waiting for 30 seconds by turning the igni-
tion switch to the ON position or by locking
the doors with the Intelligent Key. Opening the windows:
See ªOpening and closing windowsº on
the previous page.
Releasing the trunk lid:
1. Push and hold the TRUNK button
on the Intelligent Key for longer than
0.5 second when the ignition switch is
in any position except the ON posi-
tion.
2. The trunk lid opens.
The trunk lid cannot be opened by operat-
ing the Intelligent Key when the ignition
switch is in the ON position.
Using the panic alarm:
If you are near your vehicle and feel
threatened, you may activate the alarm to
call attention as follows:
1. Push the PANIC button on the In-
telligent Key for longer than 0.5 second
with the metal key removed from the
ignition switch or the ignition switch
not pushed in.
2. The theft warning alarm and head-
lights will stay on for 25 seconds.
Pre-driving checks and adjustments
3-21
w 06.1.4/V35-D/V5.0
X

3. Turn the ignition switch to the START
position and start the engine.
4. After starting the engine, release the
switch.
When the engine is off, the steering wheel
lock cannot be unlocked.
For important safety information, see the
ª5. Starting and drivingº section.
Windows open/close with the
mechanical key See ªOpening and closing windowsº on
the previous page. 1. Pull the hood lock release handle
q 1
located below the instrument panel;
the hood will then spring up slightly.
2. Raise the lever
q 2
at the front of the
hood with your fingertips and raise
the hood.
3. Insert the assist bar into the slot
q 3
in
the front edge of the hood.
4. When closing the hood, reset the as-
sist bar to its original position, then
slowly close the hood and make sure
it locks into place.
WARNING O Make sure the hood is completely closed
and latched before driving. Failure to do
so could cause the hood to fly open and
result in an accident.
O If you see steam or smoke coming from
the engine compartment, to avoid injury
do not open the hood.SPA1632 SPA2158
HOOD
3-24 Pre-driving checks and adjustments
w 06.1.4/V35-D/V5.0
X
