DO-IT-YOURSELF MAINTENANCE
30
G270C02TB-GATLuggage Compartment Light
(If Installed)
G270C01JM
1. Remove the cover with a flat blade screw
driver.

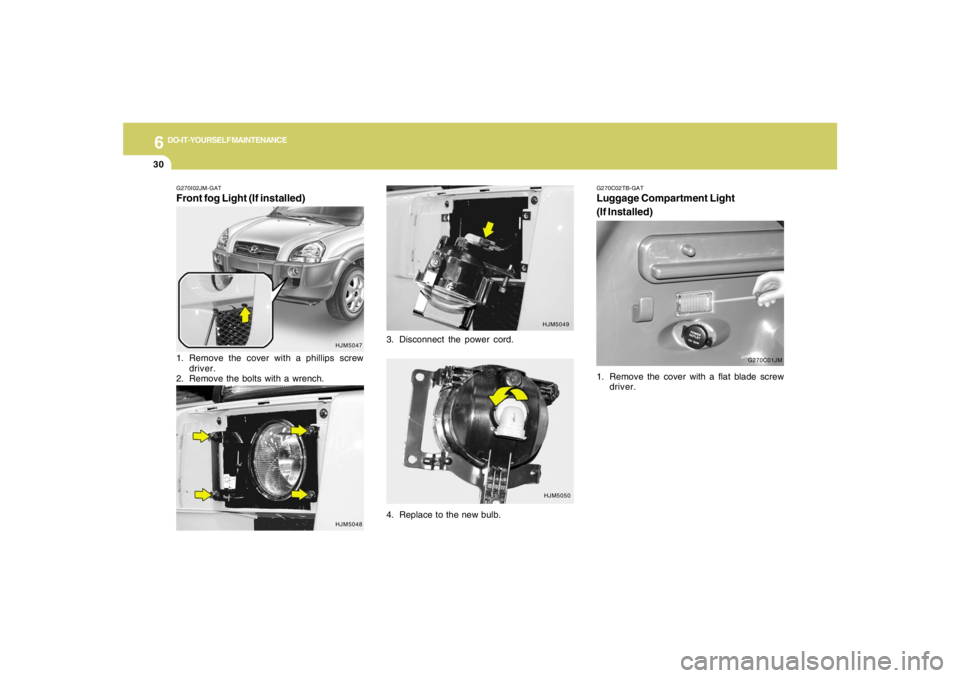

G270I02JM-GATFront fog Light (If installed)
HJM5047
1. Remove the cover with a phillips screw
driver.
2. Remove the bolts with a wrench.3. Disconnect the power cord.
HJM5049
HJM5050
4. Replace to the new bulb.
HJM5048

6
DO-IT-YOURSELF MAINTENANCE
31
G270C02JM-AATCargo Light1. Open the tail gate.
2. Remove the cover with a flat blade screw-
driver.
3. Replace to the new bulb.
HTB284
2. Disconnect the power cord.
G270C02JM
HJM5023
HJM5024
3. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
32
G270G01O-AATInterior Light1. Remove the cover with a flat blade screw-
driver.
HJM5025
G270E01JM G270E01O-AAT

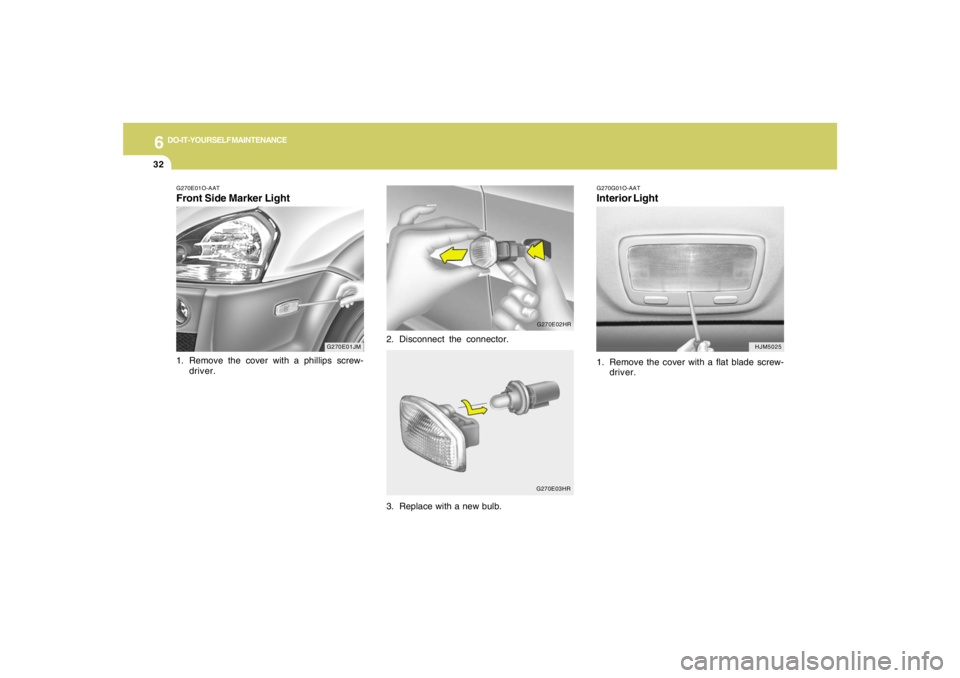

Front Side Marker Light1. Remove the cover with a phillips screw-
driver.2. Disconnect the connector.
3. Replace with a new bulb.
G270E02HRG270E03HR

6
DO-IT-YOURSELF MAINTENANCE
33

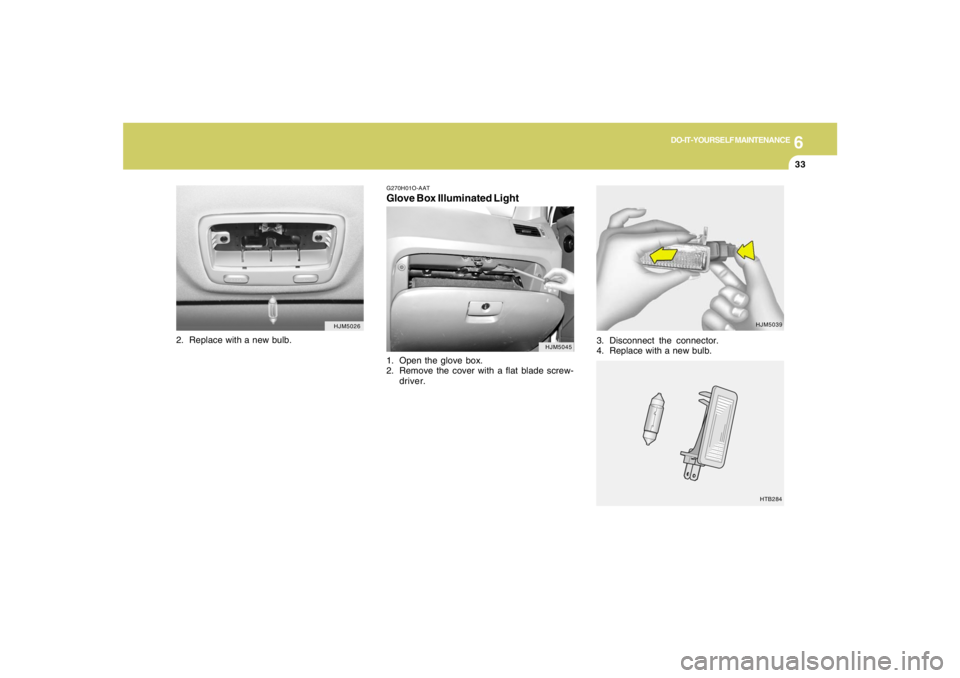

G270H01O-AATGlove Box Illuminated Light1. Open the glove box.
2. Remove the cover with a flat blade screw-
driver.
HJM5026
HJM5045
2. Replace with a new bulb.
3. Disconnect the connector.
4. Replace with a new bulb.
HJM5039
HTB284

6
DO-IT-YOURSELF MAINTENANCE
34

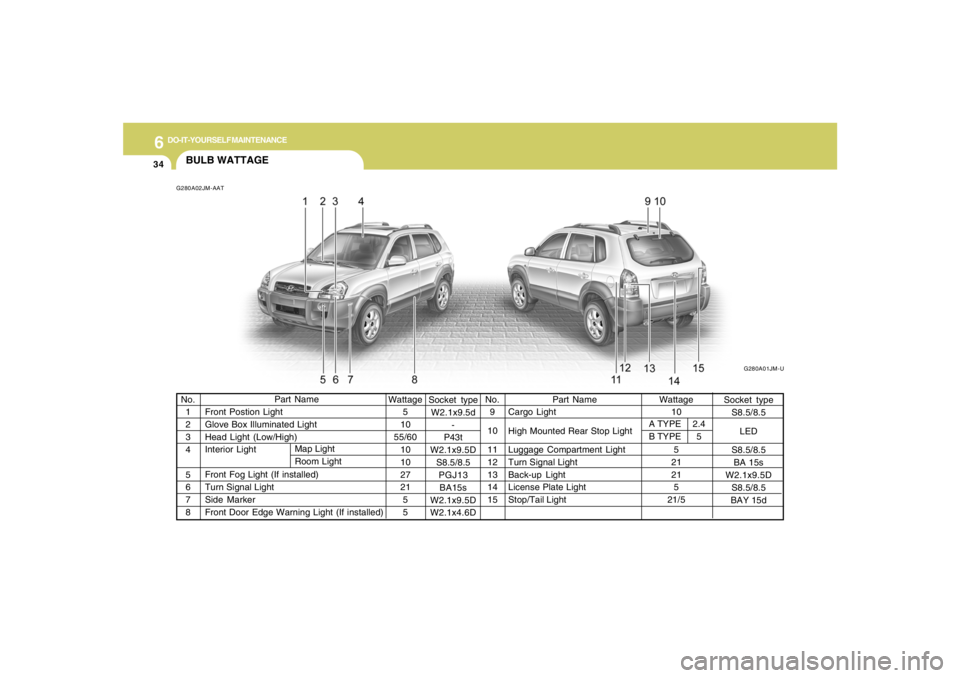

BULB WATTAGEG280A02JM-AAT
G280A01JM-U
Part Name
Front Postion Light
Glove Box Illuminated Light
Head Light (Low/High)
Interior Light
Front Fog Light (If installed)
Turn Signal Light
Side Marker
Front Door Edge Warning Light (If installed) No.
1
2
3
4
5
6
7
8Wattage
5
10
55/60
10
10
27
21
5
5Wattage
10
5
21
21
5
21/5 No.
9
10
11
12
13
14
15
Part Name
Cargo Light
High Mounted Rear Stop Light
Luggage Compartment Light
Turn Signal Light
Back-up Light
License Plate Light
Stop/Tail Light Map Light
Room Light
A TYPE
B TYPE2.4
5
Socket type
S8.5/8.5
LED
S8.5/8.5
BA 15s
W2.1x9.5D
S8.5/8.5
BAY 15d Socket type
W2.1x9.5d
-
P43t
W2.1x9.5D
S8.5/8.5
PGJ13
BA15s
W2.1x9.5D
W2.1x4.6D

6
DO-IT-YOURSELF MAINTENANCE
35
FUSE PANEL DESCRIPTIONG200C01JM-GATEngine Compartment
G200C01JM
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.FUSE
RATING
30A
30A
50A
50A
30A
40A
30A
30A
15A
10A
15A
15A
15A
15A
15A
15APROTECTED COMPONENTS
Start relay, Ignition switch
Engine control, Fuel pump , A/C, Generator, ATM
Ignition switch, Power connector
Cooling fan
ABS, ESC
ABS, ESC
Blower
Ignition switch, Power connector
Injector
Cooling fan, Stop lamp switch, Oxygen sensor, ECM/PCM
DRL
Front fog lamp
Horn, Siren
A/C
Head lamp (HIGH)
Head lamp (LOW)
IGN
ECU
BATT #1
C/FAN
ABS #1
ABS #2
BLOWER
BATT #2
INJ
SNSR
DRL
F/FOG
HORN
A/CON
H/LP (HI)
H/LP (LOW) FUSIBLE
LINK
FUSE
DESCRIPTION

6
DO-IT-YOURSELF MAINTENANCE
36
G200E01JM-AATInner Panel
G200E02JM

6
DO-IT-YOURSELF MAINTENANCE
37
FUSE
P/WDW-LH
P/WDW-RH
TAIL RH
RR HTR
A/BAG
CLUSTER
TAIL LH
AUDIO
C/LIGHTER
& P/OUTLET
SPARE
RR FOG
HTD MIRR
AUDIO
IG COIL
IMMO
P/OUTLET
S/HTR
A/CON SW
STARTPROTECTED COMPONENTS
Left power window
Right power window
Right rear combination lamp, Glove box lllumination
Rear defogger
SRS control
Instrument cluster, ETACM/TACM
Left head lamp, Left rear combination lamp, License lamp
Digital clock, Audio, Power outside mirror folding module, Power outside mirror & mirror folding switch
Cigarette lighter
(SPARE)
Rear fog lamp
Left/Right power outsider mirror & mirror folding motor, Rear defogger switch
Audio
Ignition coil (2.7 L)
Immobilizer control module (2.7 L)
Rear power outlet
(Not used)
Seat warmer
A/C control module (Manual A/C)
Theft alarm relay, Transaxle range switch, lgnition lock switch
FUSE
RATING
30A
30A
10A
30A
15A
10A
10A
10A
20A
15A
10A
10A
10A
20A
10A
15A
10A
20A
10A
10A
