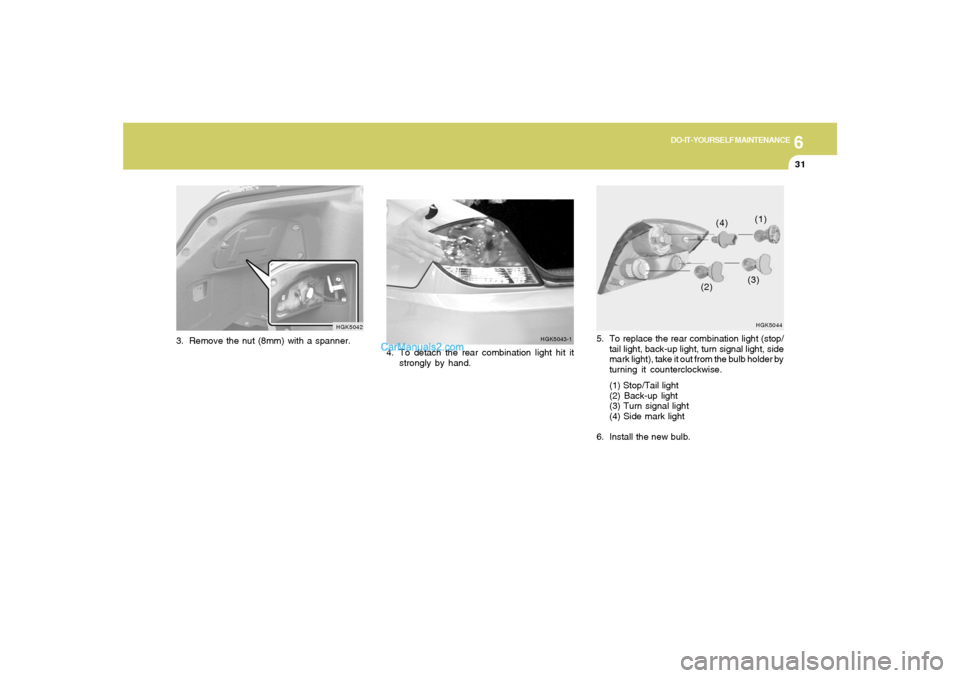

2006 Hyundai Tiburon Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
31
5. To replace the rear combination light (stop/
tail light, back-up light, turn signal light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
6. Install the new bulb.
HGK5044(1)
(2)(3) (4)
HGK5042
3. Remove the nut (8mm) with a spanner.
4. To detach the rear combination light hit it
strongly by hand.
HGK5043-1

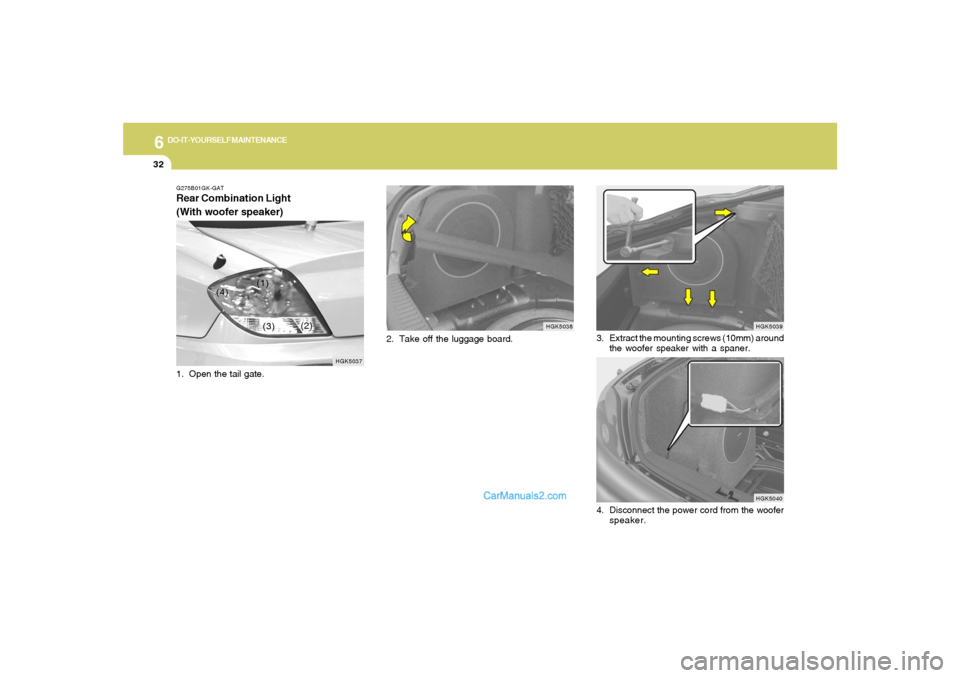

6
DO-IT-YOURSELF MAINTENANCE
32
2. Take off the luggage board.
HGK5038 G275B01GK-GAT
Rear Combination Light
(With woofer speaker)
HGK5037
(1)
(2)
(3) (4)
1. Open the tail gate.
HGK5039
HGK5040
3. Extract the mounting screws (10mm) around
the woofer speaker with a spaner.
4. Disconnect the power cord from the woofer
speaker.

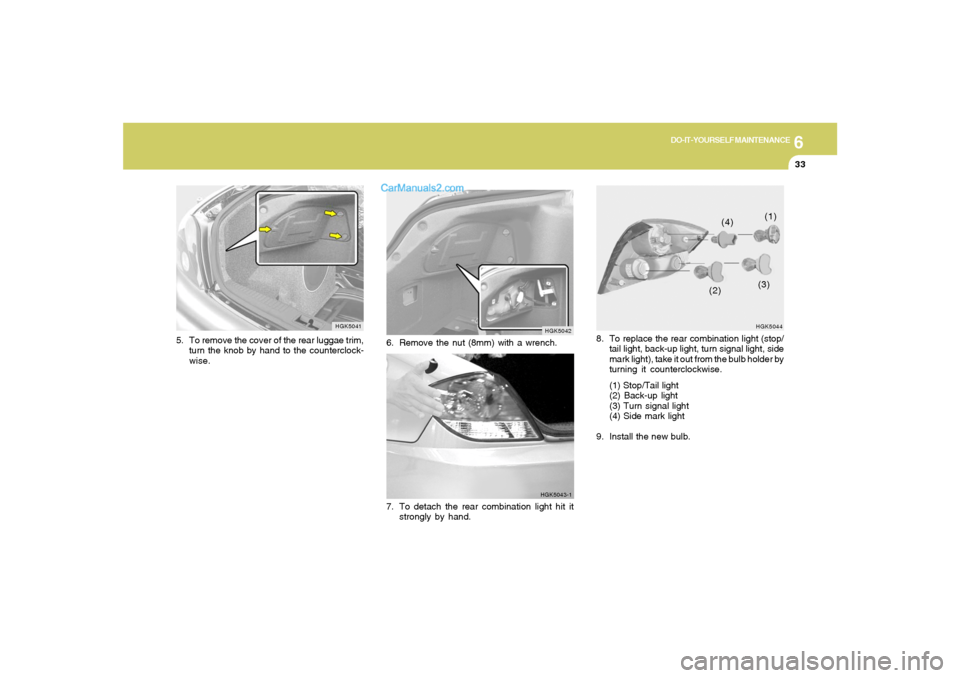

6
DO-IT-YOURSELF MAINTENANCE
33
HGK5044(1)
(2)(3) (4)
8. To replace the rear combination light (stop/
tail light, back-up light, turn signal light, side
mark light), take it out from the bulb holder by
turning it counterclockwise.
(1) Stop/Tail light
(2) Back-up light
(3) Turn signal light
(4) Side mark light
9. Install the new bulb.
HGK5041
5. To remove the cover of the rear luggae trim,
turn the knob by hand to the counterclock-
wise.
HGK5042
6. Remove the nut (8mm) with a wrench.
HGK5043-1
7. To detach the rear combination light hit it
strongly by hand.

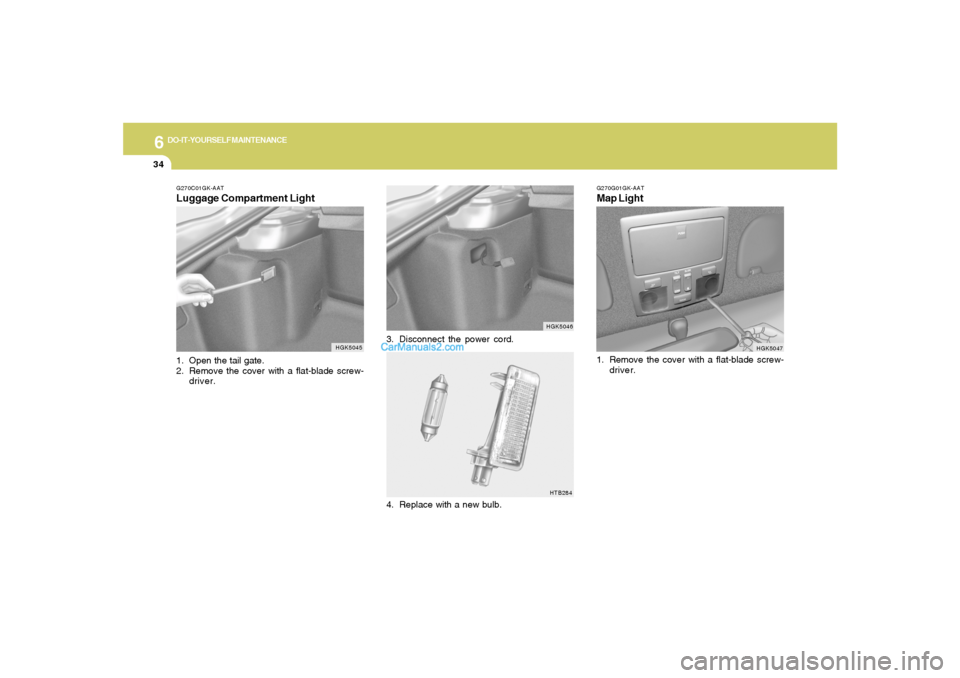

6
DO-IT-YOURSELF MAINTENANCE
34
3. Disconnect the power cord.
HGK5046HTB284
G270C01GK-AATLuggage Compartment Light1. Open the tail gate.
2. Remove the cover with a flat-blade screw-
driver.
HGK5045
4. Replace with a new bulb.
G270G01GK-AATMap Light
HGK5047
1. Remove the cover with a flat-blade screw-
driver.

6
DO-IT-YOURSELF MAINTENANCE
35
HGK2112
2. Open the glove box and remove the mount-
ing screws on the upside of the glove box.
HGK5048
G270H01GK-GATGlove Box Illuminated Light1. Remove the mounting screws on the down-
side of the glove box.
HGK2111
2. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
36
HGK5053
ClipPower Cord
4. Disconnect the power cord.
5. Remove the glove box illuminated light by
pushing the clip. 3. Remove the glove box by pulling strongly.
CAUTION:
Be careful not to damage the glove box
when pulling the glove box.
!
HGK5052
HTB284
6. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
37
Part Name
High Mounted Rear
Stop Light
Rear
Combination
Light
License Plate Light
BULB WATTAGEG280A04GK-AATNo.
1
2
3
4
5
6
7Part Name
Head Light (High/Low)
Map Light
Front Position Light
Front Fog Light (If installed)
Front Turn Signal Light/ Front Side Marker Light
Front Door Edge Warning Light
Luggage Compartment LightWattage
55/55
10
5
51
28/8
5
5No.
8
9
10
11
12
13Wattage
2.4 (LED)
3.5 (LED)
5
27
27/8
27
5
HGK5021A
(High)(Low)
Socket type
Px26d/Px26d
W2.1 X 9.5D
W2.1 X 9.5d
P22d
BA15d
W2.1 X 9.5d
S8.5 / 8.5
With spoiler
Without spoiler
Rear Side Marker Light
Turn Signal Light
Stop/Tail Light
Back-up LightSocket type
W2.1 X 9.5d
-
BA15s
BA15d
BA15s
W2.1 X 9.5d
S8.5 / 8.5

6
DO-IT-YOURSELF MAINTENANCE
38
FUSE PANEL DESCRIPTIONG200C01GK-GATEngine Compartment
If installed
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.
HGK4005
