2006 Hyundai H-1 (Grand Starex) dashboard

2 INSTRUMENTS AND CONTROLS
38HEATING AND COOLING CONTROL
B710A01P-GAT
(If Installed)
1. Side Ventilator
2. Center Ventilator
3. Windshield Defrost Nozzle B710B01S-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. The di- rection of air flow from the vents in thecenter of the dashboard is adjustable. To control the direction of the air flow, move the knob in the center of the ventup-and-down and side-to-side. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change the direction of the air flow, move theknob in the center of the vent up-and- down and side-to-side. The vents are opened when the vent knob is movedto " " position. The vents are closed when the vent knob is moved to " ". Keep these vents clear of any obstruc-tions.
HSRFL002

2
INSTRUMENTS AND CONTROLS
39
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents. HSRFL670

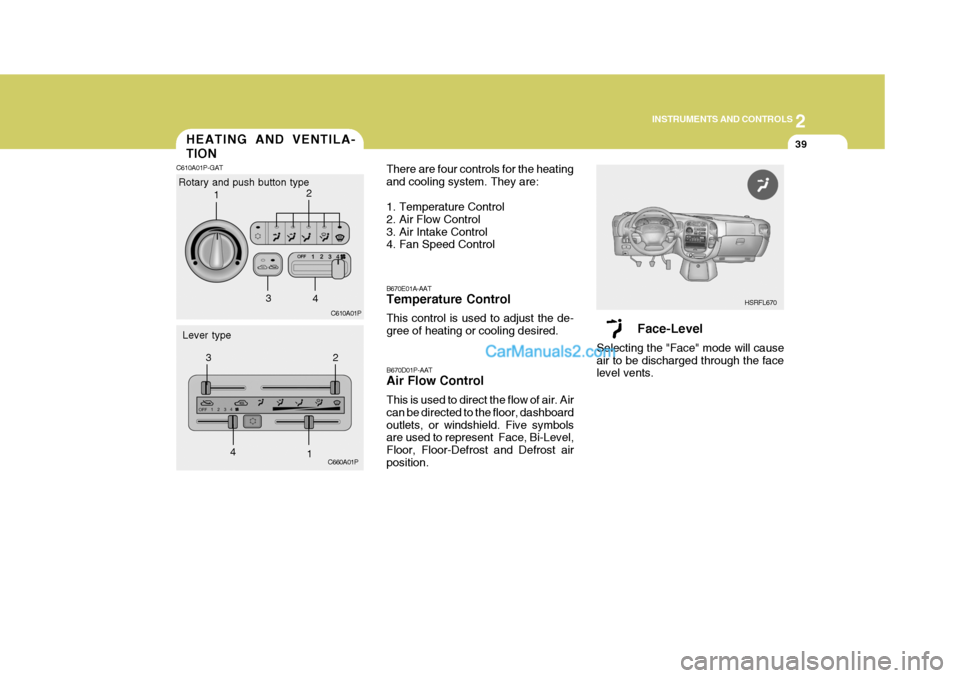

HEATING AND VENTILA- TION
C610A01P-GAT
Rotary and push button type
Lever type C610A01P
C660A01P B670D01P-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboardoutlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost airposition.
B670E01A-AAT Temperature Control This control is used to adjust the de- gree of heating or cooling desired.
There are four controls for the heatingand cooling system. They are:
1. Temperature Control
2. Air Flow Control
3. Air Intake Control
4. Fan Speed Control
1
2
3 4
12
3
4

2
INSTRUMENTS AND CONTROLS
73ANTENNA
o The playback head, capstan and pinch rollers will develop a coating of tape residue that can result indeterioration of sound quality, such as a wavering sound. They should be cleaned monthly using a com-mercially available head cleaning tape or special solution available from audio specialty shops. Followthe supplier's directions carefully and never oil any part of the tape player unit.
o Always be sure that the tape is tightly wound on its reel before in-serting in the player. Rotate a pencilin the drive sprockets to wind up any slack. NOTE: Look at a tape before you insert it. If the tape is loose, tighten it by turning one of the hubs with a pen- cil or your finger. If the label ispeeling off, do not put it in the drive mechanism when you try to eject it. Do not leave tape sitting where theyare exposed to hot warm or, high humidity, such as on top of the dashboard or in the player. If a tapeis exposed to extreme heat or cold, let it reach a moderate temperature before putting it in the player. B870A02A-GAT Fixed Rod Antenna (If installed)
Your car uses a fixed rod antenna to receive both AM and FM broadcast signals. This antenna is a removable type. Toremove the antenna, turn the antenna counterclockwise. To install the an- tenna, turn the antenna clockwise. B870A02P
Head
CottonapplicatorB860A02L
B860A03L

4
CORROSION PREVENTION AND APPEARANCE CARE
27
4
IN CASE OF EMERGENCY
27
CAUTION:
When replacing a fusible link, never use anything but a new fusible link with the same or lower amperagerating. Never use a piece of wire or a higher-rated fusible link. This could result in serious damage andcreate a fire hazard.! G200B02A-AAT Replacing Accessory Fuse The fuse box for the lights and other electrical accessories will be found lowon the dashboard on the driver's side. Inside the box you will find a list show- ing the circuits protected by each fuse.If any of your car's lights or other electrical accessories stop working, a blown fuse could be the reason. If thefuse has burned out, you will see that the metal strip inside the fuse has burned through.HSR4021

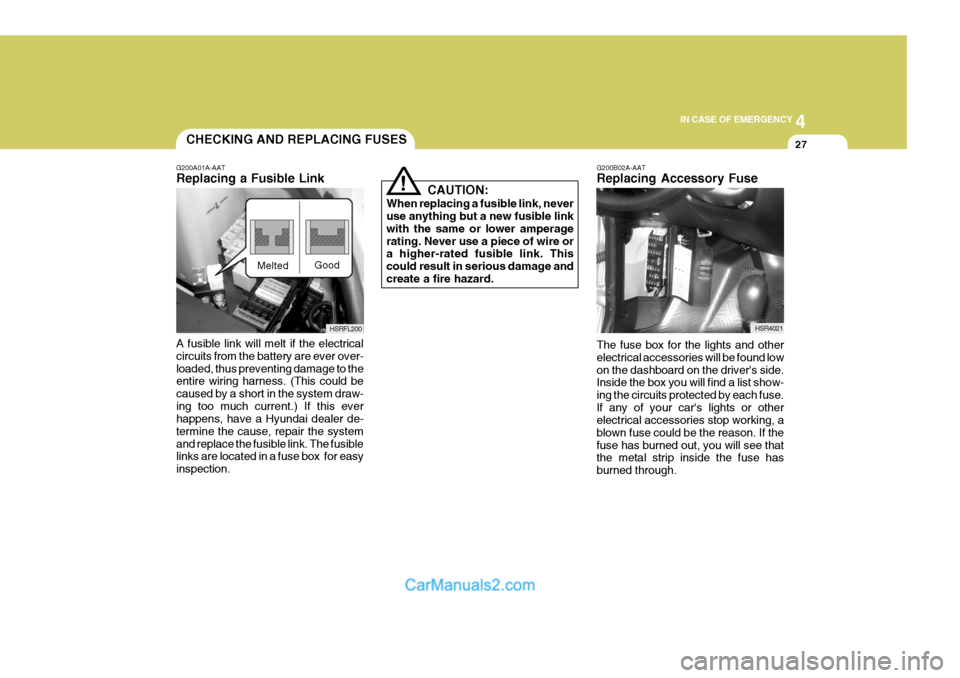

CHECKING AND REPLACING FUSES
G200A01A-AAT Replacing a Fusible Link
HSRFL200
Melted
Good
A fusible link will melt if the electrical circuits from the battery are ever over-loaded, thus preventing damage to the entire wiring harness. (This could be caused by a short in the system draw-ing too much current.) If this ever happens, have a Hyundai dealer de- termine the cause, repair the systemand replace the fusible link. The fusible links are located in a fuse box for easy inspection.
