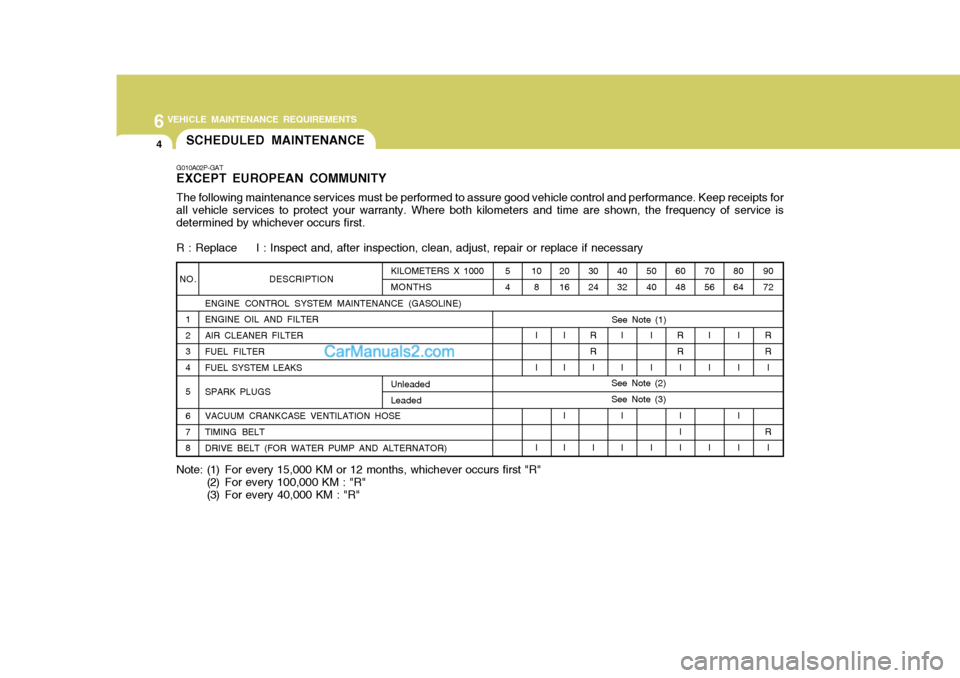

6VEHICLE MAINTENANCE REQUIREMENTS
4
KILOMETERS X 1000 MONTHS
NO.1 2 3 4 5 6 7 8 DESCRIPTION
ENGINE CONTROL SYSTEM MAINTENANCE (GASOLINE)ENGINE OIL AND FILTER AIR CLEANER FILTER FUEL FILTER FUEL SYSTEM LEAKS SPARK PLUGS VACUUM CRANKCASE VENTILATION HOSE TIMING BELT DRIVE BELT (FOR WATER PUMP AND ALTERNATOR)
G010A02P-GAT EXCEPT EUROPEAN COMMUNITY The following maintenance services must be performed to assure good vehicle control and performance. Keep receipts for all vehicle services to protect your warranty. Where both kilometers and time are shown, the frequency of service is determined by whichever occurs first. R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary80 64
I I I I 90 72
R R I
R I
70 56
I I I
60 48
R R I I I I
50 40
I I I
40 32
I I I I
30
24
R R I I
20 16
I I I I
SCHEDULED MAINTENANCE
108
I I I
5 4
See Note (1)
Unleaded LeadedSee Note (2) See Note (3)
Note: (1) For every 15, 000 KM or 12 months, whichever occurs first "R"
(2) For every 100,000 KM : "R"
(3) For every 40,000 KM : "R"
6
VEHICLE MAINTENANCE REQUIREMENTS
11
GASOLINE DIESELMore Frequently More Frequently Every 60,000 KM or 48 monthsMore FrequentlyMore FrequentlyEvery 10,000 KM or 6 months More Frequently Every 100,000 KM Every 40,000 KMEvery 45,000 KM Every 7,500 KM or 6 monthsEvery 3,000 KMEvery 4,000 KM (Except 2.5 CRDi)Every 7,500 KM or 6 months (2.5 CRDi only)
ENGINE OIL AND FILTER AIR CLEANER FILTER SPARK PLUGSTIMING BELT BRAKE PADS, CALIPERS, ROTORS REAR BRAKE DRUMS AND LININGSSTEERING GEAR BOX, LINKAGE & BOOTSCLIMATE CONTROL AIR FILTER(FOR EVAPORATOR AND BLOWER UNIT)MANUAL TRANSMISSION OIL AUTOMATIC TRANSMISSION OIL
G070A08P-GAT The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
R R RR
I I I
R R R
SEVERE DRIVING CONDITIONS A - Repeated short distance driving
B - Extensive idling
C - Driving in dusty conditions
D - Driving in areas using salt or other corrosive materials or
in very cold weather
E - Driving in sandy areas
A, B, C, D, E, F, G, H, I, K A, B, C, F, H, J C, E B, HD, E, F, GC, D, G, HC, D, G, H C, D, E, F C,EA, C, D, E, F, G, H, I, J A, C, E, F, G, H, I DRIVING
CONDITION
MAINTENANCE INTERVALS
MAINTENANCE
OPERATION
MAINTENANCE ITEM
F - More than 50% driving in heavy city traffic during hot above32°C (90°F)
G - Driving in mountainous areas
H - Towing a trailer or police car, taxi, or commercial type operation
I - Driving for patrol car, taxi, commercial car or vehicle towing
J - Driving over 170 km/h
K - Frequently driving in stop-and-go conditions
MAINTENANCE UNDER SEVERE USAGE CONDITIONS
Except E.C For E.C
Except E.C For E.C
6
VEHICLE MAINTENANCE REQUIREMENTS
13
G080E01P-GAT
o Vacuum and Crankcase
Ventilation Hoses
Inspect the surface of hoses for evi- dence of heat and/or mechanical dam- age. Hard and brittle rubber, cracking, tears, cuts, abrasions, and excessiveswelling indicate deterioration. Particu- lar attention should be paid to examin- ing those hose surfaces nearest tohigh heat sources, such as the ex- haust manifold. Inspect the hose routing to assure that the hoses do not come in contact with any heat source, sharp edges or mov- ing component which might cause heatdamage or mechanical wear. Inspect all hose connections, such as clamps and couplings, to make sure they aresecure, and that no leaks are present. Hoses should be replaced immedi- ately if there is any evidence of dete-rioration or damage. G080F01P-GAT
o Fuel Hose, Vapor Hose and
Fuel Filler Cap
The fuel hose, vapor hose and fuelfiller cap should be inspected at those intervals specified in the maintenance schedule. Make sure that a new fuelhose, vapor hose or fuel filler cap is correctly replaced. Consult your Hyundai dealer if you have any ques-tions. G080G01P-GAT
o Air Cleaner Filter
A genuine Hyundai part is recom- mended for replacement of the air cleaner filter. G080H01P-GAT
o Spark Plugs (Gasoline) Make sure to install new spark plugs of the correct heat range. G080I01P-GAT
o Drive Belts Inspect all drive belts (water pump and alternator) for evidence of cuts, cracks, excessive wear or oiliness, and re- place if necessary. Drive belts shouldbe checked periodically for proper ten- sion and adjusted as necessary. G080J01P-GAT
o Engine Coolant The coolant should be changed at those intervals specified in the Vehicle Maintenance Requirements Section. G080K01P-GAT
o Timing Belt Inspect all parts related with the timing belt for damage and deformation. Re-place any damaged parts.
