2006 HONDA ODYSSEY dashboard

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label, which is removed
by the owner), contact your dealer
f or a replacement.
CONT INUED
U.S. models only
Saf ety L abels
Driver and Passenger Saf ety
57
RADIATOR CAP
HOOD DASHBOARD

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or the LOCK
(0) position.The appropriate light comes on in
this display if the tailgate or any door
is not closed tightly.
All the lights in the monitor come on
f or a f ew seconds when you turn the
ignition switch to the ON (II)
position.
On the Touring model, you will also
see a ‘‘CHECK LEFT SLIDING
DOOR’’ or ‘‘CHECK RIGHT
SLIDING DOOR’’ message in the
multi-inf ormation display. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power sliding door
system. With this indicator on, move
themainswitchonthedashboardto
the OFF position, and have the
system checked by your dealer as
soon as possible. You can still open
or close each sliding door manually.
For more inf ormation on the power
sliding doors, see page .
133
146
On EX and EX-L models only
Instrument Panel Indicators
Immobilizer System
Indicator Door and T ailgate Open Monitor
Power Sliding
Door Indicator
Inst rument s and Cont rols
67
U.S. Canada

Î
Î
ÎIf you unlock the door, but do not
open it within 15 seconds, the lights
go of f . With the driver’s door open,
you will hear a lights-on reminder
chime. The lights turn on again when you
unlock or open the driver’s door.
On the Touring models, this time is
changeable. See page f or how to
select and set the time.
This turns of f the headlights,
parking lights, taillights, side marker
lights, license plate lights, and
instrument panel lights within 15
seconds of removing the key f rom
the ignition switch and closing the
driver’s door.
This feature activates if you leave
the headlight switch in the or
position, remove the key, then
open and close the driver’s door.
If you remove the key f rom the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights turn off after
10 minutes.
The automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it. 111
On EX, EX-L and Touring models only
Automatic Lighting Of f Feature
Headlights
128

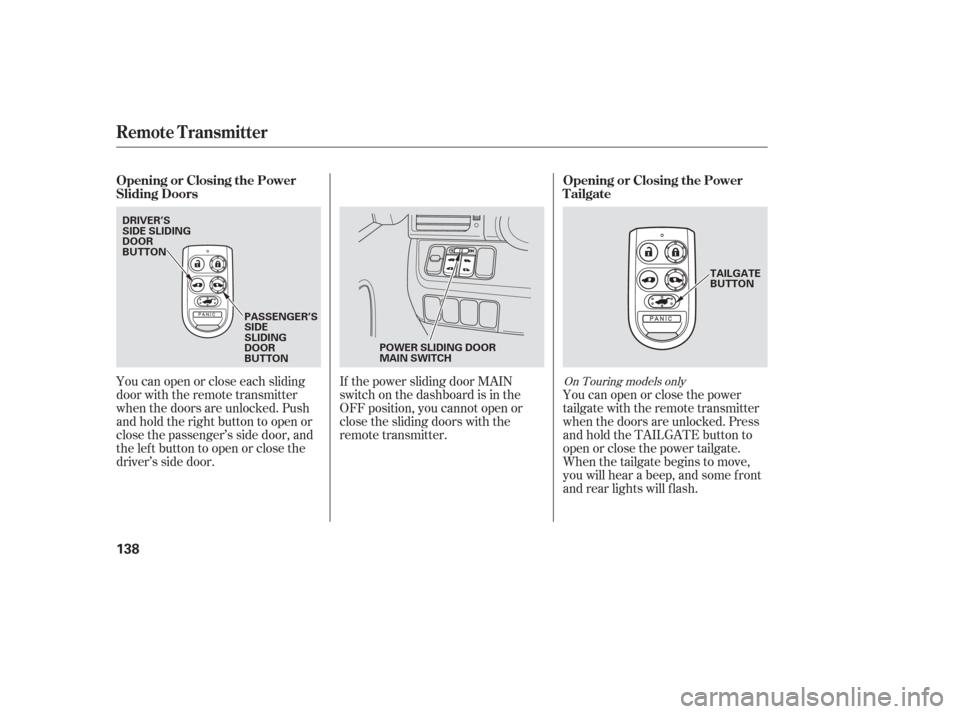

If the power sliding door MAIN
switch on the dashboard is in the
OFF position, you cannot open or
close the sliding doors with the
remote transmitter.You can open or close the power
tailgate with the remote transmitter
when the doors are unlocked. Press
andholdtheTAILGATEbuttonto
open or close the power tailgate.
When the tailgate begins to move,
you will hear a beep, and some f ront
and rear lights will f lash.
You can open or close each sliding
door with the remote transmitter
when the doors are unlocked. Push
andholdtherightbuttontoopenor
close the passenger’s side door, and
the left button to open or close the
driver’s side door.On Touring models only
Opening or Closing the Power
Sliding Doors
Opening or Closing the Power
Tailgate
Remote Transmitter
138
DRIVER’S
SIDE SLIDING
DOOR
BUTTON
POWER SLIDING DOOR
MAIN SWITCH TAILGATE
BUTTON
PASSENGER’S
SIDE
SLIDING
DOOR
BUTTON

The tailgate can be opened and
closed with the remote transmitter
or the switch on the dashboard when
both f ront doors are unlocked.The tailgate can also be closed by
pressing the button on the tailgate. If
you press the button again while the
tailgate is closing, you will hear three
beeps, and the tailgate will stop
moving, reverse direction, and stop
at the f ully opened position.
Press and hold the tailgate button on
the remote transmitter or the
dashboard switch f or about 1 second
to open or close the tailgate. Each
time you press the button on the
remote transmitter or the dashboard
switch, you will hear a beep, and
some f ront and rear lights will f lash.
To open or close the tailgate
manually, see page .
If you push the same button or
switch again while the tailgate is
opening or closing, you will hear
three beeps, and the tailgate will stop
moving, reverse direction, and stop
at the f ully opened or closed position.
142
CONT INUED
On Touring models only
Power Tailgate
Tailgate
Inst rument s and Cont rols
143
DASHBOARD SWITCH
TAILGATE
BUTTON TAILGATE SWITCH

To open, pull the inside or outside
door handle, and slide the door back.
It will latch in the f ully open position.
When opening f rom the inside, the
childproof door lock must be
unlocked.
To close, pull either handle, and slide
the door closed. Make sure the door
is closed and latched securely bef ore
driving, and all passengers are clear
of the sliding doors bef ore closing
them.
If youcannotopenthetailgate,
remove the cover on the back of the
tailgate(seepage ).Usethekey
to unlock the tailgate as shown, then
pull the outer handle to open the
tailgate. The doors are electrically powered
and can be operated with the remote
transmitter, the door handles, or the
dashboard switches. To operate the
doors:
When opening a sliding door, it stops
about halfway if the window is open
morethan3in(8cm).If thevehicle
is f acing downhill, the sliding door
will slam shut when you release the
door handle. Always close the
window f ully bef ore opening the
sliding door. The shift lever must be in Park or
Neutral. To operate the doors with
the shift lever in Neutral, the
ignition switch must be in the ON
(II) position with the brake pedal
pressed or the parking brake
applied.
TheMAINswitchmustbeinthe
ON position.
The doors must be unlocked.
145
LX model
On LX, EX and EX-L models On EX, EX-L and Touring models
Power Sliding Doors
Opening and Closing Manual
Sliding Doors
T ailgate, Sliding Doors
146

CONT INUED
When the shift lever is in Park:When the shift lever is in Neutral andthe ignition switch is in the ON position:
If you shif t out of Park while a door
is closing, you will hear a beep until
the door closes.
If you shif t out of Park while a door
is opening, you will hear a
continuous tone and the door will
stop moving. Stop the vehicle and
close the door.
If you shif t out of Neutral or release
the brake pedal or the parking brake
while a door is closing, you will hear
a beep until the door closes.
If you shif t out of Neutral or release
the brake pedal or the parking brake
while a door is opening, you will hear
a continuous tone and the door will
stop moving. Stop the vehicle and
close the door. To open the door with the inside
door handle, pull the handle
backward. Push it f orward to close
the door. If you pull backward or
push f orward on the door handle
while a door is opening or closing,
the door stops moving. Pull
backward or push f orward to open or
close the door f ully.
To open or close the door with the
outside door handle, pull the door
handle. If you pull the door handle
while a door is opening or closing,
the door stops moving. If you pull the
door handle again, the door will open
f ully.
The dashboard switches to the lef t
of the steering column allow you to
open or close the power sliding doors.
The MAIN switch on the dashboard
controls power to the sliding doors.
Sliding Doors
Door Handles
Dashboard Switches
Inst rument s and Cont rols
147
POWER SLIDING DOOR MAIN SWITCH
POWER SLIDING
DOOR SWITCHES

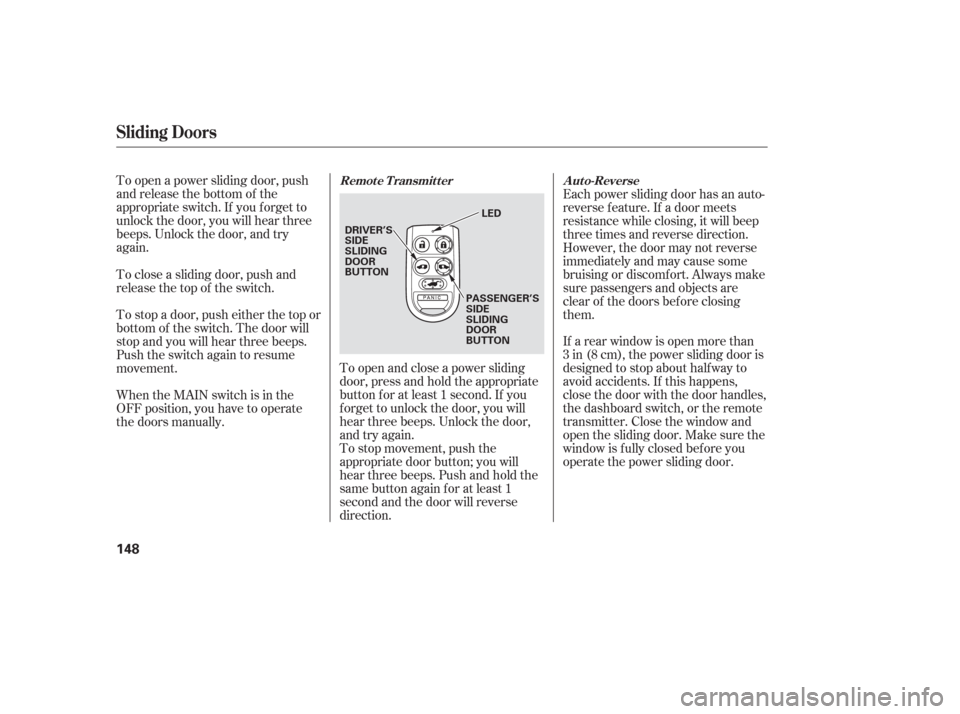

To open a power sliding door, push
and release the bottom of the
appropriate switch. If you f orget to
unlock the door, you will hear three
beeps. Unlock the door, and try
again.To open and close a power sliding
door, press and hold the appropriate
button f or at least 1 second. If you
f orget to unlock the door, you will
hear three beeps. Unlock the door,
and try again.Each power sliding door has an auto-
reverse f eature. If a door meets
resistance while closing, it will beep
three times and reverse direction.
However, the door may not reverse
immediately and may cause some
bruising or discomf ort. Always make
sure passengers and objects are
clear of the doors bef ore closing
them.
If a rear window is open more than
3 in (8 cm), the power sliding door is
designed to stop about half way to
avoid accidents. If this happens,
close the door with the door handles,
the dashboard switch, or the remote
transmitter. Close the window and
open the sliding door. Make sure the
window is f ully closed bef ore you
operate the power sliding door.
To stop movement, push the
appropriate door button; you will
hear three beeps. Push and hold the
same button again f or at least 1
second and the door will reverse
direction.
When the MAIN switch is in the
OFF position, you have to operate
the doors manually. To stop a door, push either the top or
bottom of the switch. The door will
stop and you will hear three beeps.
Push the switch again to resume
movement. To close a sliding door, push and
release the top of the switch.
Sliding Doors
Remote Transmitter
Auto-Reverse
148
DRIVER’S
SIDE
SLIDING
DOOR
BUTTON
PASSENGER’S
SIDE
SLIDING
DOOR
BUTTONLED
