On vehicles with automatic
transmission (CVT), see page f or
Automatic Climate Control and
Manual Operations inf ormation.
You can manually select the f an
speed by pressing the f an control
button ( / or ). The
fanspeedisshownbybarsinthe
display.
Turning this dial clockwise increases
the temperature of the airflow.Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Press the mode control button to
select the vents the air flows from.
Some air will f low f rom the
dashboard corner vents in all modes.
Air flows from the center
and corner vents in the dashboard. ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, can cause the windows to f og
up.
If thecoolingprovidedinECON
mode is not adequate, press the Auto
button (see page ).
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
If the A/C is on, pressing this button
allowstheautoidlestoptoworkonly
when the outside temperature is
above 41°F (5°C). For more
information, see pages and . 78
58
78
118
111
CONT INUED
Vents, Heating, and A/C
Fan Control
T emperature Control Dial Rear Window Def ogger Button
ECON Button Mode Control Button
Recirculation Button
Features
75

The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
On vehicles with automatic
transmission (CVT), make sure the
display shows A/C OFF.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.Select and fresh air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When mode is selected, the
auto idle stop f unction will not
activate. you can
cool it down more rapidly by partially
opening the windows, turning on the
AUTO, and setting the fan to
maximum speed in Fresh Air mode. Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Air f lows f rom the f loor
vents. Set the temperature to the lower
limit.
Select and Fresh Air mode.
Set the f an to the desired speed.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C (on climate control model only). Turn on the ECON mode by
pressing the ECON button. The
display shows A/C ON. Press the
ECON button again to turn the
ECON mode off.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
1.
2.
3. 1.
2.
3. 49
1.
2.
3.
4.
5.
If the interior is very warm,
On vehicles with automatic
transmission (CVT)
Vents, Heating, and A/C
Ventilation
Using the Heater Using the A /C in ECON Mode
76

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).Select . The system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C
indicator will not come on, if it was
off to start with.
Select .
Set the f an and temperature
controls to the maximum level.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
To remove f og f rom the inside of the
windows: Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature control
dial to your pref erence.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to them. This
will send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
Set the f an to the desired speed.
Select , the system
automatically switches to Fresh
Air mode and turns on the A/C on
vehicles with climate control. (The
A/C indicator stays off.) Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
When mode is selected, the
auto idle stop f unction will not
activate.
When you switch to another mode
f rom , the A/C turns of f . But
if it was on to start with, it stays on.
When you turn of f by
pressing the button again, the
system returns to its former settings.
1.
2.
3.
4.
1.
2.
3.
1.
2. 3.
4.
On vehicles with climate control
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
To Def og and Def rost To Dehumidify the Interior
Features
77

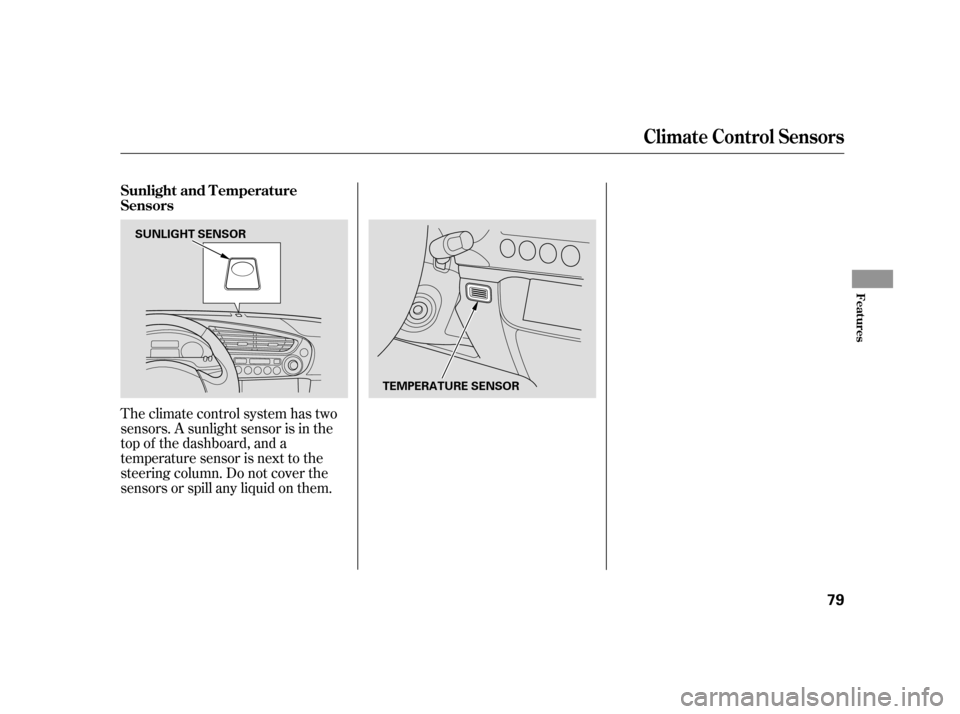

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight and T emperature
Sensors
Climat e Cont rol Sensors
Features
79
SUNLIGHT SENSORTEMPERATURE SENSOR

Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the malf unction indicator
lampmaycomeon(seepage ).Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to your lef t until
you f eel the hood latch handle.
Push this handle up until it
releases the hood. Lif t up the hood.
If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Push the f uel f ill door closed until
it latches.
1. 2.
5.
6.
180
Service Station Procedures
Opening and Closing the Hood
96
HOOD
RELEASE
HANDLE
LATCH

CONT INUED
The interior f use is underneath the
dashboard on the driver’s side.
Remove the storage pocket by
swinging the lid down, pushing up,
and pulling it straight out of its
hinges.The under-hood f use box is in the
engine compartment. To open it,
pushthetabsasshown.
Fuses
Emergency Towing, Fuses
T aking Care of t he Unexpect ed
185
TAB
UNDER-HOOD
INTERIORTo avoid damage to your vehicle, use
the towing hook f or straight, f lat
ground towing only. Do not tow at an
angle. The tow hook should not be used
to tow the vehicle onto a f lat bed. Do
not use it as a tie down.

Your vehicle has several identif ying
numbers in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
192
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

µµµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Specif ications
Technical Inf ormation
195
Air Conditioning
Lights
12 Volt Battery Alignment
Tires
Fuses
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g) SP-10
12 V 60/55 W (HB2) 0.00 in (0.0 mm)
0.12 in (3.0 mm)
0°1°
2°
P165/65R14 78S
T115/70D14 88M
12 V 21 W
12 V 5 W
12 V 12 V
21/5 W
21 W
12 V 18 W
12 V
12 V 5W
5W
12 V
12 V
5W
3.4 W
12V 27Ah/5HR 30 Ah/5 HR
12 V
Refrigerant type
Charge quantity
Lubricant type
Headlights (HI/LO)
Front turn signal lights
Front parking lights
Side marker lights
Rear turn signal lights
Brake/Taillights
Back-up lights
Trunk light
License plate light
Interior light
Capacity
Toe-in
Camber
Caster
Size
Pressure
Interior
Under-hood
See page
188or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 189or the fuse box
cover. 38 psi (260 kPa , 2.6 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
Front
Rear
Front
Rear
Front
Front/Rear
Spare
Front
Rear
Spare
U.S. model M/T
CVT
