2006 HONDA CIVIC COUPE engine

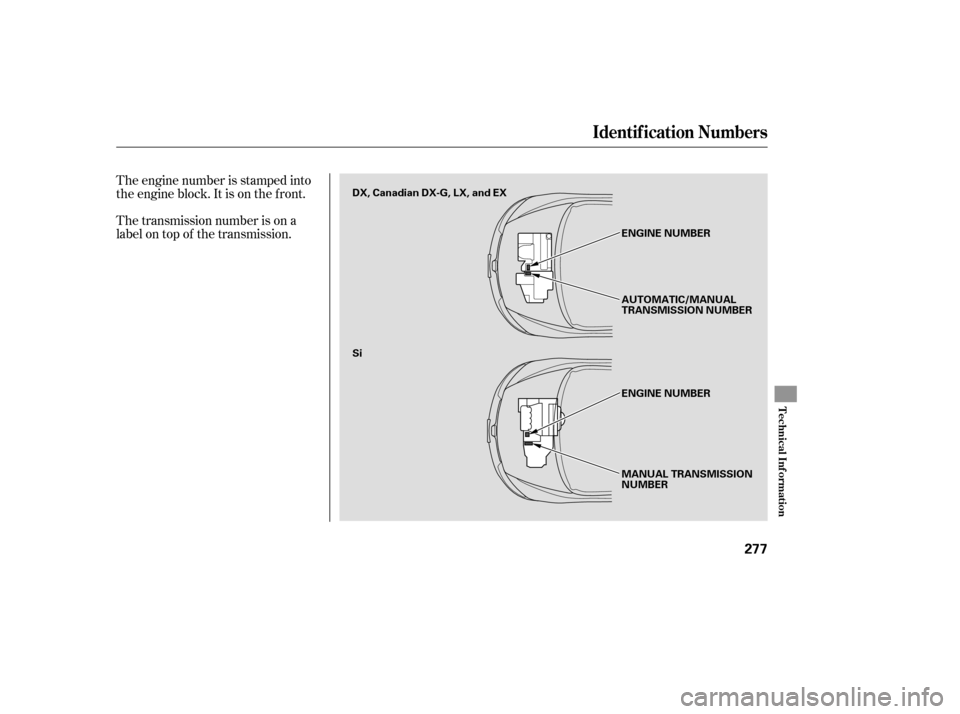

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
277
MANUAL TRANSMISSION
NUMBER
Si
ENGINE NUMBER ENGINE NUMBER
AUTOMATIC/MANUAL
TRANSMISSION NUMBER
DX, Canadian DX-G, LX, and EX
——y

y
(+yy

ÎÎ
Î
Î Î
Î Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Specif ications
278
Dimensions
Weights
EngineCapacities
174.8 in (4,440 mm)
68.9 in (1,751 mm)
55.0 in (1,396 mm)
104.3 in (2,650 mm)
59.0 in (1,499 mm)
60.1 in (1,526 mm)
3.19 x 3.44 in (81.0 x 87.3 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke
SOHC VTEC , DOHC i-VTEC 4-cylinder gasoline engine
10.5
110 cu-in (1,799 cm
)
3.39x3.39in(86x86mm)
122 cu-in (1,998 cm)
SK22PR-M11S IFR7G-11KS
SKJ20DR-M11S
IZFR6K-11S
NGK:
DENSO:
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plugs 13.2 US gal (50
)
Excluding the oil remaining in the engine Including the coolant in the reserve tank and that remaining in
the engine
Reserve tank capacity: 0.11 US gal (0.4
)
4.8 US qt (4.5
)
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Windshield
washer
reservoir
2.6 US qt (2.5)
2.5 US qt (2.4
)
6.2 US qt (5.9)
1.8 US qt (1.7
)
1.7 US qt (1.6)
1.6 US qt (1.5)
1.5 US qt (1.4)
5.8 US qt (5.5)
4.8 US qt (4.5)
4.4 US qt (4.2)
3.7 US qt (3.5)
4.6 US qt (4.4)
3.9 US qt (3.7)
1.19 US gal (4.5
)
1.37 US gal (5.2)
1.45 US gal (5.5)
1.88 US gal (7.1
)
1.72 US gal (6.5)
1.80 US gal (6.8)
11.0
Front
Rear
Approx.
Si
NGK:
DENSO:
1:
2: DX, Canadian DX-G, LX, EX
Si
U.S.: DX, LX, EX Canada: DX, DX-G, LX, EX
1:
2:
3:
4: A/T
M/T
A/T
M/T
Change
Total
Change
Including
filter
Without filter
Total
Change
Total
Change
Total
U.S. Vehicles
Canada
Vehicles
12
1
2 3
4 3
4
3
4
3
4
3
4
1
2
1
2 1
2
3
3
4
3
3
4
Manual trans-
mission fluid
——y

y
(+y
y

Î
ÎThe burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to f orm photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas. The United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specif ied in an
agreement with Environment
Canada, at the time they are
manuf actured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the intake manif old. They are then
drawn into the engine and burned.
As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard ref ueling vapor
recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Ref ueling Vapor
Recovery
Emissions Cont rols
Technical Inf ormation
283
——y


y
(+yy

The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The PGM-FI system uses sequential
multiport f uel injection. It has three
subsystems: air intake, engine
control, and f uel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It then controls how much f uel to inject
under all operating conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
The exhaust emissions controls
include three or f our systems: PGM-
FI, ignition timing control, exhaust
gas recirculation (DX, LX, and EX),
and three way catalytic converter.
These systems work together to
control the engine’s combustion and
minimize the amount of HC, CO, and
NOx that comes out the tailpipe. The
exhaust emissions control systems
are separate from the crankcase and
evaporative emissions control
systems.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor. The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manif old. Adding exhaust gas to the
air/f uel mixture reduces the amount
of NOx produced when the f uel is
burned.
2
2
Replacement Parts
Exhaust Emissions Controls
PGM-FI System Exhaust Gas Recirculat ion (EGR)
Syst em
Ignit ion T iming Cont rol Syst em
Three Way Catalytic Converter
Emissions Cont rols
284
——y

y
(+yy
On DX, LX, and EX models

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converter is ref erred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperaturefor the chemical reactions to take
place. It can set on f ire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
f lammables.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
f ormance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter. Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Inf ormation
285

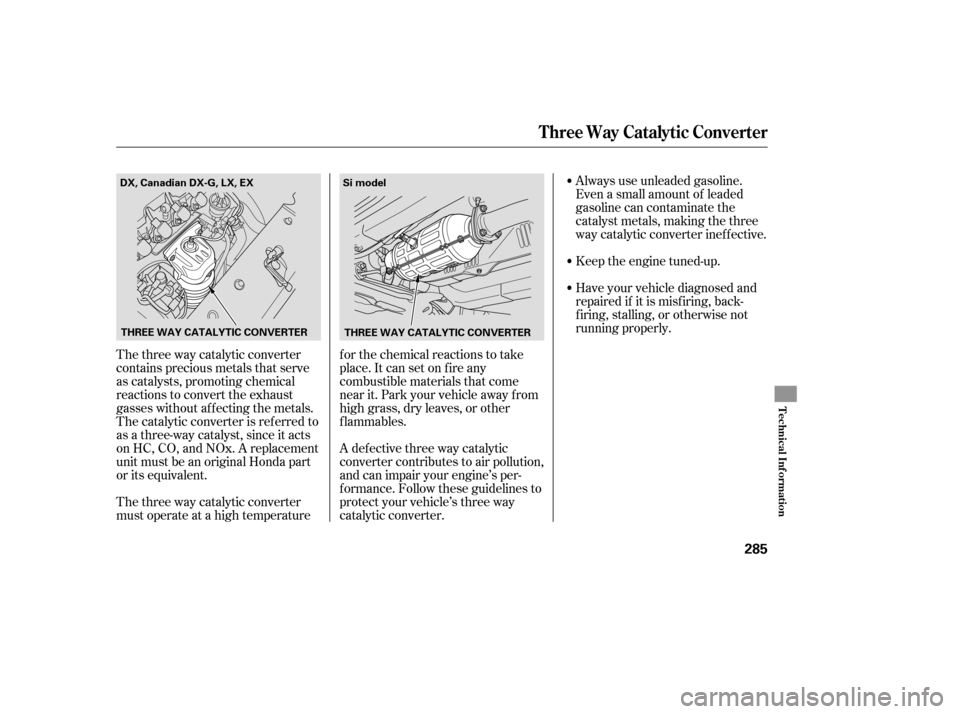

THREE WAY CATALYTIC CONVERTER
THREE WAY CATALYTIC CONVERTER
Si model
DX, Canadian DX-G, LX, EX
——y

y
(+yy

If you take your vehicle f or a state
emissions test shortly af ter the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics f or the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing f acility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle f or retesting by
doing the f ollowing.Make sure the gas tank is nearly,
but not completely f ull (around
3/4). Without touching the accelerator
pedal, start the engine, and let it
idle f or 20 seconds.
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T) or 5th (M/T). Do not usethecruisecontrol.Whentraffic
allows, drive f or 90 seconds
without moving the accelerator
pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot
do this f or a continuous 90
seconds because of traf f ic
conditions, drive f or at least 30
seconds, then repeat it two more
times (for a total of 90 seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast f or several
seconds without using the
accelerator pedal or the brake
pedal.
Make sure the ambient
temperature is between 40° and
95°F.
Keep the vehicle in Park
(automatic transmission) or
neutral (manual transmission).
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4of thescale(about3minutes). Make sure the vehicle has been
parked with the engine of f f or 6
hours or more.
If the testing f acility determines the
readiness codes are still not set, see
your dealer.Stop the vehicle, turn of f the
ignition switch, and leave it of f f or
30 minutes.
T esting of Readiness Codes
State Emissions T esting
286
——y


y
(+yy

µµ
µ
(


%
)
$
%

.
"

#
) This manual covers maintenance and recommended
procedures f or repair to engine and chassis components.
It is written f or the journeyman mechanic, but is simple
enough f or most mechanically-inclined owners to under-
stand.
This manual describes the procedures involved in the
replacement of damaged body parts. This manual complements the service manual by
providing in-depth troubleshooting inf ormation f or each
electrical circuit in your vehicle.
Authorized Manuals
Service Manual:
Electrical T roubleshooting Manual:
Body Repair Manual:
292
NOTE: Dealers and companies, please provide dealer or company name,
and the name of the person to whose attention the shipment should be
sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card VISA Check here if your billing address is different
from the shipping address shown above.
Account Number Expiration: Mo. Yr.
CUSTOMER SIGNATURE DATE
Street Address No P.O. Box Number
()
These publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
——y

y
(+yy

CONT INUED
...
Accessories and Modif ications .186
ACCESSORY (Ignition Key
.......................................
Position) .76
............
Accessory Power Sockets .104
................
Adding Engine Coolant .224
....................
Additives, Engine Oil .221
.......
Adjusting the Steering Wheel .73
.........
Advice f or Pregnant Women .16
...............................
Airbag (SRS) .9,21
..............
Air Conditioning System .110
.........................................
Usage .113
.......................
Air Pressure, Tires .242
.......................
Alcohol in Gasoline .180
......................................
Antif reeze .224
Anti-lock Brakes (ABS)
...............................
Indicator .59, 204
...................................
Operation .204
..............
Anti-thef t, Audio System . 172
Anti-thef t Steering Column ..............................................
Lock .76
................................
Audio System .115
.....
Auto Door Locking/Unlocking . 78
...
Automatic Seat Belt Tensioners . 19
.............
Automatic Speed Control . 175..............
Automatic Transmission . 198
..........................
Capacity, Fluid .278
...............
Checking Fluid Level . 228
.......................................
Shif ting .198
Shif t Lever Position ...............................
Indicators .198
................
Shif t Lever Positions . 198
....................
Shif t Lock Release . 201
Battery Charging System ...........................
Indicator .57, 263
............................
Jump Starting .259
..............................
Maintenance .248
............................
Specif ications .279
..............................
Bef ore Driving .179
....................................
Belts,Seat .8,18
.........................
Beverage Holders .103
..................................
Booster Seats .47
Brakes ...........
Anti-lock System (ABS) . 204
.............
Break-in, New Linings . 180
....................
Bulb Replacement .236
...........................................
Fluid .230 .......................................
Parking .101
..........................
System Design .203
.................
System Indicator . 58,265
........................
Wear Indicators .203
.............................
Braking System .203
.................
Break-in, New Vehicle . 180
..
Brightness Control, Instruments . 71
........................
Brights, Headlights .70
Bulb Replacement ..........................
Back-up Lights .236
..............................
Brake Lights .236
................
Front Parking Lights . 235
........
Front Side Marker Lights . 235
.................................
Headlights .232
.........
High-mount Brake Light . 237
............................
Specif ications .279
....................
Turn Signal Lights . 235
..............................
Bulbs, Halogen .232
............................
Capacities Chart .278
.............
Carbon Monoxide Hazard . 50
.............................
Carrying Cargo .188
Index
A
B
C
INDEX
I
——y
y
(+yy
