POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules.If adding fluid is
necessary, use only MERCON
AT F.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel to its furthest point
(until it stops) left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE/CLUTCH FLUID
Brake and clutch systems are supplied from the same reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of your
brake system could be
compromised; seek service from
your authorized dealer immediately.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
225

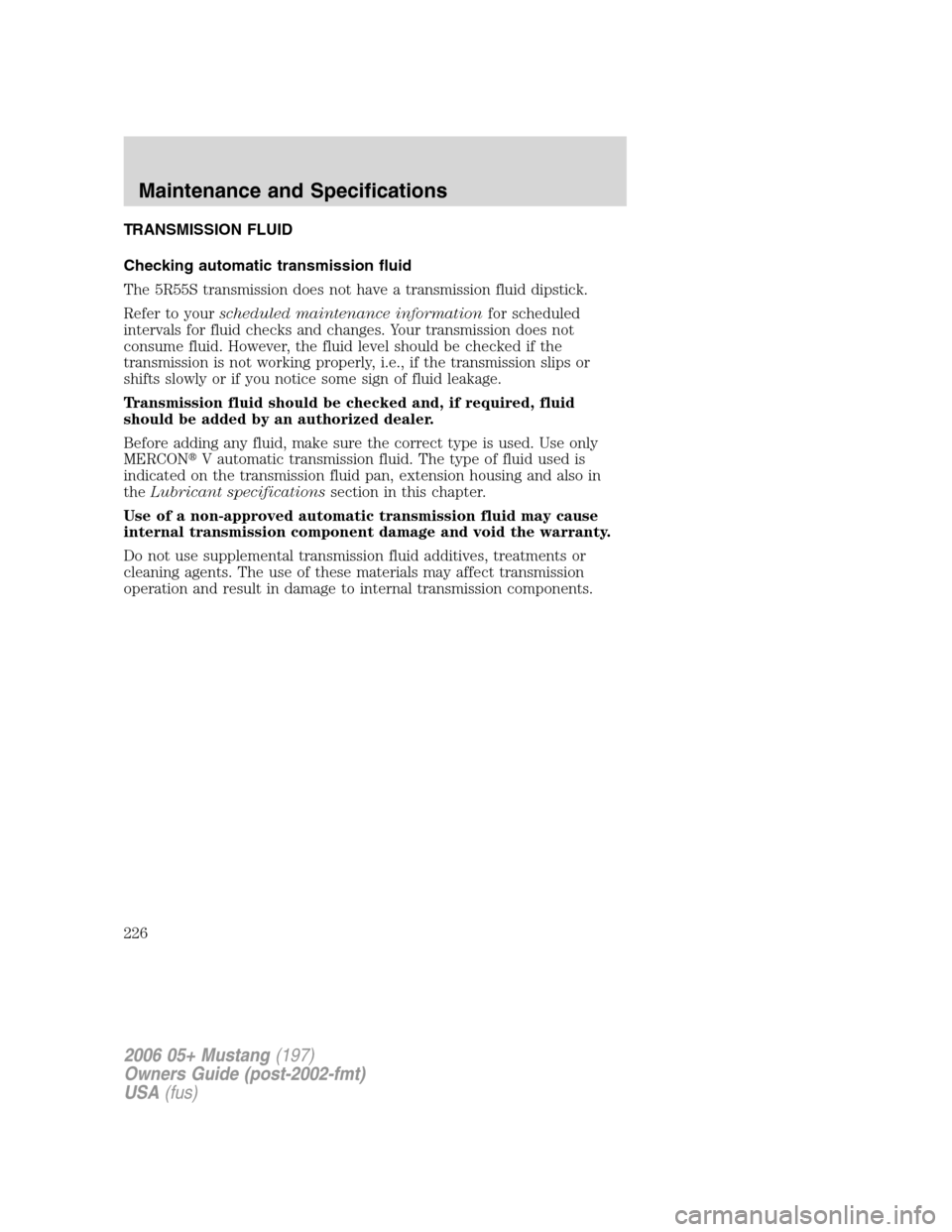

TRANSMISSION FLUID
Checking automatic transmission fluid
The 5R55S transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Transmission fluid should be checked and, if required, fluid
should be added by an authorized dealer.
Before adding any fluid, make sure the correct type is used. Use only
MERCONV automatic transmission fluid. The type of fluid used is
indicated on the transmission fluid pan, extension housing and also in
theLubricant specificationssection in this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage and void the warranty.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
226

Checking and adding manual transmission fluid (if equipped)
1. Clean the filler plug.
2. Remove the filler plug and inspect the fluid level.
3. Note: There are two different manual transmissions used in this
vehicle and they have different fluid levels. For vehicles equipped with a
V6 engine the correct manual transmission fill level is at the lower edge
of the filler hole. For vehicles equipped with a V8 engine the correct
manual transmission fill level is 1/2 inch (1.3 cm) below the edge of the
filler hole.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
227

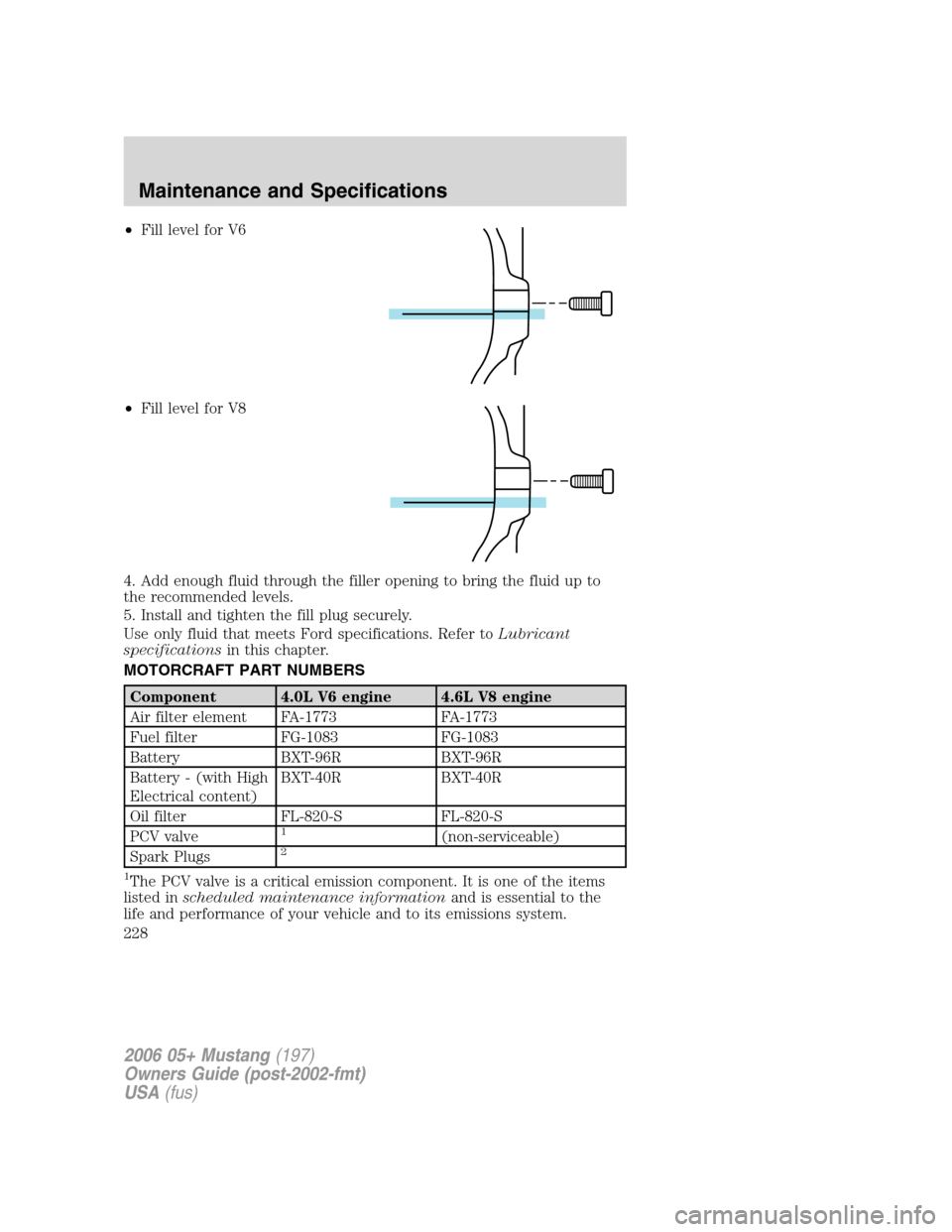

•Fill level for V6
•Fill level for V8
4. Add enough fluid through the filler opening to bring the fluid up to
the recommended levels.
5. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
MOTORCRAFT PART NUMBERS
Component 4.0L V6 engine 4.6L V8 engine
Air filter element FA-1773 FA-1773
Fuel filter FG-1083 FG-1083
Battery BXT-96R BXT-96R
Battery - (with High
Electrical content)BXT-40R BXT-40R
Oil filter FL-820-S FL-820-S
PCV valve
1(non-serviceable)
Spark Plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
228

For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
229

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MIN
and MAX lines
on reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)4.6L V8 engine 6.0 quarts (5.7
L)
Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)4.0L V6 engine 5.0 quarts
(4.7L)
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.0L V6 engine 12.5 quarts
(11.8L)
4.6L V8 engine 13.6 quarts
(12.9L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on
reservoir
Rear axle
lubricant
2Motorcraft SAE
75W-140 High
Performance
Rear Axle
Lubricant7.5 inch axle
(V6)3.25 pints (1.5L)
8.8 inch axle
(V8)4.25 pints (2.0L)
Fuel tank N/A All 16.0 gallons
(60.6L)
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230

Fluid Ford Part
NameApplication Capacity
Automatic
Transmission
fluid
3
Motorcraft
MERCONV
AT FAll 11.9 quarts
(11.2L)4
Manual
Transmission
fluid
3
Motorcraft
MERCONAT F4.0L V6 engine 2.75 quarts
(2.6L)5
4.6L V8 engine 3.2 quarts
(3.0L)5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.0 quarts
(3.8L)
1Add the coolant type originally equipped in your vehicle.
2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water. Fill 1/4 inch to 9/16 inch (6 mm
to 14 mm) below bottom of fill hole. Add 4 oz. (118 ml) of Additive
Friction Modifier XL–3 or equivalent meeting Ford specification
EST-M2C118–A for complete refill of Traction-Lok axles.
3Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT mix MERCONand
MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval.
4Approximate dry capacity, includes cooler and tubes. Fluid level should
be checked by an authorized dealer.
5Service refill capacity is covered underchecking and adding manual
transmission fluidin this chapter.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C929-A (4.0L) or WSS-M2C930-A (4.6L) and the API
Certification mark.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
231

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Door latch,
hood latch,
auxiliary hood
latch, striker
plates, seat
tracks and fuel
filler door hingeMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM), VC-7-B
(CA, OR and NM)WSS-M97B51–A1
Engine oil (4.6L
engine)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C 930-A
with API
Certification
Mark
Engine oil (4.0L
V6 engine)Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)XO-5W30-QSP
(US)
CXO-5W30-LSP12
(Canada)WSS-M2C 929-A
and API
Certification
Mark
Lock cylinders Motorcraft
Penetrating and
Lock LubricantXL-1 none
