Downloaded from www.Manualslib.com manuals search engine Duratorq-TDDi/-TDCi Turbodiesel
Engine coolant reservoirA
Power steering fluid reservoirB
Engine oil filler cap*C
Brake/clutch fluid reservoirD
Air cleanerE
Auxiliary fuse boxF
BatteryG
Engine oil dipstick*H
Washer fluid reservoirI
* For easy identification, filler caps and the engine oil dipstick are marked incolour.
148
MaintenanceE73411

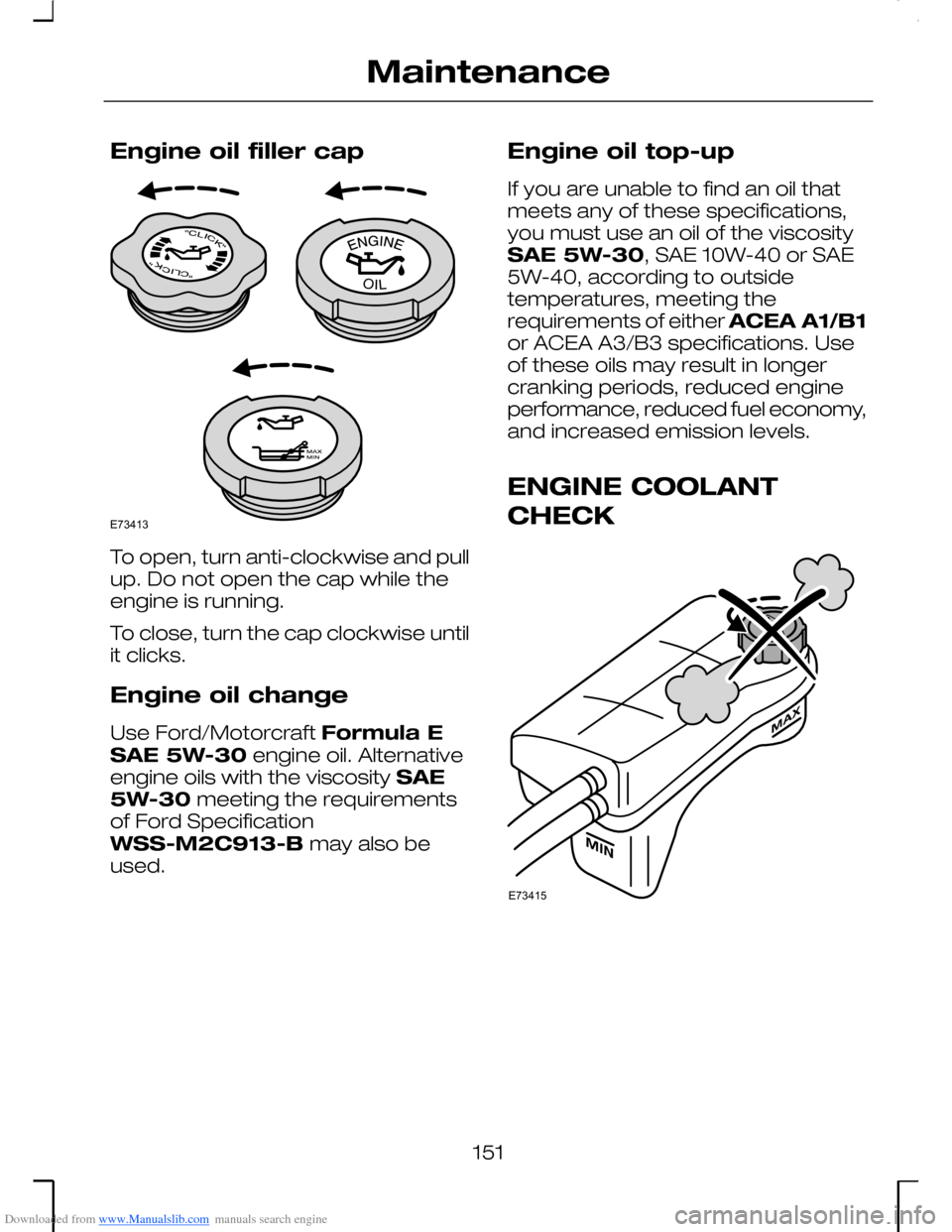

Downloaded from www.Manualslib.com manuals search engine Engine oil filler cap
To open, turn anti-clockwise and pullup. Do not open the cap while theengine is running.
To close, turn the cap clockwise untilit clicks.
Engine oil change
Use Ford/Motorcraft Formula ESAE 5W-30 engine oil. Alternativeengine oils with the viscosity SAE5W-30 meeting the requirementsof Ford SpecificationWSS-M2C913-B may also beused.
Engine oil top-up
If you are unable to find an oil thatmeets any of these specifications,you must use an oil of the viscositySAE 5W-30, SAE 10W-40 or SAE5W-40, according to outsidetemperatures, meeting therequirements of either ACEA A1/B1or ACEA A3/B3 specifications. Useof these oils may result in longercranking periods, reduced engineperformance, reduced fuel economy,and increased emission levels.
ENGINE COOLANT
CHECK
151
MaintenanceE73413 E73415

Downloaded from www.Manualslib.com manuals search engine WARNING
To avoid scalding, never removethe cap from the coolantreservoir when the engine is hot. Donot restart the engine until theproblem has been eliminated.
The coolant level is visible throughthe translucent reservoir. The coolantlevel should be between the MINand the MAX mark when the engineis cold. Hot coolant expands andmay, therefore, extend beyond theMAX mark.
WARNING
Take great care when addingcoolant. Avoid spillage on anypart of the engine.
The coolant should be added whenthe engine is cold. If coolant has tobe added when the engine is hot, firstwait 10 minutes for the engine tocool. Unscrew the cap slowly. Anypressure will escape while you areturning the cap. Fully remove the cap.
WARNING
Do not allow this fluid to makecontact with the skin or eyes. Ifthis should happen rinse the affectedareas immediately with plenty ofwater and contact your doctor.
When the vehicle is new, the coolingsystem is filled with coolant whichoffers anti−freeze protection downto approximately –25 ºC.
Add coolant that meets the FordSpecification.
AUTOMATIC
TRANSMISSION FLUID
CHECK
Your dealer checks the fluid level inthe automatic transmission whencarrying out routine maintenancework on your vehicle.
BRAKE AND CLUTCH
FLUID CHECK
WARNING
Do not allow this fluid to makecontact with the skin or eyes. Ifthis should happen rinse the affectedareas immediately with plenty ofwater and contact your doctor.
Brake and clutch fluid systems aresupplied from the same reservoir.
The level of the fluid must bebetween the MIN and MAX markson the side of the reservoir.
152
MaintenanceE73414

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle fluids
SpecificationRecommended fluidPart
WSS-M2C204-AFord Power Steering FluidPower assisted steering
WSS-M97B44-DMotorcraft SuperPlusAntifreezeCoolant
Capacities
Vehicles with a petrol engine
Capacities
Capacity inlitres (gallons)ItemVariant
Max-markPower assisted steering fluidAll
58.5 litresFuel tankAll
4.3 litresEngine oil - with filter1.8 l Duratec-HE
3.9 litresEngine oil - without filter1.8 l Duratec-HE
8.3 litresCooling system including heating1.8 l Duratec-HE
6.6 litresWindscreen washer system - withheadlamp washer1.8 l Duratec-HE
2.6 litresWindscreen washer system -without headlamp washer1.8 l Duratec-HE
4.3 litresEngine oil - with filter1.8 l Duratec-SCi
3.9 litresEngine oil - without filter1.8 l Duratec-SCi
8.3 litresCooling system including heating1.8 l Duratec-SCi
5.0 litresWindscreen washer system - withheadlamp washer1.8 l Duratec-SCi
2.5 litresWindscreen washer system -without headlamp washer1.8 l Duratec-SCi
4.3 litresEngine oil - with filter2.0 l Duratec-HE
3.9 litresEngine oil - without filter2.0 l Duratec-HE
8.1 litresCooling system including heating2.0 l Duratec-HE
6.5 litresWindscreen washer system - withheadlamp washer2.0 l Duratec-HE
154
Maintenance
