Page 240 of 320

Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer toTire Pressure Monitoring System
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible.
The spare tire and tools for your vehicle are stowed in the following
locations:
Item Location
Spare tire Under the vehicle, just forward of
the rear bumper.
Jack Behind the access panel located
on the right rear quarter panel
interior trim.
Jack handle Attached to the jack with a clip.
Flat tire tether, wing screw Inside tire tether kit, next to jack.
Jack extension tool (cargo van
model only)Attached to the jack kit.
Removing the jack and tools
1. Locate the access panel on the interior trim. Rotate the panel
retaining clip and remove the panel.
2. Remove the jack and lug nut wrench by turning the thumbscrew
counterclockwise to relieve tension against the stowage bracket.
Removing the spare tire
1.Wagon only:Open liftgate and
lift flap in the carpeting on the rear
tub cargo floor to expose the hex
nut. Insert the lug nut wrench on
the hex nut in cargo floor.
Cargo van only:Lift flap in mat to
expose hex nut. Insert extension
tool through access hole and engage
hex nut. Place lug wrench onto end
nut of extension tool.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
240

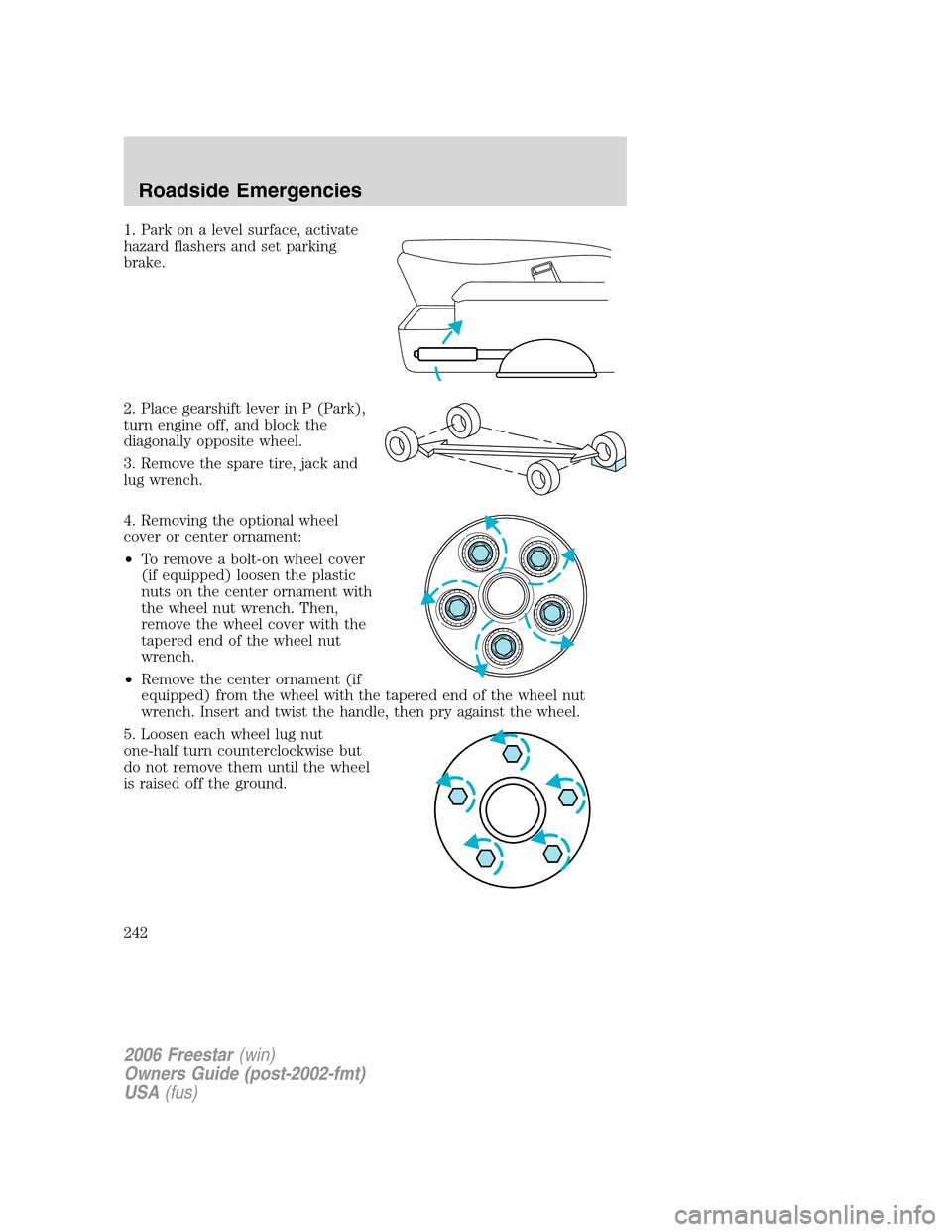

Page 242 of 320
1. Park on a level surface, activate
hazard flashers and set parking
brake.
2. Place gearshift lever in P (Park),
turn engine off, and block the
diagonally opposite wheel.
3. Remove the spare tire, jack and
lug wrench.
4. Removing the optional wheel
cover or center ornament:
•To remove a bolt-on wheel cover
(if equipped) loosen the plastic
nuts on the center ornament with
the wheel nut wrench. Then,
remove the wheel cover with the
tapered end of the wheel nut
wrench.
•Remove the center ornament (if
equipped) from the wheel with the tapered end of the wheel nut
wrench. Insert and twist the handle, then pry against the wheel.
5. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
242

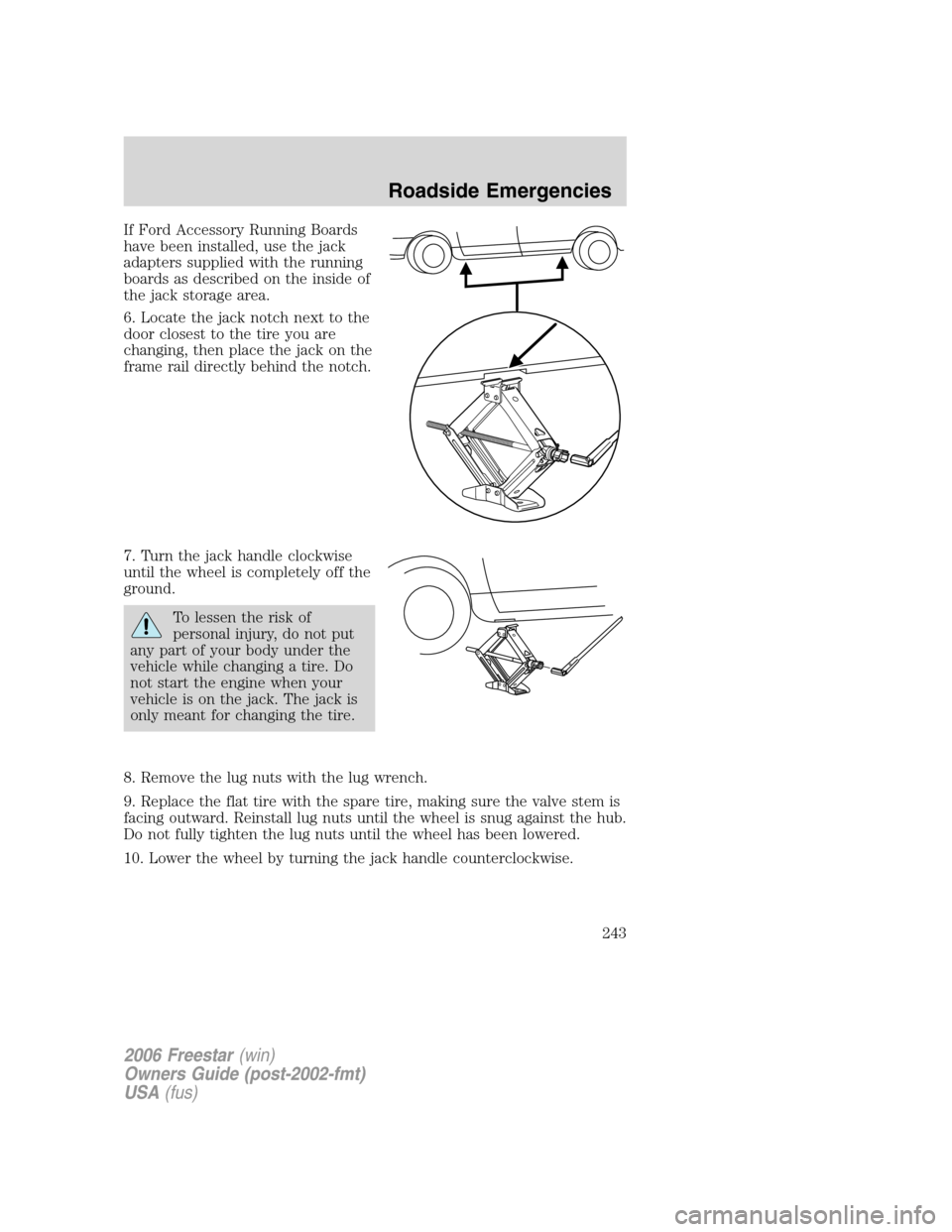

Page 243 of 320

If Ford Accessory Running Boards
have been installed, use the jack
adapters supplied with the running
boards as described on the inside of
the jack storage area.
6. Locate the jack notch next to the
door closest to the tire you are
changing, then place the jack on the
frame rail directly behind the notch.
7. Turn the jack handle clockwise
until the wheel is completely off the
ground.
To lessen the risk of
personal injury, do not put
any part of your body under the
vehicle while changing a tire. Do
not start the engine when your
vehicle is on the jack. The jack is
only meant for changing the tire.
8. Remove the lug nuts with the lug wrench.
9. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall lug nuts until the wheel is snug against the hub.
Do not fully tighten the lug nuts until the wheel has been lowered.
10. Lower the wheel by turning the jack handle counterclockwise.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
243
Page 245 of 320

3. Lay the tire flat and secure the cable with wing screw by installing it
on the wing screw retainer in the floor and turning the wing screw
clockwise. You will hear an audible click when the tire is properly
secured.
4. Check that the flat tire is properly secured.
Stowing the spare tire
1. Lay the spare, inflated tire on the ground with the valve stem facing
down.
2. Insert the primary wheel retainer through the center of the wheel.
3. Use the winch mechanism to pull, and raise the tire under the vehicle.
4.Wagon only:Raise the tire by turning the lug nut wrench clockwise
until the hex nut ratchets.
Cargo van only:Raise the tire by turning the jack extension tool
clockwise with the lug nut wrench until the hex nut ratchets.
The effort to turn the jack handle increases significantly and the spare
tire carrier ratchets or slips when the tire is raised to the maximum
tightness. Tighten to the best of your ability, to the point where the
ratchet/slip occurs, if possible. The spare tire carrier will not allow you to
overtighten. If the spare tire carrier ratchets or slips with little effort,
take the vehicle to your authorized dealer for assistance at your earliest
convenience.
5. Check that the tire lies flat against the frame and is properly
tightened. Try to push or pull, then turn the tire to be sure it will not
move. Loosen and retighten, if necessary. Failure to properly stow the
spare tire may result in failure of the winch cable and loss of the tire.
NOTE:Visually check to make sure the wheel plate is resting flat against
the tire.
6. Repeat this tightness check procedure when servicing the spare tire
pressure (every six months, perScheduled Maintenance Guide),or at
any time that the spare tire is disturbed through service of other
components.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
245
Page 316 of 320

Safety belts (see Safety
restraints) ..........134, 137, 139–141
Safety Canopy ...........................159
Safety defects, reporting ..........263
Safety
restraints ...........134, 137, 139–141
belt minder .............................143
extension assembly ................147
for adults .........................139–141
for children .....................162–163
Occupant Classification
Sensor ......................................135
safety belt maintenance .........147
warning light and
chime ...............................142–143
Safety seats for children ..........169
Safety Compliance
Certification Label ....................308
Seat belts
(see Safety restraints) .............134
Seats ..........................................109
child safety seats ....................169
front seats .......109–110, 112–113
memory seat ...................100, 113
second row seats ....115–116, 119
third row
seats .................119, 127, 131–133
SecuriLock passive anti-theft
system ........................................106
Servicing your vehicle ..............270
Spare tire (see
Changing the Tire) ...........237, 239
Spark plugs,
specifications .....................302, 306
Specification chart,
lubricants ...........................304, 306
Speed control ..............................68
Starting your vehicle ........212–214jump starting ..........................246
Steering wheel
controls ......................................71
tilting .........................................55
T
Tilt steering wheel ......................55
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....194
Tires ...................................180–181
alignment ................................186
care ..........................................184
changing ..................237, 239, 241
checking the pressure ............182
inspecting and inflating .........182
label .........................................193
replacing ..................................188
rotating ....................................186
safety practices .......................185
sidewall information ...............188
snow tires and chains ............199
spare tire .................................238
terminology .............................181
tire grades ...............................181
treadwear ........................180, 185
Towing .......................................206
recreational towing .................211
trailer towing ..........................206
wrecker ....................................252
Transaxle
automatic operation ...............220
fluid, refill capacities ..............303
lubricant specifications ..........306
Transmission
brake-shift interlock (BSI) ....220
fluid, checking and adding
(automatic) .............................296
lubricant specifications ..........304
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Index
316
