2006 FORD FREESTAR door lock

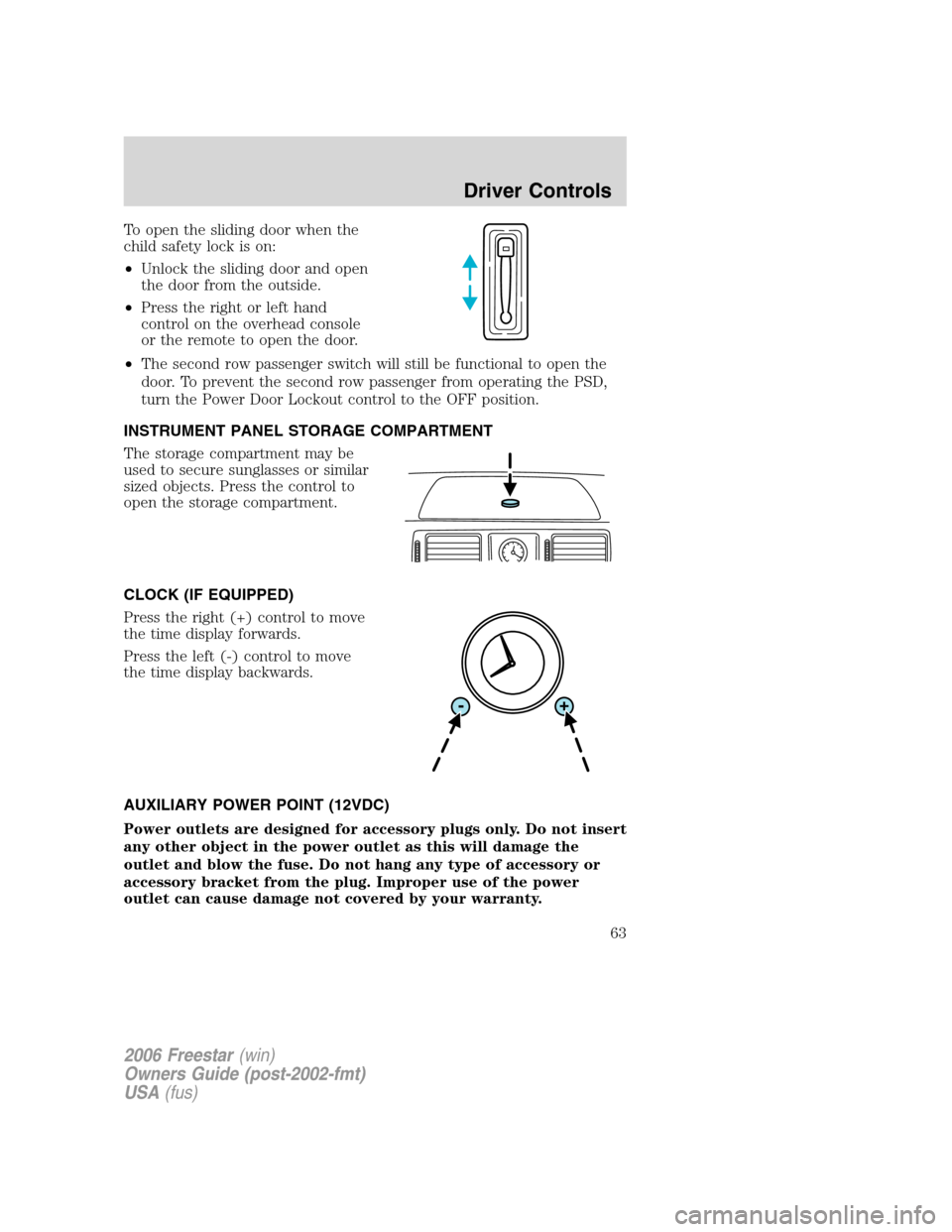

To open the sliding door when the
child safety lock is on:
•Unlock the sliding door and open
the door from the outside.
•Press the right or left hand
control on the overhead console
or the remote to open the door.
•The second row passenger switch will still be functional to open the
door. To prevent the second row passenger from operating the PSD,
turn the Power Door Lockout control to the OFF position.
INSTRUMENT PANEL STORAGE COMPARTMENT
The storage compartment may be
used to secure sunglasses or similar
sized objects. Press the control to
open the storage compartment.
CLOCK (IF EQUIPPED)
Press the right (+) control to move
the time display forwards.
Press the left (-) control to move
the time display backwards.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
63

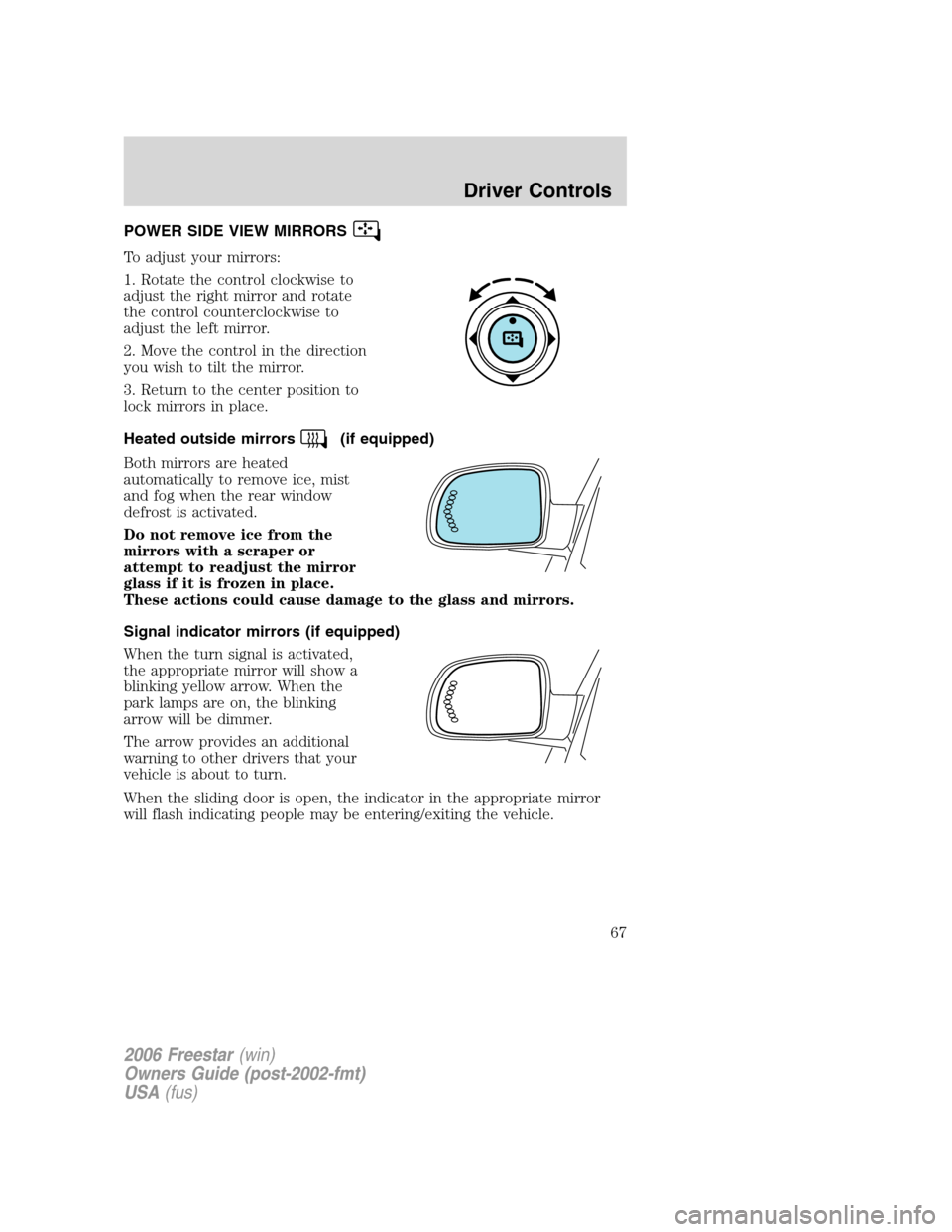

POWER SIDE VIEW MIRRORS
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Signal indicator mirrors (if equipped)
When the turn signal is activated,
the appropriate mirror will show a
blinking yellow arrow. When the
park lamps are on, the blinking
arrow will be dimmer.
The arrow provides an additional
warning to other drivers that your
vehicle is about to turn.
When the sliding door is open, the indicator in the appropriate mirror
will flash indicating people may be entering/exiting the vehicle.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
67

CENTER CONSOLE (IF EQUIPPED)
Your vehicle may be equipped with a utility compartment.
POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)
To install floor mats that have a retention post:
Position the floor mat so that the
eyelet is over the pointed end of the
retention post and rotate forward to
lock in. Make sure that the mat does
not interfere with the operation of
the accelerator or the brake pedal.
To remove the floor mat, reverse the
installation procedure.
HOMELINKWIRELESS CONTROL SYSTEM (IF EQUIPPED)
The HomeLinkWireless Control System, located on the driver’s visor,
provides a convenient way to replace up to three hand-held transmitters
with a single built-in device. This feature will learn the radio frequency
codes of most transmitters to operate garage doors, entry gate operators,
security systems, entry door locks, and home or office lighting.
When programming your HomeLinkWireless Control System to
a garage door or gate, be sure that people and objects are out of
the way to prevent potential harm or damage.
Do not use the HomeLinkWireless Control System with any garage
door opener that lacks safety stop and reverse features as required by
U.S. federal safety standards (this includes any garage door opener
model manufactured before April 1, 1982). A garage door which cannot
detect an object, signaling the door to stop and reverse, does not meet
current U.S. federal safety standards. For more information, contact
HomeLinkat:www.homelink.comor1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for
future programming procedures (i.e. new HomeLinkequipped vehicle
purchase). It is also suggested that upon the sale of the vehicle, the
programmed Homelinkbuttons be erased for security purposes, refer to
Programmingin this section.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
72

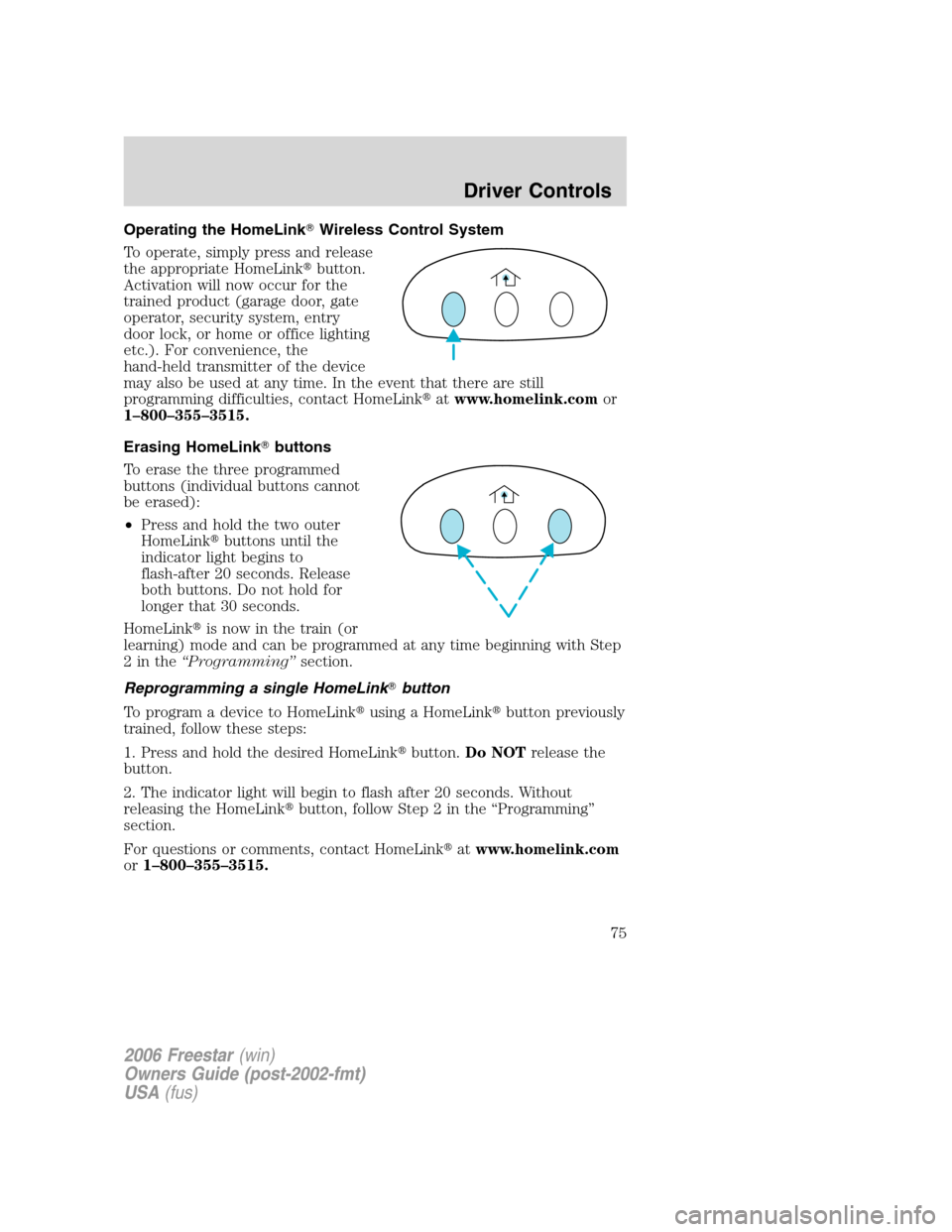

Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLinkbutton.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLinkatwww.homelink.comor
1–800–355–3515.
Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLinkbuttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLinkis now in the train (or
learning) mode and can be programmed at any time beginning with Step
2inthe“Programming”section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLinkusing a HomeLinkbutton previously
trained, follow these steps:
1. Press and hold the desired HomeLinkbutton.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLinkbutton, follow Step 2 in the “Programming”
section.
For questions or comments, contact HomeLinkatwww.homelink.com
or1–800–355–3515.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
75

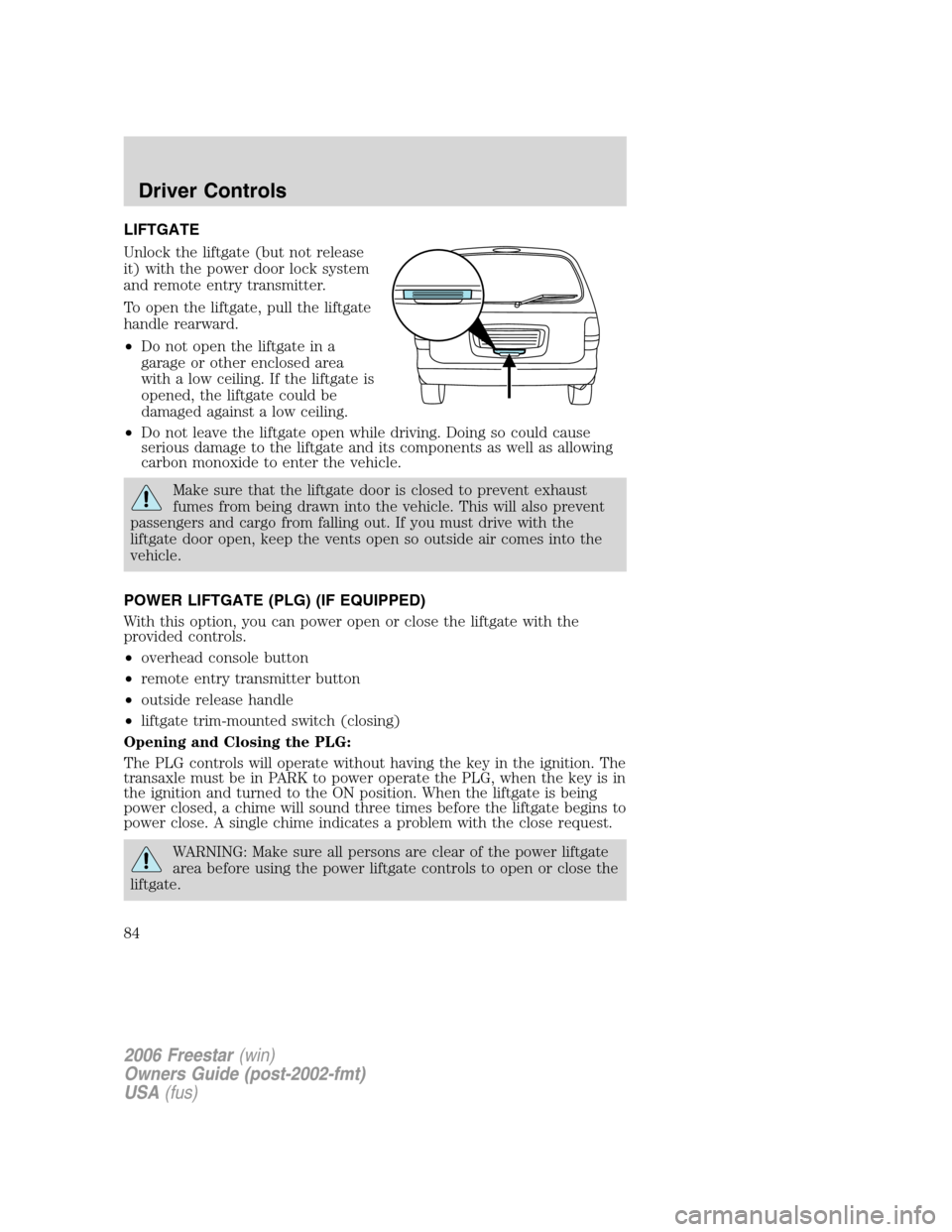

LIFTGATE
Unlock the liftgate (but not release
it) with the power door lock system
and remote entry transmitter.
To open the liftgate, pull the liftgate
handle rearward.
•Do not open the liftgate in a
garage or other enclosed area
with a low ceiling. If the liftgate is
opened, the liftgate could be
damaged against a low ceiling.
•Do not leave the liftgate open while driving. Doing so could cause
serious damage to the liftgate and its components as well as allowing
carbon monoxide to enter the vehicle.
Make sure that the liftgate door is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate door open, keep the vents open so outside air comes into the
vehicle.
POWER LIFTGATE (PLG) (IF EQUIPPED)
With this option, you can power open or close the liftgate with the
provided controls.
•overhead console button
•remote entry transmitter button
•outside release handle
•liftgate trim-mounted switch (closing)
Opening and Closing the PLG:
The PLG controls will operate without having the key in the ignition. The
transaxle must be in PARK to power operate the PLG, when the key is in
the ignition and turned to the ON position. When the liftgate is being
power closed, a chime will sound three times before the liftgate begins to
power close. A single chime indicates a problem with the close request.
WARNING: Make sure all persons are clear of the power liftgate
area before using the power liftgate controls to open or close the
liftgate.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
84

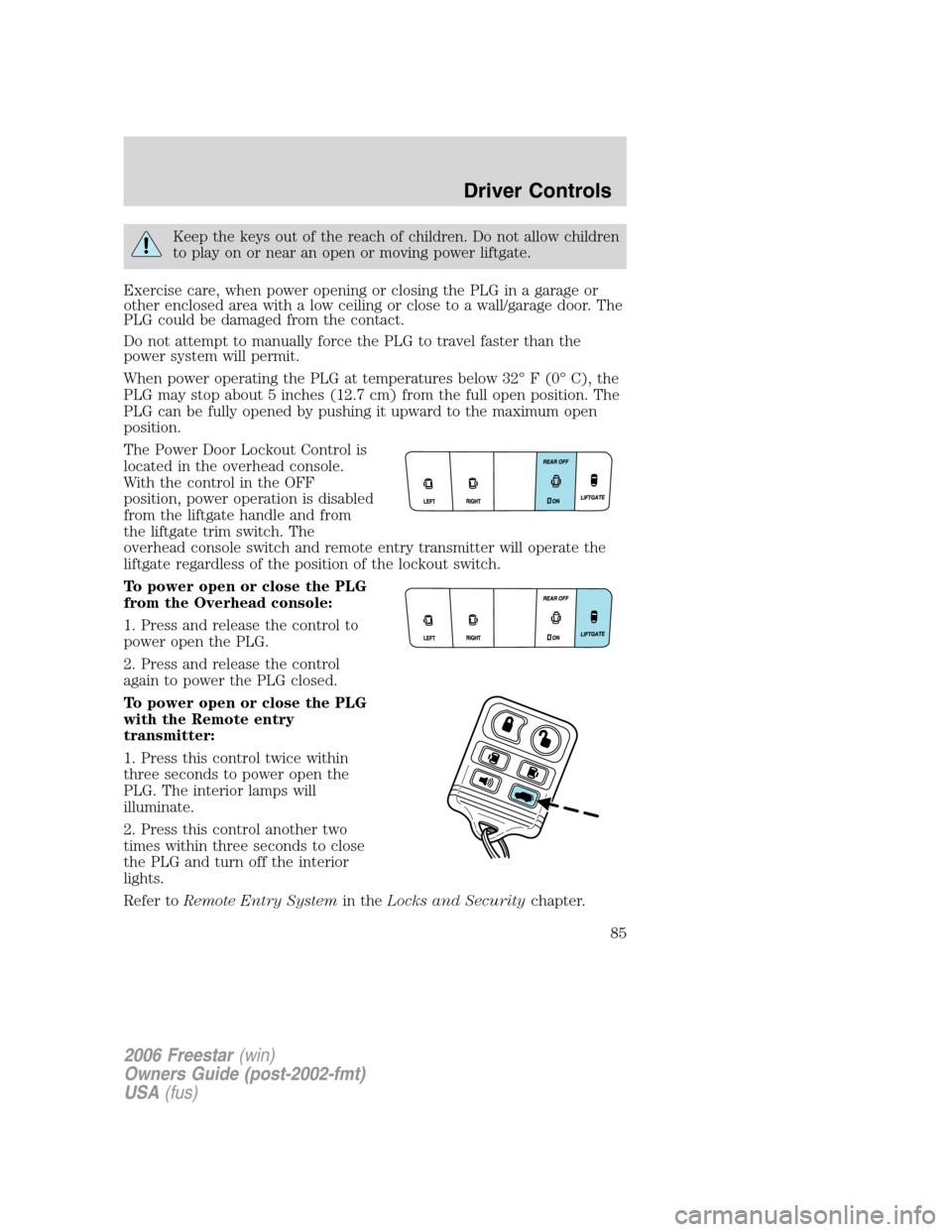

Keep the keys out of the reach of children. Do not allow children
to play on or near an open or moving power liftgate.
Exercise care, when power opening or closing the PLG in a garage or
other enclosed area with a low ceiling or close to a wall/garage door. The
PLG could be damaged from the contact.
Do not attempt to manually force the PLG to travel faster than the
power system will permit.
When power operating the PLG at temperatures below 32° F (0° C), the
PLG may stop about 5 inches (12.7 cm) from the full open position. The
PLG can be fully opened by pushing it upward to the maximum open
position.
The Power Door Lockout Control is
located in the overhead console.
With the control in the OFF
position, power operation is disabled
from the liftgate handle and from
the liftgate trim switch. The
overhead console switch and remote entry transmitter will operate the
liftgate regardless of the position of the lockout switch.
To power open or close the PLG
from the Overhead console:
1. Press and release the control to
power open the PLG.
2. Press and release the control
again to power the PLG closed.
To power open or close the PLG
with the Remote entry
transmitter:
1. Press this control twice within
three seconds to power open the
PLG. The interior lamps will
illuminate.
2. Press this control another two
times within three seconds to close
the PLG and turn off the interior
lights.
Refer toRemote Entry Systemin theLocks and Securitychapter.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
85

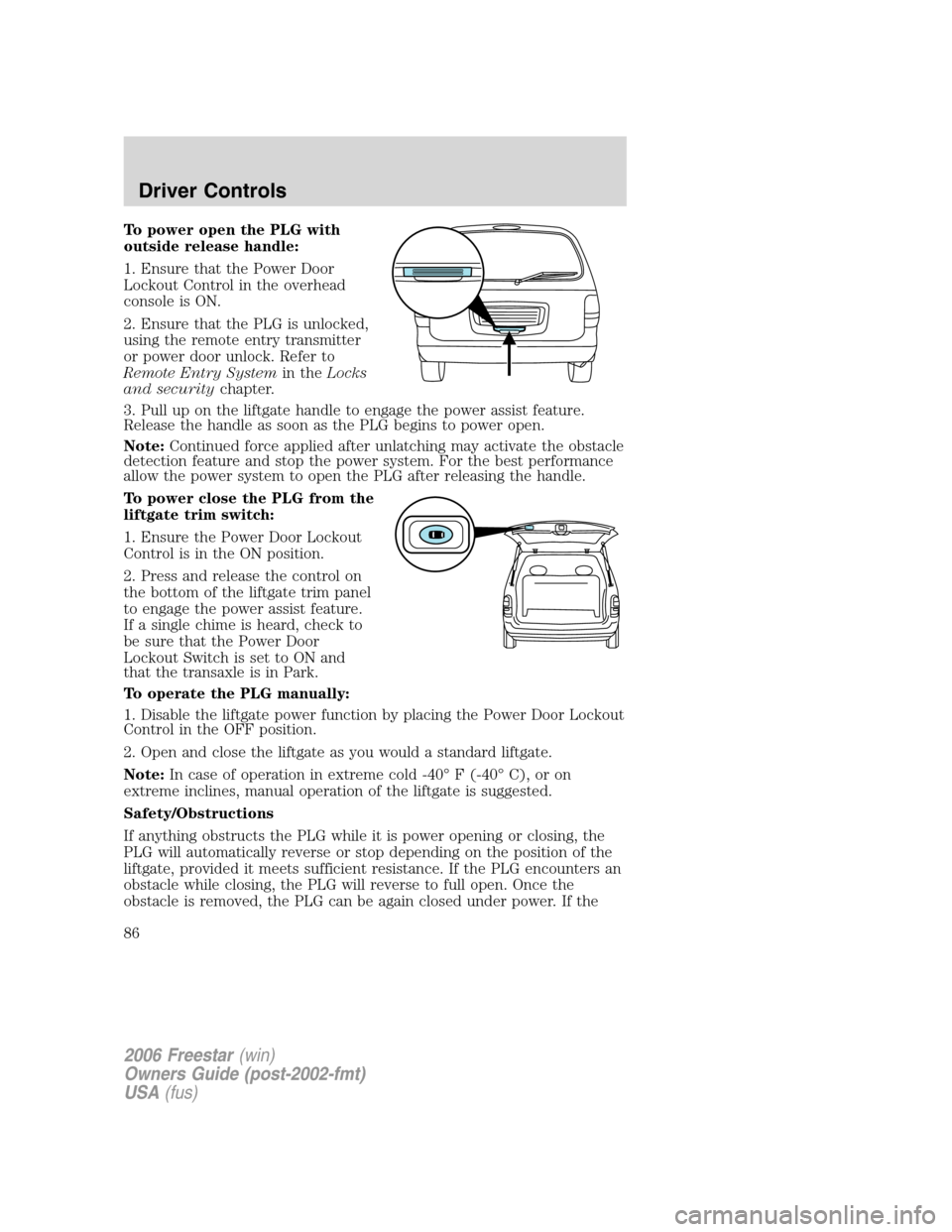

To power open the PLG with
outside release handle:
1. Ensure that the Power Door
Lockout Control in the overhead
console is ON.
2. Ensure that the PLG is unlocked,
using the remote entry transmitter
or power door unlock. Refer to
Remote Entry Systemin theLocks
and securitychapter.
3. Pull up on the liftgate handle to engage the power assist feature.
Release the handle as soon as the PLG begins to power open.
Note:Continued force applied after unlatching may activate the obstacle
detection feature and stop the power system. For the best performance
allow the power system to open the PLG after releasing the handle.
To power close the PLG from the
liftgate trim switch:
1. Ensure the Power Door Lockout
Control is in the ON position.
2. Press and release the control on
the bottom of the liftgate trim panel
to engage the power assist feature.
If a single chime is heard, check to
be sure that the Power Door
Lockout Switch is set to ON and
that the transaxle is in Park.
To operate the PLG manually:
1. Disable the liftgate power function by placing the Power Door Lockout
Control in the OFF position.
2. Open and close the liftgate as you would a standard liftgate.
Note:In case of operation in extreme cold -40° F (-40° C), or on
extreme inclines, manual operation of the liftgate is suggested.
Safety/Obstructions
If anything obstructs the PLG while it is power opening or closing, the
PLG will automatically reverse or stop depending on the position of the
liftgate, provided it meets sufficient resistance. If the PLG encounters an
obstacle while closing, the PLG will reverse to full open. Once the
obstacle is removed, the PLG can be again closed under power. If the
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
86

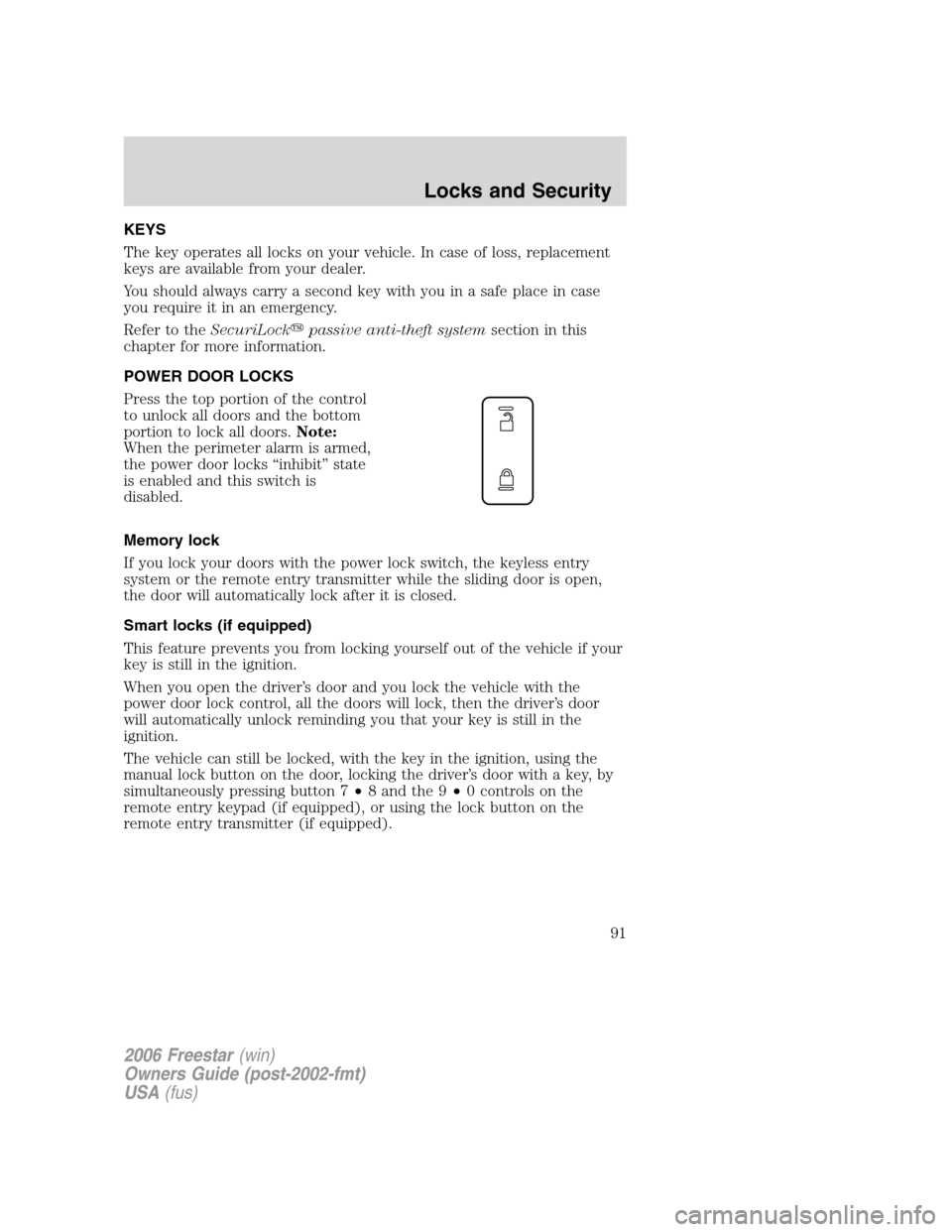

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
Refer to theSecuriLock
passive anti-theft systemsection in this
chapter for more information.
POWER DOOR LOCKS
Press the top portion of the control
to unlock all doors and the bottom
portion to lock all doors.Note:
When the perimeter alarm is armed,
the power door locks “inhibit” state
is enabled and this switch is
disabled.
Memory lock
If you lock your doors with the power lock switch, the keyless entry
system or the remote entry transmitter while the sliding door is open,
the door will automatically lock after it is closed.
Smart locks (if equipped)
This feature prevents you from locking yourself out of the vehicle if your
key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key, by
simultaneously pressing button 7•8 and the 9•0 controls on the
remote entry keypad (if equipped), or using the lock button on the
remote entry transmitter (if equipped).
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
91
