2006 FORD FREESTAR audio

5.SEEK:Press/to access the next/previous strong radio station,
cassette selection or CD track.
When the rear seat controls are activated, rear seat passengers can use
the controls to change the playing media for all passengers (Single Play
mode). In this mode, all speakers will play audio from the same media
source for all passengers to hear.
If there is a discrepancy between the rear seat controls and the front
audio controls (such as both trying to listen to the same playing media),
the front audio system will receive the desired selection.
To activate Dual Play mode (rear seat passengers listen to a different
playing media than the front seat passengers):
•Press the speaker/headphone control.
•Press MEDIA to change audio sources (for headphone mode only).
•Use the SEEK, VOLUME and MEMORY controls to make adjustments
to the playing media.
Parental control
Simultaneously press the radio
preset controls 3 and 5 to
enable/disable the rear seat audio
controls as well as the Family Entertainment system (if equipped).
Dual play mode
Press
/on the rear seat audio
controls or simultaneously press the
radio preset controls 2 and 4 to
enable/disable dual play.
During dual play, the rear vehicle speakers will be deactivated and the
wired headphones (if equipped) will become active. Two different medias
can be played in the vehicle simultaneously:
•The driver can select a media from the main radio face (radio, tape,
CD or DVD if equipped) and listen using the front speakers.
•Rear seat passengers may listen to a different media source than the
front passengers (radio, tape, CD or DVD if equipped) using 3.5 mm
wired headphones (not included) that shall be plugged into the
headphone icon jacks on the rear audio control face. Infrared
headphones are included in vehicles equipped with the Family
Entertainment System and shall only be used to listed to the media
(DVD or CD) that is playing in the Family Entertainment System.
COMPRESS
COMPRESS
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
30

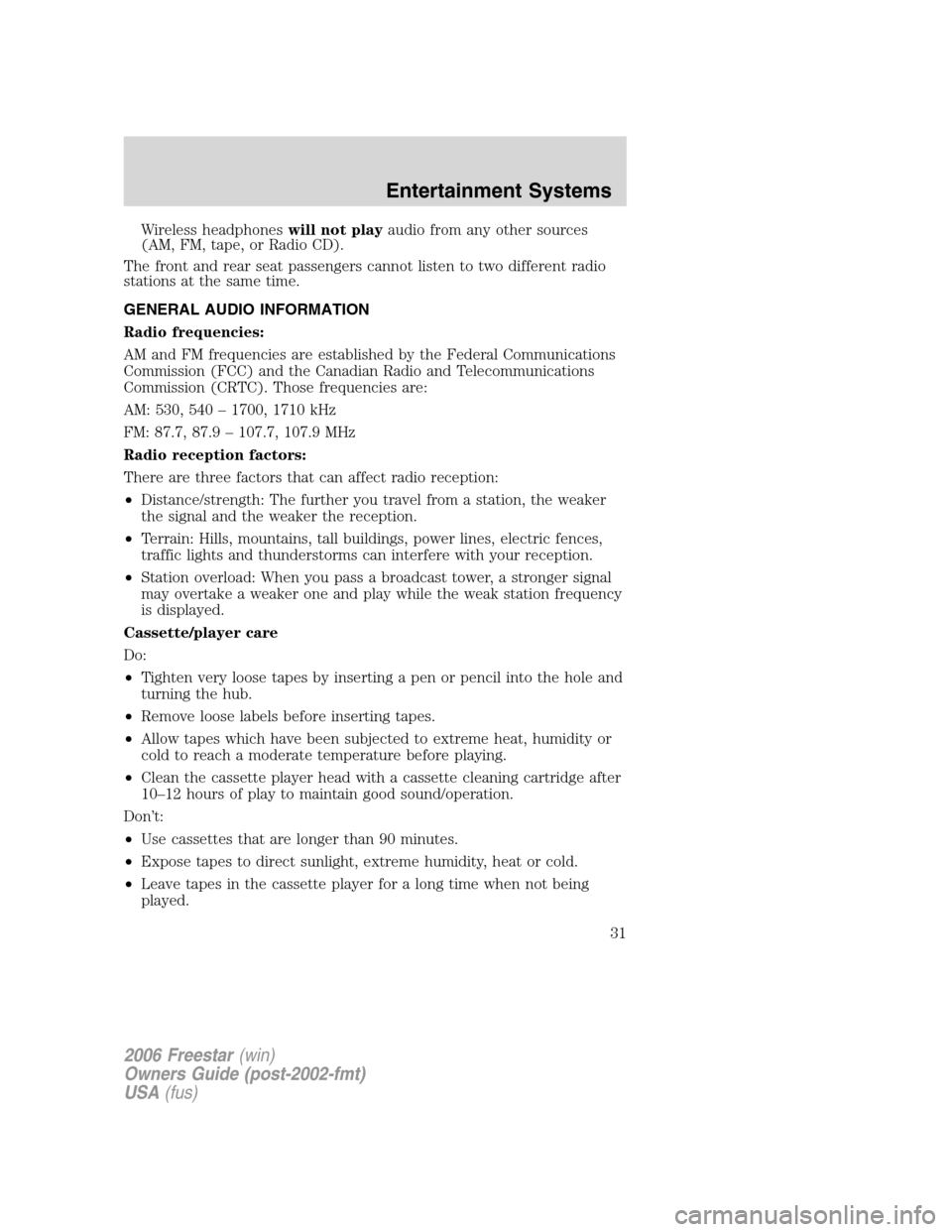

Wireless headphoneswill not playaudio from any other sources
(AM, FM, tape, or Radio CD).
The front and rear seat passengers cannot listen to two different radio
stations at the same time.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540 – 1700, 1710 kHz
FM: 87.7, 87.9 – 107.7, 107.9 MHz
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from a station, the weaker
the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Cassette/player care
Do:
•Tighten very loose tapes by inserting a pen or pencil into the hole and
turning the hub.
•Remove loose labels before inserting tapes.
•Allow tapes which have been subjected to extreme heat, humidity or
cold to reach a moderate temperature before playing.
•Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t:
•Use cassettes that are longer than 90 minutes.
•Expose tapes to direct sunlight, extreme humidity, heat or cold.
•Leave tapes in the cassette player for a long time when not being
played.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
31

CD/CD player care
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•For vehicles equipped with a six disc CD changer, don’t insert more
than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12 cm)
audio compact discs only. Due to technical incompatibility, certain
recordable and re-recordable compact discs may not function
correctly when used in Ford CD players. Irregular shaped CDs,
CDs with a scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not be inserted into
the CD player. The label may peel and cause the CD to become
jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels.
Ballpoint pens may damage CDs. Please contact your authorized
dealer for further information.
Audio system warranty and service
Refer to theWarranty Guidefor audio system warranty information. If
service is necessary, see your dealer or qualified technician.
FAMILY ENTERTAINMENT SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a Family Entertainment System
(FES). Refer to theDVD Supplement Guidefor further information on
your system.
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
32

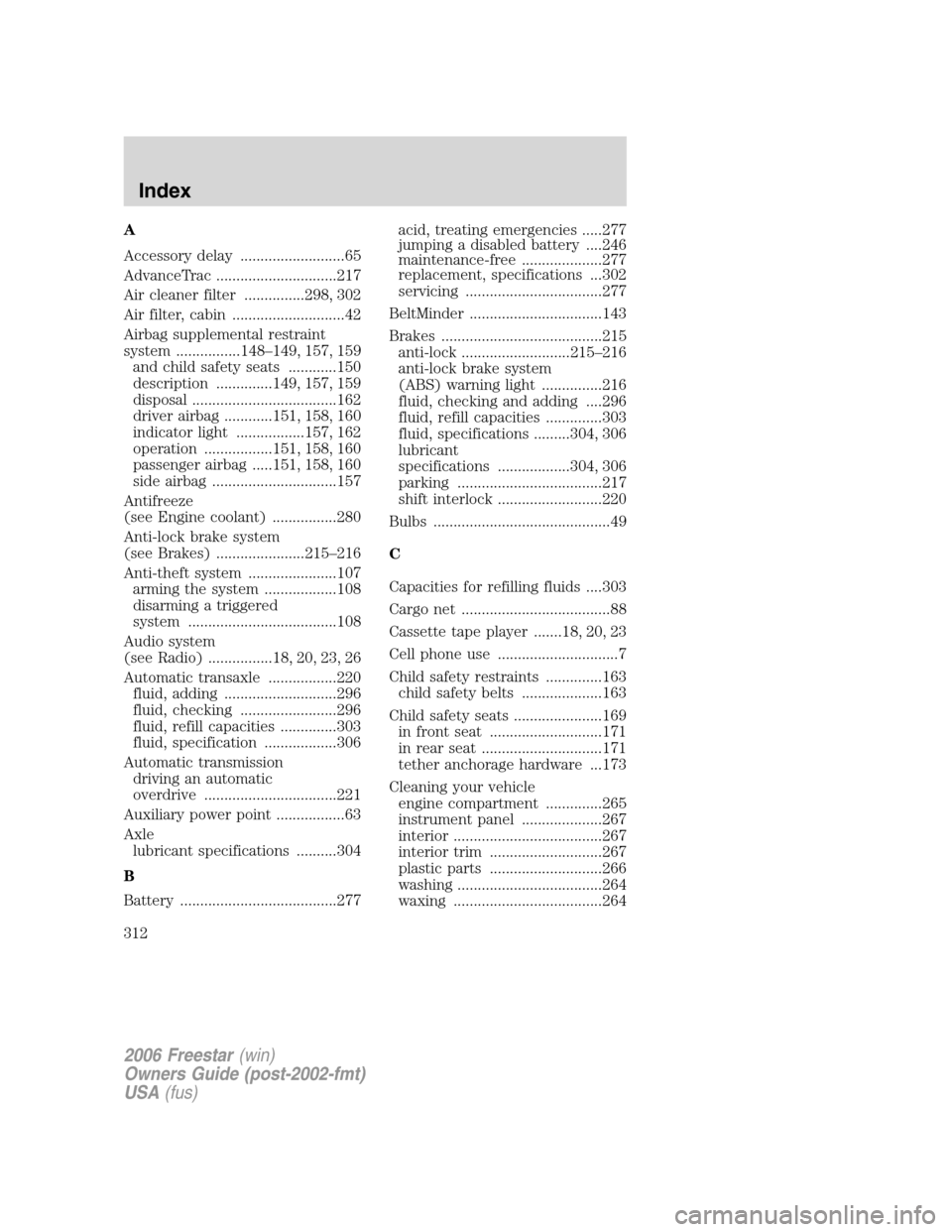

A
Accessory delay ..........................65
AdvanceTrac ..............................217
Air cleaner filter ...............298, 302
Air filter, cabin ............................42
Airbag supplemental restraint
system ................148–149, 157, 159
and child safety seats ............150
description ..............149, 157, 159
disposal ....................................162
driver airbag ............151, 158, 160
indicator light .................157, 162
operation .................151, 158, 160
passenger airbag .....151, 158, 160
side airbag ...............................157
Antifreeze
(see Engine coolant) ................280
Anti-lock brake system
(see Brakes) ......................215–216
Anti-theft system ......................107
arming the system ..................108
disarming a triggered
system .....................................108
Audio system
(see Radio) ................18, 20, 23, 26
Automatic transaxle .................220
fluid, adding ............................296
fluid, checking ........................296
fluid, refill capacities ..............303
fluid, specification ..................306
Automatic transmission
driving an automatic
overdrive .................................221
Auxiliary power point .................63
Axle
lubricant specifications ..........304
B
Battery .......................................277acid, treating emergencies .....277
jumping a disabled battery ....246
maintenance-free ....................277
replacement, specifications ...302
servicing ..................................277
BeltMinder .................................143
Brakes ........................................215
anti-lock ...........................215–216
anti-lock brake system
(ABS) warning light ...............216
fluid, checking and adding ....296
fluid, refill capacities ..............303
fluid, specifications .........304, 306
lubricant
specifications ..................304, 306
parking ....................................217
shift interlock ..........................220
Bulbs ............................................49
C
Capacities for refilling fluids ....303
Cargo net .....................................88
Cassette tape player .......18, 20, 23
Cell phone use ..............................7
Child safety restraints ..............163
child safety belts ....................163
Child safety seats ......................169
in front seat ............................171
in rear seat ..............................171
tether anchorage hardware ...173
Cleaning your vehicle
engine compartment ..............265
instrument panel ....................267
interior .....................................267
interior trim ............................267
plastic parts ............................266
washing ....................................264
waxing .....................................264
2006 Freestar(win)
Owners Guide (post-2002-fmt)
USA(fus)
Index
312
