2006 FORD F250 Owners Manual

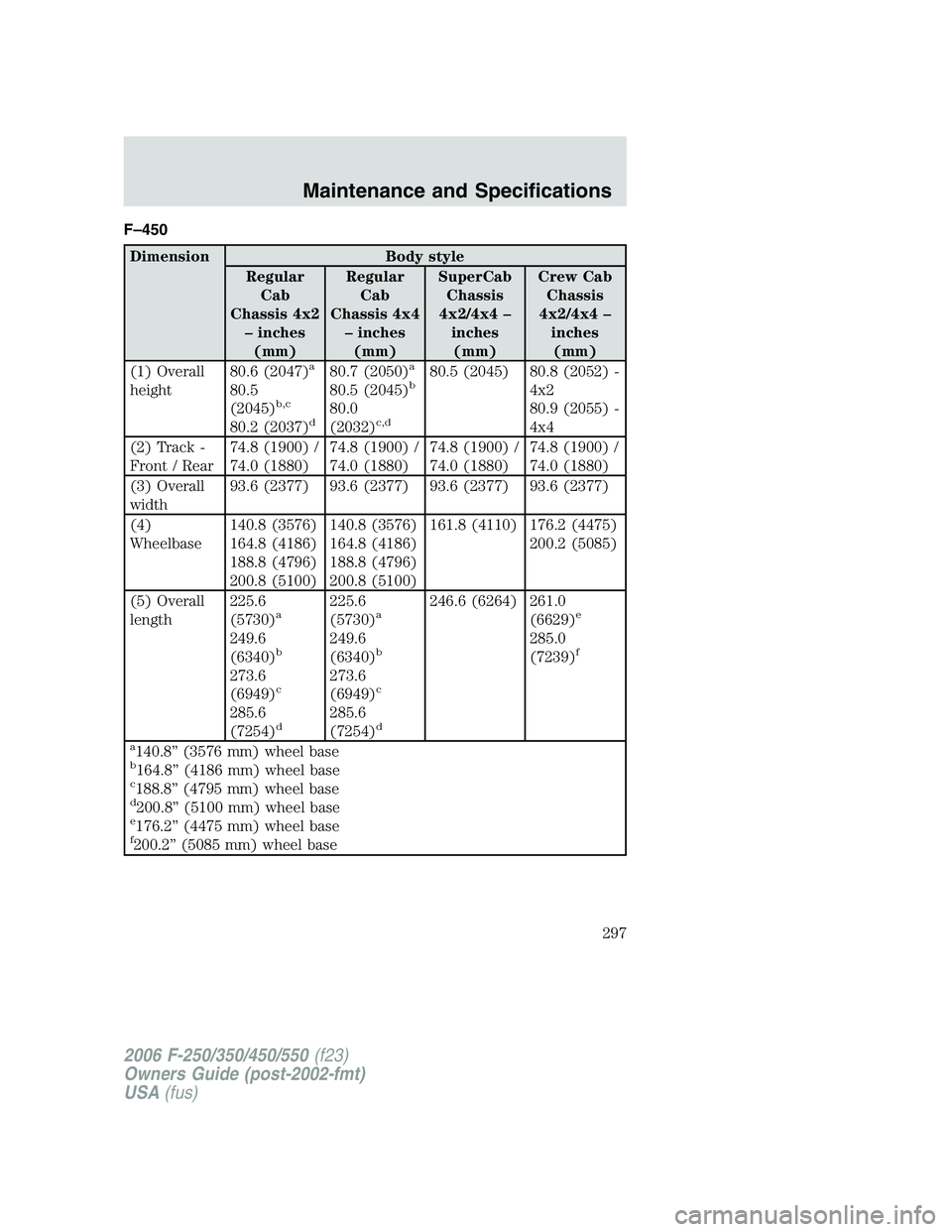

F–450
Dimension Body style
Regular
Cab
Chassis 4x2
– inches
(mm)Regular
Cab
Chassis 4x4
– inches
(mm)SuperCab
Chassis
4x2/4x4 –
inches
(mm)Crew Cab
Chassis
4x2/4x4 –
inches
(mm)
(1) Overall
height80.6 (2047)
a
80.5
(2045)b,c
80.2 (2037)d
80.7 (2050)a
80.5 (2045)b
80.0
(2032)c,d
80.5 (2045) 80.8 (2052) -
4x2
80.9 (2055) -
4x4
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
297

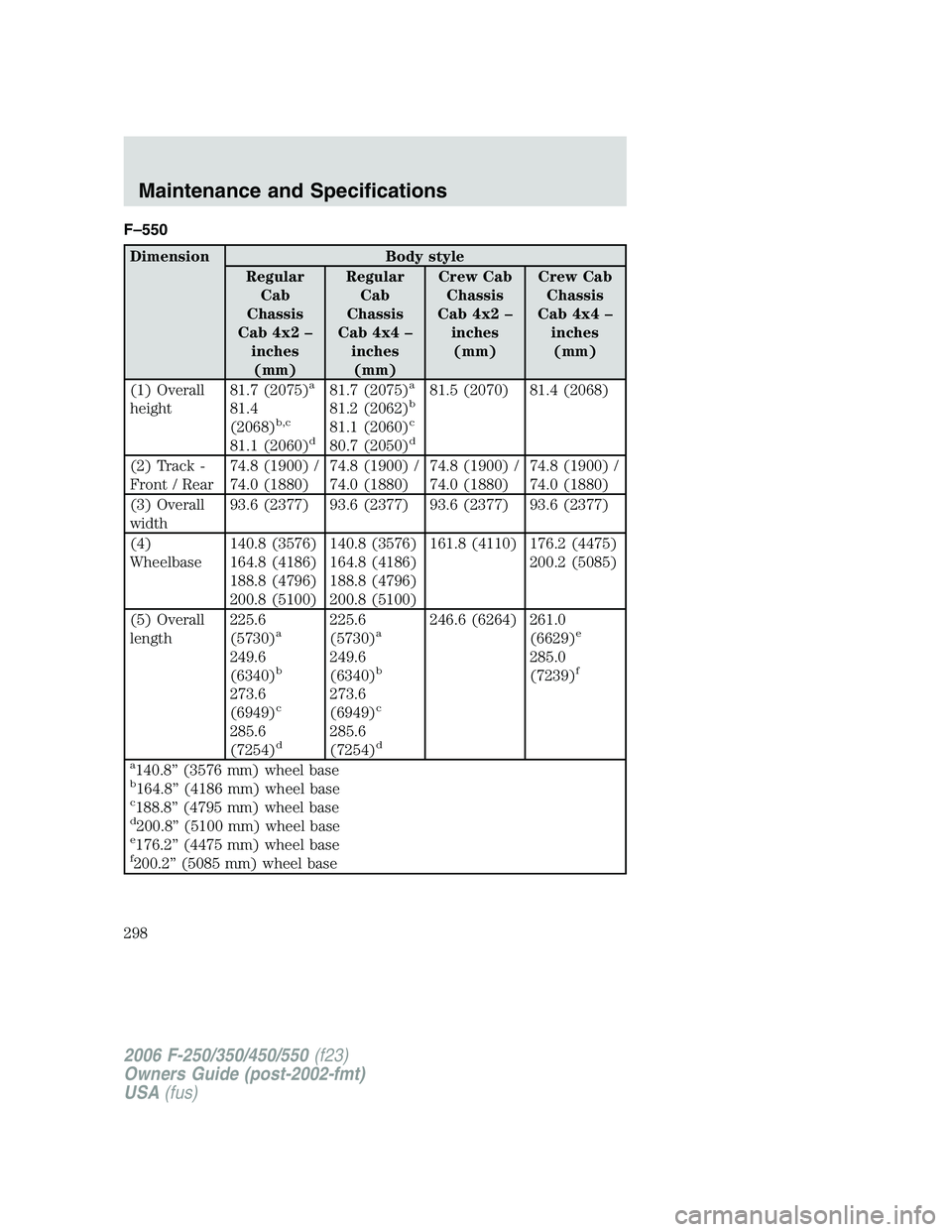

F–550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2 –
inches
(mm)Regular
Cab
Chassis
Cab 4x4 –
inches
(mm)Crew Cab
Chassis
Cab 4x2 –
inches
(mm)Crew Cab
Chassis
Cab 4x4 –
inches
(mm)
(1) Overall
height81.7 (2075)
a
81.4
(2068)b,c
81.1 (2060)d
81.7 (2075)a
81.2 (2062)b
81.1 (2060)c
80.7 (2050)d
81.5 (2070) 81.4 (2068)
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

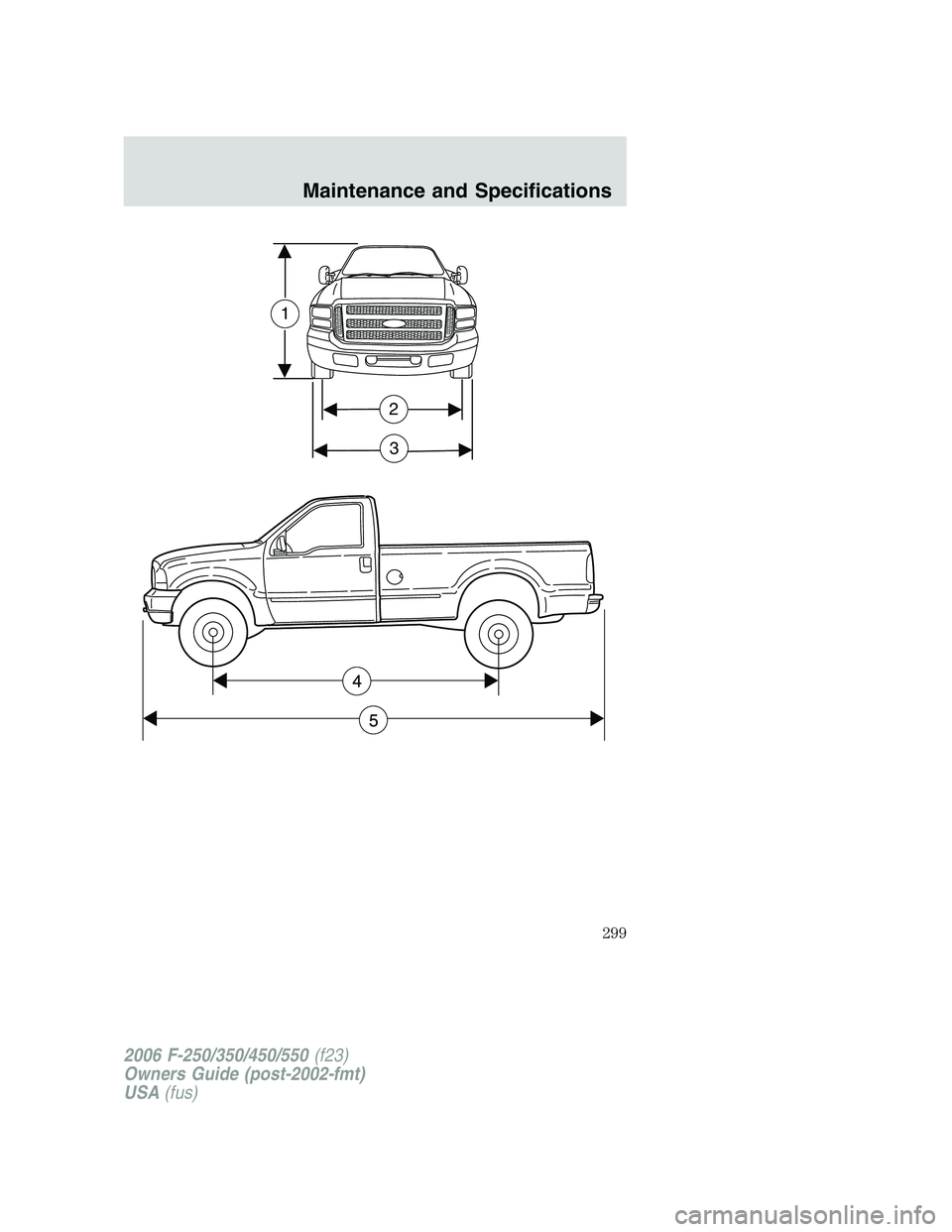

2
3
1
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

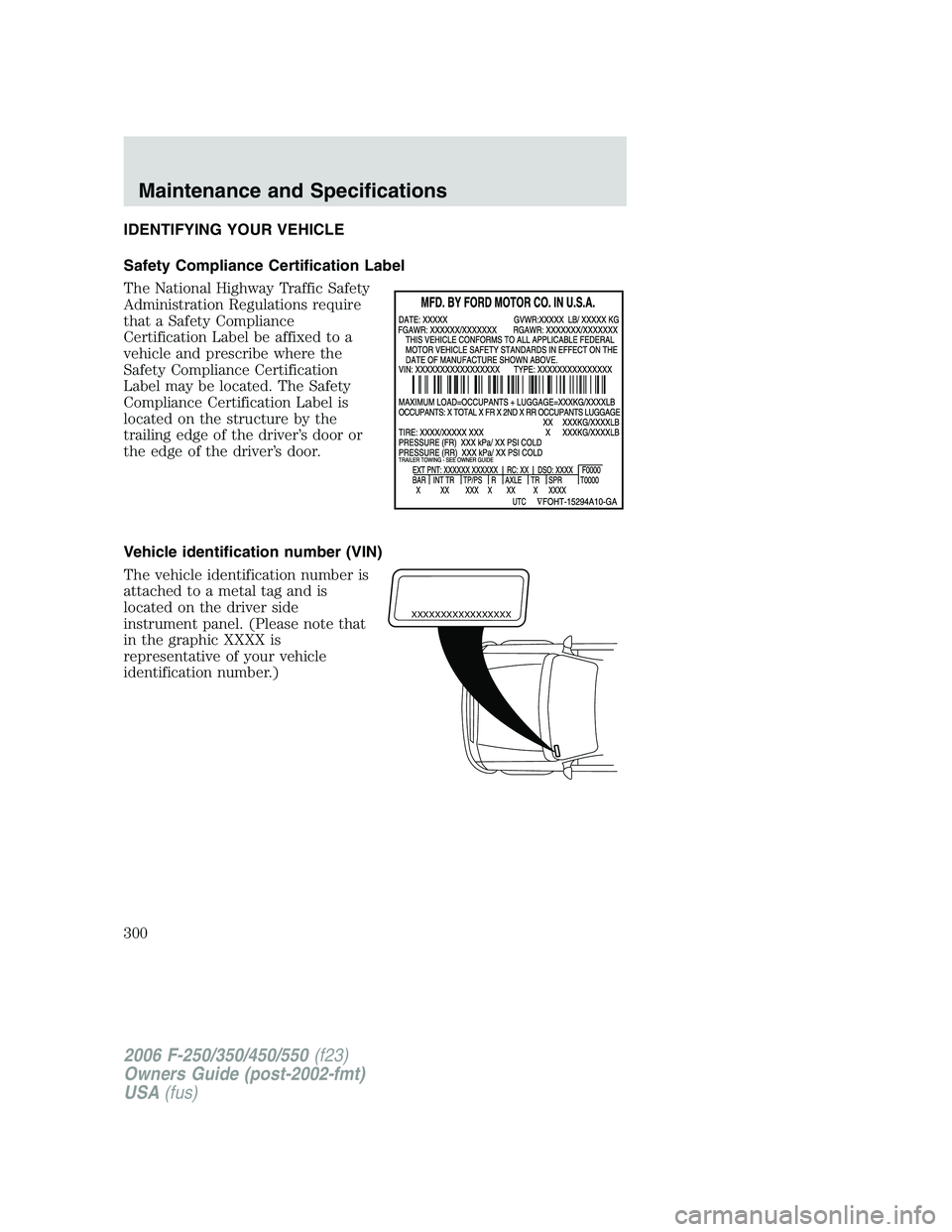

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

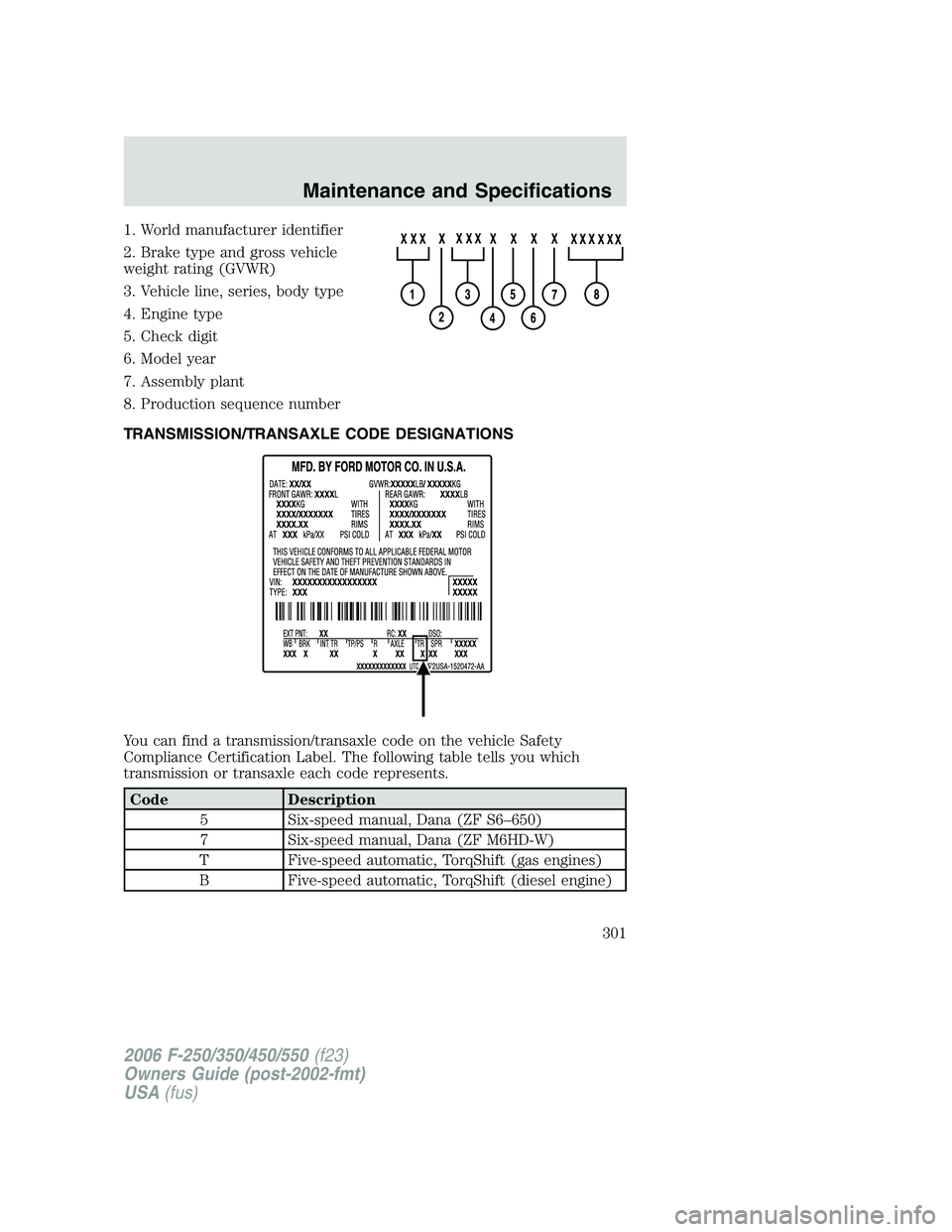

1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle Safety
Compliance Certification Label. The following table tells you which
transmission or transaxle each code represents.
Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (ZF M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
B Five-speed automatic, TorqShift (diesel engine)
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
301

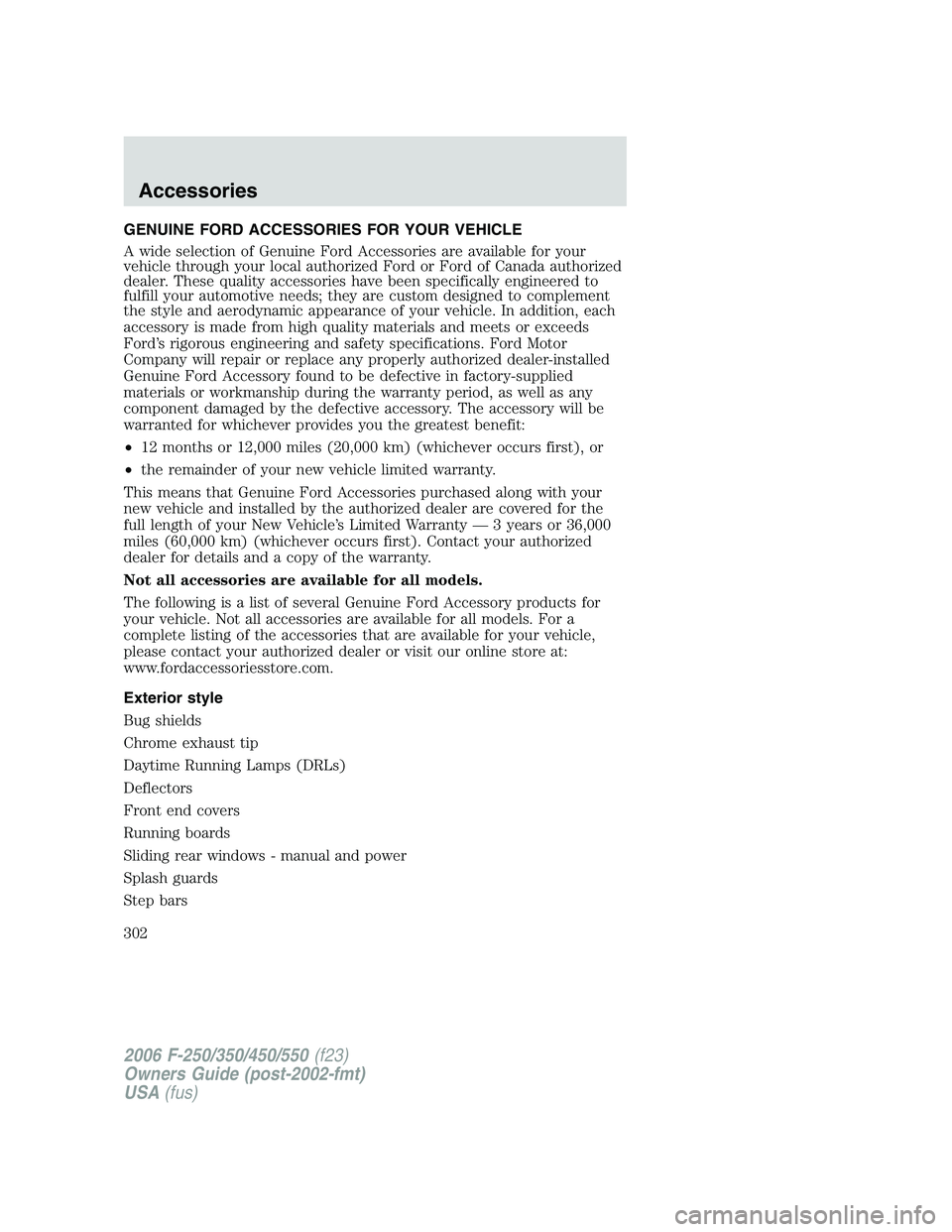

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada authorized
dealer. These quality accessories have been specifically engineered to
fulfill your automotive needs; they are custom designed to complement
the style and aerodynamic appearance of your vehicle. In addition, each
accessory is made from high quality materials and meets or exceeds
Ford’s rigorous engineering and safety specifications. Ford Motor
Company will repair or replace any properly authorized dealer-installed
Genuine Ford Accessory found to be defective in factory-supplied
materials or workmanship during the warranty period, as well as any
component damaged by the defective accessory. The accessory will be
warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the authorized dealer are covered for the
full length of your New Vehicle’s Limited Warranty — 3 years or 36,000
miles (60,000 km) (whichever occurs first). Contact your authorized
dealer for details and a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your authorized dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tip
Daytime Running Lamps (DRLs)
Deflectors
Front end covers
Running boards
Sliding rear windows - manual and power
Splash guards
Step bars
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
302

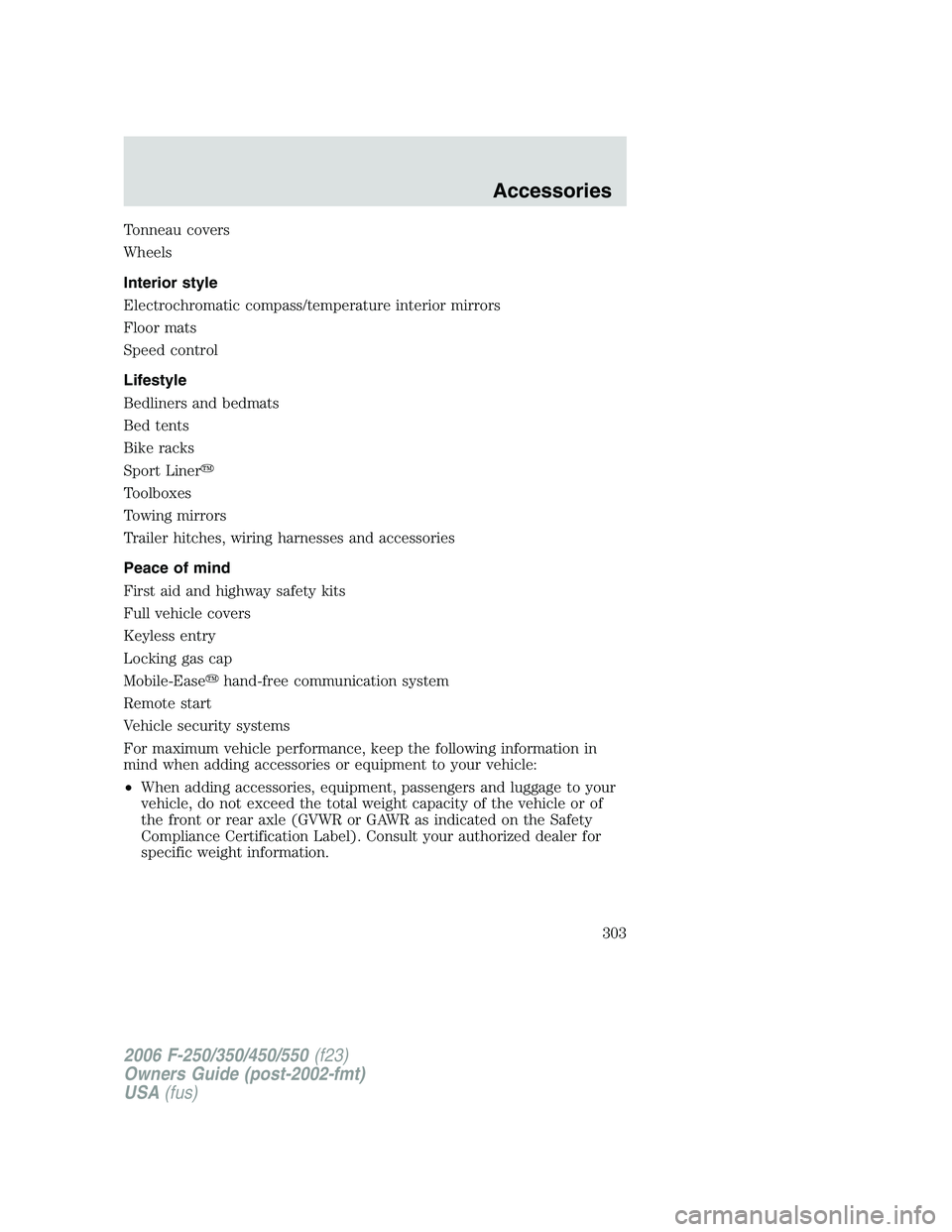

Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Speed control
Lifestyle
Bedliners and bedmats
Bed tents
Bike racks
Sport Liner
Toolboxes
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
First aid and highway safety kits
Full vehicle covers
Keyless entry
Locking gas cap
Mobile-Easehand-free communication system
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.
2006 F-250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
303

•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by your authorized dealer.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
