2006 FORD EXPEDITION Owners Manual

Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer.
Driving with a 4–speed automatic transmission
Your vehicle’s automatic transmission is equipped with a special shift
strategy that insures maximum heater performance during cold weather
operation.
When ambient temperature is 23°F (–5°C) or below and the engine
coolant temperature is below 100°F (38°C), light throttle upshifts may be
slightly delayed. Once the engine coolant temperature reaches 160°F
(71°C) the normal shift strategy will resume. This is normal operation
and will not affect the function or the durability of the transmission.
If the normal shift strategy does not resume once the engine
coolant temperature reaches the normal operating temperature,
or if the downshifts and other throttle conditions do not function
normally, see your authorized dealer as soon as possible.
Understanding gearshift positions
To put your vehicle in gear, start the engine, depress the brake pedal,
then move gearshift lever out of P (Park).
Hold the brake pedal down while you move the gearshift lever
from P (Park) to another position. If you do not hold the brake
pedal down, your vehicle may move unexpectedly and injure someone.
P (Park)
Always come to a complete stop
before shifting into P (Park). Make
sure the gearshift lever is securely
latched in P (Park). This position locks the transmission and prevents
the rear wheels from turning.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
249

Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
R (Reverse)
With the gearshift lever in R
(Reverse), the vehicle will move
backward. Always come to a
complete stop before shifting into and out of R (Reverse).
N (Neutral)
With the gearshift lever in N
(Neutral), the vehicle can be started
and is free to roll. Hold the brake
pedal down while in this gear.
D (Drive) with Overdrive
The normal driving position for the
best fuel economy. Transmission
operates in gears one through four.
D (Drive) without Overdrive
D (Drive) with Overdrive can be
deactivated by pressing the
transmission control switch (TCS)
on the end of the gearshift lever.
The transmission control indicator
light (TCIL) will illuminate in the
instrument cluster.
Transmission operates in gears one through three. D (Drive) without
Overdrive provides more engine braking than D (Drive) with Overdrive
and is useful when:
•driving with a heavy load.
•towing a trailer up or down steep hills.
•additional engine downhill braking is desired. If towing a trailer, refer
toDriving while you towin theTrailer towingsection.
O/D
OFF
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
250

To return to D (Drive) with Overdrive mode, press the transmission
control switch (TCS). The TCIL will no longer be illuminated.
Each time the vehicle is started, the transmission will automatically
return to normal overdrive mode.
Every time the vehicle is shut off and restarted, you must press the
transmission control switch to cancel overdrive operation if driving in
overdrive is not desired.
2 (Second)
Use 2 (Second) to start-up on
slippery roads or to provide
additional engine braking on
downgrades.
1 (First)
Use 1 (Low) to provide maximum
engine braking on steep
downgrades. Upshifts can be made
by shifting to 2 (Second) or to D (Drive). Selecting 1 (Low) at higher
speeds causes the transmission to shift to a lower gear, and will shift to 1
(Low) after vehicle decelerates to the proper speed.
Forced Downshifts
To gain acceleration in D (Drive) with Overdrive or D (Drive) without
Overdrive (O/D OFF) when passing another vehicle, push the accelerator
to the floor. The transmission will downshift to the appropriate gear:
third, second or first gear.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting between forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.
If your vehicle is equipped with AdvanceTrac
with RSC, it may be
beneficial to turn the system off so the wheels are allowed to spin.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
251

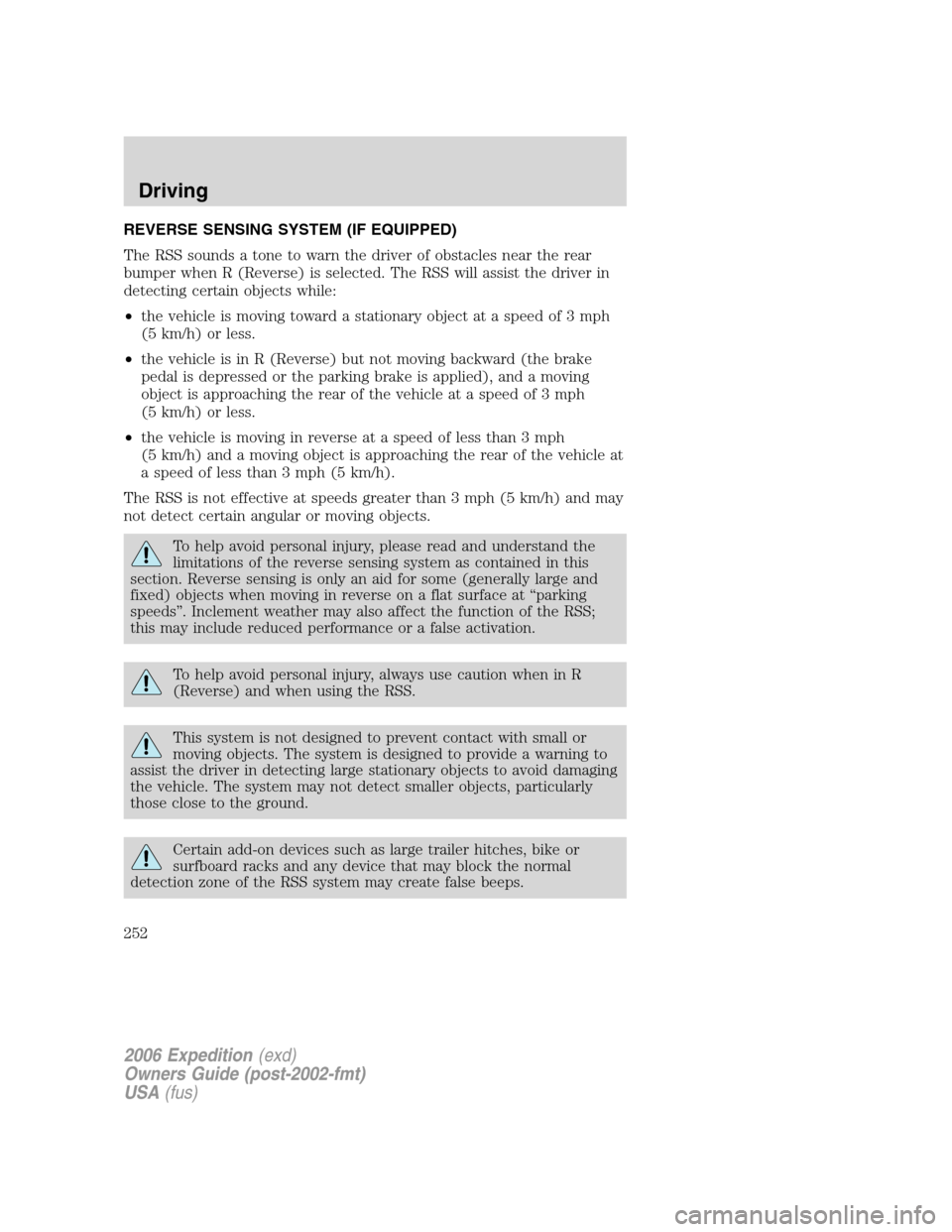

REVERSE SENSING SYSTEM (IF EQUIPPED)
The RSS sounds a tone to warn the driver of obstacles near the rear
bumper when R (Reverse) is selected. The RSS will assist the driver in
detecting certain objects while:
•the vehicle is moving toward a stationary object at a speed of 3 mph
(5 km/h) or less.
•the vehicle is in R (Reverse) but not moving backward (the brake
pedal is depressed or the parking brake is applied), and a moving
object is approaching the rear of the vehicle at a speed of 3 mph
(5 km/h) or less.
•the vehicle is moving in reverse at a speed of less than 3 mph
(5 km/h) and a moving object is approaching the rear of the vehicle at
a speed of less than 3 mph (5 km/h).
The RSS is not effective at speeds greater than 3 mph (5 km/h) and may
not detect certain angular or moving objects.
To help avoid personal injury, please read and understand the
limitations of the reverse sensing system as contained in this
section. Reverse sensing is only an aid for some (generally large and
fixed) objects when moving in reverse on a flat surface at “parking
speeds”. Inclement weather may also affect the function of the RSS;
this may include reduced performance or a false activation.
To help avoid personal injury, always use caution when in R
(Reverse) and when using the RSS.
This system is not designed to prevent contact with small or
moving objects. The system is designed to provide a warning to
assist the driver in detecting large stationary objects to avoid damaging
the vehicle. The system may not detect smaller objects, particularly
those close to the ground.
Certain add-on devices such as large trailer hitches, bike or
surfboard racks and any device that may block the normal
detection zone of the RSS system may create false beeps.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
252

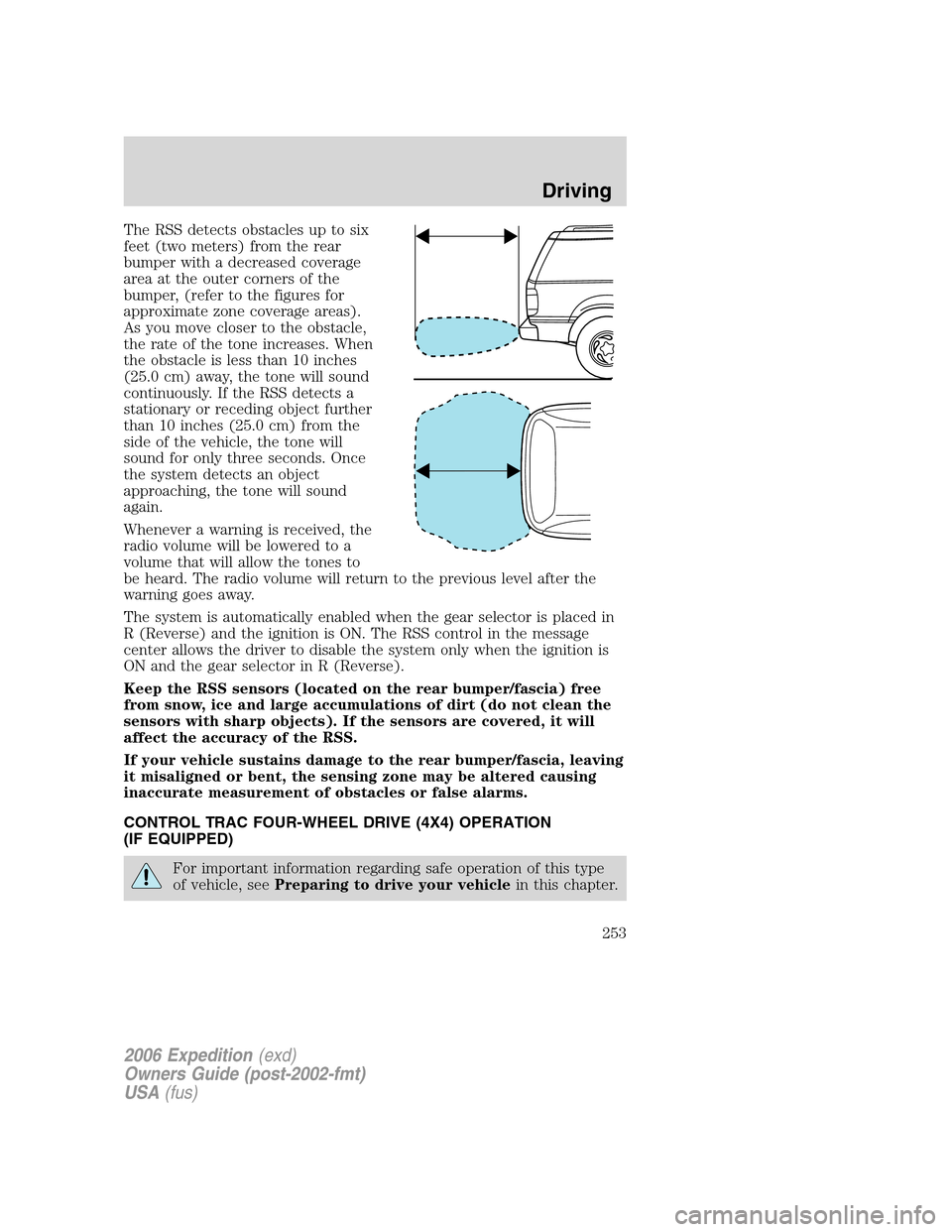

The RSS detects obstacles up to six
feet (two meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas).
As you move closer to the obstacle,
the rate of the tone increases. When
the obstacle is less than 10 inches
(25.0 cm) away, the tone will sound
continuously. If the RSS detects a
stationary or receding object further
than 10 inches (25.0 cm) from the
side of the vehicle, the tone will
sound for only three seconds. Once
the system detects an object
approaching, the tone will sound
again.
Whenever a warning is received, the
radio volume will be lowered to a
volume that will allow the tones to
be heard. The radio volume will return to the previous level after the
warning goes away.
The system is automatically enabled when the gear selector is placed in
R (Reverse) and the ignition is ON. The RSS control in the message
center allows the driver to disable the system only when the ignition is
ON and the gear selector in R (Reverse).
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
CONTROL TRAC FOUR-WHEEL DRIVE (4X4) OPERATION
(IF EQUIPPED)
For important information regarding safe operation of this type
of vehicle, seePreparing to drive your vehiclein this chapter.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
253

If equipped with the Control Trac 4x4 System, and 4L (4x4 LOW)
is selected while the vehicle is moving, the system will not
engage. This is normal and should be no reason for concern.
Before 4L (4x4 LOW) can be engaged, the vehicle must be
brought to a complete stop, the brake pedal depressed and the
transmission placed in N (Neutral).
The vehicle should not be operated in 4H (4x4 HIGH) or 4L (4x4 LOW)
on dry pavement. Doing so could result in difficult disengagement of the
transfer case, increased tire wear, decreased fuel economy and may
damage driveline components.
Your 4x4 features the heavy-duty Control Trac system which includes a
computer-operated transfer case. This unique system is interactive with
the road, continually monitoring and adjusting torque delivery to the
front and rear wheels to optimize vehicle control.
System indicator lights
The Control Trac system indicator lights illuminate only under the
following conditions. If these lights illuminate when driving in 2H or
A4WD, contact your authorized dealer as soon as possible.
•4X4 HIGH- momentarily
illuminates when the vehicle is
started. Illuminates when 4H is
selected.
•4X4 LOW– momentarily
illuminates when the vehicle is
started. Illuminates when 4L is
selected.
Positions of the Control Trac system
The Control Trac system functions
in four modes:
•2H (2WD HIGH)delivers power
to the rear wheels only. This is
appropriate for normal on-road
driving on dry pavement.
•A4WD (4X4 AUTO)provides
electronic control four-wheel
drive with power delivered to all
four wheels, as required, for
increased traction. This is appropriate for all on-road driving
conditions, such as dry road surfaces, wet pavement, snow or gravel.
4x4
HIGH
4x4
LOW
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
254

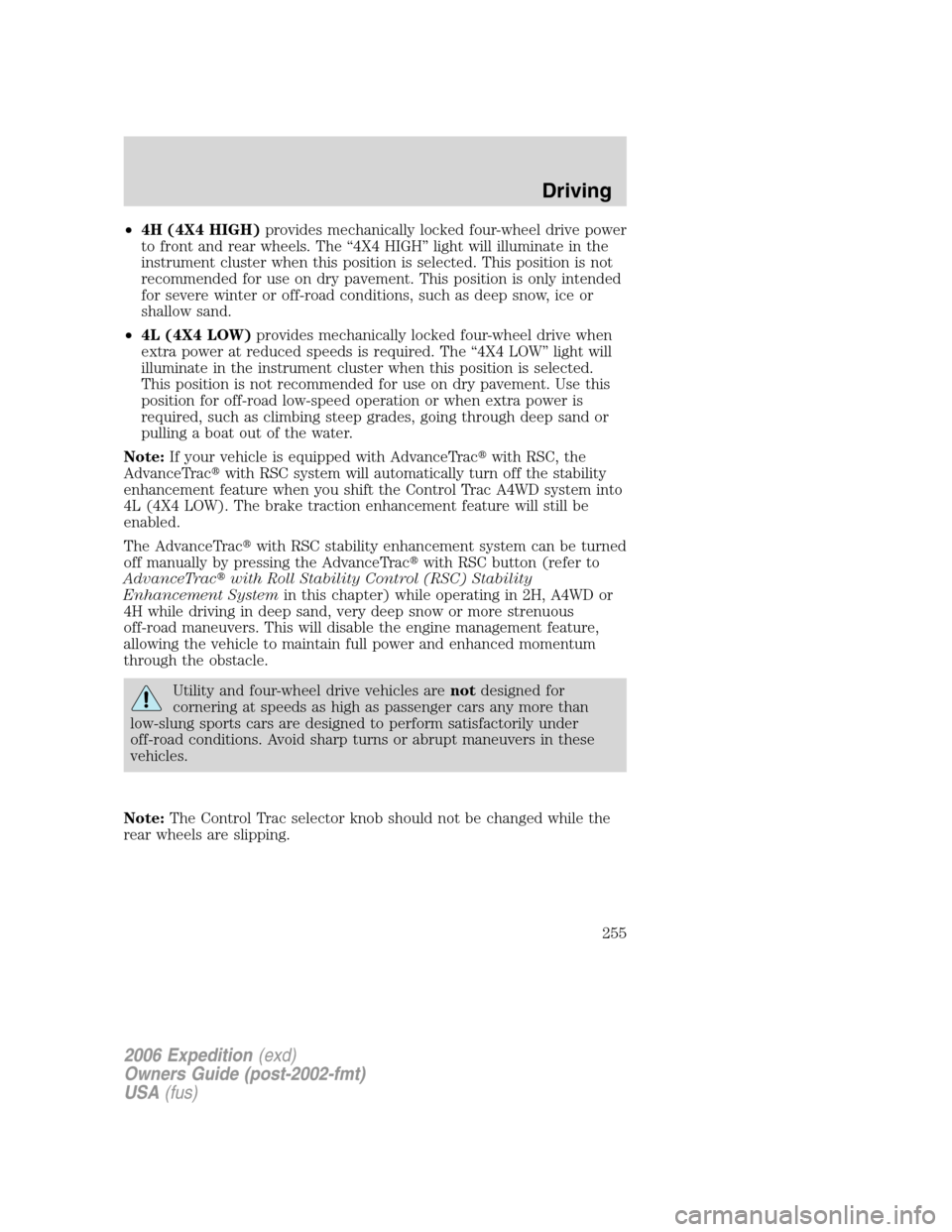

•4H (4X4 HIGH)provides mechanically locked four-wheel drive power
to front and rear wheels. The “4X4 HIGH” light will illuminate in the
instrument cluster when this position is selected. This position is not
recommended for use on dry pavement. This position is only intended
for severe winter or off-road conditions, such as deep snow, ice or
shallow sand.
•4L (4X4 LOW)provides mechanically locked four-wheel drive when
extra power at reduced speeds is required. The “4X4 LOW” light will
illuminate in the instrument cluster when this position is selected.
This position is not recommended for use on dry pavement. Use this
position for off-road low-speed operation or when extra power is
required, such as climbing steep grades, going through deep sand or
pulling a boat out of the water.
Note:If your vehicle is equipped with AdvanceTrac
with RSC, the
AdvanceTrac
with RSC system will automatically turn off the stability
enhancement feature when you shift the Control Trac A4WD system into
4L (4X4 LOW). The brake traction enhancement feature will still be
enabled.
The AdvanceTrac
with RSC stability enhancement system can be turned
off manually by pressing the AdvanceTrac
with RSC button (refer to
AdvanceTrac
with Roll Stability Control (RSC) Stability
Enhancement Systemin this chapter) while operating in 2H, A4WD or
4H while driving in deep sand, very deep snow or more strenuous
off-road maneuvers. This will disable the engine management feature,
allowing the vehicle to maintain full power and enhanced momentum
through the obstacle.
Utility and four-wheel drive vehicles arenotdesigned for
cornering at speeds as high as passenger cars any more than
low-slung sports cars are designed to perform satisfactorily under
off-road conditions. Avoid sharp turns or abrupt maneuvers in these
vehicles.
Note:The Control Trac selector knob should not be changed while the
rear wheels are slipping.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
255

Shifting from 2H to A4WD or 4H
Move the control to the A4WD or
4H position at any forward speed up
to 55 mph (88 km/h). The “4X4”
light in the instrument cluster will
illuminate if 4H is selected.
Shifting from A4WD to 4H
Move the control from A4WD to 4H
at a stop or while driving at any
speed.
Shifting from 2H, A4WD or 4H to 4L
1. Bring the vehicle to a stop and
keep the brake pedal depressed.
2. Place the gearshift in N (Neutral).
3. Move the control to the 4L
position.
If any of the above shift conditions are not met, the message center will
display the appropriate information.
Note:Some noise may be heard as the system shifts or engages.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
256
