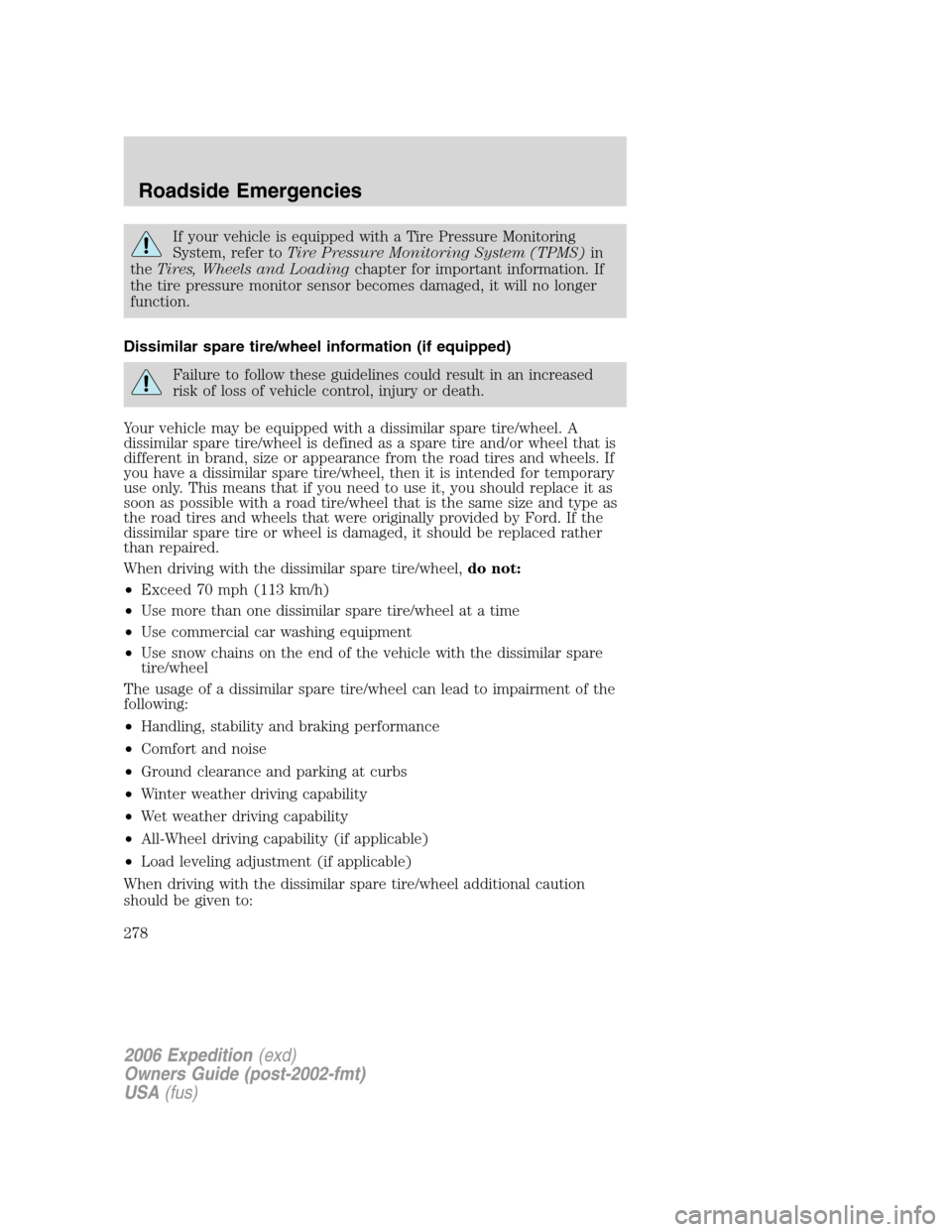

If your vehicle is equipped with a Tire Pressure Monitoring
System, refer toTire Pressure Monitoring System (TPMS)in
theTires, Wheels and Loadingchapter for important information. If
the tire pressure monitor sensor becomes damaged, it will no longer
function.
Dissimilar spare tire/wheel information (if equipped)
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
Your vehicle may be equipped with a dissimilar spare tire/wheel. A
dissimilar spare tire/wheel is defined as a spare tire and/or wheel that is
different in brand, size or appearance from the road tires and wheels. If
you have a dissimilar spare tire/wheel, then it is intended for temporary
use only. This means that if you need to use it, you should replace it as
soon as possible with a road tire/wheel that is the same size and type as
the road tires and wheels that were originally provided by Ford. If the
dissimilar spare tire or wheel is damaged, it should be replaced rather
than repaired.
When driving with the dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a dissimilar spare tire/wheel can lead to impairment of the
following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-Wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the dissimilar spare tire/wheel additional caution
should be given to:
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
278

•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a dissimilar spare tire/wheel and seek
service as soon as possible.
Spare tire information
Note:If your vehicle is equipped with the tire pressure monitoring
system (TPMS), the system indicator light will illuminate when the spare
is in use. To restore the full functionality of the TPMS system, all road
wheels equipped with the tire pressure monitoring sensors must be
mounted on the vehicle
If your vehicle is equipped with TPMS, have a flat tire serviced by an
authorized dealer in order to prevent damage to the TPMS sensor, refer
toTire Pressure Monitoring System (TPMS)in theTires, Wheels and
Loadingchapter. Replace the spare tire with a road tire as soon as
possible.
Location of the spare tire and tools
The spare tire and tools for your vehicle are stowed in the following
locations:
Item Location
Spare tire Under the vehicle, just forward of
the rear bumper
Jack tools and jacking instructions Under the access panel located in
the floor compartment behind the
rear seat
Removing the jack and tools
1. Open the liftgate, then locate the access panel on the floor behind the
3rd row seat. Unlatch and remove the panel.
2. Remove the jack and tools assembly tray from the compartment by
turning the wing-nut counterclockwise to relieve tension against the jack
assembly tray.
3. Unsnap the wheel lug nut wrench, jack extension and handle from the
plastic tray. Remove the jack and instruction sheet from the tray
assembly.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
279

Steering wheel
controls ....................................118
tilting .......................................106
T
Tire Pressure Monitoring
System (TPMS)
Driving .....................................260
Roadside Emergencies ...........277
Tires, Wheels and Loading ....217
Warning Displays ..............16, 131
Tires ...........................203–204, 277
alignment ................................215
care ..........................................214
changing ..................277, 279–280
checking the pressure ............206
inspecting and inflating .........205
label .........................................213
replacing ..................................208
rotating ....................................216
safety practices .......................215
sidewall information ...............209
snow tires and chains ............221
spare tire .................................278
terminology .............................205
tire grades ...............................204
treadwear ........................204, 214
Towing .......................................228
recreational towing .................234
trailer towing ..........................228
wrecker ....................................290Transmission .............................248
brake-shift interlock (BSI) ....248
fluid, checking and adding
(automatic) .............................336
fluid, refill capacities ..............340
lubricant specifications ..343, 345
Trunk .........................................140
Turn signal ..................................96
V
Vehicle dimensions ...................346
Vehicle Identification Number
(VIN) ..........................................348
Vehicle loading ..........................221
Ventilating your vehicle ...........237
W
Warning lights (see Lights) .......12
Washer fluid ..............................311
Water, Driving through .............264
Windows
power .......................................111
rear wiper/washer ...................106
Windshield washer fluid and
wipers ........................................105
checking and adding fluid .....311
liftgate reservoir .....................311
replacing wiper blades ...........312
Wrecker towing .........................290
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
358
