2006 FORD CROWN VICTORIA Owners Manual

ENGINE DATA
Engine 4.6L V8 engine 4.6L FFV V8 engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E 85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
VEHICLE DIMENSIONS (AT CURB MASS)
Vehicle dimensions Inches (mm)
(1) Overall length 212 (5385)/218 (5538)1
(2) Overall width 78.3 (1990)
(3) Overall height 58.3 (1481)/58.9 (1495)1
(4) Wheelbase 114.6 (2911)/120.8 (3067)1
(5) Track - Front 62.8 (1596)
(5) Track - Rear 65.6 (1666)
1Denotes long wheel base
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
257

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
1
4
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
258

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
259

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic overdrive (4R75E) -
LivoniaQ
Four-speed automatic overdrive (4R75E) -
SharonvilleS
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
260

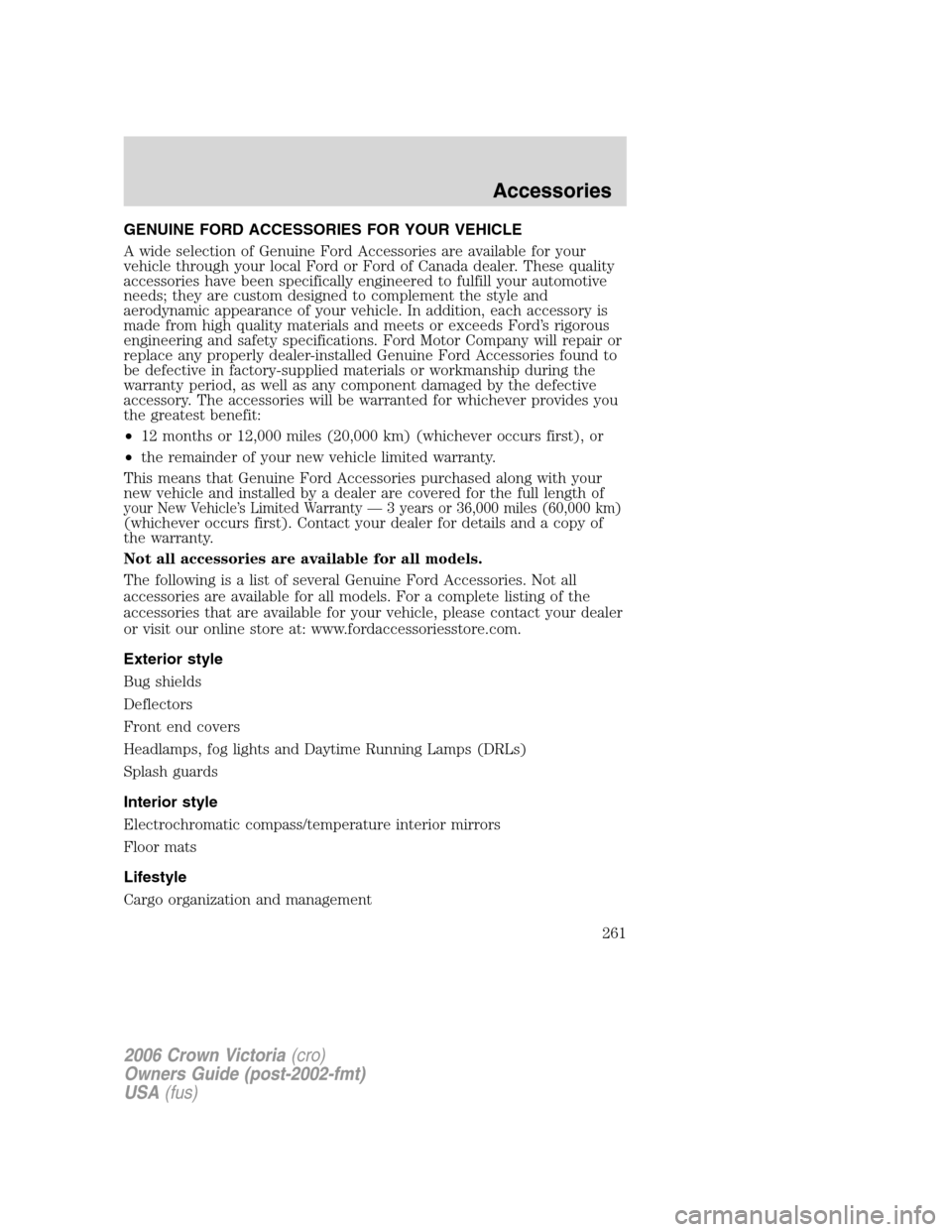

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessories will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000 km)(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Cargo organization and management
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
261

Peace of mind
First aid and safety kits
Full vehicle covers
Locking gas cap
Mobile-Ease
hands-free communication system
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
262

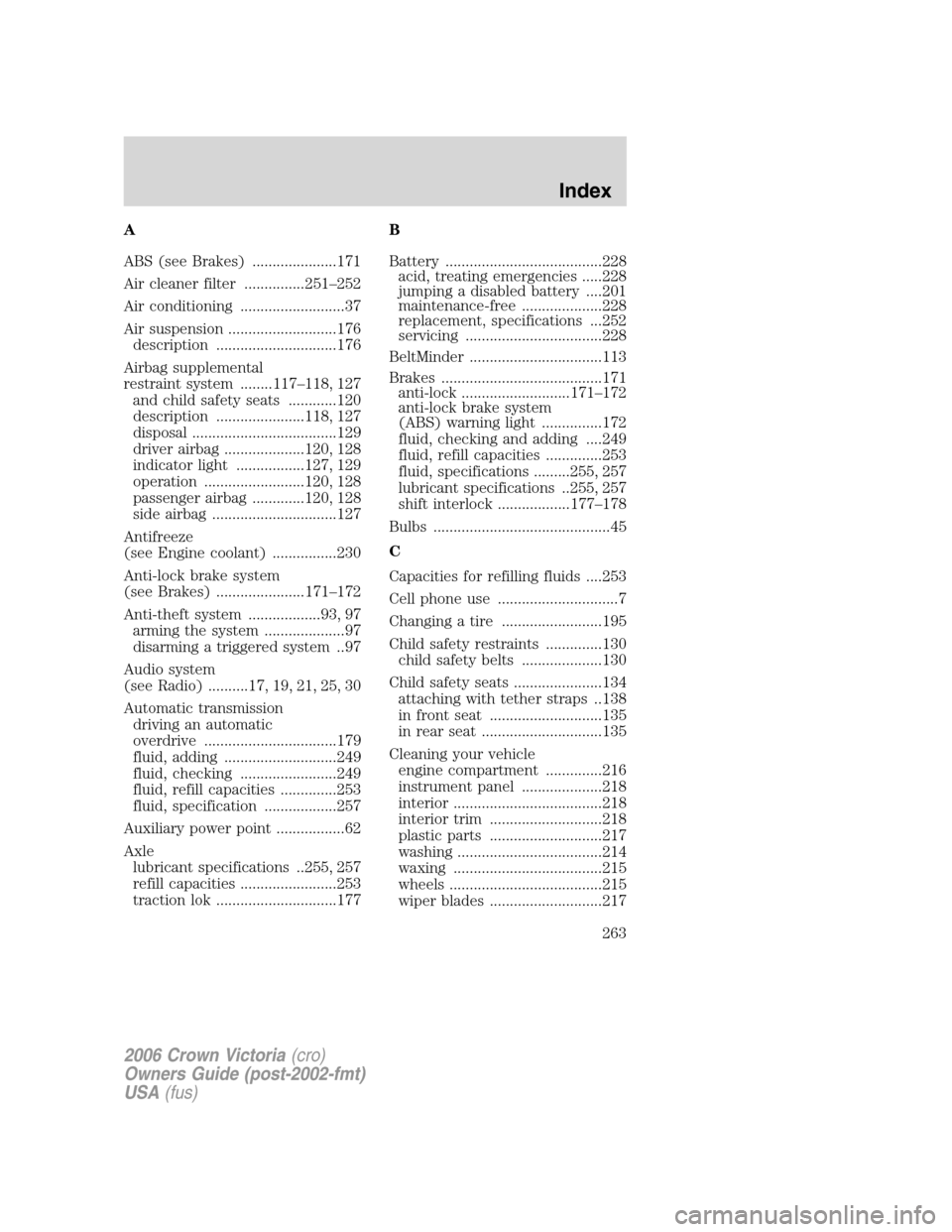

A
ABS (see Brakes) .....................171
Air cleaner filter ...............251–252
Air conditioning ..........................37
Air suspension ...........................176
description ..............................176
Airbag supplemental
restraint system ........117–118, 127
and child safety seats ............120
description ......................118, 127
disposal ....................................129
driver airbag ....................120, 128
indicator light .................127, 129
operation .........................120, 128
passenger airbag .............120, 128
side airbag ...............................127
Antifreeze
(see Engine coolant) ................230
Anti-lock brake system
(see Brakes) ......................171–172
Anti-theft system ..................93, 97
arming the system ....................97
disarming a triggered system ..97
Audio system
(see Radio) ..........17, 19, 21, 25, 30
Automatic transmission
driving an automatic
overdrive .................................179
fluid, adding ............................249
fluid, checking ........................249
fluid, refill capacities ..............253
fluid, specification ..................257
Auxiliary power point .................62
Axle
lubricant specifications ..255, 257
refill capacities ........................253
traction lok ..............................177B
Battery .......................................228
acid, treating emergencies .....228
jumping a disabled battery ....201
maintenance-free ....................228
replacement, specifications ...252
servicing ..................................228
BeltMinder .................................113
Brakes ........................................171
anti-lock ...........................171–172
anti-lock brake system
(ABS) warning light ...............172
fluid, checking and adding ....249
fluid, refill capacities ..............253
fluid, specifications .........255, 257
lubricant specifications ..255, 257
shift interlock ..................177–178
Bulbs ............................................45
C
Capacities for refilling fluids ....253
Cell phone use ..............................7
Changing a tire .........................195
Child safety restraints ..............130
child safety belts ....................130
Child safety seats ......................134
attaching with tether straps ..138
in front seat ............................135
in rear seat ..............................135
Cleaning your vehicle
engine compartment ..............216
instrument panel ....................218
interior .....................................218
interior trim ............................218
plastic parts ............................217
washing ....................................214
waxing .....................................215
wheels ......................................215
wiper blades ............................217
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Index
263

Climate control (see Air
conditioning or Heating) ............37
Clock adjust
6-CD in dash .............................33
AM/FM .......................................18
AM/FM/Cassette ........................19
AM/FM/CD .................................23
AM/FM/Tape/CD .......................28
Compass, electronic
set zone adjustment .................54
Console ........................................52
overhead ..............................52, 54
Controls
power seat ...............................100
steering column ........................68
Coolant
checking and adding ..............230
refill capacities ................234, 253
specifications ..................255, 257
Cruise control
(see Speed control) ....................65
Cupholder(s) .............................103
Customer Assistance ................183
Ford Extended Service
Plan ..........................................211
Getting assistance outside
the U.S. and Canada ..............211
Getting roadside assistance ...183
Getting the service you
need .........................................207
Ordering additional
owner’s literature ...................212
Utilizing the Mediation/
Arbitration Program ...............210
D
Daytime running lamps
(see Lamps) ................................41Defrost
rear window ..............................39
Dipstick
automatic transmission
fluid ..........................................249
engine oil .................................225
Doors
lubricant specifications ..........255
Driving under special
conditions ..................................181
through water .........................182
E
Electronic message center .........73
Emergencies, roadside
jump-starting ..........................201
Emission control system ..........246
Engine ........................................257
cleaning ...................................216
coolant .....................................230
fail-safe cooling .......................235
idle speed control ...................228
lubrication
specifications ..................255, 257
refill capacities ........................253
service points ..........................223
starting after a collision .........185
Engine block heater .................170
Engine oil ..................................225
change oil soon warning,
message center .......................225
checking and adding ..............225
dipstick ....................................225
filter, specifications ........227, 252
recommendations ...................227
refill capacities ........................253
specifications ..................255, 257
Exhaust fumes ..........................170
2006 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Index
264
