Warning Messagelight on panel on display
BATTERY NOT RECHARGING PROPERLY (red)
Turning the key to MAR the warning light on the dial turns on, but it should go out as soon as the
engine is started.
If the warning light stays on together with the message, contact a Fiat Dealership as soon as pos-
sible to prevent draining the battery.
SEAT BELTS NOT FASTENED (red)
(Only for right-hand drive versions)
The warning light on the dial turns on glowing steadily when, with ignition key at MAR, the dri-
ver’s seat belt is not fastened correctly.
AIRBAG FAILURE (red)
Turning the ignition key to MAR the warning light on the dial turns on, but it should go off after
about 4 seconds. The warning light will stay on to indicate an airbag failure.
¬ w
<
WARNINGIf when turning the ignition key to MAR, the warning light ¬does not turn on or if
it stays on when travelling there could be a failure in safety systems; in this event
air bags or pretensioners could not trigger in case of impact or, in a minor number
of cases, they could trigger accidentally. Contact Fiat Dealership immediately to
have the system checked.
The failure of the warning light ¬(warning light off) is also indicated by the
flashing for more than the normal 4 seconds of the passenger’s front airbag
deactivated warning light
F.
WARNING

156
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning Messagelight on panel on display
DOORS OPEN (red)
The warning light on the dial turns on together with the message when a door or the tailgate are
not properly shut.
FRONT BRAKES PADS WEAR (red)
The warning light on the dial turns on together with the message when pressing the brake pedal if
front brake pads are worn; in this case have them changed as soon as possible.
IMPORTANT Since the car is fitted with wear sensors for the front brake pads, when changing
them, check also the rear brake pads.
LOW ENGINE OIL PRESSURE (red)
Turning the key to MAR the warning light on the dial turns on, but it should go out as soon as
the engine is started.
d
´
v
WARNINGIf vwarning light stays on glowing steadily together with the message, stop the
engine immediately and contact a Fiat Dealership.

157
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
WARNING
LIGHTS AND
MESSAGES
157
Warning Messagelight on panel on display
ABS (WHEEL ANTI-LOCKING SYSTEM) FAILURE (red)
Turning the key to MAR the warning light on the dial turns on, but it should go off after about 4
seconds.
The warning light turns on together with the message when the system is inefficient. In this case
the braking system keeps its effectiveness unchanged, but without the potential offered by the
ABS system. Caution is advisable, particularly in all cases of less than perfect grip. It is therefore
necessary to contact Fiat Dealership.
ELECTRONIC BRAKEFORCE DISTRIBUTOR (EBD) FAILURE
The car is fitted with an electronic brakeforce distributor (EBD). Warning lights >and xand the
message at the same time, with the engine running, indicate a failure concerning the EBD system.
In this case violent braking may be accompanied by early rear wheel locking with the possibility of
skidding. Drive the car extremely carefully to the nearest Fiat Dealership to have the system checked.
ESP SYSTEM (ELECTRONIC STABILITY PROGRAM) (where provided) (amber)
Turning the ignition key to MAR, the warning light on the dial comes on but shall go off after few
seconds.
If the warning light does not go off or stays on when travelling, contact Fiat Dealership.
Warning light flashing when driving indicates that the ESP system is active.
x
+
>
>
WARNINGWarning light >turning on together with the message when the engine is running,
normally indicates a failure concerning the ABS only. In this case the braking
system is still efficient, though without the anti-locking device. Under these
conditions, performance of the EBD system may be reduced. Also in this case, you
are advised to go immediately to the nearest Fiat Dealership, driving in such a way
to avoid sharp braking to have the system checked.
á

158
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
158
Warning Messagelight on panel on display

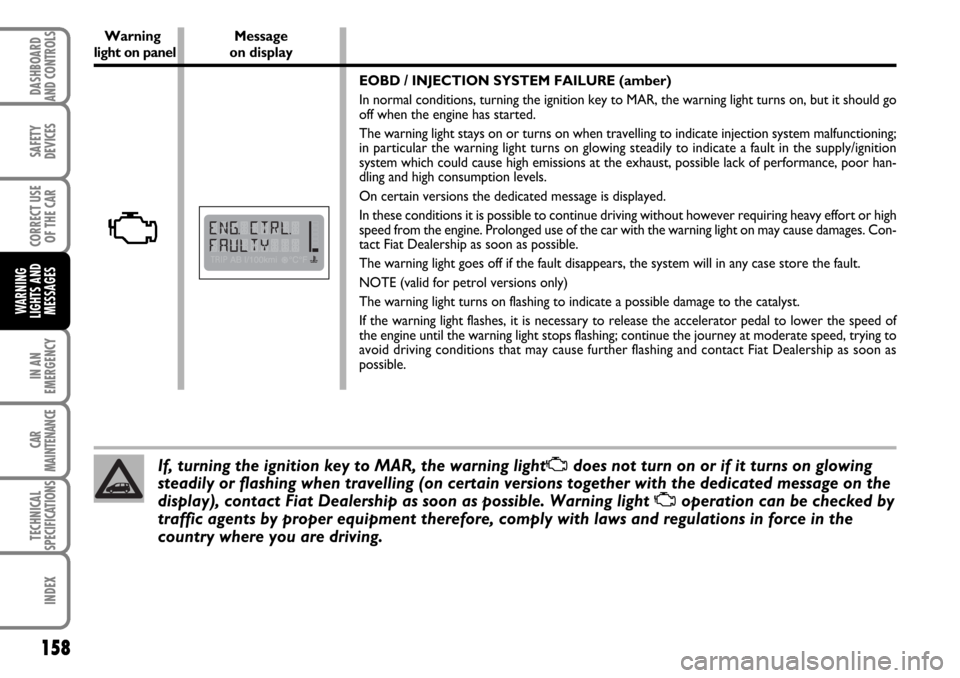

EOBD / INJECTION SYSTEM FAILURE (amber)
In normal conditions, turning the ignition key to MAR, the warning light turns on, but it should go
off when the engine has started.
The warning light stays on or turns on when travelling to indicate injection system malfunctioning;
in particular the warning light turns on glowing steadily to indicate a fault in the supply/ignition
system which could cause high emissions at the exhaust, possible lack of performance, poor han-
dling and high consumption levels.
On certain versions the dedicated message is displayed.
In these conditions it is possible to continue driving without however requiring heavy effort or high
speed from the engine. Prolonged use of the car with the warning light on may cause damages. Con-
tact Fiat Dealership as soon as possible.
The warning light goes off if the fault disappears, the system will in any case store the fault.
NOTE (valid for petrol versions only)
The warning light turns on flashing to indicate a possible damage to the catalyst.
If the warning light flashes, it is necessary to release the accelerator pedal to lower the speed of
the engine until the warning light stops flashing; continue the journey at moderate speed, trying to
avoid driving conditions that may cause further flashing and contact Fiat Dealership as soon as
possible.
If, turning the ignition key to MAR, the warning lightUdoes not turn on or if it turns on glowing
steadily or flashing when travelling (on certain versions together with the dedicated message on the
display), contact Fiat Dealership as soon as possible. Warning light
Uoperation can be checked by
traffic agents by proper equipment therefore, comply with laws and regulations in force in the
country where you are driving.
U

180
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
INFLATING PROCEDURE
FOE0712m
FOE0713m
FOE0715mFOE0714m
WARNINGPut on the protection gloves provided
together with quick tyre repair kit.
❒Pull up the handbrake. Loosen tyre inflation valve cap, take the filler
hose (A) out and screw the ring nut (B) on the tyre valve;
❒make sure the compressor switch (D) is set at 0 (off), then start the
engine and fit plug (E) into the nearest outlet and turn on the
compressor by setting switch (D) to I (on). Inflate the tyre to the
pressure value specified in paragraph “Inflation pressure” in section
“Technical Specifications”. Check tyre pressure on gauge (F) with
compressor off to obtain precise reading;
❒if after 5 minutes it is still impossible to reach at least 1.5 bar,
disengage compressor from valve and outlet, then move the car forth
for approx. ten metres in order to distribute the sealing fluid inside the
tyre evenly, then repeat the inflation operation;

181
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IN AN
EMERGENCY
❒if also in this case, after 5 minutes from turning the
compressor on it is still impossible to reach at least
1.8 bar, do not start driving since the tyre is
excessively damaged and the quick tyre repair kit
cannot guarantee suitable sealing, contact Fiat
Dealership;
❒if the proper tyre pressure has been reached (see
paragraph “Inflation pressure” in section “Technical
Specifications”, start driving immediately;❒after driving for about 10 minutes stop and check
again the tyre pressure; pull up the handbrake;
WARNING
WARNING
WARNING
Apply the sticker in a visible position
for the driver to indicate that the tyre
has been treated with the quick tyre
repair kit. Drive carefully especially
when cornering. Do not exceed 80
km/h. Avoid heavy braking and
accelerating.
It is of vital importance to
communicate that the tyre has been
repaired using the quick tyre repair kit.
Hand the instruction brochure to the
personnel charged with treating the
tyre repaired with the kit. If the pressure falls below 1.8 bars, do
not drive any further: the quick tyre
repair kit Fix & Go automatic cannot
guarantee proper hold
because the tyre
is too much damaged.
Contact Fiat
Dealership.
❒if pressure read is at least 1.8 bar, restore proper
pressure (with engine running and handbrake on)
and restart;
❒drive with the utmost care to the nearest Fiat
Dealership.
