2006 CHEVROLET SUBURBAN Owners Manual

60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seats can be
ipped and folded for additional cargo space.
Flip and Fold Feature
To ip and fold the seat, do the following:
1. Make sure that there is nothing under or in front of
the seat.
2. Make sure that the headrests are completely
lowered or removed.
On regular models, the rear seatbacks may be
equipped with rearward folding headrests. When the
seatback is being folded forward, the head rest
will automatically fold rearward.On extended models, the headrests need to be
removed and stored. To do this, push the button at
the base of the head rest, and pull the head rest
out from the seatback. Slide the head rest pins into
the holes on the top of the seat cushion.
3. Pull up on the strap
loop located at the rear
of the seat cushion
and ip the seat
cushion forward.
1-11

4.Regular models:Push the seatback forward until
it is at.
Extended models:On the passenger side, lift the
lever at the base of the seat to release the
seatback. Push the seatback forward until it is at.
If the seatback cannot fold at because it interferes with
the cushion, try moving the front seat forward and/or
bring the front seatback more upright.Once the seatbacks are folded forward, on extended
models only, the rear seat footwell area will be exposed
and will have to be covered by the load oor panels.
To create a load oor, do the following:
1. Release the panels from the seatbacks by pushing
forward on the latches.
2. Fold the panels back to cover the rear seat
footwell area.
1-12

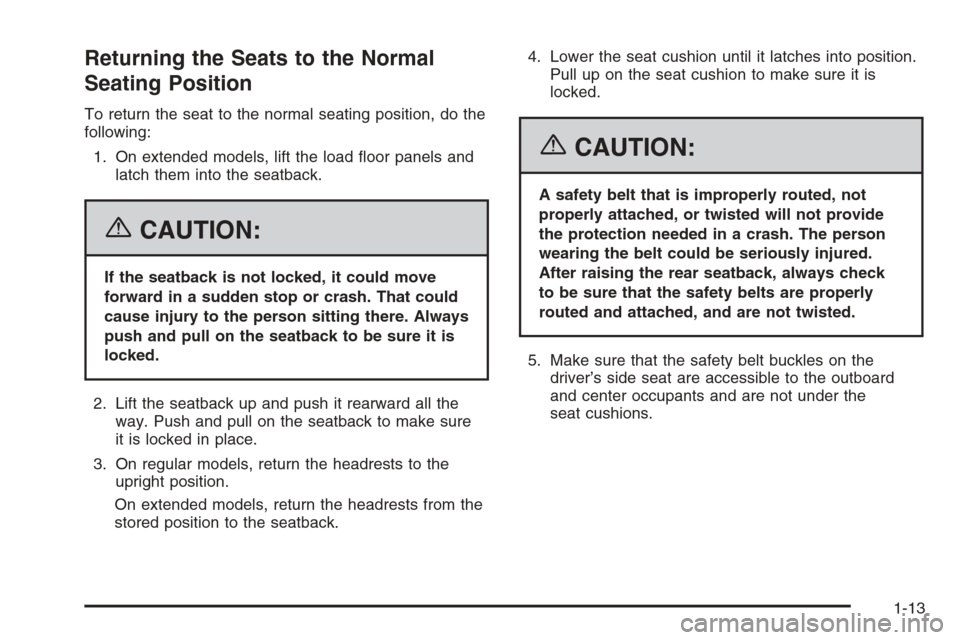

Returning the Seats to the Normal
Seating Position
To return the seat to the normal seating position, do the
following:
1. On extended models, lift the load oor panels and
latch them into the seatback.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Lift the seatback up and push it rearward all the
way. Push and pull on the seatback to make sure
it is locked in place.
3. On regular models, return the headrests to the
upright position.
On extended models, return the headrests from the
stored position to the seatback.4. Lower the seat cushion until it latches into position.
Pull up on the seat cushion to make sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
5. Make sure that the safety belt buckles on the
driver’s side seat are accessible to the outboard
and center occupants and are not under the
seat cushions.
1-13

50/50 Split Bench Seat (Third Row)
If your vehicle has a 50/50 split bench seat, the
seatback(s) can be folded and the entire seat(s) can
be tilted, or removed from the vehicle.
Folding the Seatback(s)
To fold the seatback, do the following:
Pull up on the release lever labeled 1, located on
the rear of the seatback, and push the seatback
forward.
Unfolding the Seatback(s)
To return the seatback to the upright position, do the
following:
1. Pull up on the release lever labeled 1, located on
the rear of the seatback. Then pull up on seatback
until it locks into the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Push and pull on the seatback to make sure it is
locked.
1-14

Tilting the 50/50 Split Bench Seat(s)
The seat(s) can be tilted forward for additional
cargo space.
To tilt the seat, do the following:
1. Open the liftgate to access the controls for the
50/50 seat.
2. Make sure the head restraints are completely
lowered.
3. Fold the seatbacks forward using the instructions
listed under “Folding the Seatbacks” previously.
You will not be able to unlatch the seat from
the oor unless the seatback is folded down.4. Unlatch the seat from
the oor by pulling up
on the lever labeled 2,
located next to the
carrying handle at the
rear of the seat.
5. Lift the rear of the seat up from the oor.
6. Tilt the seat fully forward and lock it into place.
7. Push and pull on the seat.
Put the seat in this position only when necessary for
additional cargo space.
1-15

Returning the 50/50 Split Bench Seat(s)
from a Tilted Position
To return the seat to the normal seating position, do the
following:
1. Open the liftgate to access the controls for the
50/50 seat.
2. Pull the lever labeled 3 toward you.
3. While still holding the lever 3 toward you, grasp the
top of the seat and pull it toward you slightly.4. Let go of lever 3 and pull the seat completely down.
5. Push down on the seat rmly. Try pulling it up to
make sure it is locked in place.
6. Pull up on the release lever labeled 1, located on
the rear of the seatback. Then pull up on the
seatback until it locks into the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
7. Push and pull on the seatback to make sure it is
locked.
1-16

Removing the 50/50 Split Bench Seat(s)
To remove the seat, do the following:
1. Open the liftgate to access the controls for the
50/50 seat and enter the rear of the vehicle.
2. Fold the seatback forward using the instructions
listed under “Folding the Seatbacks” previously.
The seat cannot be removed unless the seatback
is folded.
3. Unlatch the rear of
the seat from the oor
by pulling up on the
release lever labeled 2,
located next to the
carrying handle at the
rear of the seat.
4. Lift the rear of the seat up from the oor.5. Squeeze the release lever to release the seat from
the oor, while pulling the seat out.
6. While holding the rear of the seat up, roll the seat
out of the vehicle.
1-17

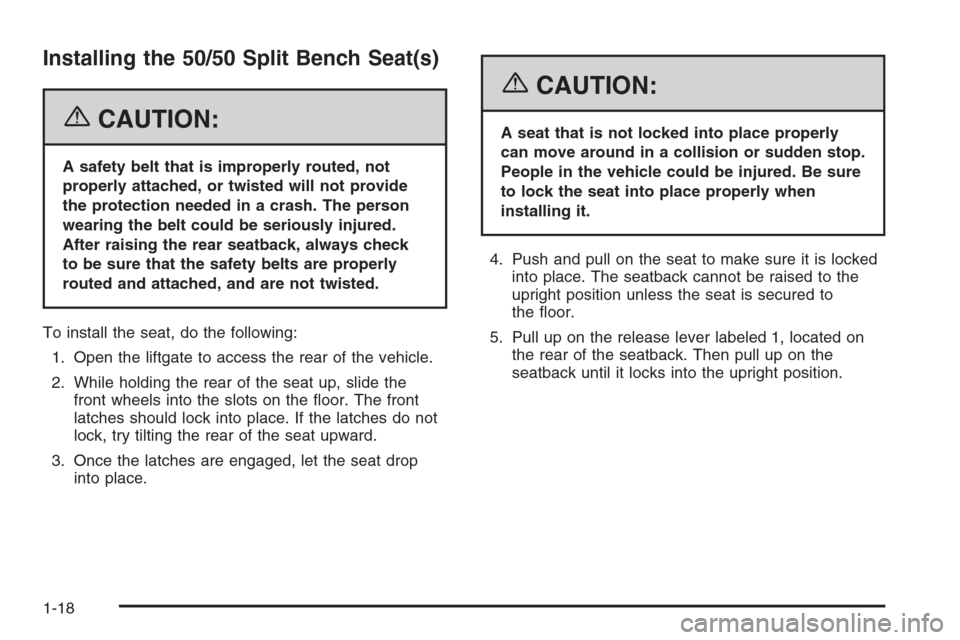

Installing the 50/50 Split Bench Seat(s)
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
To install the seat, do the following:
1. Open the liftgate to access the rear of the vehicle.
2. While holding the rear of the seat up, slide the
front wheels into the slots on the oor. The front
latches should lock into place. If the latches do not
lock, try tilting the rear of the seat upward.
3. Once the latches are engaged, let the seat drop
into place.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
4. Push and pull on the seat to make sure it is locked
into place. The seatback cannot be raised to the
upright position unless the seat is secured to
the oor.
5. Pull up on the release lever labeled 1, located on
the rear of the seatback. Then pull up on the
seatback until it locks into the upright position.
1-18
