2006 CHEVROLET COLORADO CD player

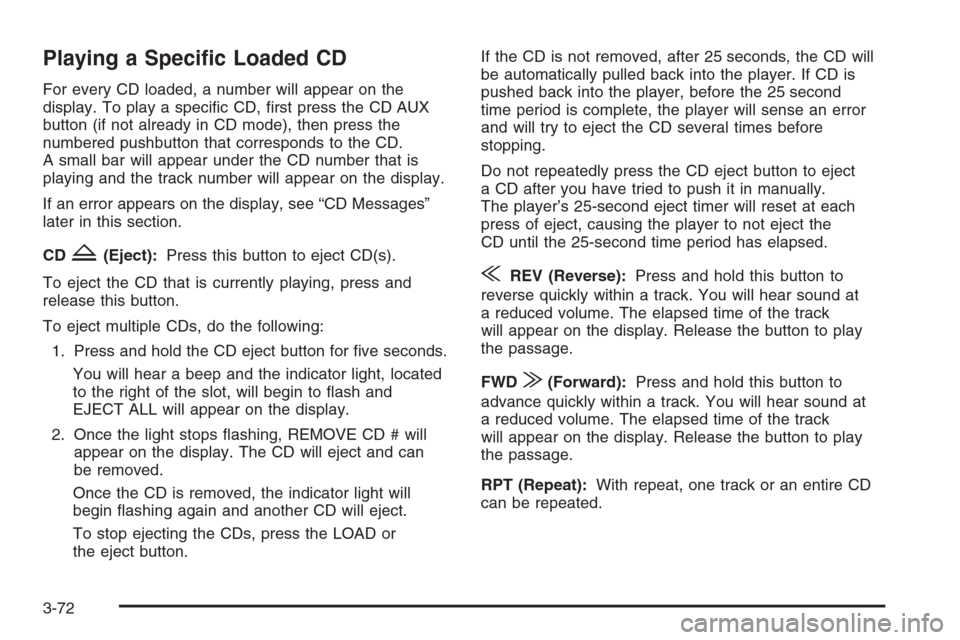

Playing a Specic Loaded CD
For every CD loaded, a number will appear on the
display. To play a specic CD, rst press the CD AUX
button (if not already in CD mode), then press the
numbered pushbutton that corresponds to the CD.
A small bar will appear under the CD number that is
playing and the track number will appear on the display.
If an error appears on the display, see “CD Messages”
later in this section.
CD
Z(Eject):Press this button to eject CD(s).
To eject the CD that is currently playing, press and
release this button.
To eject multiple CDs, do the following:
1. Press and hold the CD eject button for ve seconds.
You will hear a beep and the indicator light, located
to the right of the slot, will begin to ash and
EJECT ALL will appear on the display.
2. Once the light stops ashing, REMOVE CD # will
appear on the display. The CD will eject and can
be removed.
Once the CD is removed, the indicator light will
begin ashing again and another CD will eject.
To stop ejecting the CDs, press the LOAD or
the eject button.If the CD is not removed, after 25 seconds, the CD will
be automatically pulled back into the player. If CD is
pushed back into the player, before the 25 second
time period is complete, the player will sense an error
and will try to eject the CD several times before
stopping.
Do not repeatedly press the CD eject button to eject
a CD after you have tried to push it in manually.
The player’s 25-second eject timer will reset at each
press of eject, causing the player to not eject the
CD until the 25-second time period has elapsed.
{REV (Reverse):Press and hold this button to
reverse quickly within a track. You will hear sound at
a reduced volume. The elapsed time of the track
will appear on the display. Release the button to play
the passage.
FWD
|(Forward):Press and hold this button to
advance quickly within a track. You will hear sound at
a reduced volume. The elapsed time of the track
will appear on the display. Release the button to play
the passage.
RPT (Repeat):With repeat, one track or an entire CD
can be repeated.
3-72

To use repeat, do the following:
To repeat the track you are listening to, press and
release the RPT button. RPT will appear on the
display. Press RPT again to turn off repeat play.
To repeat the CD you are listening to, press and
hold the RPT button for two seconds. RPT will
appear on the display. Press RPT again to turn
off repeat play.
RDM (Random):With random, you can listen to
the tracks in random, rather than sequential, order,
on one CD or on all of the CDs. To use random,
do one of the following:
To play the tracks on the CD you are listening to in
random order, press and release the RDM button.
RANDOM ONE will appear on the display. Press
RDM again to turn off random play.
To play the tracks on all of the CDs that are loaded
in random order, press and hold RDM for more
than two seconds. You will hear a beep and
RANDOM ALL will appear on the display. Press
RDM again to turn off random play.
AUTO EQ (Automatic Equalization):Press AUTO EQ
to select the equalization setting while playing a CD.
The equalization will be stored whenever a CD is played.
For more information on AUTO EQ, see “AUTO EQ”
listed previously in this section.
©SEEK¨:Press the left arrow to go to the start of
the current track (if more than 10 seconds have played),
or to go to the previous track (if less than 10 seconds
have played). Press the right arrow to go to the
next track. If either arrow is held or pressed more than
once, the player will continue moving backward or
forward through the CD.
©SCAN¨:To scan one CD, press and hold either
SCAN arrow for more than two seconds until SCAN
appears on the display and you hear a beep. The radio
will go to the next track, play for 10 seconds, then go
on to the next track. Press either SCAN arrow again,
to stop scanning.
To scan all loaded CDs, press and hold either SCAN
arrow for more than four seconds until CD SCAN
appears on the display and you hear a beep. Use this
feature to listen to 10 seconds of the rst track of
each loaded CD. Press either SCAN arrow again,
to stop scanning.
INFO (Information):Press this knob to see how long
the current track has been playing. To change the
default on the display, track or elapsed time, press the
knob until you see the display you want, then press
and hold the knob until the radio beeps. The selected
display will now be the default.
BAND:Press this button to listen to the radio when
a CD is playing. The inactive CD(s) will remain safely
inside the radio for future listening.
3-73

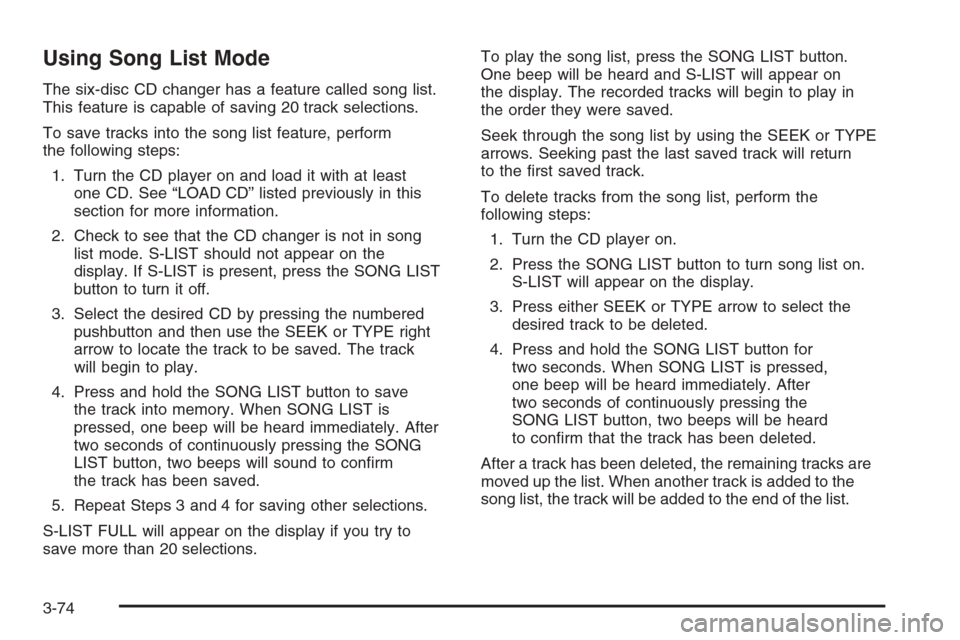

Using Song List Mode
The six-disc CD changer has a feature called song list.
This feature is capable of saving 20 track selections.
To save tracks into the song list feature, perform
the following steps:
1. Turn the CD player on and load it with at least
one CD. See “LOAD CD” listed previously in this
section for more information.
2. Check to see that the CD changer is not in song
list mode. S-LIST should not appear on the
display. If S-LIST is present, press the SONG LIST
button to turn it off.
3. Select the desired CD by pressing the numbered
pushbutton and then use the SEEK or TYPE right
arrow to locate the track to be saved. The track
will begin to play.
4. Press and hold the SONG LIST button to save
the track into memory. When SONG LIST is
pressed, one beep will be heard immediately. After
two seconds of continuously pressing the SONG
LIST button, two beeps will sound to conrm
the track has been saved.
5. Repeat Steps 3 and 4 for saving other selections.
S-LIST FULL will appear on the display if you try to
save more than 20 selections.To play the song list, press the SONG LIST button.
One beep will be heard and S-LIST will appear on
the display. The recorded tracks will begin to play in
the order they were saved.
Seek through the song list by using the SEEK or TYPE
arrows. Seeking past the last saved track will return
to the rst saved track.
To delete tracks from the song list, perform the
following steps:
1. Turn the CD player on.
2. Press the SONG LIST button to turn song list on.
S-LIST will appear on the display.
3. Press either SEEK or TYPE arrow to select the
desired track to be deleted.
4. Press and hold the SONG LIST button for
two seconds. When SONG LIST is pressed,
one beep will be heard immediately. After
two seconds of continuously pressing the
SONG LIST button, two beeps will be heard
to conrm that the track has been deleted.
After a track has been deleted, the remaining tracks are
moved up the list. When another track is added to the
song list, the track will be added to the end of the list.
3-74

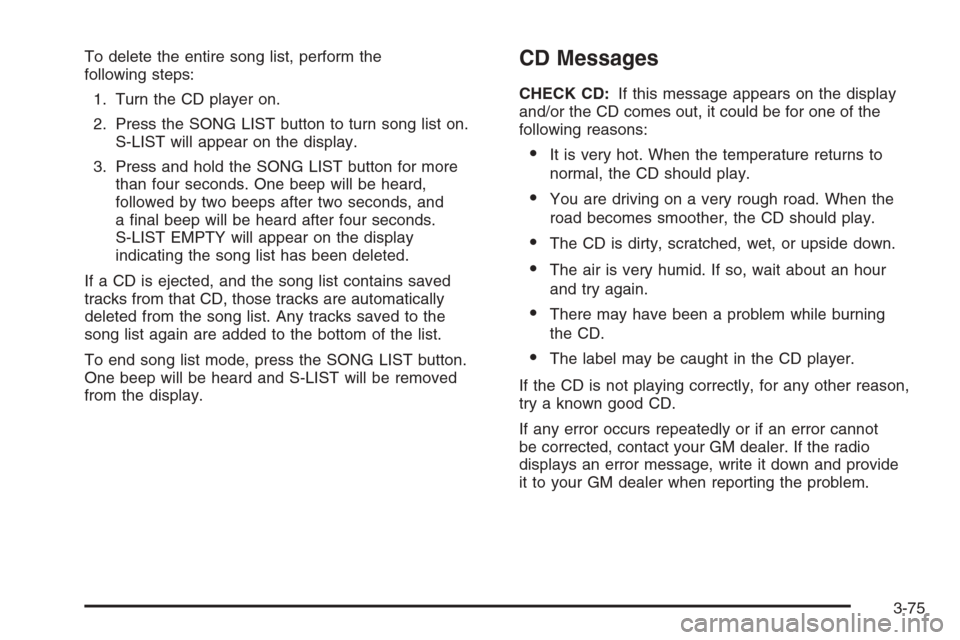

To delete the entire song list, perform the
following steps:
1. Turn the CD player on.
2. Press the SONG LIST button to turn song list on.
S-LIST will appear on the display.
3. Press and hold the SONG LIST button for more
than four seconds. One beep will be heard,
followed by two beeps after two seconds, and
a nal beep will be heard after four seconds.
S-LIST EMPTY will appear on the display
indicating the song list has been deleted.
If a CD is ejected, and the song list contains saved
tracks from that CD, those tracks are automatically
deleted from the song list. Any tracks saved to the
song list again are added to the bottom of the list.
To end song list mode, press the SONG LIST button.
One beep will be heard and S-LIST will be removed
from the display.CD Messages
CHECK CD:If this message appears on the display
and/or the CD comes out, it could be for one of the
following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road. When the
road becomes smoother, the CD should play.
The CD is dirty, scratched, wet, or upside down.
The air is very humid. If so, wait about an hour
and try again.
There may have been a problem while burning
the CD.
The label may be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your GM dealer. If the radio
displays an error message, write it down and provide
it to your GM dealer when reporting the problem.
3-75

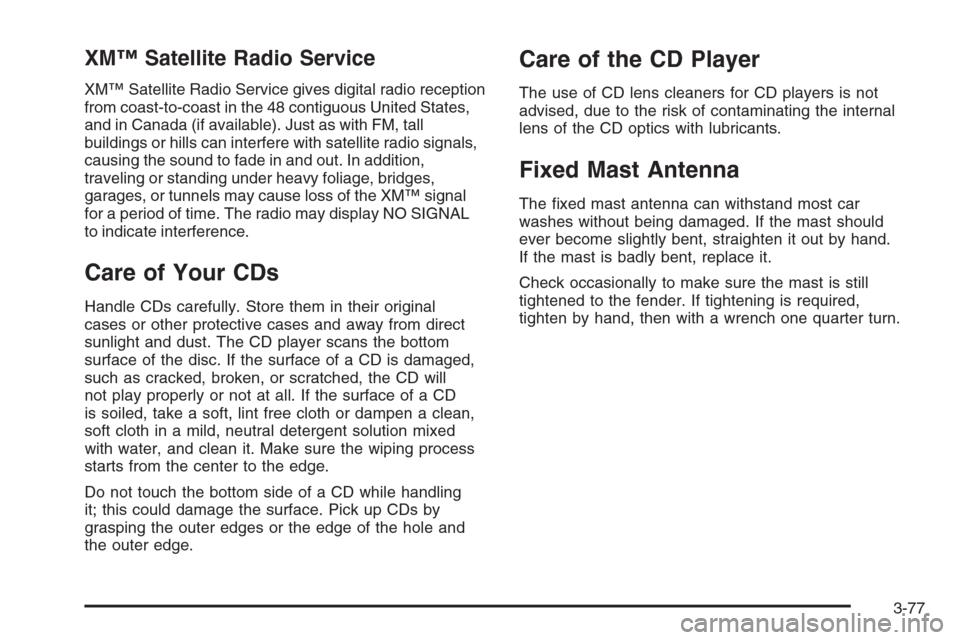

XM™ Satellite Radio Service
XM™ Satellite Radio Service gives digital radio reception
from coast-to-coast in the 48 contiguous United States,
and in Canada (if available). Just as with FM, tall
buildings or hills can interfere with satellite radio signals,
causing the sound to fade in and out. In addition,
traveling or standing under heavy foliage, bridges,
garages, or tunnels may cause loss of the XM™ signal
for a period of time. The radio may display NO SIGNAL
to indicate interference.
Care of Your CDs
Handle CDs carefully. Store them in their original
cases or other protective cases and away from direct
sunlight and dust. The CD player scans the bottom
surface of the disc. If the surface of a CD is damaged,
such as cracked, broken, or scratched, the CD will
not play properly or not at all. If the surface of a CD
is soiled, take a soft, lint free cloth or dampen a clean,
soft cloth in a mild, neutral detergent solution mixed
with water, and clean it. Make sure the wiping process
starts from the center to the edge.
Do not touch the bottom side of a CD while handling
it; this could damage the surface. Pick up CDs by
grasping the outer edges or the edge of the hole and
the outer edge.
Care of the CD Player
The use of CD lens cleaners for CD players is not
advised, due to the risk of contaminating the internal
lens of the CD optics with lubricants.
Fixed Mast Antenna
The xed mast antenna can withstand most car
washes without being damaged. If the mast should
ever become slightly bent, straighten it out by hand.
If the mast is badly bent, replace it.
Check occasionally to make sure the mast is still
tightened to the fender. If tightening is required,
tighten by hand, then with a wrench one quarter turn.
3-77

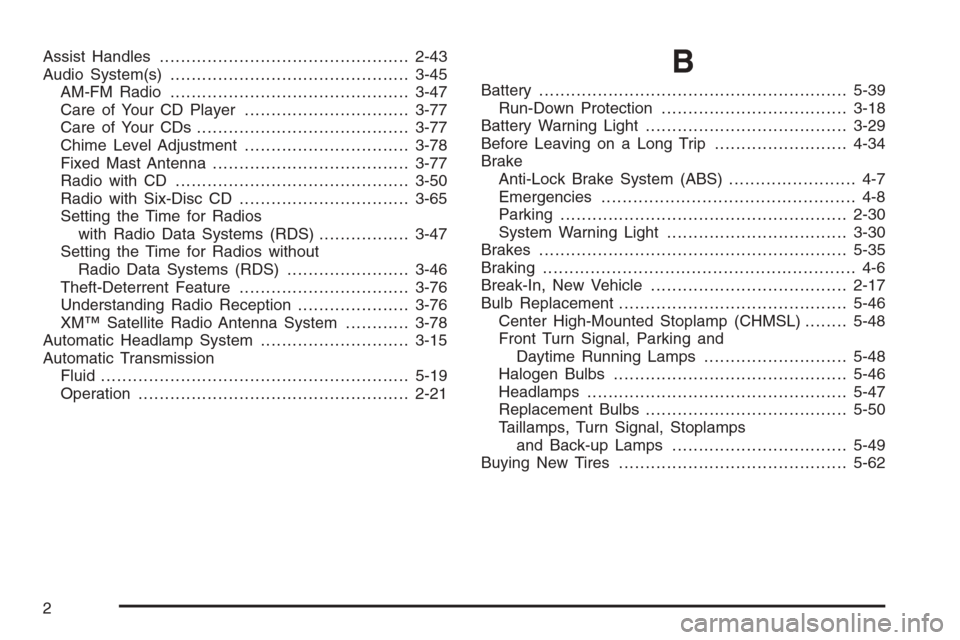

Assist Handles...............................................2-43
Audio System(s).............................................3-45
AM-FM Radio.............................................3-47
Care of Your CD Player...............................3-77
Care of Your CDs ........................................3-77
Chime Level Adjustment...............................3-78
Fixed Mast Antenna.....................................3-77
Radio with CD............................................3-50
Radio with Six-Disc CD................................3-65
Setting the Time for Radios
with Radio Data Systems (RDS).................3-47
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-46
Theft-Deterrent Feature................................3-76
Understanding Radio Reception.....................3-76
XM™ Satellite Radio Antenna System............3-78
Automatic Headlamp System............................3-15
Automatic Transmission
Fluid..........................................................5-19
Operation...................................................2-21B
Battery..........................................................5-39
Run-Down Protection...................................3-18
Battery Warning Light......................................3-29
Before Leaving on a Long Trip.........................4-34
Brake
Anti-Lock Brake System (ABS)........................ 4-7
Emergencies................................................ 4-8
Parking......................................................2-30
System Warning Light..................................3-30
Brakes..........................................................5-35
Braking........................................................... 4-6
Break-In, New Vehicle.....................................2-17
Bulb Replacement...........................................5-46
Center High-Mounted Stoplamp (CHMSL)........5-48
Front Turn Signal, Parking and
Daytime Running Lamps...........................5-48
Halogen Bulbs............................................5-46
Headlamps.................................................5-47
Replacement Bulbs......................................5-50
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps.................................5-49
Buying New Tires...........................................5-62
2

C
Calibration.....................................................2-37
California Fuel.................................................. 5-6
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Specications..........................5-103
Carbon Monoxide...................2-10, 2-34, 4-38, 4-56
Care of
Safety Belts................................................5-92
Your CD Player...........................................3-77
Your CDs ...................................................3-77
Center Front Passenger Position, Safety Belts....1-27
Center High-Mounted Stoplamp (CHMSL)...........5-48
Chains, Tire...................................................5-67
Check
Engine Light...............................................3-32
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-96
Child Restraints
Child Restraint Systems...............................1-41
Infants and Young Children...........................1-38
Lower Anchors and Tethers for Children..........1-47
Older Children.............................................1-35Child Restraints (cont.)
Securing a Child Restraint in
a Rear Seat Position................................1-58
Securing a Child Restraint in
the Center Front Seat Position...................1-61
Securing a Child Restraint in
the Right Front Seat Position.....................1-61
Where to Put the Restraint...........................1-45
Chime Level Adjustment..................................3-78
Cigarette Lighter.............................................3-19
Cleaning
Aluminum Wheels........................................5-94
Exterior Lamps/Lenses.................................5-92
Fabric/Carpet..............................................5-90
Finish Care.................................................5-93
Inside of Your Vehicle..................................5-89
Instrument Panel, Vinyl, and
Other Plastic Surfaces..............................5-91
Leather......................................................5-91
Tires..........................................................5-94
Underbody Maintenance...............................5-95
Washing Your Vehicle...................................5-92
Weatherstrips..............................................5-92
Windshield and Wiper Blades........................5-93
3

P
Paint, Damage...............................................5-95
Park (P)
Shifting Into................................................2-31
Shifting Out of............................................2-33
Parking
Brake........................................................2-30
Over Things That Burn.................................2-34
Parking Your Vehicle.......................................2-33
Passenger Airbag Status Indicator.....................3-27
Passenger Sensing System..............................1-74
Passing.........................................................4-12
Passlock
®......................................................2-16
Pickup Conversion to Chassis Cab....................4-49
Power
Accessory Outlet(s)......................................3-18
Door Locks.................................................. 2-8
Lumbar Controls........................................... 1-4
Retained Accessory (RAP)............................2-18
Seat ............................................................ 1-3
Steering Fluid.............................................5-33
Windows....................................................2-13
Pretensioners, Safety Belt................................1-34
Programmable Automatic Door Locks.................. 2-8
Q
Questions and Answers About Safety Belts.........1-17
R
Radiator Pressure Cap....................................5-26
Radios..........................................................3-45
AM-FM Radio.............................................3-47
Care of Your CD Player...............................3-77
Care of Your CDs ........................................3-77
Radio with CD............................................3-50
Radio with Six-Disc CD................................3-65
Setting the Time for Radios with
Radio Data Systems (RDS).......................3-47
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-46
Theft-Deterrent............................................3-76
Understanding Reception..............................3-76
Rear Axle......................................................5-44
Rear Door Security Locks.................................. 2-9
Rear Doors...................................................... 2-9
Rear Safety Belt Comfort Guides......................1-31
Rear Seat Operation...............................1-10, 1-12
Rear Seat Passengers, Safety Belts..................1-28
Rear Storage Area..........................................2-44
Rearview Mirror, Automatic Dimming with
Compass and Temperature Display................2-37
Rearview Mirror with OnStar
®...........................2-37
Rearview Mirrors.............................................2-36
Reclining Seatbacks.......................................... 1-5
Recommended Fluids and Lubricants.................6-12
Recovery Hooks.............................................4-43
Recreational Vehicle Towing.............................4-50
10
