2006 CHEVROLET COLORADO window

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
..............................................1-10
Safety Belts
.............................................1-13
Child Restraints
.......................................1-35
Airbag System
.........................................1-66
Restraint System Check
............................1-81
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-7
Windows
.................................................2-12
Theft-Deterrent Systems
............................2-15
Starting and Operating Your Vehicle
...........2-17
Mirrors
....................................................2-36
OnStar
®System
......................................2-41
Storage Areas
.........................................2-42
Sunroof
..................................................2-45
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-19
Warning Lights, Gages, and Indicators
........3-22
Driver Information Center (DIC)
..................3-38
Audio System(s)
.......................................3-45Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-50
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Rear Axle
...............................................5-44
Four-Wheel Drive
.....................................5-44
Front Axle
...............................................5-45
Bulb Replacement
....................................5-46
Windshield Wiper Blade Replacement
.........5-50
Tires
......................................................5-52
Appearance Care
.....................................5-89
Vehicle Identication
.................................5-97
Electrical System
......................................5-98
Capacities and Specications
...................5-103
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-14
Index................................................................ 1
2006 Chevrolet Colorado Owner ManualM

{CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can not properly spread the impact
forces. In a crash, the two children can be
crushed together and seriously injured. A belt
must be used by only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt
is very close to the child’s face or neck?
A:If the child is sitting in a seat next to a window,
move the child toward the center of the vehicle.
Also seeRear Safety Belt Comfort Guides on
page 1-31. If the child is sitting in the center rear
seat passenger position, move the child toward
the safety belt buckle. In either case, be sure that
the shoulder belt still is on the child’s shoulder,
so that in a crash the child’s upper body would
have the restraint the belts provide.
1-36

A forward-facing child seat (C-E) provides restraint for
the child’s body with the harness and also sometimes
with surfaces such as T-shaped or shelf-like shields.A booster seat (F-G) is a child restraint designed to
improve the t of the vehicle’s safety belt system. Some
booster seats have a shoulder belt positioner, and
some high-back booster seats have a ve-point harness.
A booster seat can also help a child to see out the
window.
1-42

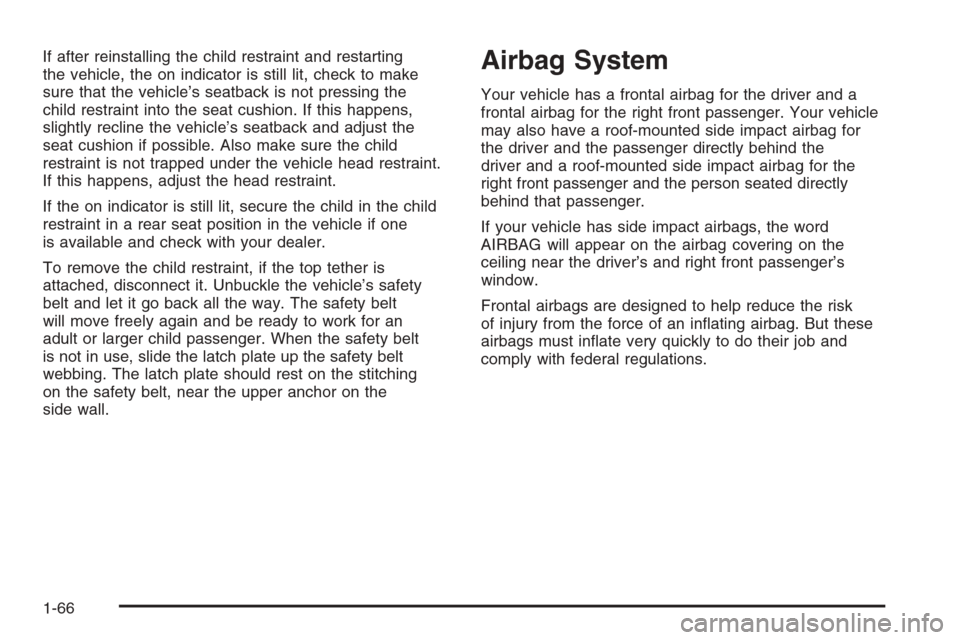

If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the
child restraint into the seat cushion. If this happens,
slightly recline the vehicle’s seatback and adjust the
seat cushion if possible. Also make sure the child
restraint is not trapped under the vehicle head restraint.
If this happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle if one
is available and check with your dealer.
To remove the child restraint, if the top tether is
attached, disconnect it. Unbuckle the vehicle’s safety
belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an
adult or larger child passenger. When the safety belt
is not in use, slide the latch plate up the safety belt
webbing. The latch plate should rest on the stitching
on the safety belt, near the upper anchor on the
side wall.Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your vehicle
may also have a roof-mounted side impact airbag for
the driver and the passenger directly behind the
driver and a roof-mounted side impact airbag for the
right front passenger and the person seated directly
behind that passenger.
If your vehicle has side impact airbags, the word
AIRBAG will appear on the airbag covering on the
ceiling near the driver’s and right front passenger’s
window.
Frontal airbags are designed to help reduce the risk
of injury from the force of an inating airbag. But these
airbags must inate very quickly to do their job and
comply with federal regulations.
1-66

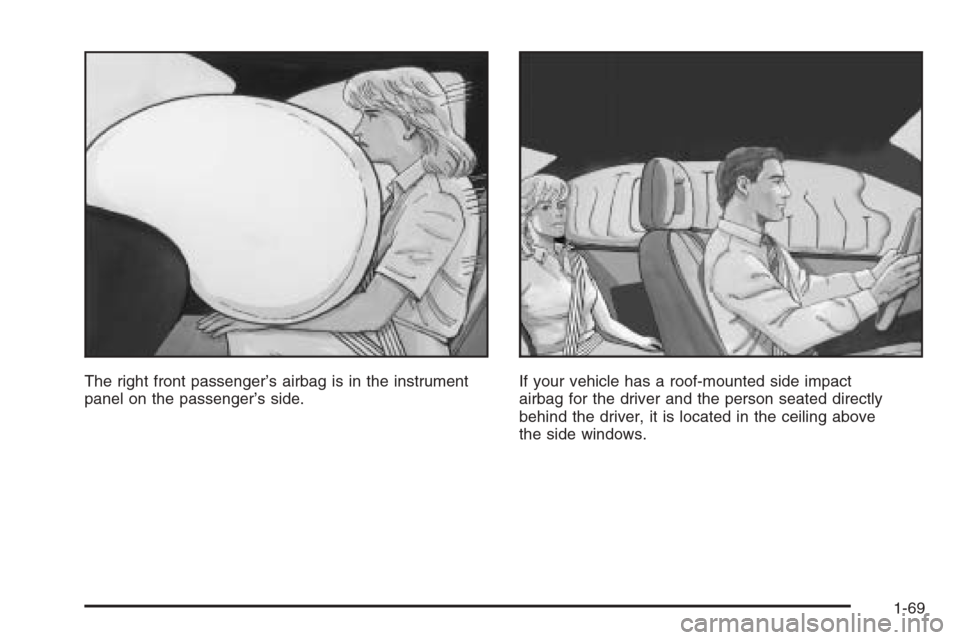

The right front passenger’s airbag is in the instrument
panel on the passenger’s side.If your vehicle has a roof-mounted side impact
airbag for the driver and the person seated directly
behind the driver, it is located in the ceiling above
the side windows.
1-69

If your vehicle has a roof-mounted side impact airbag
for the right front passenger and the person seated
directly behind that passenger, it is located in the
ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. If your vehicle has side
impact airbags, never secure anything to the
roof of your vehicle by routing the rope or
tiedown through any door or window opening.
If you do, the path of an inating side impact
airbag will be blocked. The path of an inating
airbag must be kept clear.
1-70

The threshold level can vary with specic vehicle
design. Side impact airbags are not intended to inate
in frontal or near-frontal impacts, rollovers or rear
impacts. Both side impact airbags will deploy when
either side of the vehicle is struck.
Your vehicle has seat position sensors which enable the
sensing system to monitor the position of the driver’s
seat and the right front passenger’s seat. Seat position
sensors provide information that is used to determine
if the airbags should deploy at a reduced level or at
full deployment.
In any particular crash, no one can say whether an
airbag should have inated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, ination is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down in frontal or near-frontal
impacts. For side impact airbags, ination is determined
by the location and severity of the impact.
The airbag system is designed to work properly under
a wide range of conditions, including off-road usage.
Observe safe driving speeds, especially on rough
terrain. As always, wear your safety belt. SeeOff-Road
Driving on page 4-15for more tips on off-road driving.What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. The sensing
system triggers a release of gas from the inator, which
inates the airbag. The inator, airbag, and related
hardware are all part of the airbag modules inside the
steering wheel and in the instrument panel in front of the
right front passenger. For vehicles with roof-mounted side
impact airbags, there are also airbag modules in the
ceiling of the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper body,
stopping the occupant more gradually. But the frontal
airbags would not help you in many types of collisions,
including rollovers, rear impacts, and many side impacts,
primarily because an occupant’s motion is not toward the
airbag. Side impact airbags would not help you in many
types of collisions, including many frontal or near frontal
collisions, rollovers, and rear impacts, primarily because
an occupant’s motion is not toward those airbags.
1-72

Airbags should never be regarded as anything more
than a supplement to safety belts, and then only in
moderate to severe frontal or near-frontal collisions for
the driver’s and right front passenger’s frontal airbags,
and only in moderate to severe side collisions for side
impact airbags.
What Will You See After an
Airbag Inates?
After a frontal airbag inates, it quickly deates,
so quickly that some people may not even realize the
airbag inated. Roof-mounted side impact airbags
deate more slowly and may still be at least partially
inated minutes after the vehicle comes to rest.
Some components of the airbag module — the steering
wheel hub for the driver’s airbag, the instrument
panel for the right front passenger’s airbag or the
ceiling of your vehicle near the side windows — may
be hot for a short time. The parts of the airbag that
come into contact with you may be warm, but not too
hot to touch. There will be some smoke and dust coming
from the vents in the deated airbags. Airbag ination
does not prevent the driver from seeing out of the
front windshield or being able to steer the vehicle,
nor does it stop people from leaving the vehicle.
{CAUTION:
When an airbag inates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is
safe to do so. If you have breathing problems
but cannot get out of the vehicle after an
airbag inates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment,
you should seek medical attention.
Your vehicle has a feature that may automatically
unlock the doors (if equipped with power door locks),
turn the interior lamps on, ash the hazard warning
ashers, and turn off the radio when the airbag inates
(if battery power is available). You can lock the doors
again by using the door lock. The interior lamps
and hazard warning ashers will deactivate after
approximately 15 minutes. You can use the radio
controls to adjust the radio.
1-73
