2006 CHEVROLET AVALANCHE belt

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-8
Safety Belts
.............................................1-10
Child Restraints
.......................................1-29
Airbag System
.........................................1-54
Restraint System Check
............................1-69
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-8
Windows
.................................................2-22
Theft-Deterrent Systems
............................2-24
Starting and Operating Your Vehicle
...........2-27
Mirrors
....................................................2-45
OnStar
®System
......................................2-57
Universal Home Remote System
................2-59
Storage Areas
.........................................2-63
Sunroof
..................................................2-89
Vehicle Personalization
.............................2-90
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-22
Warning Lights, Gages, and Indicators
........3-31
Driver Information Center (DIC)
..................3-49
Audio System(s)
.......................................3-70Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-56
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-11
Rear Axle
...............................................5-51
Four-Wheel Drive
.....................................5-52
Front Axle
...............................................5-53
Bulb Replacement
....................................5-54
Windshield Wiper Blade Replacement
.........5-63
Tires
......................................................5-64
Appearance Care
...................................5-103
Vehicle Identication
...............................5-112
Electrical System
....................................5-113
Capacities and Specications
...................5-122
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-14
Index................................................................ 1
2006 Chevrolet Avalanche Owner ManualM

Front Seats......................................................1-2
Manual Passenger Seat..................................1-2
Power Seats..................................................1-2
Power Lumbar ...............................................1-3
Heated Seats.................................................1-4
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-7
Rear Seats.......................................................1-8
Rear Seat Operation.......................................1-8
Safety Belts...................................................1-10
Safety Belts: They Are for Everyone................1-10
Questions and Answers About Safety Belts......1-14
How to Wear Safety Belts Properly.................1-15
Driver Position..............................................1-15
Safety Belt Use During Pregnancy..................1-22
Right Front Passenger Position.......................1-23
Center Front Passenger Position.....................1-23
Rear Seat Passengers..................................1-24
Rear Safety Belt Comfort Guides....................1-27
Safety Belt Extender.....................................1-28
Child Restraints.............................................1-29
Older Children..............................................1-29
Infants and Young Children............................1-31
Child Restraint Systems.................................1-35Where to Put the Restraint.............................1-40
Lower Anchors and Tethers for
Children (LATCH)......................................1-41
Securing a Child Restraint in a
Rear Seat Position....................................1-47
Securing a Child Restraint in the Center
Front Seat Position....................................1-49
Securing a Child Restraint in the Right
Front Seat Position....................................1-50
Airbag System...............................................1-54
Where Are the Airbags?................................1-56
When Should an Airbag Inate?.....................1-59
What Makes an Airbag Inate?.......................1-61
How Does an Airbag Restrain?.......................1-61
What Will You See After an
Airbag Inates?.........................................1-62
Passenger Sensing System............................1-63
Servicing Your Airbag-Equipped Vehicle...........1-68
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-68
Restraint System Check..................................1-69
Checking the Restraint Systems......................1-69
Replacing Restraint System Parts
After a Crash............................................1-70
Section 1 Seats and Restraint Systems
1-1

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.
Pull the head restraint up to raise it. Push the head
restraint down to lower it.
The rear seat head restraints are adjustable and work
the same as the front seat head restraints.
1-7

Rear Seats
Rear Seat Operation
The rear seat is a 60/40 split bench seat that can be
folded to give you more cargo space and access to the
folding midgate. SeeMidgate
®on page 2-11for
more information on operation of the folding midgate.
To fold either side of the seat do the following:
1. Push the rear seat head restraints all the way down.
2. Pull the seat loop
located where the
seatback and
seat cushion meet. The
seat cushion will
release and allow you
to tilt it toward the
front of the vehicle.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.3. Fold the seatback forward until it is at. You may
have to move the front seats forward slightly to
do this.
4. Repeat the procedure for the other side.
To return the seats to the normal position, push the
seatback up and fold the seat cushion down.
1-8

{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
be sure to press the rear of the seat cushion
down. This action locks the seatback in place.
Push and pull on the seatback to make sure it is locked.
Raise the head restraint.
1-9

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-33.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be
so serious that even buckled up, a person would
not survive. But most crashes are in between.
1-10

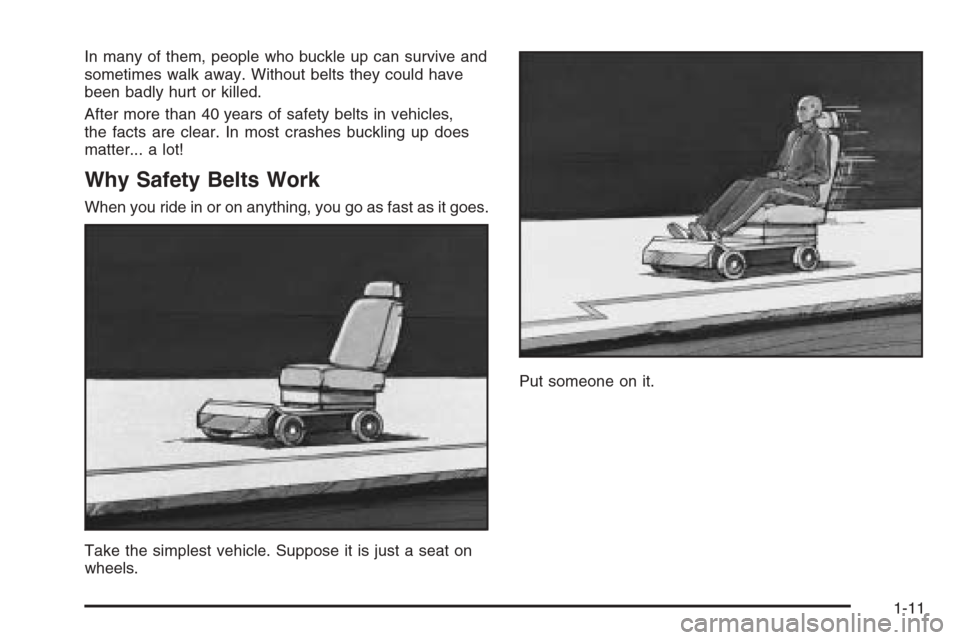

In many of them, people who buckle up can survive and
sometimes walk away. Without belts they could have
been badly hurt or killed.
After more than 40 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.Put someone on it.
1-11

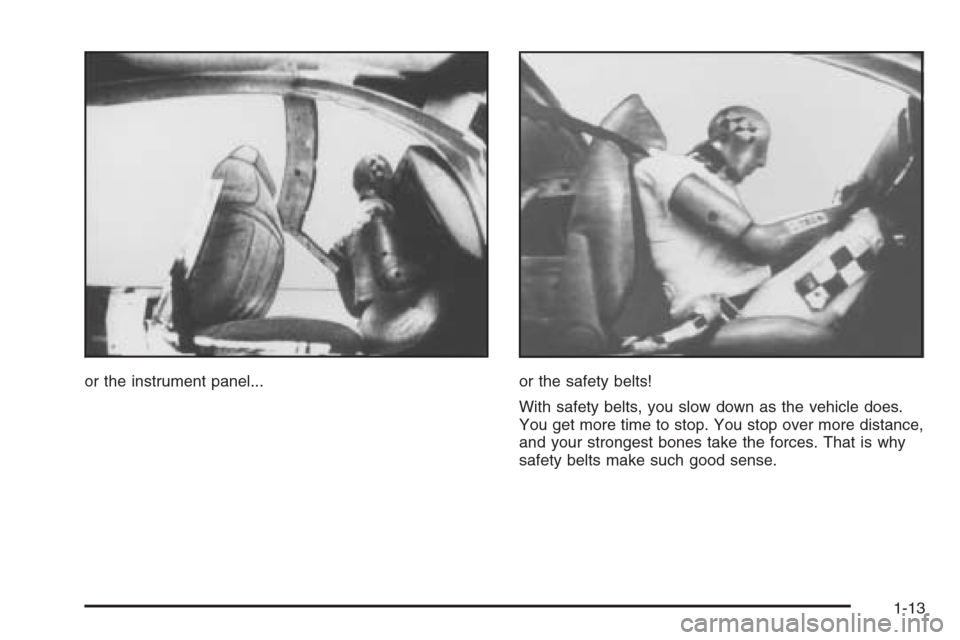

or the instrument panel... or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
1-13
