2006 CHEVROLET AVALANCHE clock

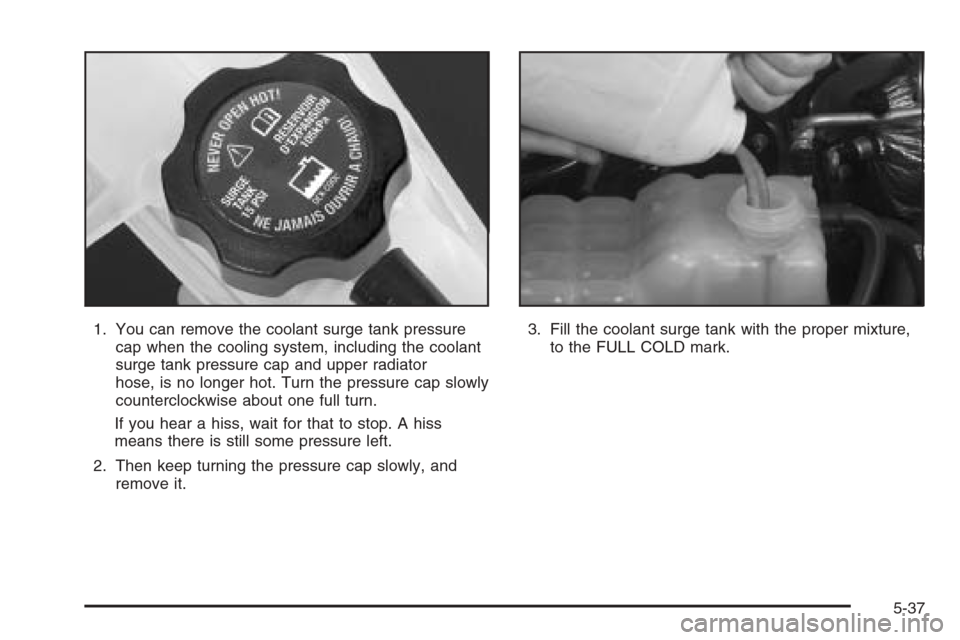

1. You can remove the coolant surge tank pressure
cap when the cooling system, including the coolant
surge tank pressure cap and upper radiator
hose, is no longer hot. Turn the pressure cap slowly
counterclockwise about one full turn.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
2. Then keep turning the pressure cap slowly, and
remove it.3. Fill the coolant surge tank with the proper mixture,
to the FULL COLD mark.
5-37

A. Low-Beam Headlamp
B. High-Beam Headlamp
6. Turn the bulb connector counterclockwise and pull it
out of the assembly.
7. Unplug the electrical connector from the old bulb.
8. Plug in the electrical connector to the new bulb.
9. Place the connector with the new bulb into
the headlamp assembly and turn it clockwise until it
is tight.
10. Put the headlamp assembly back into the vehicle
and reinstall the two pins.
11. Place the inboard end of the turn signal/parking
lamp assembly into the pocket.
12. Push the outboard side of the assembly in until the
release clip snaps into place.
Vehicles without Body-Side Cladding
To replace a headlamp bulb, do the following:
1. Open the hood. SeeHood Release on page 5-12
for more information.
2. Remove the pin on the headlamp assembly by
turning the pin up and pulling it straight out.
3. Pull the headlamp assembly out.
5-56

A. Low-Beam Headlamp
B. High-Beam Headlamp
4. Unplug the electrical connector.
5. Turn the old bulb counterclockwise and remove it
from the headlamp assembly.
6. Put the new bulb into the assembly and turn it
clockwise until it is tight.
7. Plug in the electrical connector.
8. Reinstall the headlamp assembly.
9. Install the pin and turn it into the locking feature.
Front Turn Signal, Sidemarker and
Parking Lamps
Vehicles with Body-Side Cladding
To replace a front turn signal, sidemarker, or parking
lamp bulb, do the following:
1. Open the hood. SeeHood Release on page 5-12
for more information.
2. Remove the turn
signal/parking lamp
assembly by pressing
the release clip on the
outboard side of the
assembly and pulling
the outboard end of the
assembly toward you.
3. Pull the inboard side of the assembly out from the
vehicle.
5-57

A. Sidemarker Lamp
B. Front Turn Signal/Parking Lamp4. Press the locking release lever (the sidemarker
lamp does not have a locking release lever), turn
the bulb socket counterclockwise and remove it from
the turn signal/parking lamp assembly.
5. Remove the old bulb from the bulb socket.
6. Put the new bulb into the bulb socket.
7. Put the bulb socket into the turn signal assembly
and turn it clockwise until it locks (the sidemarker
lamp does not lock into place).
8. Place the inboard end of the turn signal/parking
lamp assembly into the pocket.
9. Push the outboard side of the assembly in until the
release clip snaps into place.
5-58

A. Daytime Running Lamp (DRL)
B. Front Turn Signal/Parking Lamp
C. Sidemarker Lamp4. Press the locking release lever (the sidemarker
lamp does not have a locking release lever), turn
the bulb socket counterclockwise and remove it
from the turn signal assembly.
5. Remove the old bulb from the bulb socket.
6. Install a new bulb into the bulb socket.
7. Reinstall the bulb socket into the turn signal
assembly and turn it clockwise until it locks
(the sidemarker lamps does not lock into place).
8. Reinstall the turn signal assembly back onto the
vehicle placing the hook and posts on the inner
side into the alignment holes rst and then the outer
side into the retainer bracket. Push until you hear
a click.
9. Reinstall the headlamp assembly back into the
vehicle.
5-60

Daytime Running Lamps (DRL)
Vehicles with Body-Side Cladding
The daytime running lamps (DRL) are located in the
front fascia near the fog lamps. They can be identied by
their square shape. To change a bulb, do the following:
1. Reach under the front fascia and locate the
DRL assembly. Be sure you are not picking the fog
lamp assembly, which is near the DRLs.
2. Turn the bulb socket
counterclockwise and
remove it from the DRL
assembly.
3. Pull out the old bulb from the socket.
4. Install a new bulb.
5. Reinstall the bulb socket back into the DRL
assembly and turn it clockwise until it is tight.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
To replace one of these bulbs, do the following:
1. Open the tailgate. SeeTailgate on page 2-20for
more information.
2. Remove the two rear
lamp assembly screws
near the tailgate
latch and pull out the
lamp assembly.
5-61

3. Locate the bulb you wish to change.
A. Stoplamp/Taillamp
B. Turn Signal Lamp
C. Back-up Lamp
4. Press the release tab
and turn the bulb socket
counterclockwise to
remove it from the
taillamp assembly.5. Pull the old bulb straight out from the socket.
6. Press a new bulb into the socket and turn the socket
clockwise into the taillamp assembly until it clicks.
7. Reinstall the taillamp assembly and tighten the
screws.
License Plate Lamp
To replace one of these bulbs, do the following:
1. Reach under the rear bumper for the bulb socket.
2. Twist the bulb socket counterclockwise and pull the
bulb socket out of the connector.
5-62

Removing the Spare Tire and Tools
The jack and the wheel blocks are located under a
cover near the passenger side rear seat.
To remove the jack and wheel blocks, do the following:
1. Remove the jack cover by turning the two wing nuts
one-quarter turn counterclockwise and pulling the
jack cover off.A. Wheel Blocks
B. Knob
C. Wing Nut
D. Retaining HookE. Jack
F. Jack Head
G. Mounting Bracket
2. Release the jack (E) from the mounting bracket (G)
by turning the knob (B) on the jack counterclockwise
to lower the jack head (F) from the mounting bracket.
3. Remove the wheel blocks (A) attached to the jack (E)
by turning the wing nut (C) counterclockwise. Place
the wheel blocks where needed as indicated in
previously in this section. Rear Seat (Passenger Side) Jack Cover
5-86
